 Topic: serial #
Posted: 13 Feb 2020 at 2:24pm |
|
I have a WD45 that does not have a serial number on the rear housing. Does that mean that maybe it was a replaced part from factory?
|
 |
|
Sponsored Links
|
|
|
Steve Bright
Orange Level
Joined: 14 Sep 2009
Location: Martinsville, I
Points: 2107
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 2:36pm |
|
NO it is stamped into the housing, It is either covered with a lot of paint or someone has removed it, Usually scrape the paint with a pocket knife and it will appear.
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 2:41pm |
|
Take a close look. Sometimes they are covered by paint and hard to see. I know where mine is and could hardly find it a few minutes ago. Left side above the square set screw and below the hole for brake spring.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21862
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 2:46pm |
|
BUT, if there is no serial number in the usual place just ahead of the lift shaft, next to the square head brake shoe adjustment screw on the left side, it is a new housing that was replaced at some time in its life. The reason?? Someone ran the rear end out of oil and the pinion shaft bearing locked up and cracked the housing bore.
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 2:51pm |
|
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 2:53pm |
|

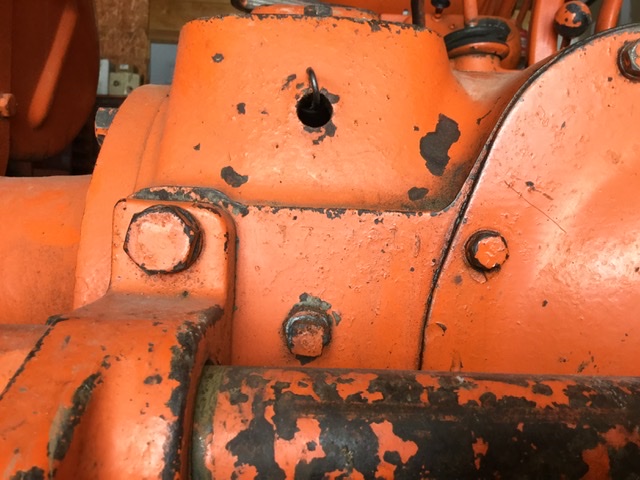

There you go. Left side in middle of pic. Can hardly see it. I really struggle getting these pics on here but this is good practice! 😀 Above the square set screw on the flat just below the line. Mine is 175421. I can see it all with a good light shining on an angle and maybe my close up glasses on. LOL.
Edited by Ed (Ont) - 13 Feb 2020 at 2:57pm
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2259
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 4:36pm |
I recall discussion about this in the past.......sometimes the serial # is located on the edge of the LH brake housing opening next to or under the cover. That may have been for early WDs only? I saw a picture somewhere......now, if I could only remember where!
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 4:56pm |
|
Brian the pic is right above your message! 😀. Let me know if it is not showing. Was posted from iPad.
Edited by Ed (Ont) - 13 Feb 2020 at 5:29pm
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2335
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 5:33pm |
Mine have wd before the number.---yes they are hard to read as some of them were barely hit and the weather/rust/sandblasting/etc. has about wiped them off. Location in pic. above is the only place you will find the numbers. ---If it aint there---you aint got one! ---- Tractor may have been stolen sometime in its life which would mean no number.
I have seen several on auctions that didn't have numbers. ---I assume they were stolen then put up for sale.
|
|
http://machinebuildersnetwork.com/
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Feb 2020 at 7:54pm |
|
Early WD had # just to right of left brake cover. MACK
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21862
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 7:18am |
|
ac fleet......They all say WD xxxxxxx. They do not say WD45 xxxxxxx. The WD45 began at a certain serial number, but the tractor is still a "WD" series.
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29805
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 7:22am |
|
If it has the original hydraulic pump yet, I believe the serial number on the pump should match the serial number of the tractor..... if it has the original pump.
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
groundhog55
Silver Level
Joined: 26 Apr 2011
Location: nw in
Points: 217
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 7:41am |
|
I know were it should be, because I have two more 45's, and I have looked at a lot of tractors for other guys. It is not covered with paint!
|
|
Lonn
Orange Level
Joined: 16 Sep 2009
Location: Назарово,Russia
Points: 29805
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 7:48am |
|
Then I'd say you have what the doc says you have, a replaced housing. If the hydraulic pump is original you could stamp that same number into the housing. If I'm right about the pumps sharing the same serial number.
|
|
-- --- .... .- -- -- .- -.. / .-- .- ... / .- / -- ..- .-. -.. . .-. .. -. --. / -.-. .... .. .-.. -.. / .-. .- .--. .. ... -
Wink
I am a Russian Bot
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 7:49am |
I don’t see a WD on mine. I will take another look but it was painted many years ago so maybe too much paint.
Just took a good look at the original pic on my iPad and yes the WD is there! Just to left of the first digit. Very faint and a bit smaller than the numbers. Maybe done in different way. Harder to see in post - pic was downsized.
Edited by Ed (Ont) - 14 Feb 2020 at 8:02am
|
|
Charlie175
Orange Level
Joined: 11 Sep 2009
Location: Shenandoah, VA
Points: 6369
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 8:10am |
I see WD
|
|
Charlie
'48 B, '51 CA, '56 WD45 '61 D17, '63 D12, '65 D10 , '68 One-Ninety XTD
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 8:17am |
|
How do you do that? LOL.
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2335
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 10:25am |
|
I know they don't say wd-45! --- I mearly said that the 45 has the letters wd before the numbers! the wd's only have the number---no pre letters. ---- it don't matter anyway.
|
|
http://machinebuildersnetwork.com/
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2259
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 10:58am |

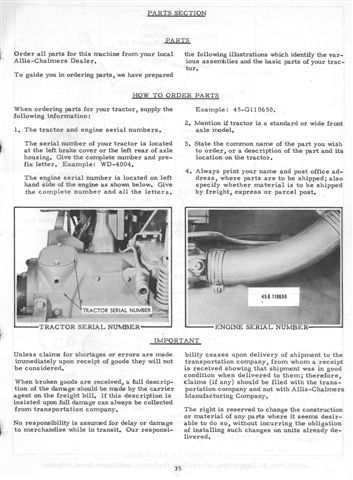

As I (and Mack) said, early WD #s were sometimes near or under the RH side of the LH brake cover on the top of the housing. I know that sometime in the past someone posted a picture of a number there but I don't know where to find it. I remember someone posting a picture of the number on the hydraulic pump also but don't know where to find that either. The only place I have seen the number myself is where Ed (Ont) shows it in his picture. However, the "Operating Instructions and Parts Illustrations" for the "MODEL WD-45 TRACTOR" shows the location in two places. I'm assuming in one of either of the two places.
|
|
Ed (Ont)
Orange Level
Joined: 08 Nov 2009
Location: New Lowell, Ont
Points: 1488
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 11:04am |
 ac fleet wrote:
I know they don't say wd-45! --- I mearly said that the 45 has the letters wd before the numbers! the wd's only have the number---no pre letters. ---- it don't matter anyway.
|
No one on here is criticizing you! I for one did not know about the letters in front and am glad that I do know about it now. So I guess I'm the dummy.
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2259
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Feb 2020 at 11:33am |
If it turns out that it really has NO number and is a replacement housing, it would be a perfect match for my WD-45 with no engine number. Could make it anything you wanted it to be.....maybe even somebody's grandpa's long lost WD-45?
|
|
