Repairing Allis Chalmers Power Feed Box (wagon) |
Post Reply | Page 12> |
Author | |
solidground
Bronze Level Joined: 12 Dec 2016 Location: Kingston, NY Points: 21 |
Post Options
Thanks(0)
Posted: 16 Mar 2021 at 1:55pm |
Hi all, I just got an AC self-unloading wagon (power feed box) with a non-working front apron. The main apron that draws silage forward works fine, but the smaller one that pushes stuff out the side outlet needs to be fixed. For sure I need to replace the chain that brings power over to the gears that run it (not the apron, but just the chain), and the bevel gears that send power to that chain also are mashed up. I'm looking around for even a parts catalogue, but I can't find anything. Does anyone have any recommendation for how to find replacement parts? I know these wagons aren't common anymore. Thanks so much!
|
|
Sponsored Links | |
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8135 |
Post Options
Thanks(0)
|
hi.
We’re not to far from you. Just up near Albany. We might have nos parts you need. Hopefully someone will have a parts book to get us numbers. I’ll also look for parts book.
Edited by Mikez - 16 Mar 2021 at 2:58pm |
|
Doug5545
Bronze Level Access Joined: 22 Dec 2016 Location: Olathe Colorado Points: 9 |
Post Options
Thanks(0)
|
I have one for parts here in Colorado come over You can have them. Doug
|
|
Alex09(WI)
Orange Level Joined: 15 Mar 2012 Location: CECIL WI Points: 1698 |
Post Options
Thanks(0)
|
I have a hard copy parts book for the self-unloading forage wagons and power feed boxes, so if you can post a pic of the parts you need, I can hopefully find the part # and Mike, myself and others might be able to come up with the parts for you.
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287 KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY |
|
solidground
Bronze Level Joined: 12 Dec 2016 Location: Kingston, NY Points: 21 |
Post Options
Thanks(0)
|

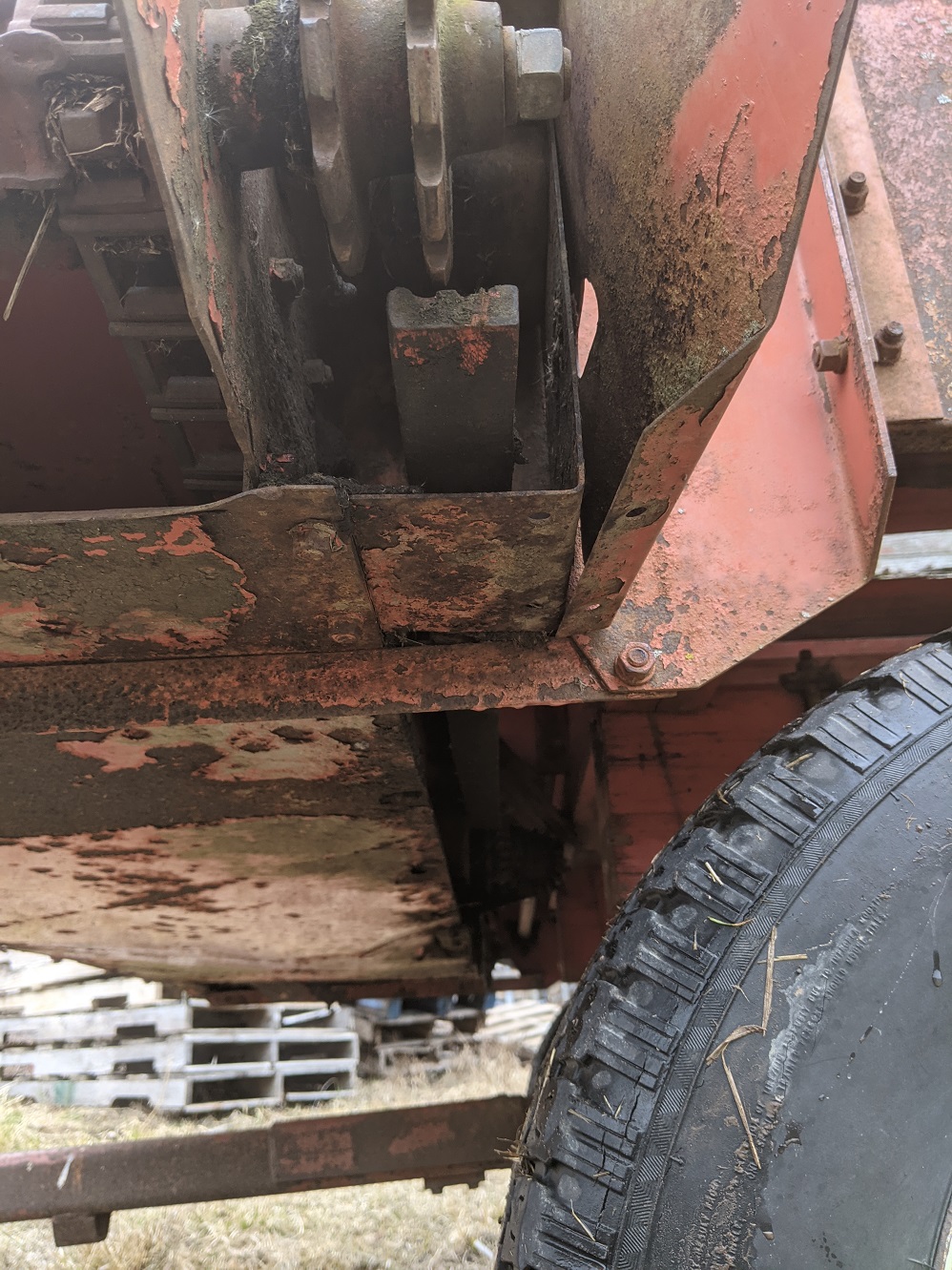

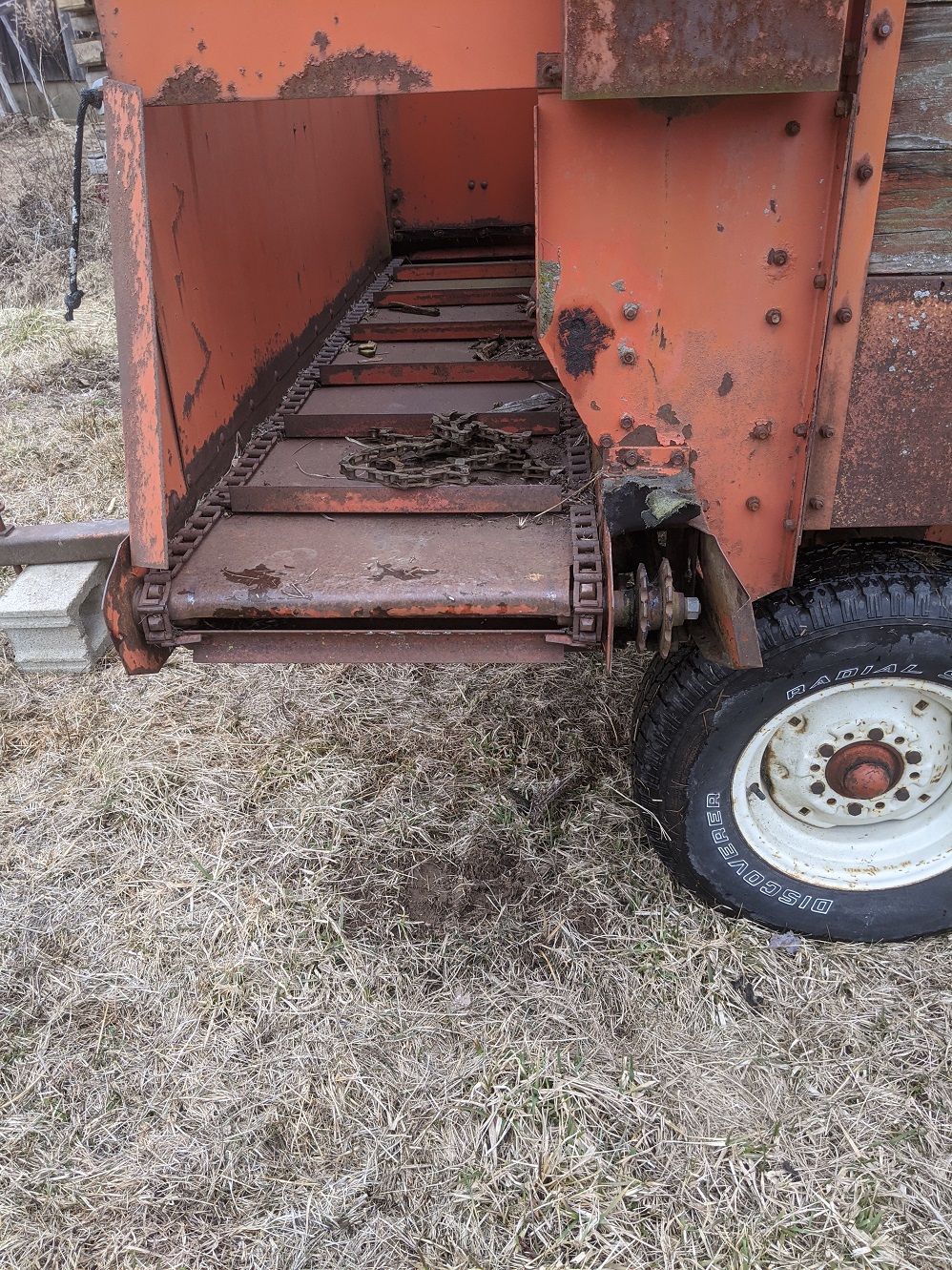

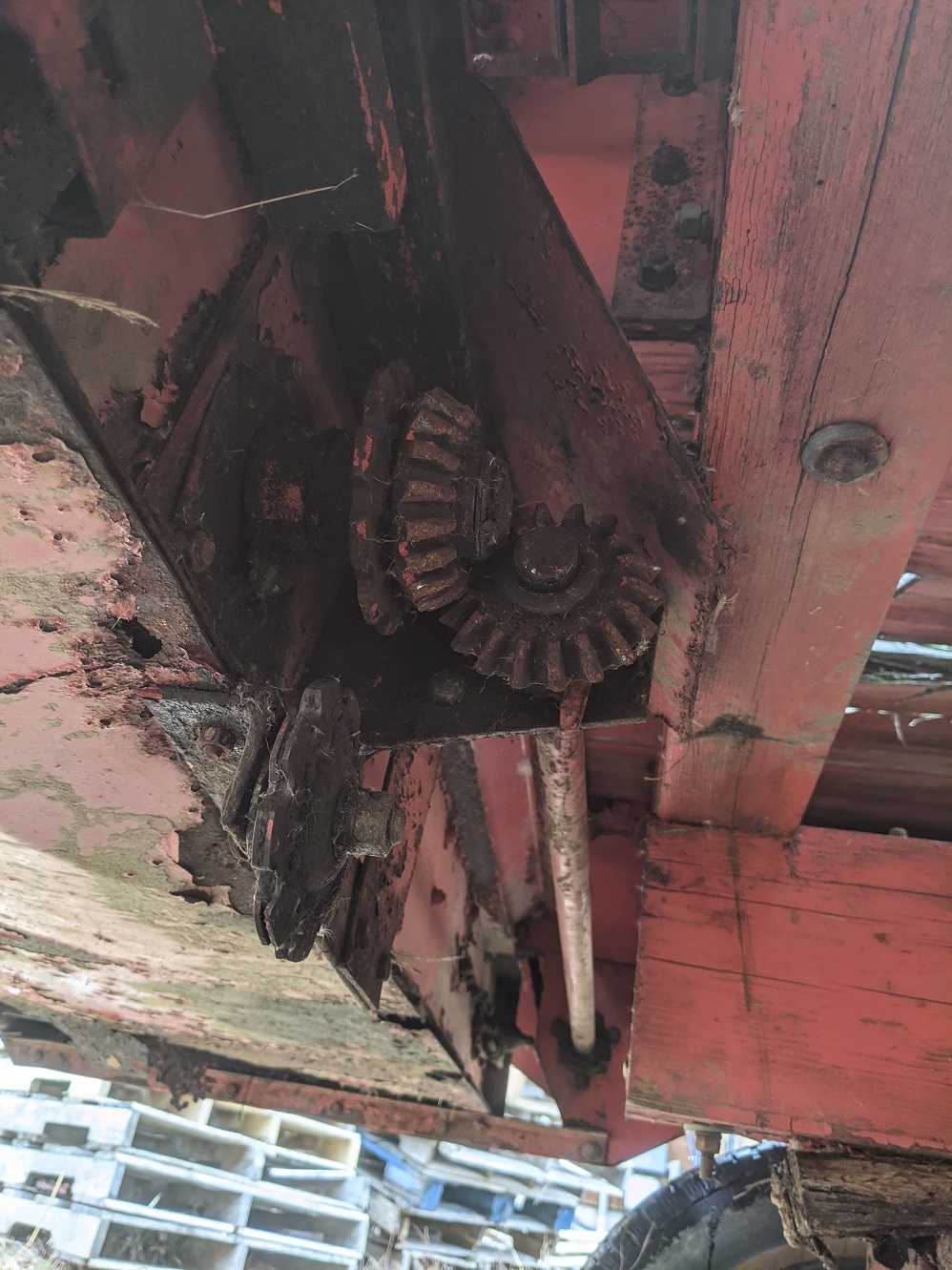

OK thank you all so much- I really appreciate your help. I'm attaching a few pictures to show what I'm describing - there are the bevel gears that are gnashed up, and the chain (which is powered by the bevel gear and transfers power to the unloading apron) has broken. Do these look replaceable? |
|
HD6GTOM
Orange Level Joined: 30 Nov 2009 Location: MADISON CO IA Points: 6627 |
Post Options
Thanks(0)
|
I wonder who built them for AC. Were they a Badger built unit or something else?
|
|
dr p
Orange Level Joined: 24 Feb 2019 Location: new york Points: 1008 |
Post Options
Thanks(0)
|
I think Calhoun made them
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|
Soildground, Nice older AC power feed box.
The first AC power feed silage box (supplied by Calhoun Co., Cedar Falls, Iowa) production was marketed from about 1959-1962. It was usually monted on a 7 ton gear. 1964& later Power feed boxes were built by AC at Laporte - courteous Norm Swinford's 1914-1985 AC Equipment book. If your wagon sits on an AC running gear, it should have an ID tag located on its rear frame. If you tell me the numbers from that ID tag, I can tell you which gear it is. IMO, your wagon’s bevel gears don’t look that bad. That looks like typical wear on bevels. If you haven’t tried running them, attach some 2040/2050?? drive chains to it’s unloader & given it a turn by pto. Buy “A”(USA made)not “I” (Import made)replacement chain. US last longer, Import stretches quicker & wears out sprockets. Web links below. It’s unloader chain & slats looks like it uses a common “steel detachable chain”? Maybe 55 size - 1.281” outside width.? Here’s a web link to a supplier; https://www.shoupparts.com/A2040-2040-Roller-Chain https://www.shoupparts.com/A2050-2050-Roller-Chainhttps://www.shoupparts.com/SDC55-55-Steel-Detachable-Chain Edited by AC7060IL - 18 Mar 2021 at 6:36am |
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|
If it’s bevel gears are worn out. Their original AC part number is 515366. They are 18T & held onto their round drive shafts with a woodruff key part # 905845.
It’s unloader conveyor uses a 55H detachable chain, part# 921052. The conveyor drive chain part# 918563(108 links). It doesn’t mention its size. If its sprockets measure 1” between teeth(centers) then it probably uses 2040 chain. If it’s sprockets measure 1.25” between teeth, then 2050 chain. If teeth are 1.5”, then 2060 chain. |
|
solidground
Bronze Level Joined: 12 Dec 2016 Location: Kingston, NY Points: 21 |
Post Options
Thanks(0)
|
Wow, thank you all so much for this information - I'll measure the chain to best match it. And yes, it does have an ID plate on the back. It says: Cat. No. 2013847 Serial 7 5999 Allis-Chalmers Mfg Co
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|
Your AC running gear is a model 700.
|
|
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8135 |
Post Options
Thanks(0)
|
ac7060 do you have a picture of the page from parts book with gears.
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|

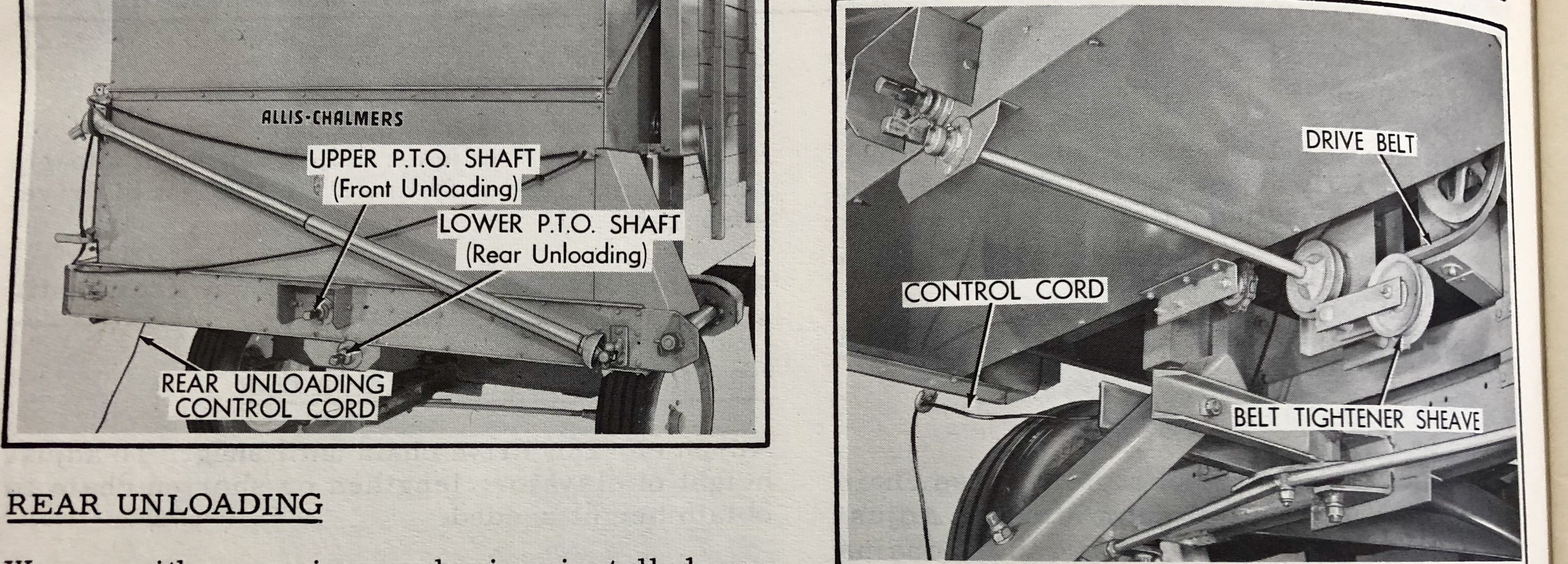

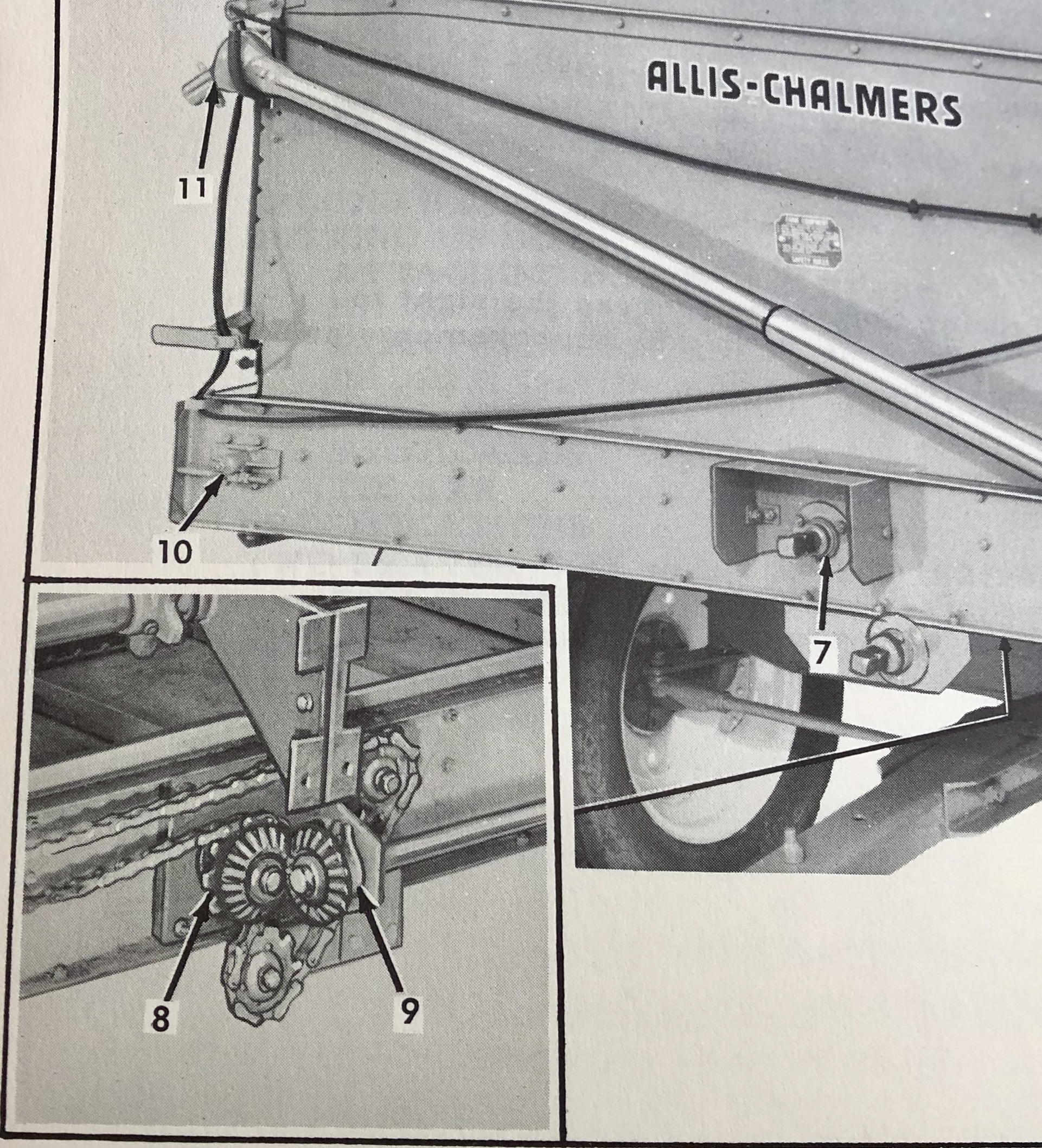

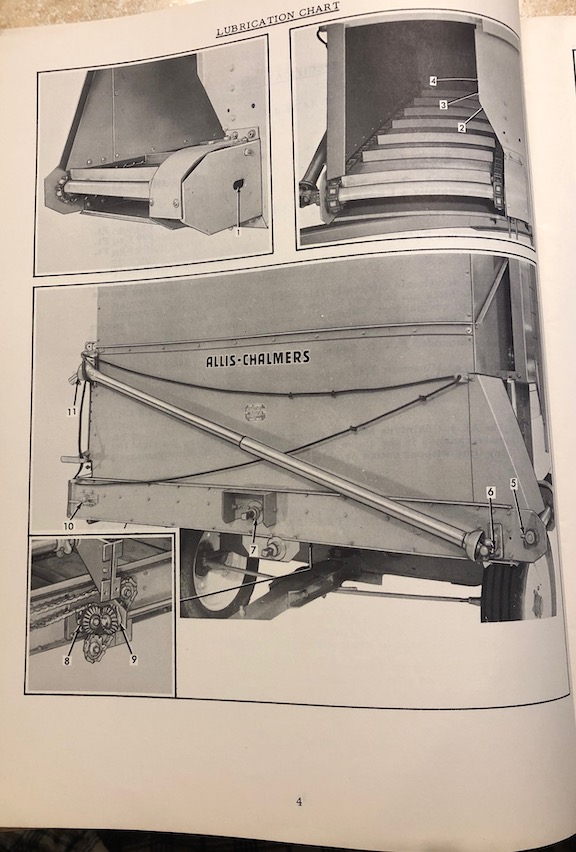

This photo shows a picture of the apron's conveyor drive chain configuration near the bevel gears. Thought that might help Solidground know how to route it?
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|

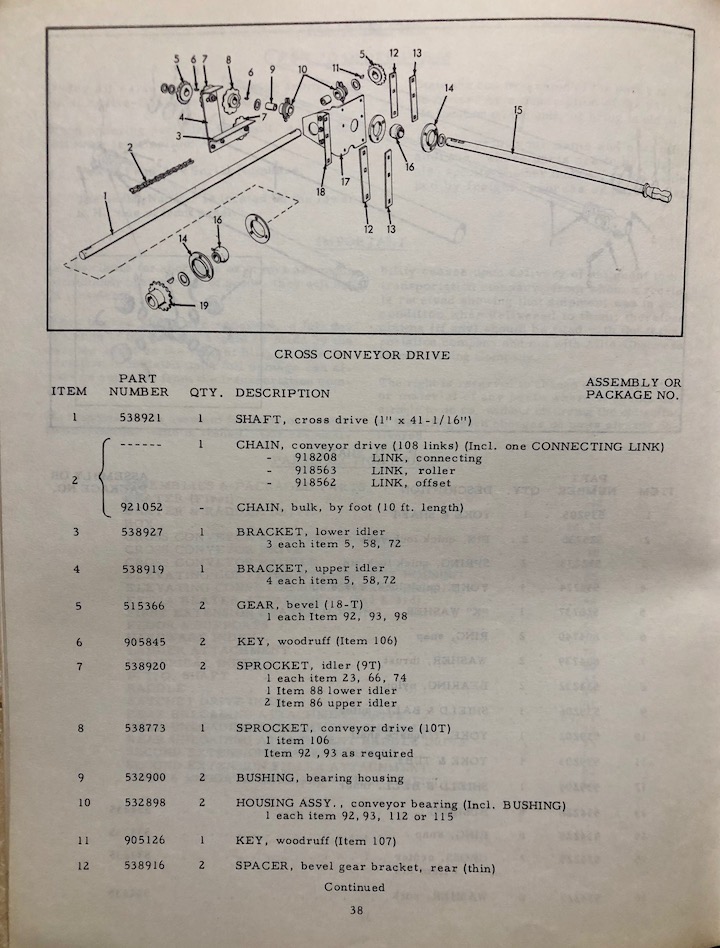

Parts (2) of number 5 are the bevel gears located on the backside of it's pto input shaft.
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|

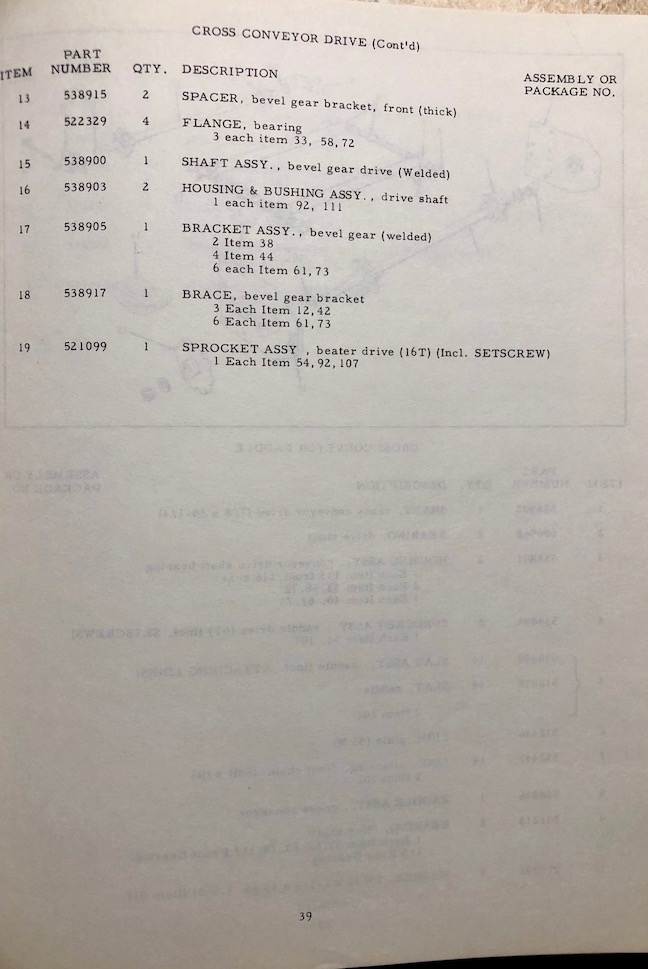

This is the continuation of the bevel gear parts (page 39)
|
|
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8135 |
Post Options
Thanks(0)
|
have card on 515366 and have a box’s different of chain
|
|
Kansas99
Orange Level Access Joined: 26 Feb 2015 Location: W Kansas Points: 4804 |
Post Options
Thanks(0)
|
Nice looking floor yet on that discarge, I take it that rope is for opening and closing the box into the discharge chute? Must have been parked clean or had no silage in it to not be rusted through.
Edited by Kansas99 - 18 Mar 2021 at 1:06pm |
|
"LET"S GO BRANDON!!"
|
|
JimWenigOH
Orange Level Joined: 12 Sep 2009 Location: NC Ohio Points: 1153 |
Post Options
Thanks(0)
|
eBay item # 313076291944, A-C Parts List Self Unloading Forage Wagon, $20
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|
Soildground, I curious - what did your wagon’s conveyor drive sprockets measure between their teeth?

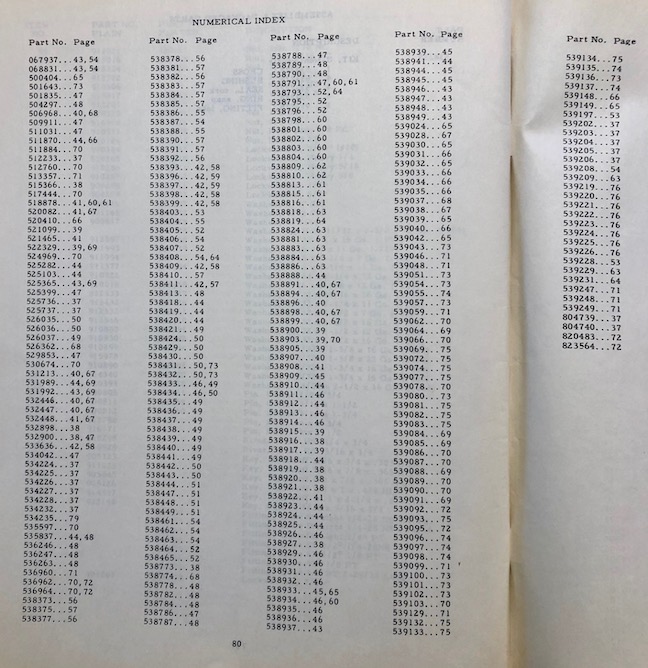

Mikez, that’s amazing that you might have those bevel gears in your old new stock. you said, "have card on 515366 and have a box’s different of chain ." So I'm thinking that your part numbers are listed Numerically by card catalog? If that's correct, here are ALL the part numbers for the AC Power Feed Box. How many of these might you have in stock? Edited by AC7060IL - 19 Mar 2021 at 1:51pm |
|
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8135 |
Post Options
Thanks(0)
|
well ac7060 the bevel gears I was thinking of fit an all crop harvester but yes the cards are the index filling cards. And have one one the number you posted. And one on the chain 921052 and it’s a-2050 and on box written a farmers name and “forage box” .
I’ll check out what else from your parts book. Are you looking for something also.
|
|
solidground
Bronze Level Joined: 12 Dec 2016 Location: Kingston, NY Points: 21 |
Post Options
Thanks(0)
|
Amazing, thank you all so much, for the info and the leads! I really appreciate the help-
|
|
solidground
Bronze Level Joined: 12 Dec 2016 Location: Kingston, NY Points: 21 |
Post Options
Thanks(0)
|
Oh and the old roller chain measures a pitch of 1 1/4 inch, with a inner width of around 3/8 inch. So that's the standard 2050, I think?
|
|
WF owner
Orange Level Joined: 12 May 2013 Location: Bombay NY Points: 4380 |
Post Options
Thanks(0)
|
I have a neighbor that has an old AC forage box sitting in his pasture that I bet could be had for almost nothing. I am about 4 hours north of you.
They were a very good box. If I remember right the bed apron (lags) ratcheted like many old manure spreaders, rather than a worm gear drive.
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|
Mikez, So these index filling cards that you have, were they used in conjunction with a microfiche machine(scanner) like the dealership had back in the 1970-80s? No I'm not looking for any power feed box items. I just thought if it would help anyone, I'd share it's whole listing of the parts numbers.
|
|
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8135 |
Post Options
Thanks(0)
|
no these were before that. I think iv see 1956 on some of them. You had the counter top parts book set up and of course the stacks of books under the counter lol. Then you look up what the customer is looking for and get the part number then go to the index cards, ours are in a wooden box also on counter and find part number which tells the bin location, simple description and how many on hand. Then your supposed to mark what you take out or add into stock.
|
|
WD45Diesel57
Orange Level Joined: 20 Jul 2010 Location: Varna, Ont. Can Points: 646 |
Post Options
Thanks(0)
|
wish the floor on the front looked that good on my two wagons i need to do some fabricating on the both
|
|
1-B's, 2-C, 2-CA's,2-WF, 1-WC,1-G, 3-WD's, 2-WD45, 1-RC, 1-D17 Diesel, 1-D14, 2-D15,1-D17 row crop,1-D19 gas and All Crop 40,60,66,72,90 and 100
|
|
feuchter
Bronze Level Joined: 02 Jul 2014 Location: portville ny Points: 15 |
Post Options
Thanks(0)
|
Is there any information on the input shaft in the main gearbox the pto Hooks to mine snapped off when the pto fell to the road and encountered a pothole
|
|
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8135 |
Post Options
Thanks(0)
|
what’s the part number
|
|
AC7060IL
Orange Level Joined: 19 Aug 2012 Location: central IL Points: 3195 |
Post Options
Thanks(0)
|
