Removing the pivot pin for the hydraulic piston
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
djake View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 14 Nov 2019
Location: Green Isle, MN
Points: 34 		Post Options Post Options   Thanks (0) Thanks(0)   Quote djake Quote  Post ReplyReply Direct Link To This Post Topic: Removing the pivot pin for the hydraulic piston
    Posted: 02 Apr 2020 at 4:44pm
I am confused on how to remove the pivot pin securing the hydraulic piston for the lift arms on my D17. The manual says to remove the pointed bolt on the bottom of the right brake unit. I did that. The bolt is 1/2 inch that I can tell. Then I'm supposed to thread in a standard 1/2 bolt or shaft 8 inches long to remove the pin. I do that and it just bottoms out in the hole and does nothing. There must be something more to it.
Back to Top
Sponsored Links


Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 02 Apr 2020 at 9:39pm
I suppose you have the lift arm housing off? The pin should be threaded but may be full of dirt + brake rod may be in the way. Drive it out from inside out.
.        MACK
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2198 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 03 Apr 2020 at 11:48am
Those instructions sure do leave a lot to be desired.
The way I read them, after you remove the "pointed setscrew",
you then insert the 8" rod in through the access hole on the RH
side of the brake housing just above where you removed the setscrew.
I plugged that hole on my tractor to keep out the critters who like to
live there.
The pivot pin for the ram is much larger than 1/2" but is
tapped with 1/2" threads into which you screw the 8" bolt
which enables you to then pull that large pin and release the ram.
Then.......you will be able to remove the lift arm housing.
Now.......I haven't done this yet so I am not speaking from experience
but I am going to have to at some point as either the hose or ram is
leaking some on my D-17 Series II.
I hope my interpretation is correct.......I have, on occasion, posted
stuff on here that was not totally correct.  LOL
Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 03 Apr 2020 at 10:02pm

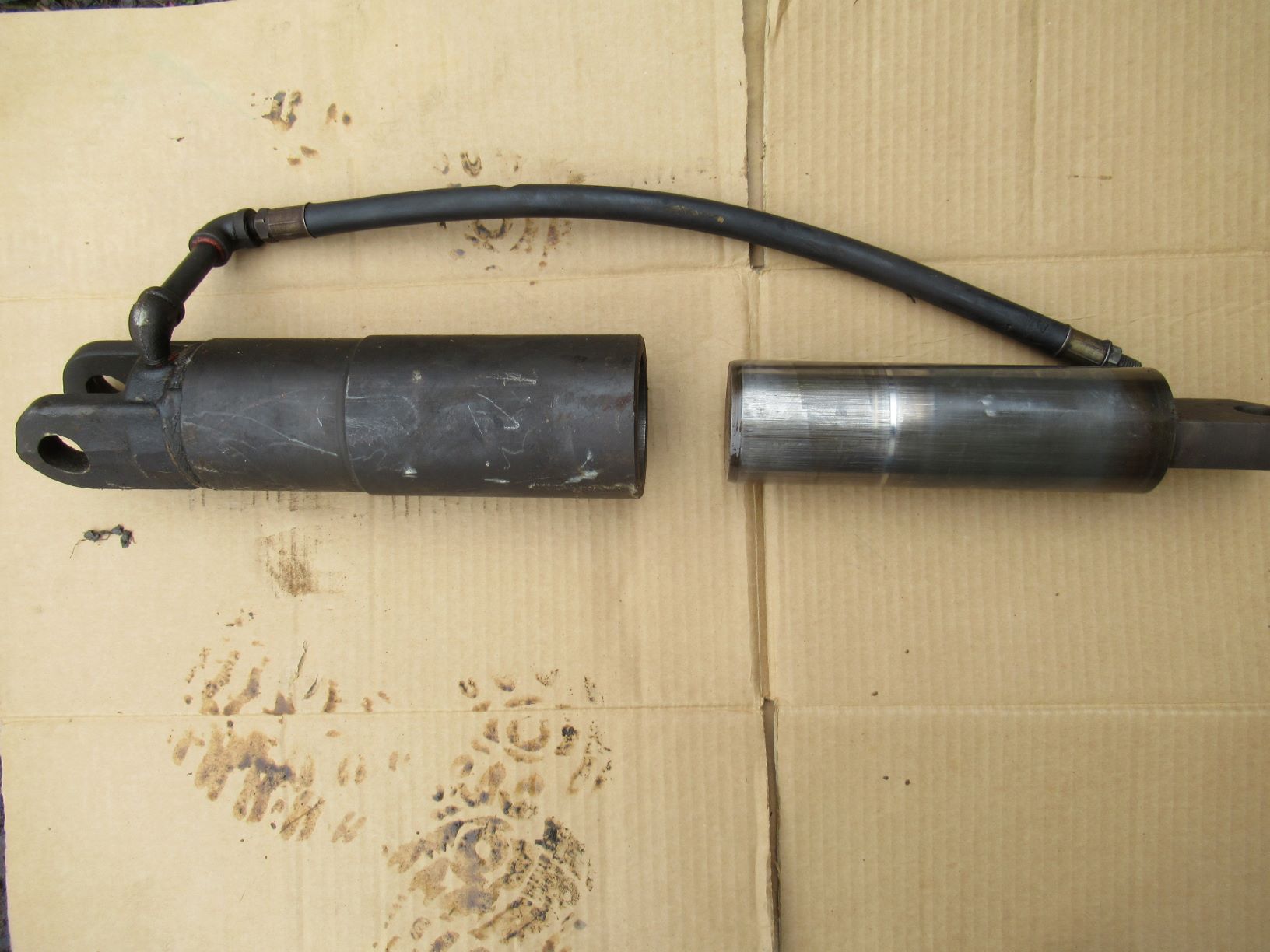

You need to remove lift arm housing first. The piston will pull out of barrel with lift arm housing.       MACK
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2198 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 04 Apr 2020 at 10:14am
Originally posted by MACK MACK wrote:

You need to remove lift arm housing first. The piston will pull out of barrel with lift arm housing.       MACK

Interesting idea......not what the book says but it certainly looks like it will work.
Maybe an A-C tech's shortcut?
Probably need about 3 hands to put it back together that way.
Back to Top
Alvin M View Drop Down
Orange Level
Orange Level


Joined: 24 Jun 2018
Location: PA
Points: 728 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alvin M Quote  Post ReplyReply Direct Link To This Post Posted: 04 Apr 2020 at 10:30am
Mack   That Is The Way I Have Don Them For Years No Need To Pull The Pin  Alvin M
Back to Top
Brian G. NY View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: 12194
Points: 2198 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian G. NY Quote  Post ReplyReply Direct Link To This Post Posted: 04 Apr 2020 at 11:51am
Originally posted by Alvin M Alvin M wrote:

Mack   That Is The Way I Have Don Them For Years No Need To Pull The Pin  Alvin M

Except.......probably the reason you're going through  all of this work is that you are going to repair the cylinder or replace the hose! Then, you might want to remove the pin.
Granted, you probably wouldn't bother to use that 8" 1/2" bolt since you are now right in there where the pin is.
