 Topic: Rake part ??? An help
Posted: 09 May 2019 at 9:58pm |
|
Hi everybody
This is a two part question.
First does anybody have a parts book for 77g or 78 rake to see if this number is in it, 531819. The numerical book says fits 77. Was woundering if it's the pto 77 or 77g,78 or are they the same. Thanks
Second does anybody have picture of the side delivery rake, looking for picture of the stripper bars. I have parts book but the picture in it doesn't show them vary good.
Thanks
|
 |
|
Sponsored Links
|
|
|
SteveMaskey(MO)
Orange Level
Joined: 11 Sep 2009
Location: Wellsville, MO
Points: 625
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 May 2019 at 8:17am |
|
My parts book says 531819 bar, stripper fits model 77G and model 78 rakes. It don’t show the 77 pto rakes
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8741
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 May 2019 at 8:20am |
|
Ok thanks that's what I wanted to hear, thank you
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5162
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 May 2019 at 2:44pm |
|
My rake parts book from July 1960 shows that part #531819 is only used on the #77M rake. it is #8 on the illustration on page 10. This would be a PTO rake.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Kenny L.
Orange Level Access
Joined: 12 Sep 2009
Location: NEIOWA
Points: 1362
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2019 at 5:35am |
Mike, my parts book says the some as Paul B does, this picture may be the same as what you're look at if it's let me know and I'll get a picture od my 77 rakes and post them.
|
|
SteveMaskey(MO)
Orange Level
Joined: 11 Sep 2009
Location: Wellsville, MO
Points: 625
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2019 at 6:34am |
|
I will add: My book is a May 1966 parts for 77G, 77G bean and 78 rakes. It also says that 531819 fits 77G below #3351 on page 10 but on page 12 it says it will also fit 77G #3351 and up and 78 rakes
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8741
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2019 at 8:09am |
|
Thanks. I see now. When Steve said it doesn't show 77 pto rake. He's meaning his parts book doesn't cover that model, not saying that part isn't in it.
think that takes care of question one, we got some of them bars but I'd like to get a 78 rake some day so don't want to sell any parts fitting that rake.
Now question two is there's smaller diameter bars there to, didn't see part numbers on them though but the older side delivery rake looks like there smaller diameter bars. I have book on that rake but picture isn't that good. We don't have iPhones so didn't take pictures lol, but I'll have to bring iPad down and get some.
Thanks again
Edited by Mikez - 11 May 2019 at 8:09am
|
|
SteveMaskey(MO)
Orange Level
Joined: 11 Sep 2009
Location: Wellsville, MO
Points: 625
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2019 at 10:50am |
|
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1074
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2019 at 11:05am |
|
The basket is the same on all 77s and the 78. The old side delivery and #7 used a smaller diameter bar. I can measure one next time by it.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8741
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 May 2019 at 5:22pm |
|
Ok thanks again. That must be what the others are. Thanks again
|
|
wade89
Silver Level
Joined: 12 Feb 2018
Location: Northern MN
Points: 222
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 May 2019 at 5:06pm |
|
How can you tell the difference between the 77 and 78 rakes? I brought one home today and cant find a model number anywhere.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8741
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 May 2019 at 5:26pm |
|
The 77 has a straight axle an the 78 has the rear axle hug the rear of the rake basket .
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1074
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 May 2019 at 9:39pm |
|
Chain drive or belt? Chain will be a 77. Belt requires looking at the axle. If it’s a solid shaft it’s a 77. 3 pieces with 2 u joints it’s a 78
|
|

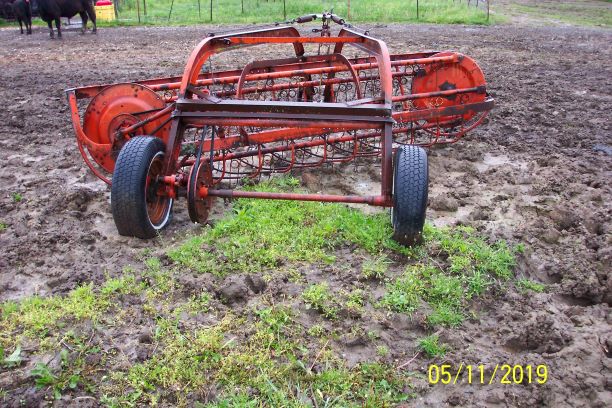

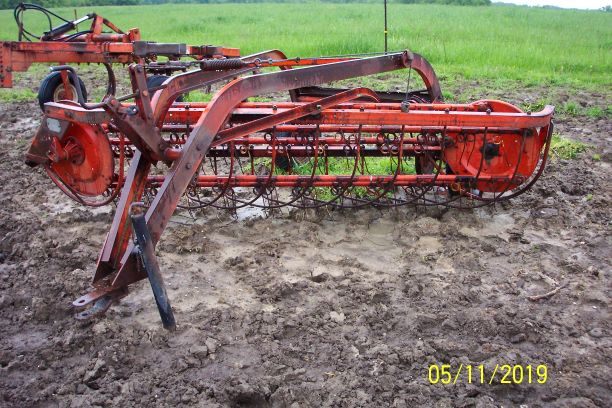

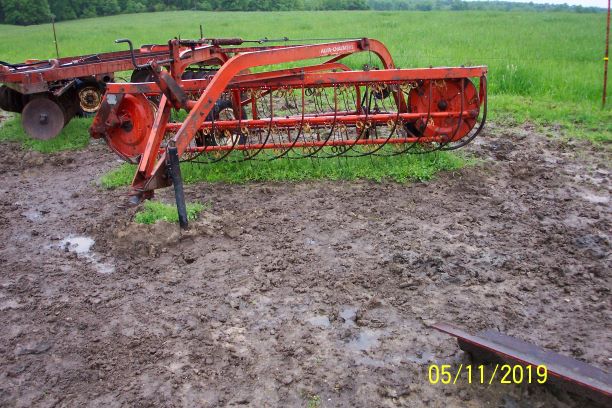

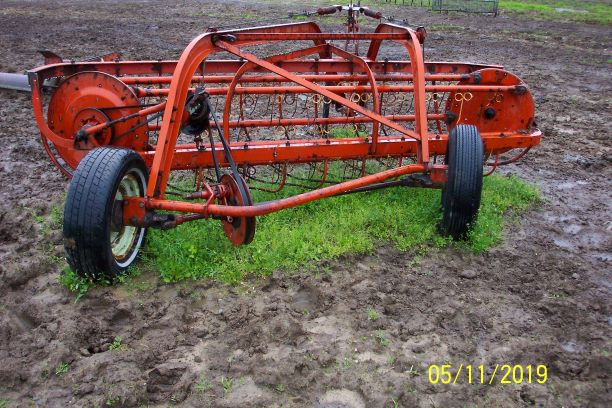

Took a couple pics this morning when I fed cows. Was drizzling so they are not to good. Model 77g & 78 rakes
