 Topic: Planter shoes for a 4 row mounted planter for a WD
Posted: 29 May 2019 at 9:59am |
|
Hi l was wondering if I could get shoes for a old 4 row planter that dad had for our Wd45 The shoes are so wore out From years of uses . I don't know the number of the planter . I know it is adjustable for how wide you want to make it . I have a 2 row and a 4 row that are the same . Thanks Roger. It is a mounted Allis planter .
Edited by rog 190xt x 3=? - 29 May 2019 at 10:01am
|
 |
|
Sponsored Links
|
|
|
orangereborn
Orange Level
Joined: 12 Sep 2009
Location: NW WI
Points: 1478
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 May 2019 at 10:33am |

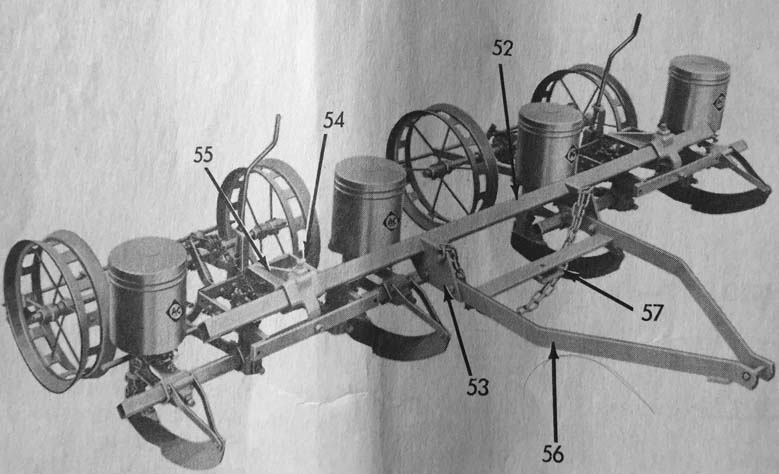

this the style?
Orangereborn Dale Schafer 964 192nd Ave New Richmond, WI 54017 715-247-3079 Cell 715-781-2055 Text Orangereborn@hotmail.com
|
|
NICKMI
Orange Level Access
Joined: 15 Sep 2009
Location: Greenville
Points: 534
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 May 2019 at 9:05pm |
|
I was looking a few years ago called local agco dealer they said they still could get them 125-150$ I think they were
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8612
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 May 2019 at 9:15am |
|
Back in the day...they used to weld in new metal. Welding shop always had a pile to fix.
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 May 2019 at 10:08am |
|
I ordered 2 from AGCO a few days ago, $67.60 per runner. Part #70317437.
Edited by DennisA (IL) - 31 May 2019 at 9:41am
|
|
Thanks & God Bless
Dennis
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8612
|
Post Options
Thanks(0)
Quote Reply
Posted: 30 May 2019 at 1:49pm |
 DennisA (IL) wrote:
I ordered 4 from AGCO a few days ago, $67.60 per runner. Part #70317437. |
wow! still available and you can't mess with them for that price.
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2019 at 9:16am |
|
I also ordered
4 bushings #70322089 $1.50 per
4 ring gears #70327599 $6.00 per
4 pinion gears #70301259 $16.00 per
2 runners #70317437 $45.00 per
2 runners #70317437 $67.60 per
So I'll have a rebuilt planter for $320.00. That don't sound to bad.
This will have all the wear parts replaced and should work like new!
Edited by DennisA (IL) - 31 May 2019 at 9:24am
|
|
Thanks & God Bless
Dennis
|
|
Sherman Farms
Orange Level
Joined: 17 Sep 2009
Location: Centerburg, OH
Points: 1663
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 May 2019 at 11:10am |
|
people bitch about Agco, but planter parts for 60 year old machine ls not bad!
|
|
B, C, RC, 3 wc,2 wd,3 wd45, d15, d17, d19, d21, 190, 440, 7040, 918 backhoe, 12 roto balers, 7 60 combines, 40, 66,2 72,90 super, sp100, Gleaner E, F3, 3 L2, R62, and much more
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jun 2019 at 11:33pm |

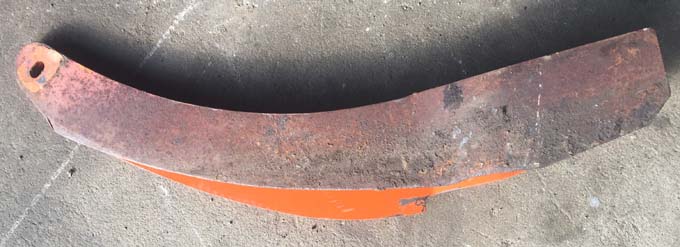

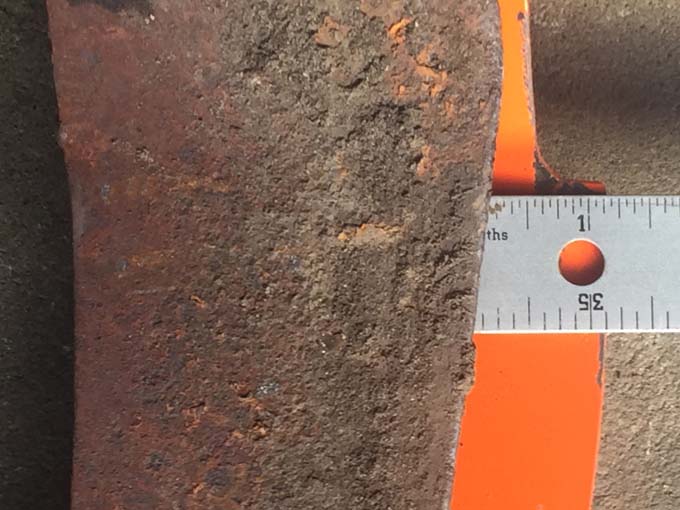

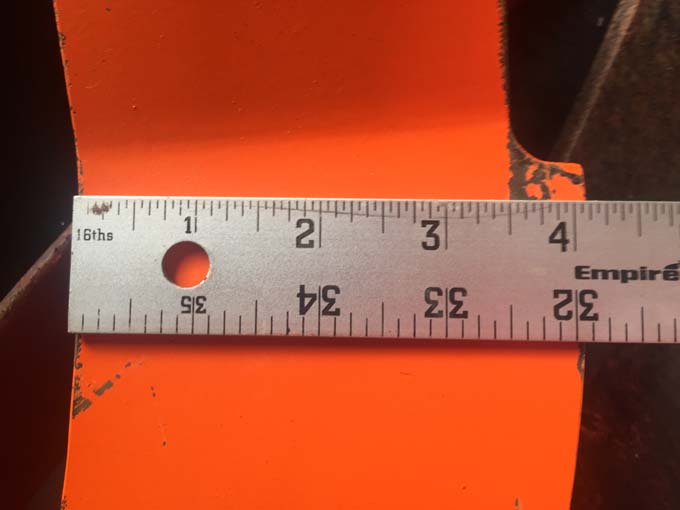

I got the new runners today and compared them to the old ones.  I sat the old runner on top of the new one.  About an inch wear.  New ones are about 4" wide.
|
|
Thanks & God Bless
Dennis
|
|
Don(MO)
Orange Level
Joined: 12 Sep 2009
Location: Bates City MO.
Points: 6862
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jun 2019 at 9:12am |
|
As you are rebuilding the planter here's some more parts to think about changing too, the knockers, springs, rollers.
|
|
3 WD45's with power steering,G,D15 fork lift,D19, W-Speed Patrol, "A" Gleaner with a 330 corn head,"66" combine,roto-baler, and lots of Snap Coupler implements to make them work for their keep.
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jun 2019 at 3:29pm |
 Wow. They still sell new parts forthis ! Unreal . If I took pictures of mine they would make the old ones in the pictures look like new. In don't tink there is more then a inch left to them . So the other part that is shot on mine is where the fertilizer tubes and what ever was inside of there is shot . Years ago we had found 4 brand new fertilizer boxes for it they were never put back on it . Because the bottom was rusted out . What I'd like to do is set this up for 3pt and set it up just for beans . If I could find a nother planter and take two 4 rows and make a 8 row 3 pt move the row units around so there 10"s apart . And have a 8 row 10" 3pt bean planter for my 190xt and set the markers with cylinders to lift them . I think it would be a very cheap low maintenance planter ! Thoughts ?,
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jun 2019 at 3:58pm |
|
Hi Dale I'll give you a call and maybe run down to see you Mama's oldest boy lives in new Richmond so I could buzz down and meet you . looks like you have a bunch of treasure s too . I'll give you a call my number is 612-987-5768 so if you see a odd number come up you'll know why thanks Roger Wagenius
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jun 2019 at 8:43pm |
Don(MO) wrote:
As you are rebuilding the planter here's some more parts to think about changing too, the knockers, springs, rollers. |
Thanks Don, I didn't think about them parts. I got them on order. 70324113 Knocker roller $3.98 70562910 Corn Knocker $23.26 70329251 Knocker Spring $1.26
|
|
Thanks & God Bless
Dennis
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54052
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jun 2019 at 8:54pm |
FWIW, save the old ones, I've seen much worse, on planters that are still planting well...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Jun 2019 at 9:24pm |
DiyDave wrote:
FWIW, save the old ones, I've seen much worse, on planters that are still planting well... |
Will do, I got new ones mainly to see how much wear there was on the old ones. Since I’ve never seen a new planter with runners I had no idea what new ones look like. I figured since the teeth on the gears were about worn off the runners were probably worn as well.
|
|
Thanks & God Bless
Dennis
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 10:15am |
|
Good morning Men.
OK what number planter is this any way . I'm sure my dad had a book for it and I'll Have to look in the stack if there is one . I don't ever remember him saying what it was . I'm very surprised there is still parts available for these . OK thanks much Roger
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 10:49am |
If yours is like mine there was no model number. It was just simply called “Rear Mounted Drill Planter”.
Edited by DennisA (IL) - 06 Jun 2019 at 10:55am
|
|
Thanks & God Bless
Dennis
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 11:20am |
|
Also ordered
70336675 pivot link $10.91
|
|
Thanks & God Bless
Dennis
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 12:34pm |
|

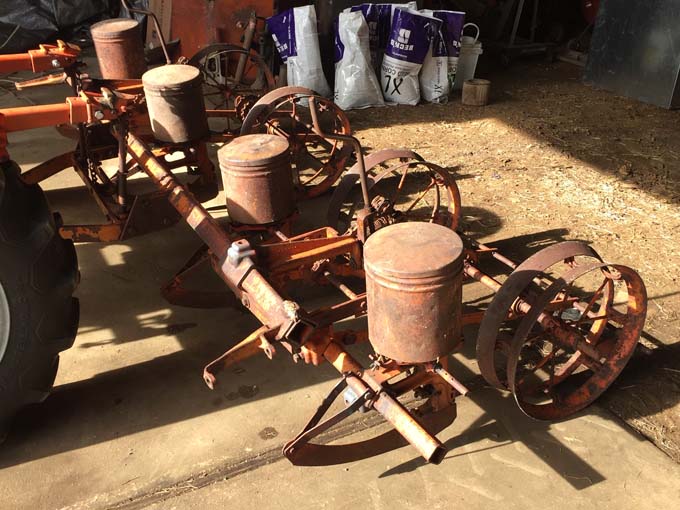

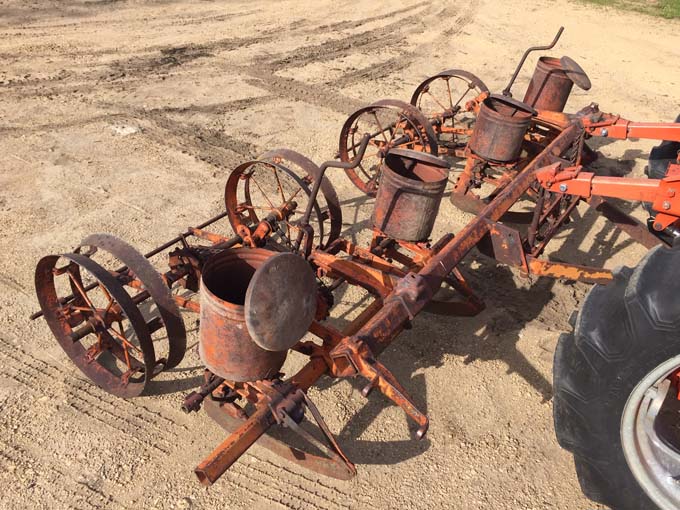

Yep its the same thing as the one in the picture . If you could take a couple more pictures of it and post that would be awesome . if you could stand behind it and take a picture of the whole planter and one of where the row units mount to the frame of the planter and one of where the wheel slide on the shaft . That would be great if you could do that . Thanks Much Roger
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 6:06pm |
|
|
|

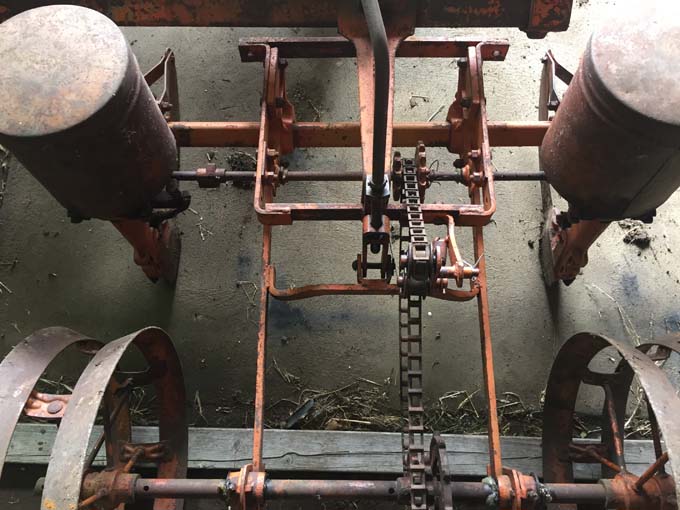

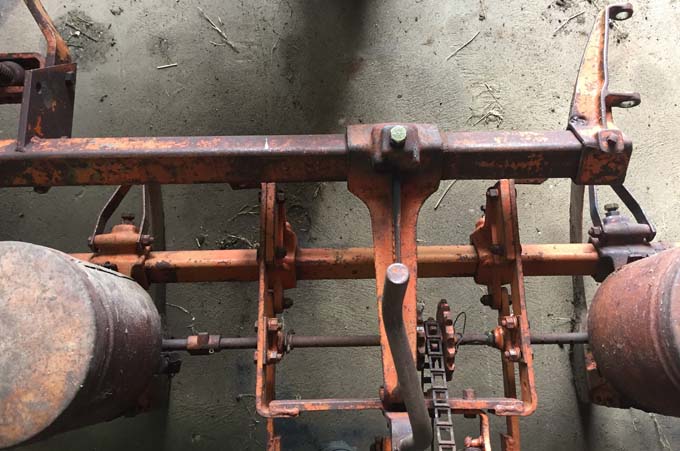

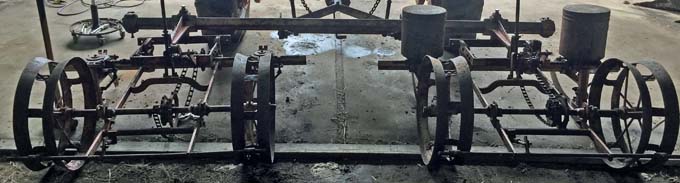

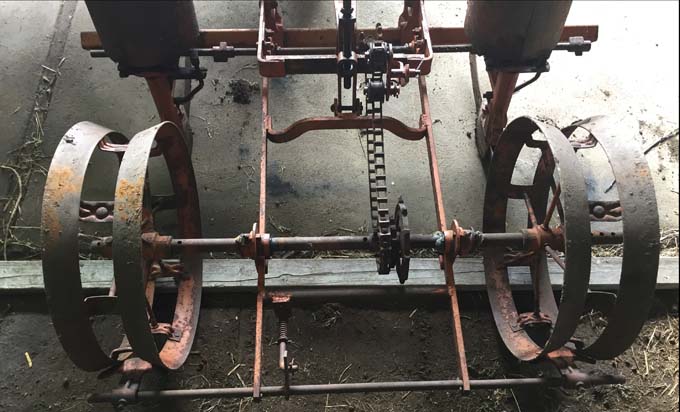

Thanks & God Bless
Dennis
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 7:54pm |
You may want to look at this as well.
|
|
Thanks & God Bless
Dennis
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Jun 2019 at 10:35pm |
|

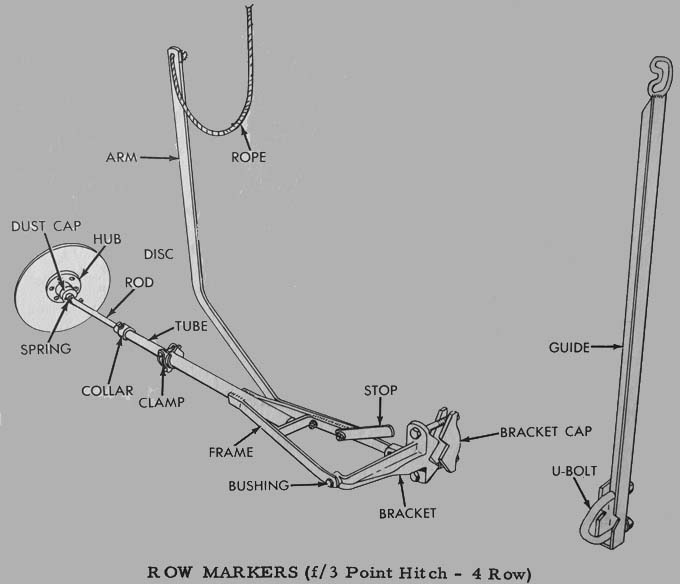

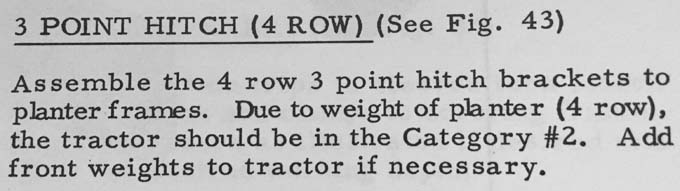

Thank you very much for the pictures and the 3pt lay out. It doesn't by chance show how they set up the pick up chains for the makers with a 3 pt hitch . I didn't know.How much it could be adjusted in . It would make a very nice 3pt bean planter even if it was a 6 row . But thank you very much . I got a 4 row that was Dads and a 2row that he got on auction . But I hate to cut it up . But thanks much Roger
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jun 2019 at 9:51am |

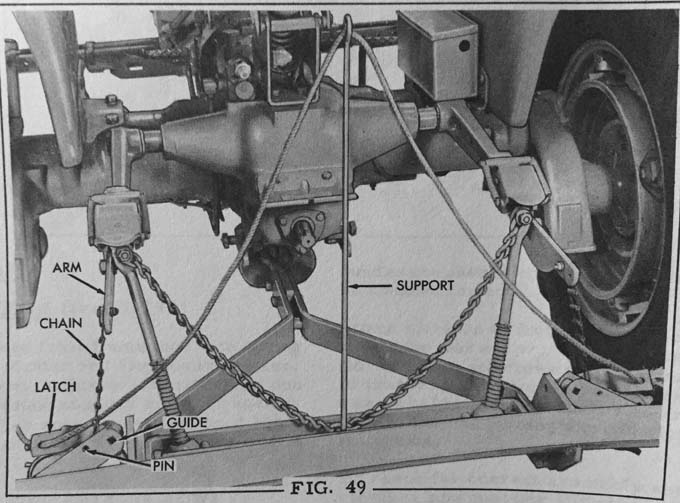

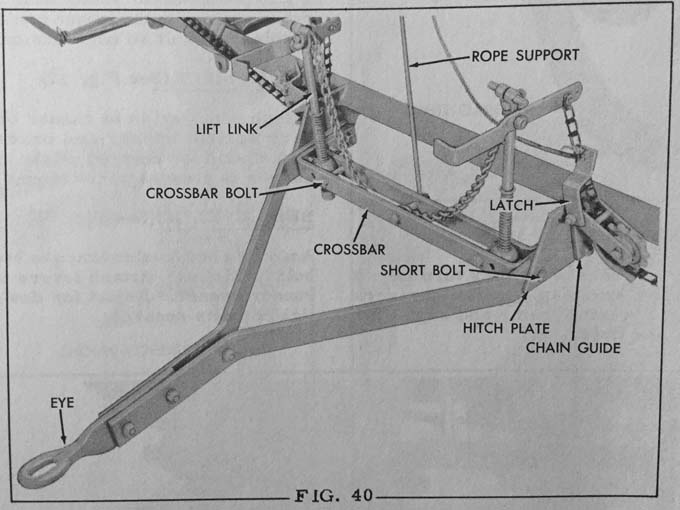

With this picture I've posted all the info about the 3 point that's in the manual I have. It does not show any chains for the marker lift.
|
|
Thanks & God Bless
Dennis
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jun 2019 at 11:22am |
|
Thanks Dennis .on the snap coupler style there was a chain that hooked to arm to lift the marker . But the photos you sent me are great thank you very much . That gives me all kinds of ideas
Thanks Roger
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Jun 2019 at 5:08pm |
|
|
|
Thanks & God Bless
Dennis
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Jun 2019 at 1:26pm |
|

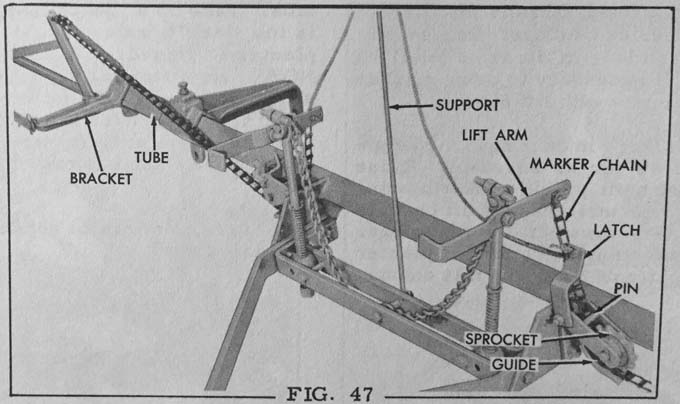

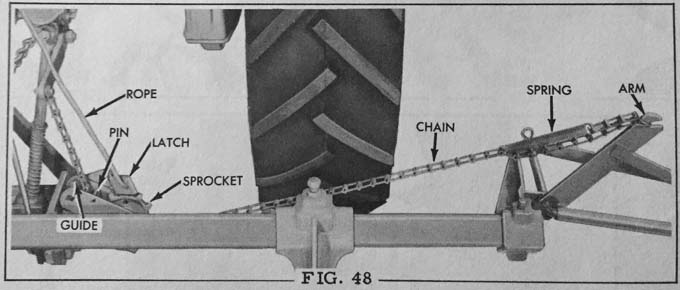

Thanks Dennis All the pictures were great . The shots of the markers were great I was trying to figure out how they did it on the 3pt now I see it. I know that lift chain is hard to find . I used this planter years ago . And I want put some thing together to use on my 190 . I know with enough parts I can make something work . I got to find that book . I'm sure my dad had a book for it . I need to see what the back of the shoe looks like where the tubes from the fertilizer boxes hooked up . It must be a side dress planter . I know you can change the rate by changing the chain on the gears . If its a side dress it would use a lot less fertilizer then the other style planters that puts it away from the row . Anyway this is a project too work on. I got a 6 row 400 cyclo planter . But I got to get out and hit it . Thank you for all your time posting the photos . Roger in Grantsburg Wisconsin
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2019 at 8:11am |
The field dried down just enough to plant corn. So I put the drill planter to work.
|
|
Thanks & God Bless
Dennis
|
|
Cernunnos
Silver Level
Joined: 30 Jul 2014
Location: Ridgeland, WI
Points: 361
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2019 at 10:18am |
|
Nice pictures Dennis...are you going to post a video of your corn planting?
|
|
1951 CA, 1952 CA with cultivator, 20 Series 8' disc harrow, 2 bottom pick-up plow, forage blower, 2-row rear mounted drill corn planter, Allcrop grain drill, No. 80T sickle mower, MN No. 130 barge box
|
|
DennisA (IL)
Orange Level
Joined: 11 Sep 2009
Location: Ridott IL.
Points: 2064
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2019 at 11:04am |
Cernunnos wrote:
Nice pictures Dennis...are you going to post a video of your corn planting? |
Yes, but it will be posted late fall early winter. The video will cover how row crop farming was done in the 1950's. It will include every part of row cropping from breaking ground to harvest. I hoped to have the markers working but the parts haven't arrived yet. Didn't think that would have taken so long. Hope you can wait that long, LOL.
Edited by DennisA (IL) - 09 Jun 2019 at 11:09am
|
|
Thanks & God Bless
Dennis
|
|
rog 190xt x 3=?
Bronze Level
Joined: 22 Jul 2012
Location: Grantsburg Wi.
Points: 27
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2019 at 11:45am |
|
Those pictures look good . I remember riding on the fender of the 45 with dad when he was planting . You must be waiting for the marker brackets for your planter . I know the ones on the planter here had been broke a bunch of times and they were welded up . Can you get them new ? Boy I would be very surprised if you could . But I like your pictures . A buddy of mine has a Set of wheel weights like those for sale . . Have a great day .
|
|
