Does anyone have a tool or made a tool to remove the heavy duty snap rings from the Oxnard blade? I can get the one off holding the tongue in but the large square one underneath is a bear!


Brandon
Back to Top
Sponsored Links


Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24402 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 5:59pm
2 screwdrivers ??
never touched the square one...does it hold the blade on
if so might be easier to turn blade upside down to work on it ?
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 8:59pm
Two screwdrivers won't touch the square one underneath the arch holding the blade on. I did some searching and haven't found a good tool yet to release it and install it back on. I have some snap ring pliers for straight tipped rings but they're not heavy enough.
Back to Top
200Tom1 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Jun 2019
Location: Iowa
Points: 1232 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 200Tom1 Quote  Post ReplyReply Direct Link To This Post Posted: 20 Feb 2022 at 9:20pm
I purchased a very heavy duty set of snap ring pliers from NAPA.   They are used to remove snap rings inside automatic tranys. This NAPA store has been owned by the same family since 1929. If you get some youngster, they may not know about them.
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Feb 2022 at 9:08pm
Any pictures of those pliers? I cannot find anything for square rings.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3990 		Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2022 at 10:54am
Will have to have a look at my blade and see which snap-ring you're struggling with. I have snap-ring pliers, lots of them and different styles. Maybe don't have a pair that would work for this?
Back to Top
Chad(WI) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: NE Wisconsin
Points: 957 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Chad(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2022 at 3:20pm
Original main beam rings have no holes for any sort of pliers, just mitered ends. I strongly suggest safety glasses and a face shield. I broke one that the missing piece is still in orbit
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3803 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb 2022 at 9:39pm
These are Blue Point. Something like that maybe?
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Feb 2022 at 10:14am
Those pliers look good but for the square ring underneath you sort of need a large piston ring plier so it doesn't slip off and go flying. I haven't been able to locate anything yet...
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24402 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 23 Feb 2022 at 10:20am
I'd have to see a picture to figure this out.. gotta be a tool for it though as someone installed them...50-60 years ago...
too dang cold,windy  and ICY here to go FIND my blade, hidden at a neighbours place a mile a way...
am curious though as to HOW it''s stayed on !
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Feb 2022 at 10:39am
I will take some good pictures as I have my second blade apart not for painting after some welding. I'll get out to the garage after work today.
Back to Top
pirlbeck View Drop Down
Silver Level
Silver Level


Joined: 01 Dec 2009
Location: West Central IA
Points: 229 		Post Options Post Options   Thanks (0) Thanks(0)   Quote pirlbeck Quote  Post ReplyReply Direct Link To This Post Posted: 23 Feb 2022 at 10:50am
JD has a tool for removing the snap rings on the ends of axles, it is not a pliers type but uses a draw bolt to expand the snap ring.
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Feb 2022 at 5:59pm

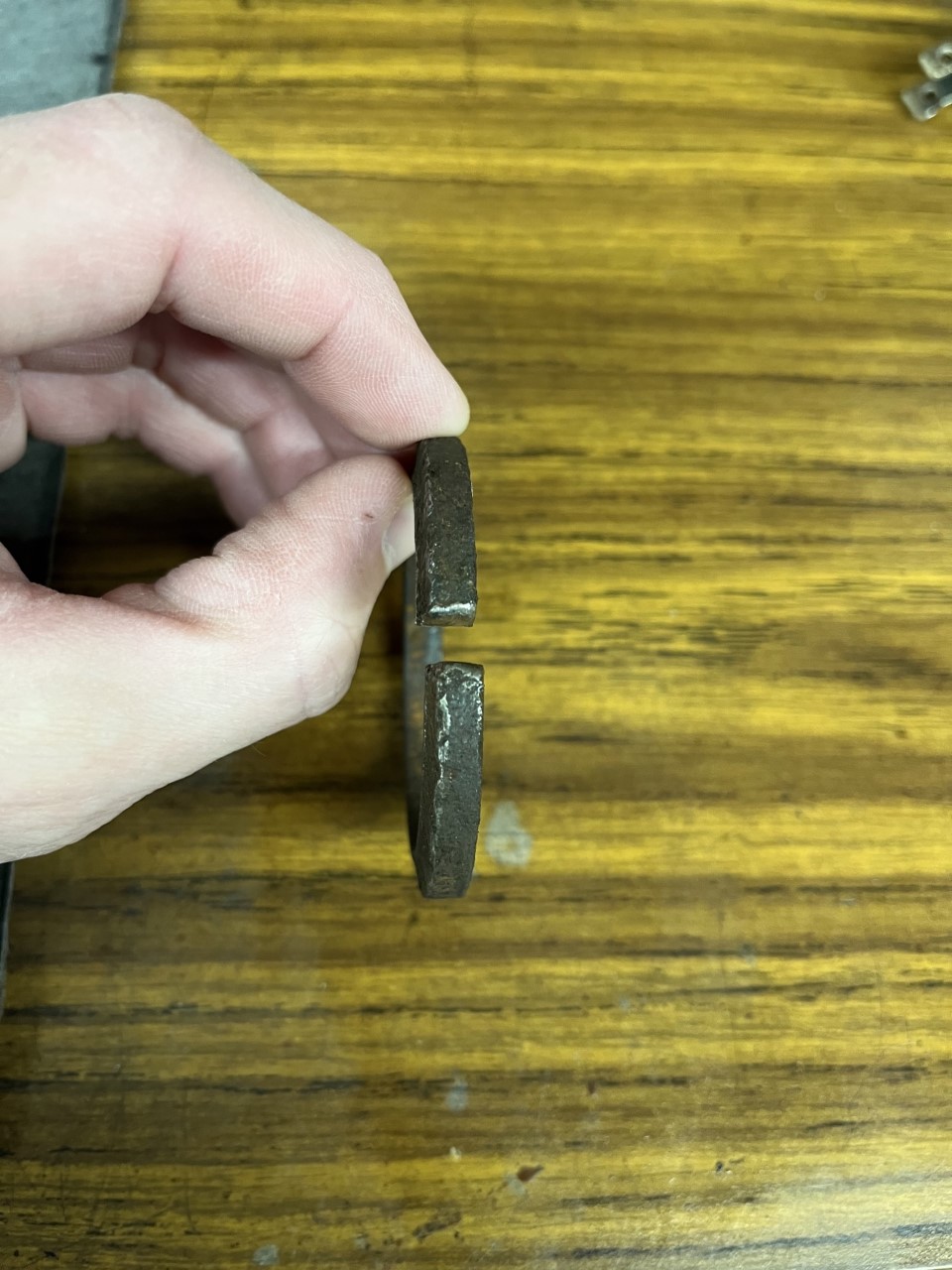

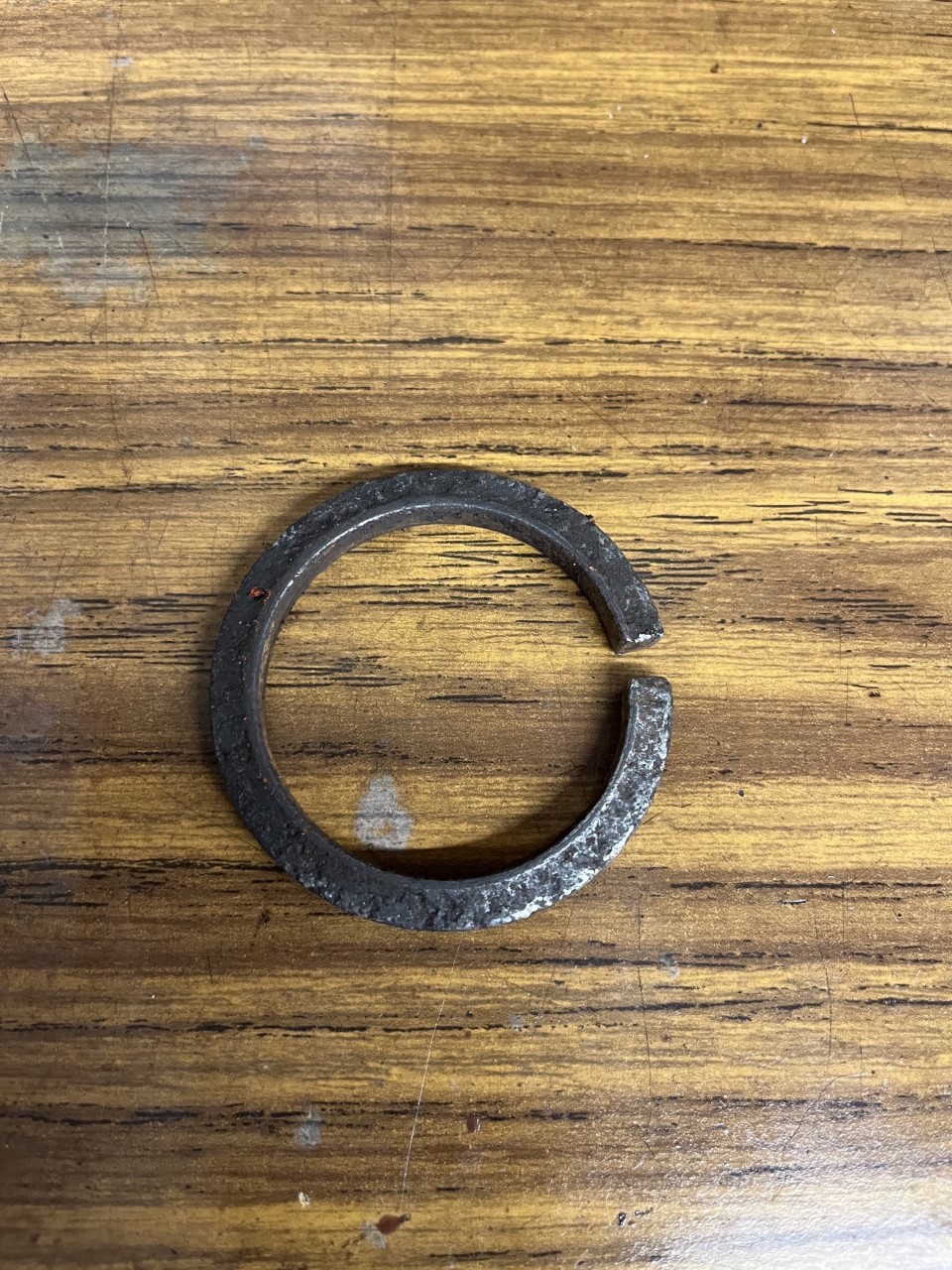

Here are pictures of the heavy square profile snap ring that holds the blade onto the beam. I believe it may be called an 'Eaton Closed Section Ring'





Edited by BMinor0788 - 25 Feb 2022 at 5:59pm
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3803 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 25 Feb 2022 at 6:08pm
So how'd you get it out?
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Feb 2022 at 6:19pm
I used a pocket flat blade screwdriver under one end of the ring the worked a round chisel against the arch and snap ring until it rolled off. It wasn't easy but it came. I'd like to find the tool for these heavy rings if anyone has any ideas.
Back to Top
rasman57 View Drop Down
Silver Level
Silver Level
Avatar

Joined: 12 Sep 2009
Location: Illinois
Points: 411 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rasman57 Quote  Post ReplyReply Direct Link To This Post Posted: 25 Feb 2022 at 8:27pm
Originally posted by BMinor0788 BMinor0788 wrote:

I used a pocket flat blade screwdriver under one end of the ring the worked a round chisel against the arch and snap ring until it rolled off. It wasn't easy but it came. I'd like to find the tool for these heavy rings if anyone has any ideas.

Try these.....


Edited by rasman57 - 25 Feb 2022 at 8:27pm
Back to Top
BMinor0788 View Drop Down
Bronze Level
Bronze Level


Joined: 24 Sep 2021
Location: Summerhill, PA
Points: 44 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BMinor0788 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2022 at 2:10pm
I found a source for the large snap ring that holds the tongue onto the beam assembly. It is McMaster-Carr part # 95524A157. This is a spear-ended snap ring for 2-3/4" OD bar. Good thing is, you get 5 in a pack when you order.

I am still looking for a source for the thicker ring that holds the blade and arch onto the lower part of the beam assembly.


Brandon
