 Topic: Out with the old, in with the new
Posted: 29 Aug 2021 at 5:02pm |

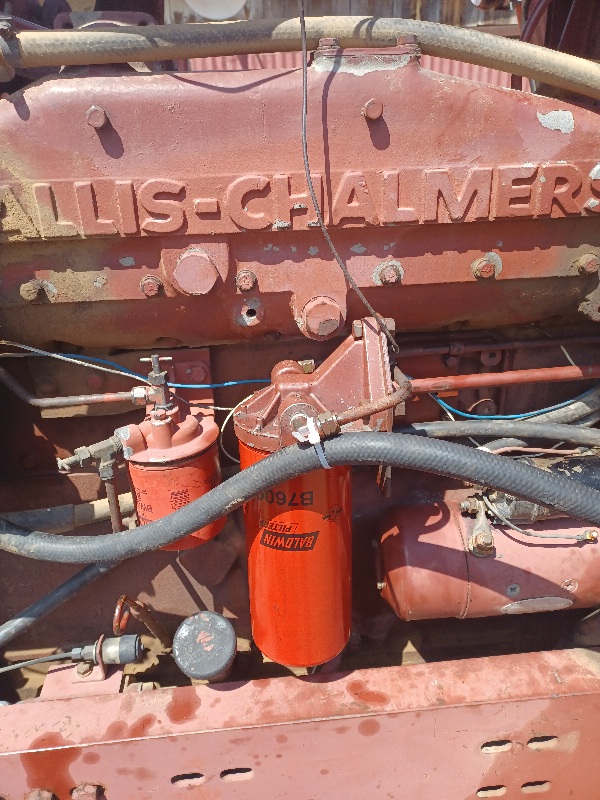

And hopefully better,I picked up this spinon bypass filter housing and lines at Worthington on my way to Hutchinson orange spectacular, got it put on this weekend, so far,all good, no leaks.oh yea,on a 7060
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85745
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Aug 2021 at 5:21pm |
|
GREAT UPGRADE !! ........... Hate those CANS.
|
|
Like them all, but love the "B"s.
|
|
DMiller
Orange Level Access
Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33168
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Aug 2021 at 6:10pm |
|
Lubrefiners always were a PITA tractors or trucks
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85745
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Aug 2021 at 6:43pm |
|
And all factory equipment from the 1960s-70s.... I retrofitted DOZENS of these on large feed pumps, etc...
|
|
Like them all, but love the "B"s.
|
|
MikeKroupa
Bronze Level Access
Joined: 12 Sep 2009
Location: pierce,nebraska
Points: 77
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Aug 2021 at 7:11pm |
|
Best way to handle them is let them drain completely overnight. Have a couple 7060's with them, 7080 has been converted to spin-on style. The "750" sized one on the 8550, 4W305 could also be a pain, I always had extra 0-rings just in case! , Mike
|
|
MACK
Orange Level
Joined: 17 Nov 2009
Points: 7664
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Aug 2021 at 7:25pm |
|
Bought 7050 at auction, unhooked bypass before I drove it home. MACK
|
|
tthams
Bronze Level
Joined: 18 Oct 2020
Location: Denison, Iowa
Points: 140
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2021 at 6:13am |
Well I just learned something. I always saw late model 7000 series tractors with the oil bypass filters, but never brown belly tractors. I never understood why. If you don't mind me asking, is this something that can be added to ANY 426 engine, or just certain years. Is it something simple to do or a PITA?
Edited by tthams - 31 Aug 2021 at 6:57am
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2444
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2021 at 10:00am |
tthams, I don't see any reason a bypass filter couldn't be added to any 426, I would get the lines,and filter head and bracket, and fittings, from a salvage yard, that's what I did. not too much trouble to install,need to remove the starter to access the one fitting,,,then there's that air condition line,,,,well,, you can see the way I done mine

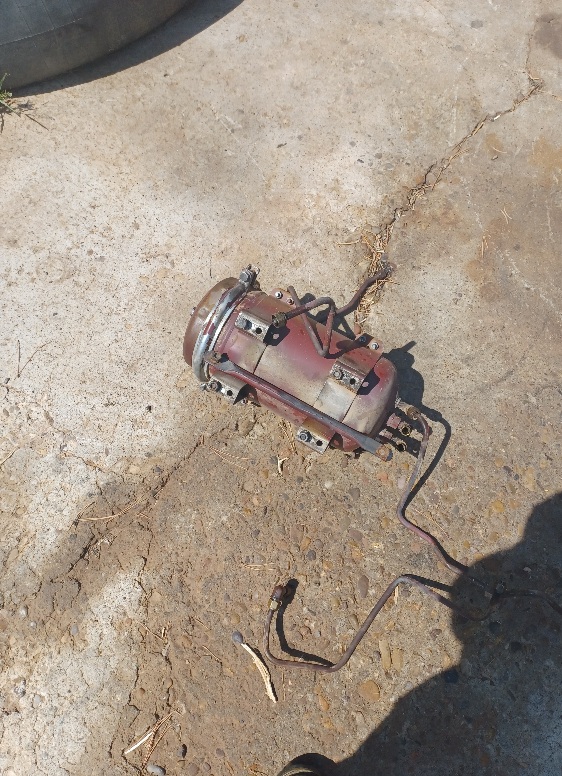

now if ya want this monstosity cannister thing, you can have it,, I need to remove a bracket from the tractor yet, and the fittings go in the same locations,,
|
|
tthams
Bronze Level
Joined: 18 Oct 2020
Location: Denison, Iowa
Points: 140
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2021 at 11:16am |
Again thanks for sharing your project. I have always thought it would be nice to have the bypass filter on the 7060, but didn't think it could have been done, or it would have been done by now. I have seen nasty ones done to other tractors that just didn't look good. Yours looks awesome, and like it belongs there.
If you don't mind me asking, what did you pay for the filter housing?
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2444
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2021 at 12:18pm |
|
I got the whole thing,bracket,lines,fittings for less than $100 at Worthington tractor parts there is an 8050, and another 7000 series there with this setup,oh,,that's no shipping,I stopped by there on my way to Hutch.
BTW,this is a factory setup,may have been dealer add on though..
Edited by Michael V (NM) - 31 Aug 2021 at 12:21pm
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2444
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2021 at 12:35pm |

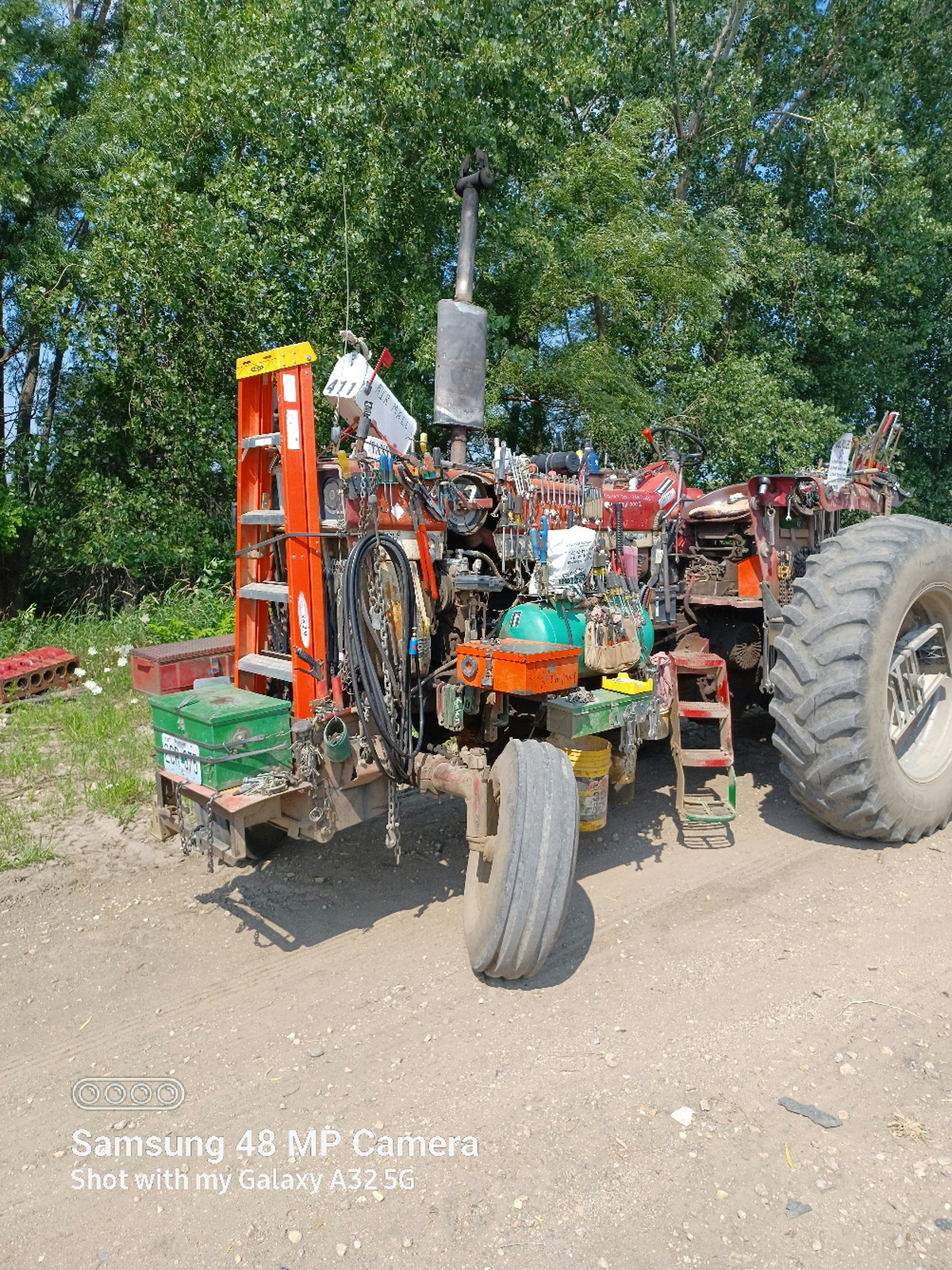

 If your close,go pick it up,,while your there,have a look at this fellows "tool tractor",he works in the yard
|
|
Stan R
Orange Level Access
Joined: 03 Dec 2009
Location: MA
Points: 971
|
Post Options
Thanks(0)
Quote Reply
Posted: 31 Aug 2021 at 1:16pm |
|
But I don't see a cooler for ...... soda. Maybe on the other side?
|
|
