 Topic: No. 3 Sickle Mower
Posted: 04 Dec 2019 at 8:08pm |

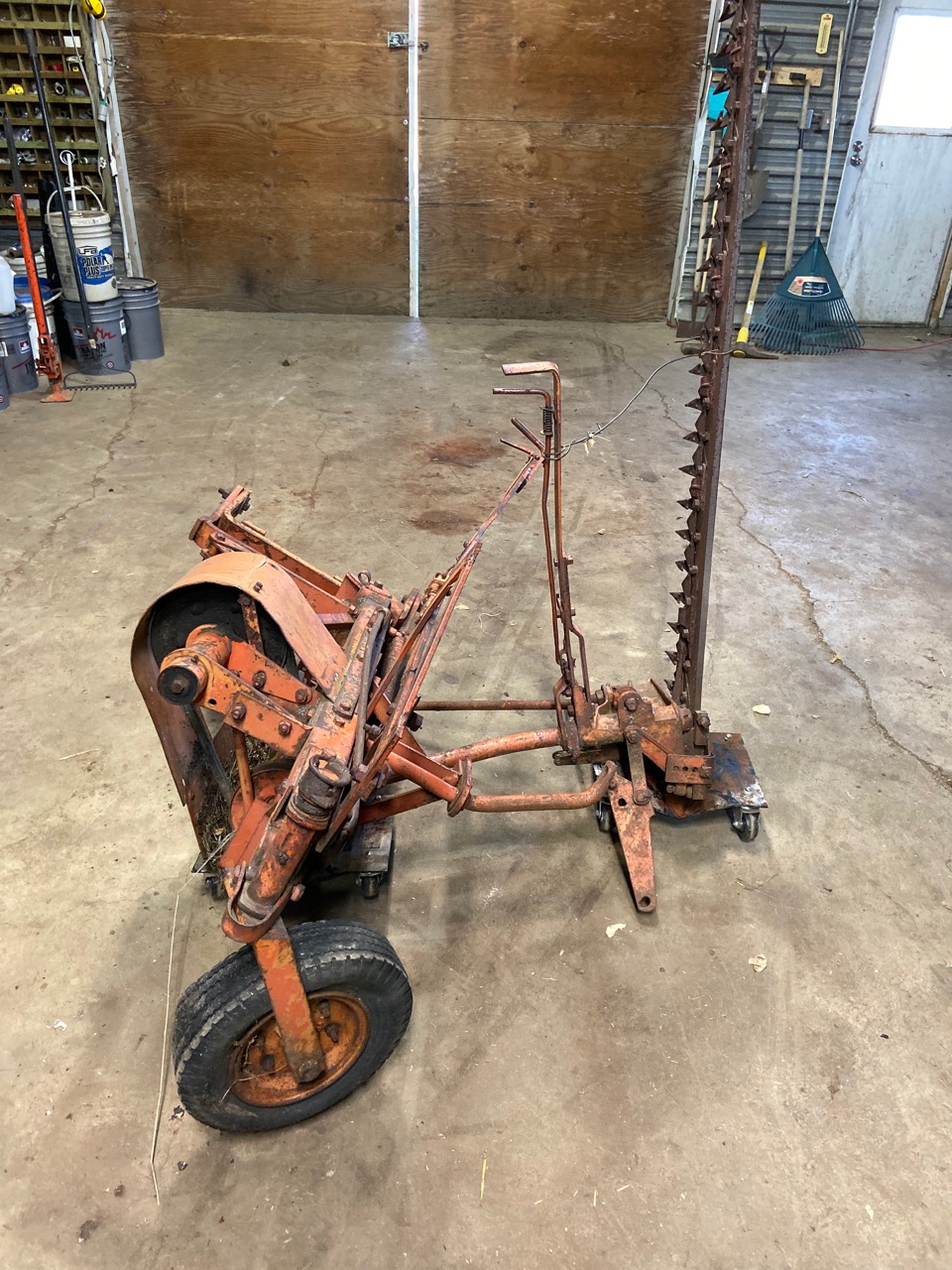

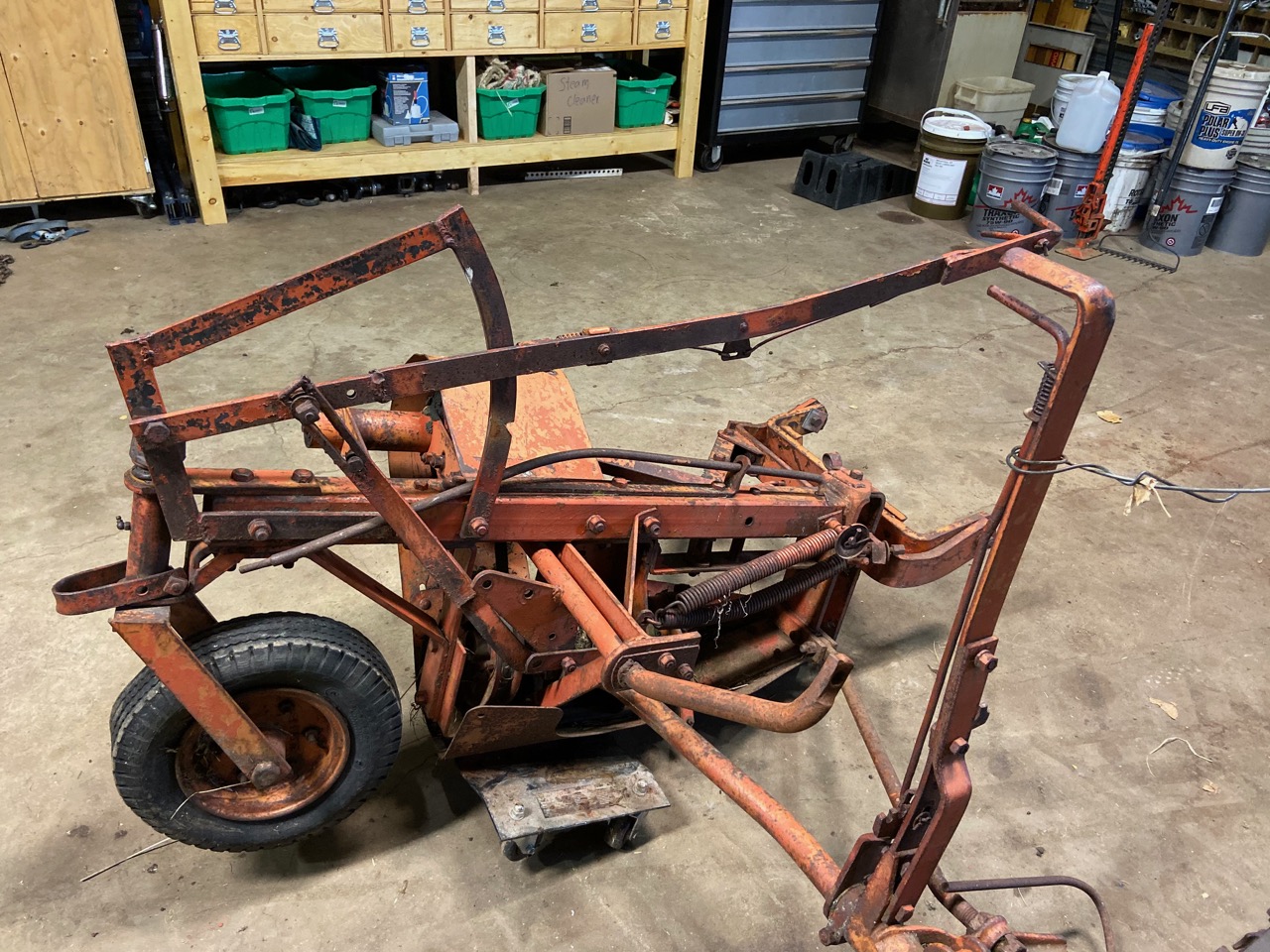

I recently got a AC No. 3 Sickle Mower. I thought it would make a neat attachment for my WC. It's in worse shape than I originally thought, though. I will need quite a few parts to bring it back to working condition. I have a pitman arm ordered through my local AGCO dealer, but I need a few more things. Does anyone know where you can get parts for these mowers? I need:
- The link from the lift to the sickle - The tractor half of the PTO with shields - The hand lift looks like it was fixed, or totally made from scratch at one point, so I need a new lever, guide or maybe even the whole assembly. Not sure. It might be ok the way it is, but it doesn't look that great.
Please let me know if you know where I can get any of these things. Or if you have it and are willing to ship to Canada!
|
 |
|
Sponsored Links
|
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8603
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2019 at 8:24pm |
|
We have some nos stuff for that mower, let me know if you'd like us to look more into them.
|
|
Ray
Orange Level
Joined: 21 Sep 2009
Points: 1979
|
Post Options
Thanks(0)
Quote Reply
Posted: 04 Dec 2019 at 8:39pm |
|
I have a lot of parts for those mowers. I do not think you have the proper mounting bracket for a WC tractor. I would have that, and other parts. 785-353-2392
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2666
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Dec 2019 at 9:36am |
|

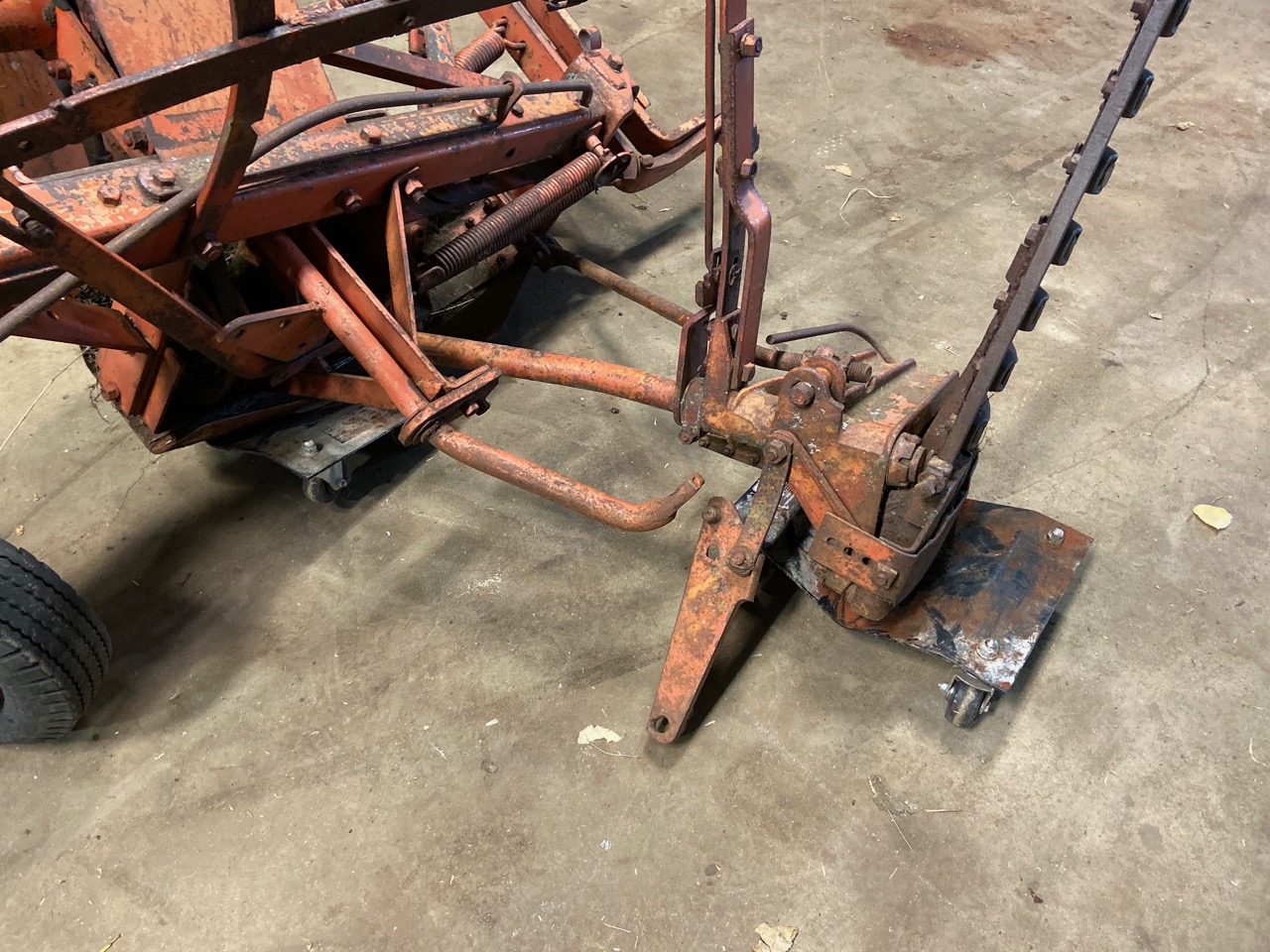

Looks like it may be part of the mount for a B or C. The mounting parts are tractor model specific.
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
mnickel
Bronze Level
Joined: 28 Aug 2017
Location: Tofield, AB
Points: 19
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Dec 2019 at 10:35am |

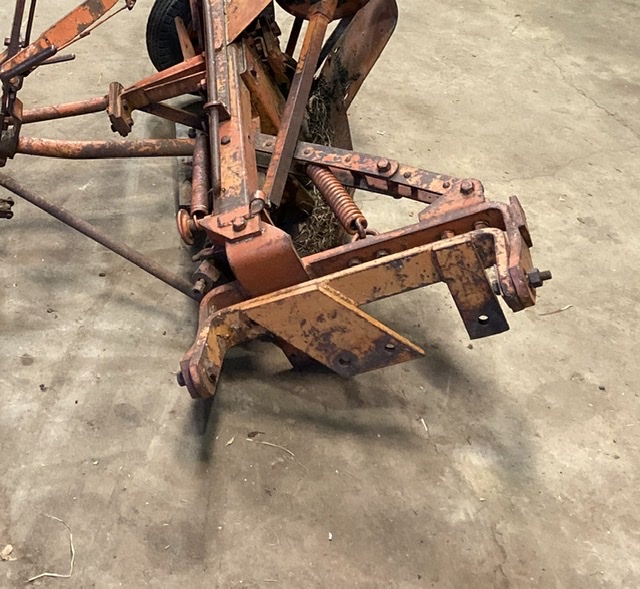

Thanks for help. Sure Mike, I’m interested in the parts, if you could have a look! I’ll phone you too, Ray. I thought this was the mount for the WC. I’ll attach a better picture.
Edited by mnickel - 05 Dec 2019 at 10:36am
|
|
john(MI)
Orange Level
Joined: 12 Sep 2009
Location: SE MI
Points: 9262
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Dec 2019 at 2:44pm |
I got a length of oak from HD and made my own pitman. The remains were there so I did have a pattern to use. The No. 3 uses different adapters for different tractors. I can't tell from your pics, but you may have the correct one for the WC. I gave away my books to the guy that bought mine so I can't be sure, or that one may be for the B/C hook up. The adapter I needed was for the WD/45, I found it on here and got it from a guy up in ID I believe. Good luck with your mower.
In case you didn't know. That bent rod down thru the center of the mower is for holding the bar up during transport. You are missing the nut unless you took it off for safe keeping.
|
|
D14, D17, 5020, 612H, CASE 446
|
|
mnickel
Bronze Level
Joined: 28 Aug 2017
Location: Tofield, AB
Points: 19
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Dec 2019 at 2:47pm |
|
Thanks for the info! I knew that was what that was for, but I’m missing the nut.
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2666
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Dec 2019 at 5:01pm |
|
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
mnickel
Bronze Level
Joined: 28 Aug 2017
Location: Tofield, AB
Points: 19
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Dec 2019 at 6:50pm |
|
Thanks!
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1725
|
Post Options
Thanks(0)
Quote Reply
Posted: 06 Dec 2019 at 8:38am |
|
I have the pitman stick in my NOS parts for $15.50 pn 802093, If you're interested. I don't have the lift link
|
|
www.awtractor.com
A&W TRACTOR 920-598-1287
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
|
|
