   175 Allis diesel. Gent out working one of his fields yesterday and blew a three point lift cylinder. I rebuilt both after giving a good solvent bath and grabbed seals at the implement dealer that had them on hand. About an hours work for both of them. Only one shown, but they don't leak now I'm told.

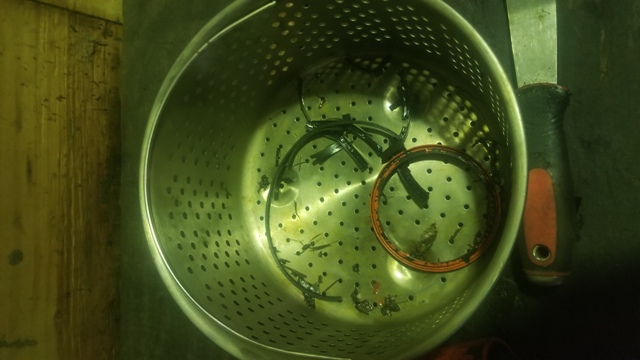

Old seals didn't come out intact:

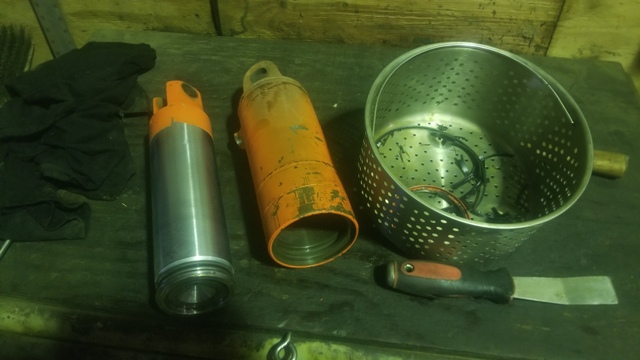

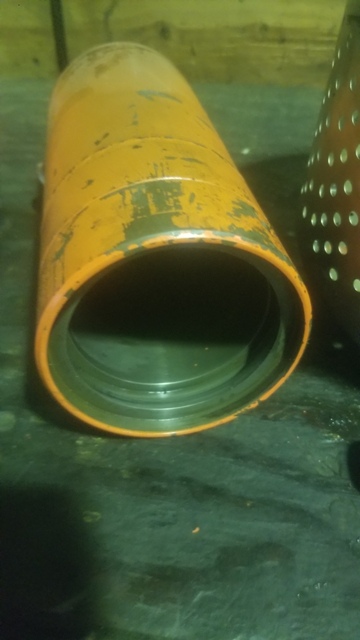

Pulled apart and cleaned up:

Ready to go back together:

I stretched, and knocked new seals into the barrel and slid together easily. I only ran test pressure up to 500psi as I don't know normal operating parameters on these things but neither rebuilt cylinder leaks at that pressure. Raining heavy now but tractor should be reassembled shortly to make room.

I like these little projects that come and go quickly. They pay well also.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Codger Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 23 Dec 2020 Location: Utopia Points: 2701	Post Options Post Reply Quote Codger Report Post Thanks(0) Quote Reply Topic: Nice little job: Posted: 5 hours 51 minutes ago at 9:36am
	175 Allis diesel. Gent out working one of his fields yesterday and blew a three point lift cylinder. I rebuilt both after giving a good solvent bath and grabbed seals at the implement dealer that had them on hand. About an hours work for both of them. Only one shown, but they don't leak now I'm told. Old seals didn't come out intact: Pulled apart and cleaned up: Ready to go back together: I stretched, and knocked new seals into the barrel and slid together easily. I only ran test pressure up to 500psi as I don't know normal operating parameters on these things but neither rebuilt cylinder leaks at that pressure. Raining heavy now but tractor should be reassembled shortly to make room. I like these little projects that come and go quickly. They pay well also.
