New to me 36' WC
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
grinder220 View Drop Down
Orange Level
Orange Level


Joined: 11 Jan 2012
Location: Clinton Iowa
Points: 2372 		Post Options Post Options   Thanks (0) Thanks(0)   Quote grinder220 Quote  Post ReplyReply Direct Link To This Post Topic: New to me 36' WC
    Posted: 22 Aug 2019 at 3:19pm

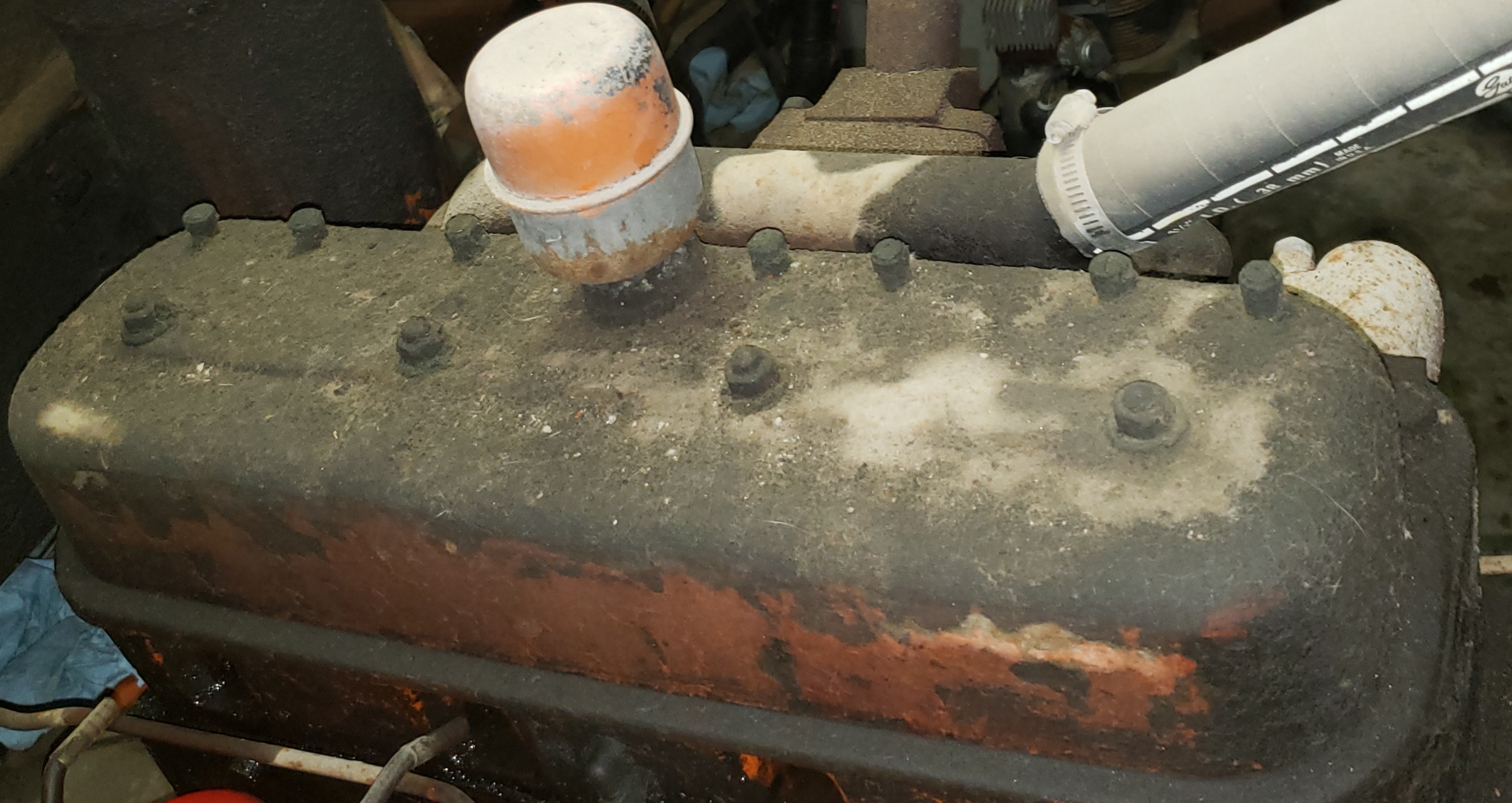

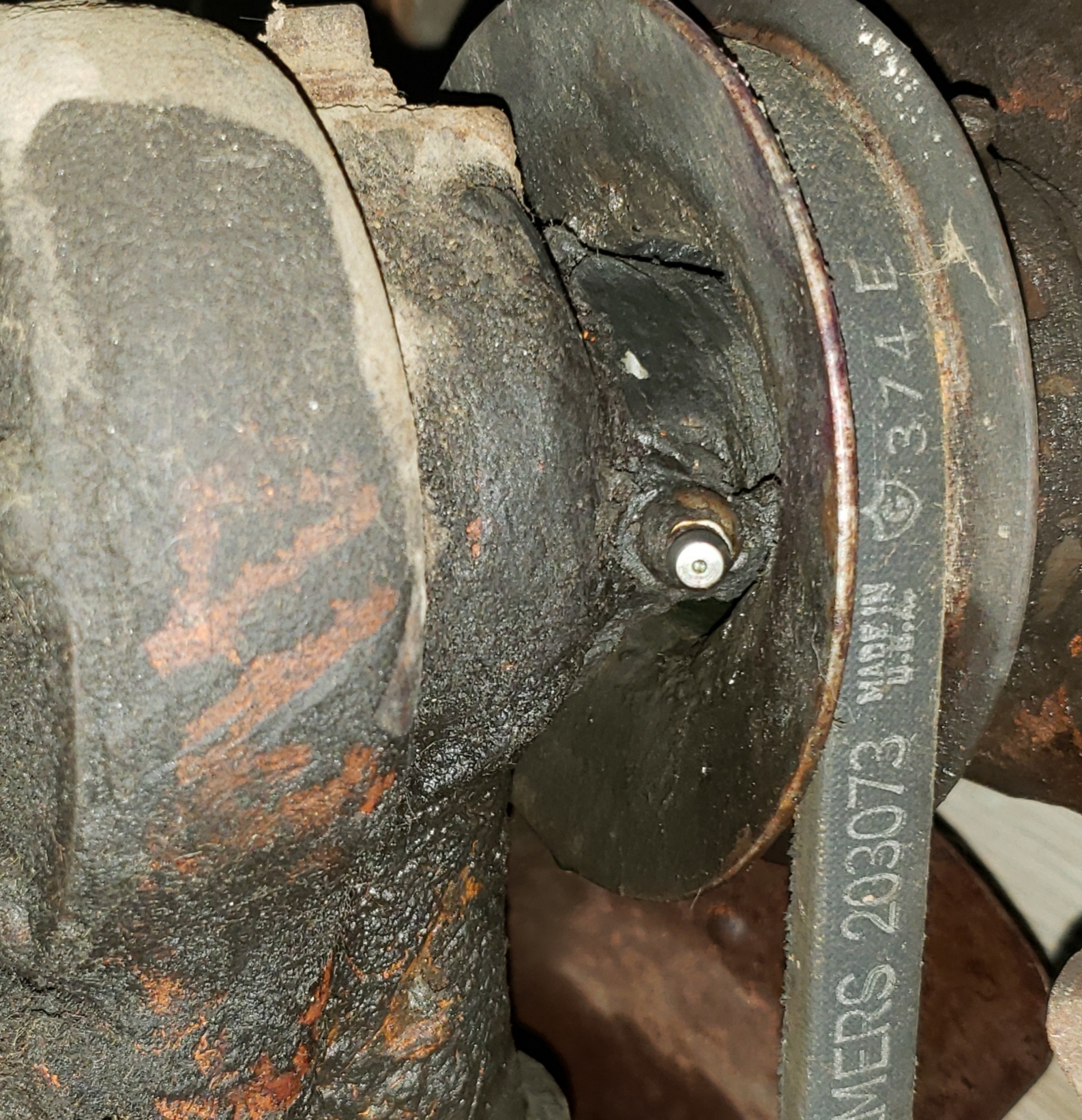

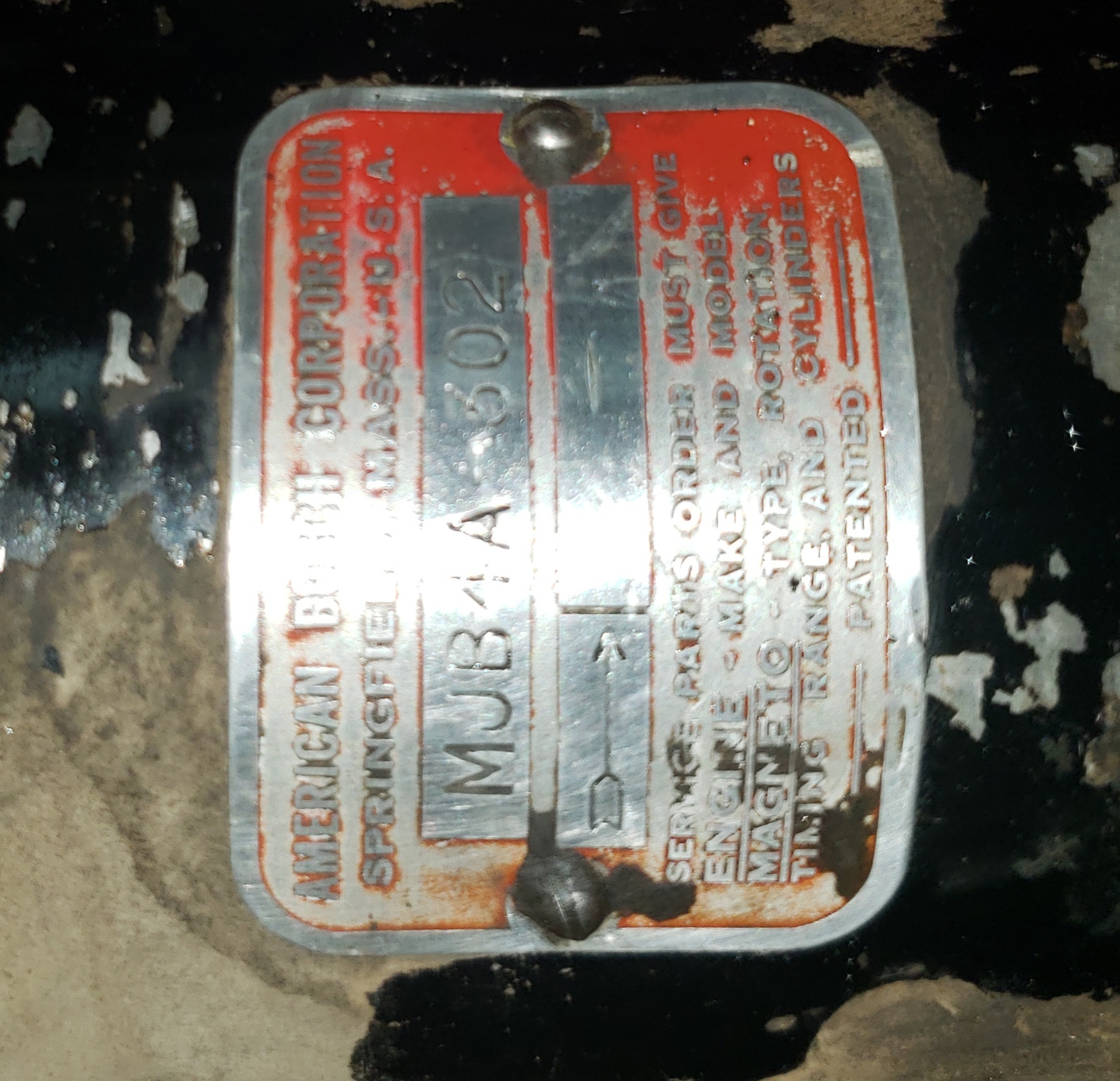

Got a couple questions about this one. First has anyone seen a valve cover like this one? What are the screws above the valves for? 2nd it has an American Bosch mag,would it be the correct one? Also it has a greaseable water pump which I'm assuming is the original. We have a 35' and another 36' WC and I don't recall them having these features. I know the mags are Fairbanks Morse on them.



Edited by grinder220 - 22 Aug 2019 at 3:34pm
Back to Top
Sponsored Links


Back to Top
grinder220 View Drop Down
Orange Level
Orange Level


Joined: 11 Jan 2012
Location: Clinton Iowa
Points: 2372 		Post Options Post Options   Thanks (0) Thanks(0)   Quote grinder220 Quote  Post ReplyReply Direct Link To This Post Posted: 22 Aug 2019 at 3:27pm

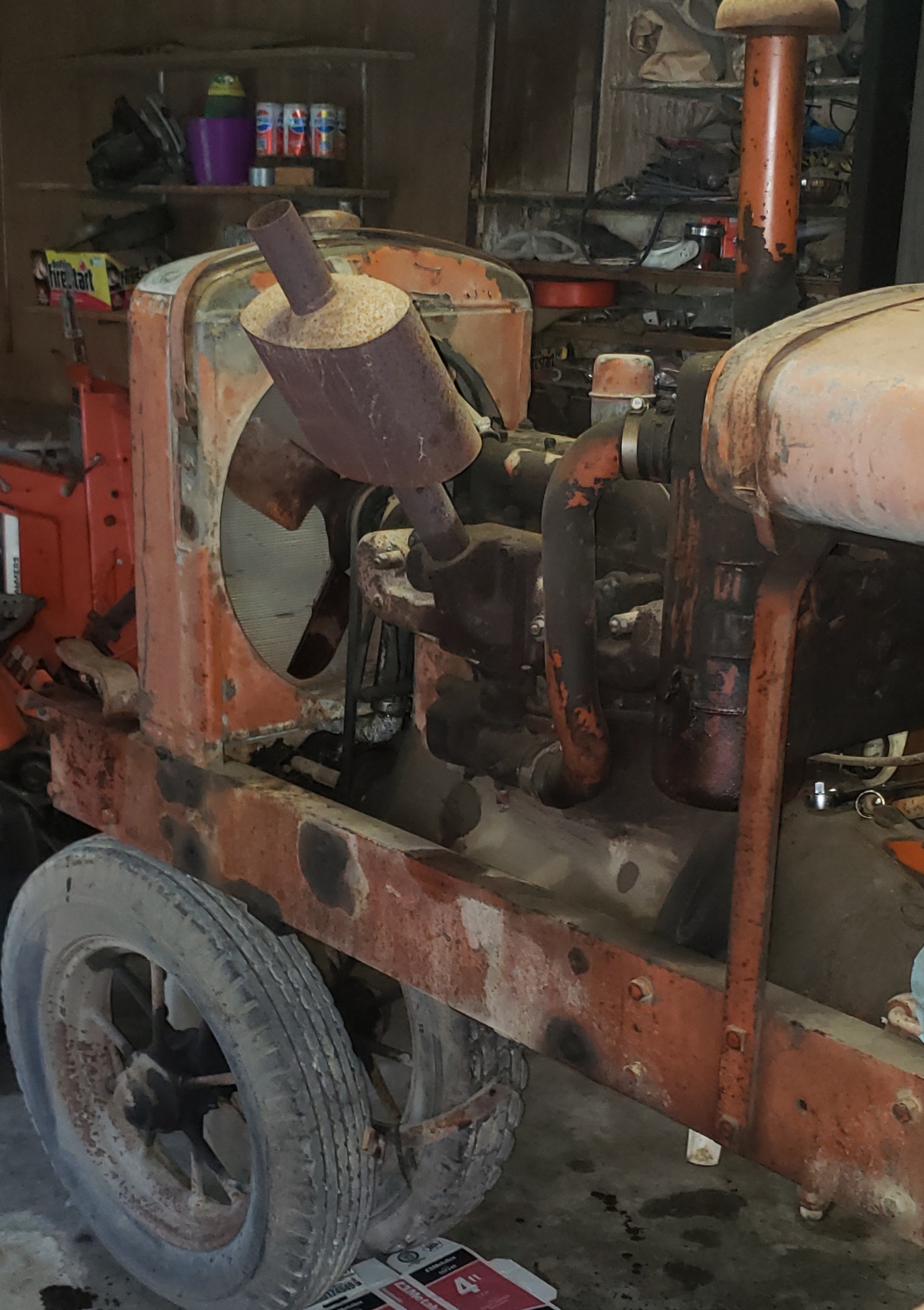

Also its early enough that it has a radiator without the temp gauge and 17 inch spoked front rims in excellent condition. Still has the old rubber on it also which is in really good condition.
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 22 Aug 2019 at 4:17pm
I can't help you at all, but I just wanted to say that looks like a very nice WC in its work clothes! Does it run?
Edit: I just noticed the fan belt is an Allis belt...pretty neat!


Edited by CrestonM - 22 Aug 2019 at 4:18pm
Back to Top
grinder220 View Drop Down
Orange Level
Orange Level


Joined: 11 Jan 2012
Location: Clinton Iowa
Points: 2372 		Post Options Post Options   Thanks (0) Thanks(0)   Quote grinder220 Quote  Post ReplyReply Direct Link To This Post Posted: 22 Aug 2019 at 5:05pm
Yeah it's in its work clothes. Has original paint that should buff out pretty good. Engine is stuck but its soaking now. Has a Nelson muffler which is a plus. Looks to have been stored in the shed most of its life.

Edited by grinder220 - 22 Aug 2019 at 5:11pm
Back to Top
BEK View Drop Down
Silver Level
Silver Level


Joined: 05 Nov 2017
Location: Wilmington, NC
Points: 216 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BEK Quote  Post ReplyReply Direct Link To This Post Posted: 22 Aug 2019 at 6:20pm
Just curious, how much did it set you back? $$$$ Thanks.
Back to Top
grinder220 View Drop Down
Orange Level
Orange Level


Joined: 11 Jan 2012
Location: Clinton Iowa
Points: 2372 		Post Options Post Options   Thanks (0) Thanks(0)   Quote grinder220 Quote  Post ReplyReply Direct Link To This Post Posted: 22 Aug 2019 at 9:26pm
Originally posted by BEK BEK wrote:

Just curious, how much did it set you back? $$$$ Thanks.
a tick over 5 bills
Back to Top
ac fleet View Drop Down
Orange Level
Orange Level


Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2337 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ac fleet Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 9:20am
Looks like the one I have here. Think they said its a 36. also have the remains of Dads old 34.
http://machinebuildersnetwork.com/
Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 10:12am
I have WC shop manual in several large pieces at:
http://geraldj.networkiowa.com/Trees

I don't know they are as old as your tractor.

Gerald J.
Back to Top
allisrutledge View Drop Down
Orange Level
Orange Level


Joined: 30 Mar 2010
Location: SurgoinsvilleTN
Points: 1360 		Post Options Post Options   Thanks (0) Thanks(0)   Quote allisrutledge Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 10:37am
I got a 36 and don't think it has the valve cover like that.now I gotta look. Looks like a nice original.
Allis Chalmers still exist in my mind and barns
Back to Top
AaronSEIA View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Mt Pleasant, IA
Points: 2573 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AaronSEIA Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 1:04pm
Don't think the valve cover is stock.  I wonder if it's some kind of tappet clearance adjusting system that doesn't require pulling the head.  It should also have an FMJ mag.
AaronSEIA
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 5:05pm
I'd pull the valve cover and just see what's there.
Back to Top
BEK View Drop Down
Silver Level
Silver Level


Joined: 05 Nov 2017
Location: Wilmington, NC
Points: 216 		Post Options Post Options   Thanks (0) Thanks(0)   Quote BEK Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 5:13pm
Originally posted by grinder220 grinder220 wrote:

Originally posted by BEK BEK wrote:

Just curious, how much did it set you back? $$$$ Thanks.
a tick over 5 bills


Hope you bought a lottery ticket on the same day you bought your WC. You did really good at that price.
Back to Top
grinder220 View Drop Down
Orange Level
Orange Level


Joined: 11 Jan 2012
Location: Clinton Iowa
Points: 2372 		Post Options Post Options   Thanks (0) Thanks(0)   Quote grinder220 Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 7:04pm
Originally posted by CrestonM CrestonM wrote:

I'd pull the valve cover and just see what's there.

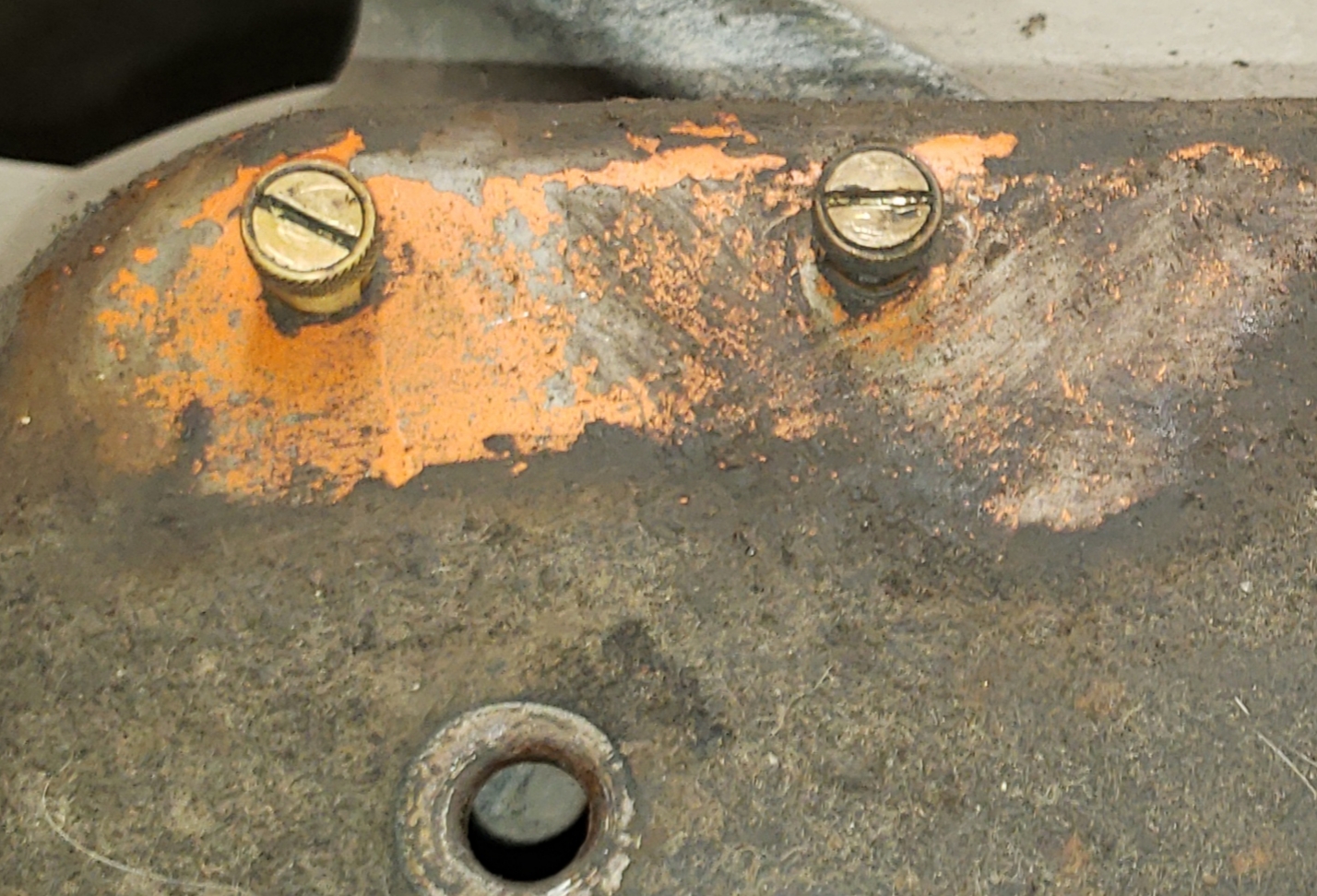

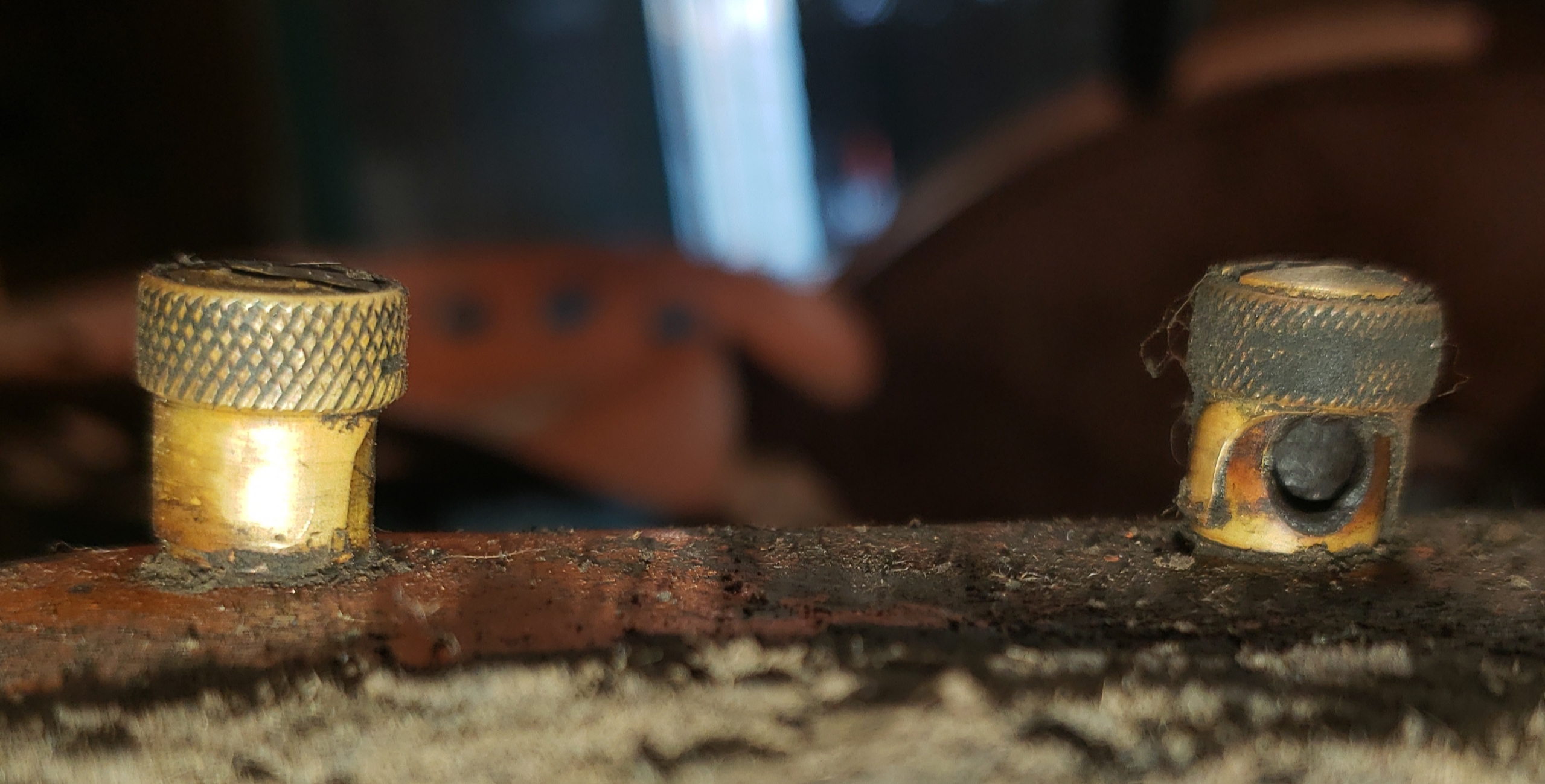

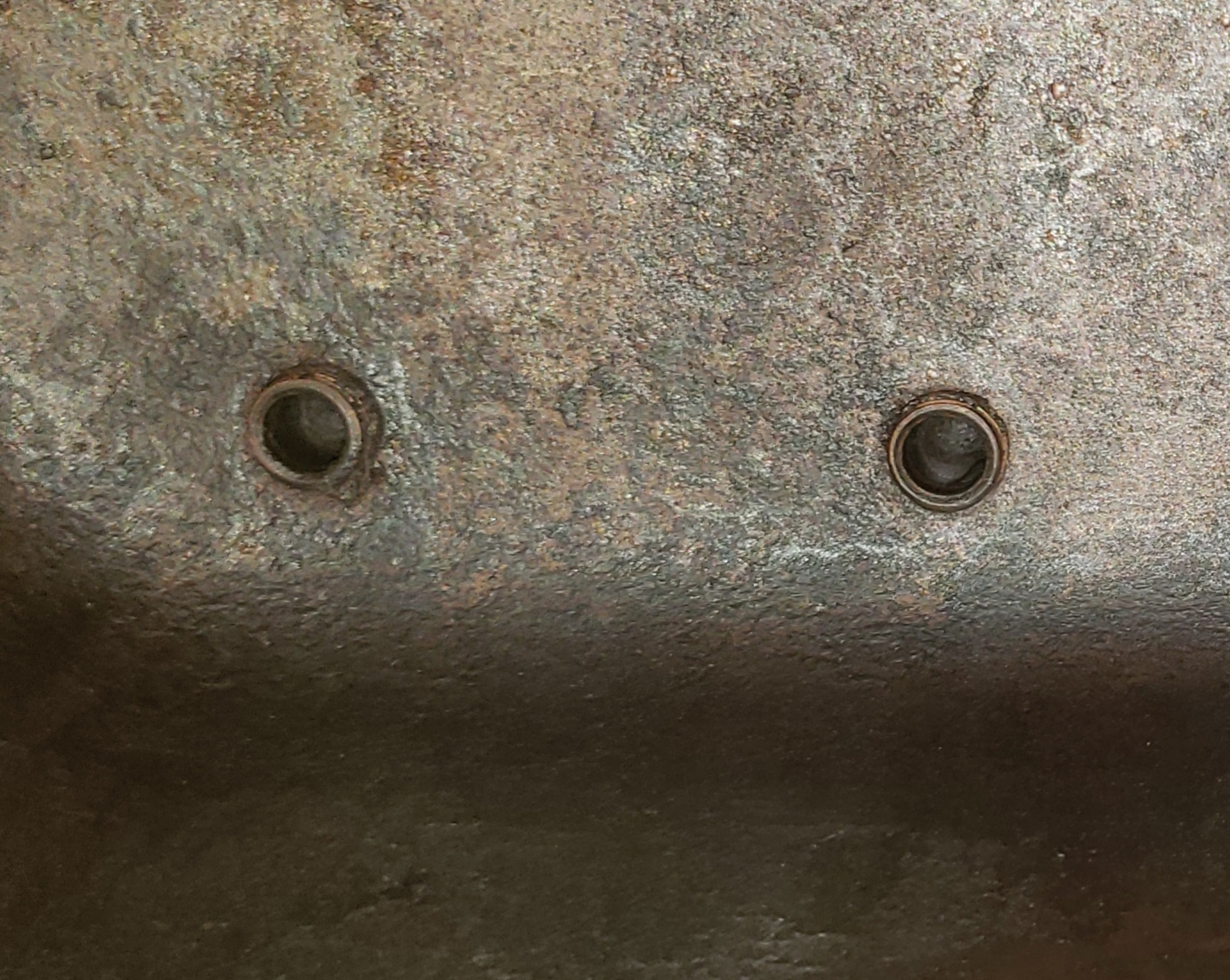

I pulled it off just now and they're some sort of breather?? The out side turns and then there's an open hole..no clue what the purpose would be.

Edited by grinder220 - 23 Aug 2019 at 7:15pm
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 23 Aug 2019 at 9:37pm
Oilers of some kind maybe? I'm at a loss on that as well.
Back to Top
Sugarmaker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Jul 2013
Location: Albion PA
Points: 8558 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Sugarmaker Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2019 at 8:34am
Very nice tractor! Congratulations! Has some unique features too!
Regards,
 Chris
D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
Back to Top
Alberta Phil View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3937 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alberta Phil Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2019 at 10:13am
Those little brass things are oilers. You turn the top to open and then give a couple of shots of oil into them.  That particular type is still available from antique Ford suppliers as that is the oiler used on Model T Ford springs.  My early Twin City tractors use the same oiler to lube the 16 valves in the head.  Someone in the past has fitted them for valve lubrication.
Back to Top
Dan Hauter View Drop Down
Orange Level
Orange Level
Avatar

Joined: 06 Feb 2011
Location: Carlinville, IL
Points: 1269 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dan Hauter Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2019 at 2:03pm
Norm Meinert might have some knowledge for you.  I saw his 6-12 at the Half Century of Progress show in Rantoul, IL. yesterday so he's probably there somewhere.  Maybe he'll log in when he gets home.
Back to Top
B26240 View Drop Down
Orange Level
Orange Level


Joined: 21 Nov 2009
Location: mn
Points: 3866 		Post Options Post Options   Thanks (0) Thanks(0)   Quote B26240 Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2019 at 3:44pm
I have oilers like that on some old machine shop machines.
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8457 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 24 Aug 2019 at 5:00pm
I believe some of the older Farmall tractors have manual valve oilers like that, don't they?
Pour oil through the oilers, it goes into a tray with felt wicks that go to the rockers?


Edited by CrestonM - 24 Aug 2019 at 5:03pm
Back to Top
Bill Long View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bill Long Quote  Post ReplyReply Direct Link To This Post Posted: 25 Aug 2019 at 9:35pm
I have a special place for the "flat top" WC.  It is the first tractor my father sold.
This unit looks to be an excellent buy.  Spoke wheels all around.  Wheel weights.  If it runs it is a bonus.
Congratulations on a GREAT FIND!
Let us know how it progresses.
I am delighted to see another "flat top WC" getting a good home.
Good Luck!
Bill Long
