New to me 190XT (pics finally)

 Post Reply Post Reply
Author
Message
NDBirdman View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 30 Jul 2011
Location: ND
Points: 1429
Post Options Post Options   Thanks (0) Thanks(0)   Quote NDBirdman Quote  Post ReplyReply Direct Link To This Post Topic: New to me 190XT (pics finally)
    Posted: 07 May 2020 at 10:06am

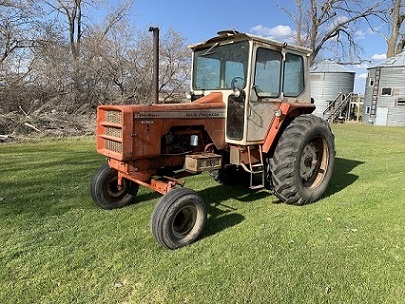

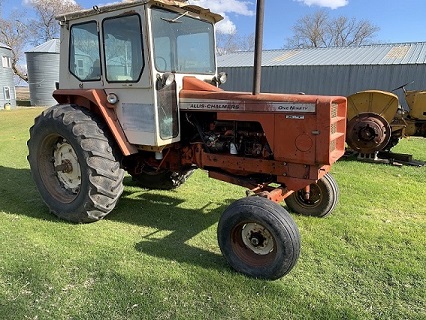

This is the 190XT I recently picked up.  I don't think I did too bad for $1200.  I tell my wife I bought the snowblower for $1200 and they threw in the tractor... LOL  The blower is an International 80.  Had to do a little work with torch/welder to straighten out the flighting, looked like someone had backed into a large rock or sumpt'n.  I changed all fluids/filters, new thermostat, 2 new batteries, wound up having to change the water pump.  Now she purrs like a kitten albeit a dirty one.  I need to take my pressure sprayer out there and give her a good bath.  She's a factory bare-back with a farmer built 3-point system.  Couple things I need to figure out on her yet but I'll get there.  I have a 14ft disk to give her a good work-out as soon as the ground dries up.... farm looks like a big wet mud hole right now.








Edited by NDBirdman - 07 May 2020 at 10:38am
1955 WD45 S#205467, 190XT #6652 DXT
Back to Top
Sponsored Links


Back to Top
NDBirdman View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 30 Jul 2011
Location: ND
Points: 1429
Post Options Post Options   Thanks (0) Thanks(0)   Quote NDBirdman Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 10:28am
.



Edited by NDBirdman - 07 May 2020 at 10:29am
1955 WD45 S#205467, 190XT #6652 DXT
Back to Top
NDBirdman View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 30 Jul 2011
Location: ND
Points: 1429
Post Options Post Options   Thanks (0) Thanks(0)   Quote NDBirdman Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 10:35am

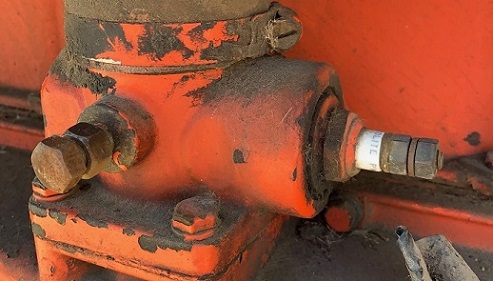

This is on the left above the manifold.  Looks like a short spark plug of sorts, the wire for it is laying below it taped over with electrical tape.  It goes back to a solenoid behind the engine.  Is this some sort of pre-heater?
And what is the plug on the side for?



Edited by NDBirdman - 07 May 2020 at 10:38am
1955 WD45 S#205467, 190XT #6652 DXT
Back to Top
jiminnd View Drop Down
Orange Level
Orange Level


Joined: 16 Sep 2009
Location: Rutland ND
Points: 2290
Post Options Post Options   Thanks (0) Thanks(0)   Quote jiminnd Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 10:36am
Looks like a good buy for that price, not even scrap value.
1945 C, 1949 WF and WD, 1981 185, 1982 8030, unknown D14(nonrunner)
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 10:58am
The spark plug looking thing is the air pre heater. There is normally a pipe plug in the side unless the is ether injection.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
AC7060IL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Aug 2012
Location: central IL
Points: 3500
Post Options Post Options   Thanks (0) Thanks(0)   Quote AC7060IL Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 11:09am
Great buy! Serial number? Love the early series I bar grilles & arrow decals. Added bonus, it's factory cab should have protected dash/console/battery/seat areas.
Back to Top
NDBirdman View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 30 Jul 2011
Location: ND
Points: 1429
Post Options Post Options   Thanks (0) Thanks(0)   Quote NDBirdman Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 11:28am
Originally posted by Joe(TX) Joe(TX) wrote:

The spark plug looking thing is the air pre heater. There is normally a pipe plug in the side unless the is ether injection.


Thanks!  It has the first (?) series ether in the cab, the line is there but is not connected to anything.  So I can plumb the ether to the plug and hit the button for a quick shot?  That leads me to another question, if that pre-heater is connected/used, then hit the ether button (injecting right at the heat source), would that not make for a big bang (?) in the manifold itself?

Since this is going to be used mainly as a snow blower which system would be best for starting?  Our temps Jan/Feb can and does frequently dip well below zero, which system is best for starting at those temps?  I will say I don't favor ether after what I saw couple weeks back.  That is a 4020 with engine tore down, did a lot of destruction.  Guys wife gave the diesel a good dose of ether to start with throttle about half full..... engine did not take it well.  I don't want to do this to the 190!

Apologies if my question seems silly.  My other diesel tractor has block heaters and glow plugs, it still does not like to be woke up during low temps.


Edited by NDBirdman - 07 May 2020 at 11:31am
1955 WD45 S#205467, 190XT #6652 DXT
Back to Top
jiminnd View Drop Down
Orange Level
Orange Level


Joined: 16 Sep 2009
Location: Rutland ND
Points: 2290
Post Options Post Options   Thanks (0) Thanks(0)   Quote jiminnd Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 11:33am



do not use the manifold heater and ether together, if I was you I would put some kind of block heater or tank heater for ND winters. My 185 has block heater, will heat up in just a couple hours.
1945 C, 1949 WF and WD, 1981 185, 1982 8030, unknown D14(nonrunner)
Back to Top
JohnColo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Apr 2020
Location: Niwot, CO
Points: 1263
Post Options Post Options   Thanks (0) Thanks(0)   Quote JohnColo Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 11:36am
First off, I wouldn't worry about explaining it to your wife, more concerned what you will tell the sheriff when the guy who "sold" it for $1,200 reports it as theft! LOL

I would go with the engine pre heat.  As long as you have good batteries, it will do the job, of course if you have a plug in engine heater, that is even better.

Oh, is that a MM Jet Star in the background?  The one without back feet?
Back to Top
DanWi View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 18 Sep 2009
Location: wttn
Points: 1909
Post Options Post Options   Thanks (0) Thanks(0)   Quote DanWi Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 1:16pm
Below 0 i would want an engine heater and good batteries and I would also get the glow plug working, I would hate to think about starting that engine ice cold. It seems like when you start them on ether things only seem to get worse, rings start breaking. A guy I know was doing that with a combine till it got so bad. Just thinking out loud but if a person had to rely on a tractor like that to plow snow or feed animals in winter when it gets down to 0 batteries lose cranking power and I have seen some that have mounted batteries on the frame close to the starter. What would happen if you had the 2 originals and wired in 2 more on the frame?
Back to Top
Boss Man View Drop Down
Orange Level
Orange Level


Joined: 03 Mar 2018
Location: Greenleaf, WI
Points: 617
Post Options Post Options   Thanks (0) Thanks(0)   Quote Boss Man Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 3:47pm
Skip the ether. Its a down hill slope when you use that. Install a block heater and get the manifold heater working.
Back to Top
NDBirdman View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 30 Jul 2011
Location: ND
Points: 1429
Post Options Post Options   Thanks (0) Thanks(0)   Quote NDBirdman Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 6:01pm
Originally posted by JohnColo JohnColo wrote:

Oh, is that a MM Jet Star in the background?  The one without back feet?

Yes sir, it is a 5-star.  It needs a rim and all new shoes.  We destroyed the rim but that is a different story with it.  So far, no luck finding a rim with old shoes, it would be used as a bush hog machine but finding a rim, no luck.  The guy would probably let the tractor go as is pretty cheap if someone was interested.
1955 WD45 S#205467, 190XT #6652 DXT
Back to Top
Michael V (NM) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NM
Points: 2455
Post Options Post Options   Thanks (0) Thanks(0)   Quote Michael V (NM) Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 9:45pm
The glow plug is energized by turning the key to what would be normally a start position, hold for 15-20 seconds. The manifold will get hot if its working, you will definitely be able to feel heat if it's working

Ok, I hope it works. As you said this will be a winter time tractor, a block or tank heater would be a good investment, also a building to park in will help also,be great if that could be heated too
Back to Top
ac45dave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 23 May 2015
Location: SE(IN)
Points: 1343
Post Options Post Options   Thanks (0) Thanks(0)   Quote ac45dave Quote  Post ReplyReply Direct Link To This Post Posted: 07 May 2020 at 10:46pm
Good score for $1200.00 for sure.One heck of a good deal.looks good.
54 wd-45gas ; 56 wd-45d N/F w/fact p/s ; 63 d-17 sIII N/F gas ; 60 D14 N/F ; 67 d-17 sIV N/F gas ; 63D15 sII W/F; 39rc#667 ; 2021 massey 4710 fwa ; gravely 2 wheel tractors
