 Topic: Need info from Parts Manual forOxnard Model K Disc
Posted: 07 Apr 2022 at 11:21am |

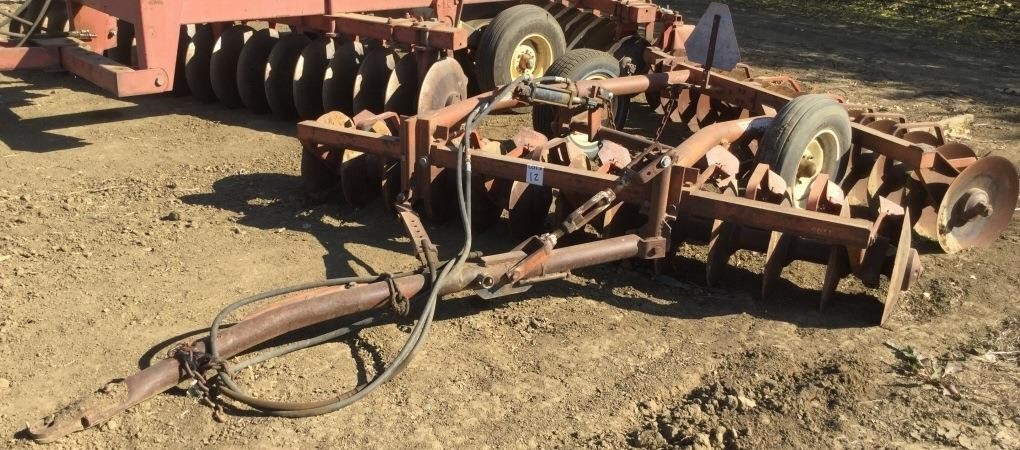

  A member of the Buckeye Allis Club aquired a Model K Offset Disc that is missing a part of the leveling mechanism at the front of the disc. If anyone has a Model K, or a parts manual that would list the part #, or maybe a drawing or photo of the missing part he would appriciate any assistance. With the part # maybe a part could be found, and with a drawing or photo, maybe it could be reproduced. I will add a photo showing where the missing part should be. Its some type of a split collar that fits over the round upright at the undercut and attaches to the clevis on the rod that extends to the drawbar.
|
 |
|
Sponsored Links
|
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Apr 2022 at 1:42pm |
It's actually a rectangular block. It is retained by a bolt that fits the groove on the vertical pin. I had to make one for my K offset. I'm looking for the drawing. If I cannot find I will measure mine.
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Apr 2022 at 1:54pm |
|
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
John m
Silver Level
Joined: 11 Apr 2020
Location: Wetmore, Mi
Points: 278
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Apr 2022 at 2:30pm |
|
Appears there is a missing bearing block by the picture.
|
|
DonDittmar
Orange Level
Joined: 15 Sep 2009
Location: MIllersburg, MI
Points: 2505
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2022 at 6:27am |
|
Damn. Always wanted a little K disc. Thats a nice one. We dont see any Oxnard implements here in MI
|
|
Experience is a fancy name for past mistakes. "Great moments are born from great opportunity"
1968 D15D,1962 D19D
Also 1965 Cub Loboy and 1958 JD 720 Diesel Pony Start
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4956
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2022 at 6:30am |
|

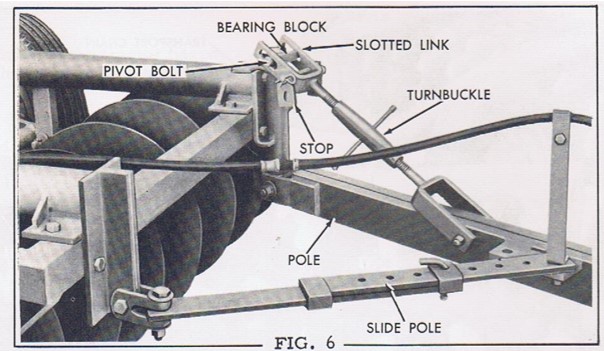

It looks like you need the Block 70406695, 2 plates 70406715, A pin and the bolt to attach the plates to what you have. Those parts look like you could make then if you can't find them.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Bret (OH)
Silver Level
Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 353
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2022 at 6:31am |
Thanks for the replies.

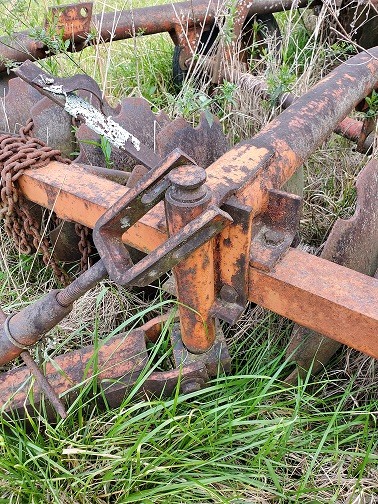

As I study the photos, it appears that the block that is missing at the top may be a duplicate of the block mounted on the bottom of the verticle member where the draw bar is attached. Would this be correct?
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 4956
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2022 at 6:33am |
|
The bottom block is a different part number than the top one.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
Bret (OH)
Silver Level
Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 353
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2022 at 6:34am |
|
PaulB, do you have a parts book that you might snap a photo of the part drawings and either post it or send me an email?
|
|
Tracy Martin TN
Orange Level Access
Joined: 11 Sep 2009
Location: Gallatin,TN
Points: 10699
|
Post Options
Thanks(0)
Quote Reply
Posted: 08 Apr 2022 at 6:19pm |
|
If I can remember, I will take a pic of mine. I have a model K at the farm. It is an awesome cutting disc. Tracy
|
|
No greater gift than healthy grandkids!
|
|
Joe(TX)
Orange Level
Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Apr 2022 at 2:21pm |

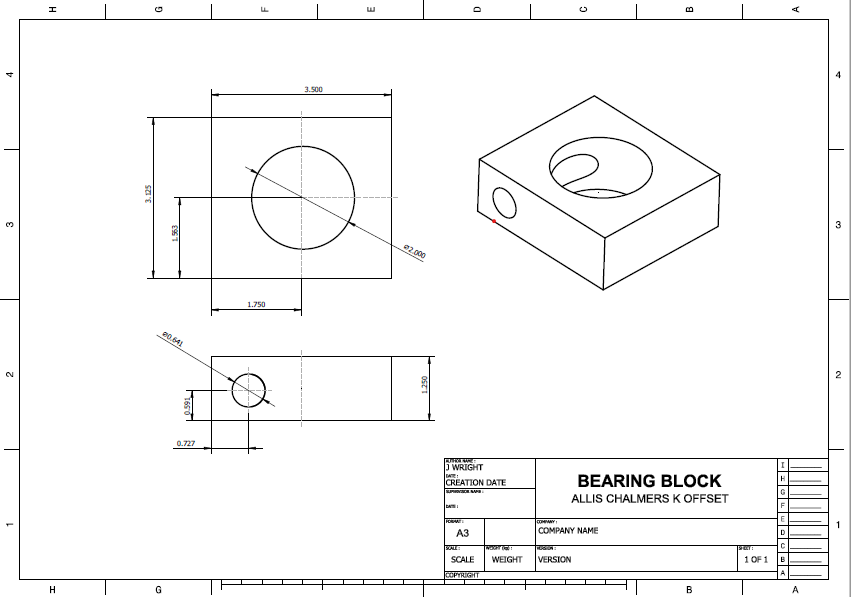

Here is a drawing of what made for my K. It may not be exactly like the original. It uses a 5/8 bolt with a .940 dia. spacer on each side that the yoke slides on.
|
|
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
|
|
Tom59
Bronze Level
Joined: 27 Feb 2021
Location: Lebanon Tenness
Points: 155
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Apr 2022 at 10:06pm |
 Tracy Martin TN wrote:
If I can remember, I will take a pic of mine. I have a model K at the farm. It is an awesome cutting disc. Tracy |
I had a neighbor that had one and a D-19 diesel tractor. When they sold his equipment at his estate auction about 35 years ago I knew the man brought both the D-19 tractor and the model K offset disk. When he died I not sure what happen or who got the tractor and disk. They are a neat disk.
|
|
Bret (OH)
Silver Level
Joined: 15 Sep 2009
Location: Blanchester, OH
Points: 353
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2022 at 5:02am |
|
Thanks Joe(TX) for the drawing, and to all the others that replied.
|
|
