 Topic: Need help with Model G engine, carb, maybe more
Posted: 09 Jun 2017 at 8:33pm |
|
Hey everyone. I've recently fully rebuilt the engine for my G, and I've yet to get it to start. New rings, valves, gaskets, ignition, etc.
First - anyone have good instructions on rebuilding the TSV13 carb? I cannot tell where the orings go on the main jet
Second - what readings should I be getting for compression? I have compression on all 4, just not sure if it's enough
Third - any tips for my situation?
Thanks
Steve
|
 |
|
Sponsored Links
|
|
|
Gerald J.
Orange Level
Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636
|
Post Options
Thanks(1)
Quote Reply
Posted: 09 Jun 2017 at 9:13pm |
I have owner's and shop manual for the G on line at: http://www.geraldj.networkiowa.com/Trees/Gerald J.
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(1)
Quote Reply
Posted: 09 Jun 2017 at 9:14pm |
The O ring would be a hard flat washer that slips over the threads of the jet before it is screwed in. What was the ring gap down in the cylinder before you placed the rings on the pistons? What is the valve lash? Firing order is 1-3-4-2 on the G. Some info:
Edited by Dick L - 09 Jun 2017 at 9:20pm
|
|
sawjinc
Bronze Level
Joined: 09 Jun 2017
Location: Indiana
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2017 at 9:34pm |

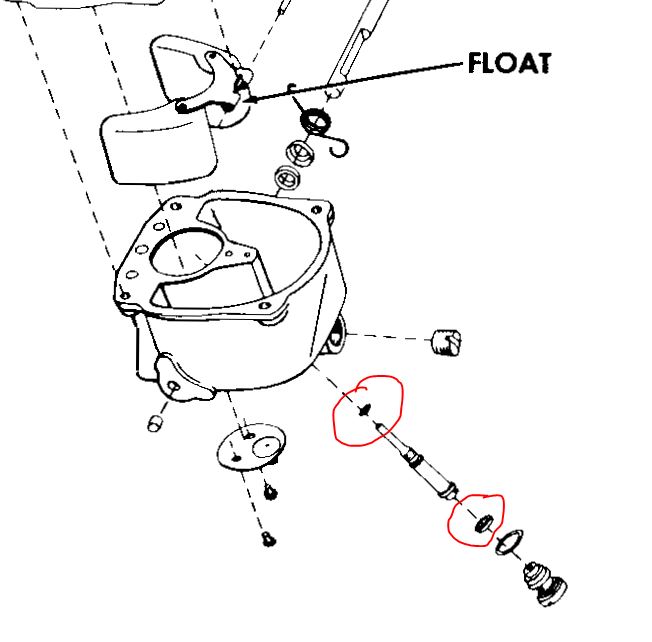

Thank you both. for the main jet, I was referring to the two items circled in the image below. I unfortunately did not measure gap before closing it up. the engine is bored .030 over and I ordered rings for .030 over. The valves were all set to 18/35, though at this point I am tempted to recheck all of them.
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2017 at 7:37am |
|
Valve clearance is (.010 for intake and .012 for exhaust)
The stem clearance in the chart means side clearance inside the guide and is not .018 but .0018 as the tightest fit (minimum) that is almost .002. with the (maximum) loosest fit being .0035 being less than .004. When the clearance gets to .004 or over the only fix is to put in new guides.
Yes you should reset the valve clearance between the end of the valve and the lifter. Setting the exhaust valve to .035 would not give the proper opening to remove the exhaust with ease.
when working in thousands those pesky zeros mean a world of difference.
Edited by Dick L - 10 Jun 2017 at 7:46am
|
|
sawjinc
Bronze Level
Joined: 09 Jun 2017
Location: Indiana
Points: 11
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2017 at 7:48am |
|
Ok thanks I'll go check them and reset
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2017 at 8:23am |
 sawjinc wrote:
Ok thanks I'll go check them and reset |
I set the valve to lifter to a easy slide with the feeler gauge not a tight pull slide. This is slightly over the feeler gauge thickness which is fine.
|
|
Dick L
Orange Level
Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Jun 2017 at 8:26am |
|
Also remember that the number one plug is close to the timing gear at the rear of the tractor when running the plug wires. 1-3-4-2
|
|
