Need help identifying my loader/backhoe |
Post Reply |
Author | |
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
Posted: 24 Feb 2013 at 9:27pm |

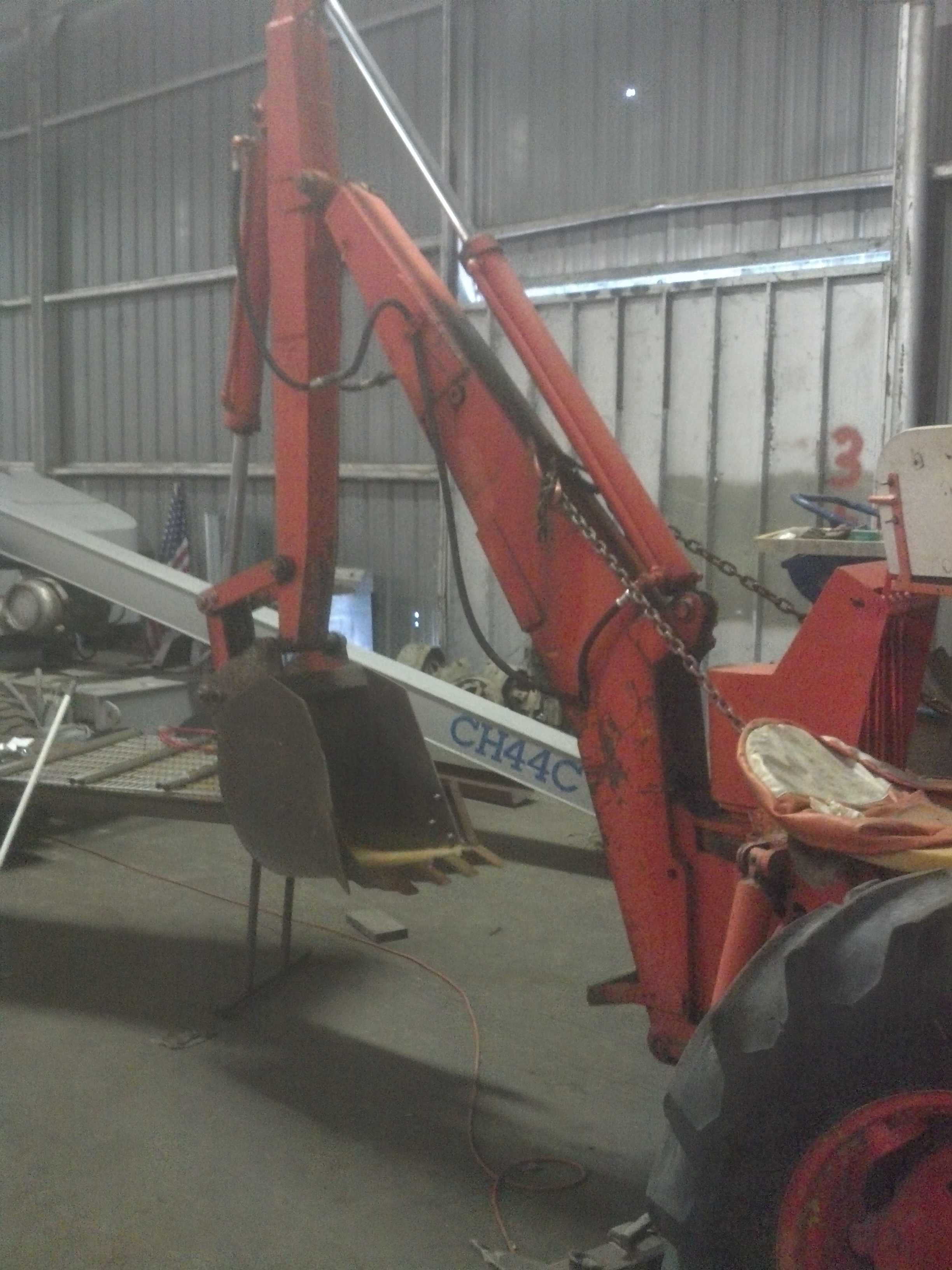

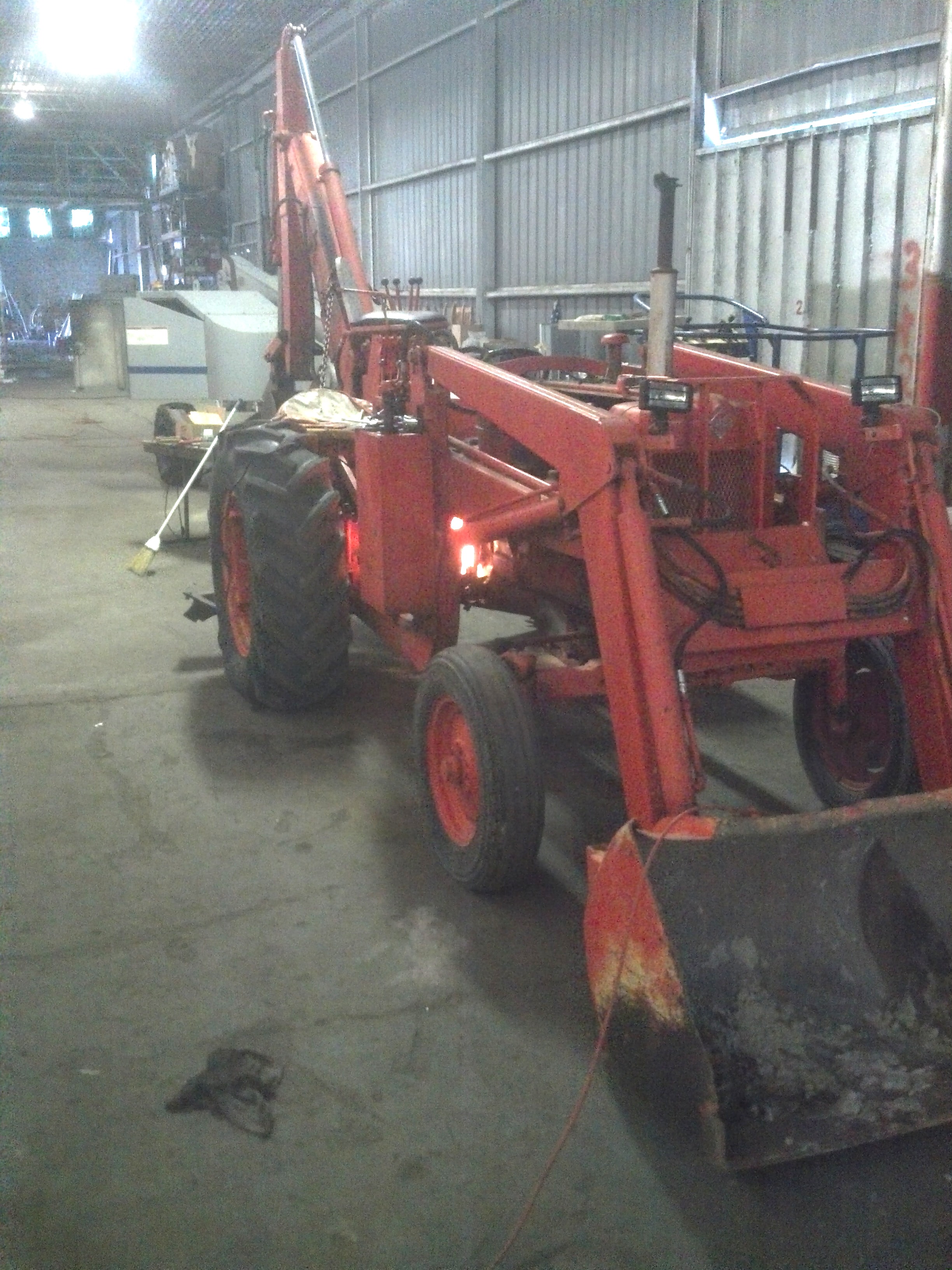

Greetings. I need some help identifying my machine. It has a back hoe and a front end loader on it. Probably from the 50's or 60's. The numbers 221068 (might be 88 at the end) are cast into a plate on the right side transmission. Also, the numbers 149-1368R are found on the right side of the engine. There is a nameplate on the loader, but it's almost impossible to make anything out on it. However, I think I see the number L600 on that label. I can send pictures if you think you can help. I am absolutely new to this forum, but read through a lot of the posts.
Anything you can share with me is appreciated. |
|
Sponsored Links | |
Eric B
Orange Level Joined: 09 Feb 2012 Location: British Columbi Points: 888 |
Post Options
Thanks(0)
|
Welcome to the forum, you'll have a great time on here. Sounds like you have an I 600 Loader Backhoe, I've had one of those. I may get you a production year later unless someone beats me to it.
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
wow, that was quick. What are you basing that on? Was it the numbers I gave off the engine or the tranny? Or the L600 number?
|
|
Eric B
Orange Level Joined: 09 Feb 2012 Location: British Columbi Points: 888 |
Post Options
Thanks(0)
|
The '149' on the engine would refer to the cubic inch size of the motor, which will be in the I 600. I figured your quote of L 600 would be close enough to to be sure of the model. It's a nice little machine for home/acreage use.
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
I figured the 149 was the cubic inches. I've heard of the I600, but I triple checked that number on the loader, and it's definitely an L. Any idea where to find the serial number on it? I'm having a little spark issue right now, but the distributor cap is all but shot. I ordered one yesterday, but it won't be in until Tuesday at the earliest. Thanks so much for your help, by the way.
|
|
Eric B
Orange Level Joined: 09 Feb 2012 Location: British Columbi Points: 888 |
Post Options
Thanks(0)
|
You're likely with time to have more input here on the forum to get answers. It's so long ago since I had my I 600 that I won't be able to quote too many details by memory, however, I do have a D14 tractor with the same engine. Good luck on getting that bug out of it, keep us posted on your progress. Incidentally, I can't seem to find serial # listings for your machine.
Edited by Eric B - 24 Feb 2013 at 10:31pm |
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
Is it possible to post photos in this forum?
|
|
Breeze
Orange Level Joined: 11 Sep 2009 Location: Ga Points: 8931 |
Post Options
Thanks(0)
|
I had a d15 with Henry L100 loader with 149 engine. My d15 also had Heney (Mark 1) backhoe. There are manuals for them floating around on the web and possibly even some on here have them.
yep on the pictures, just click on rich text editor its the double box above reply pane with arrow pointing 1 oclock. from there its pretty simple |
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|

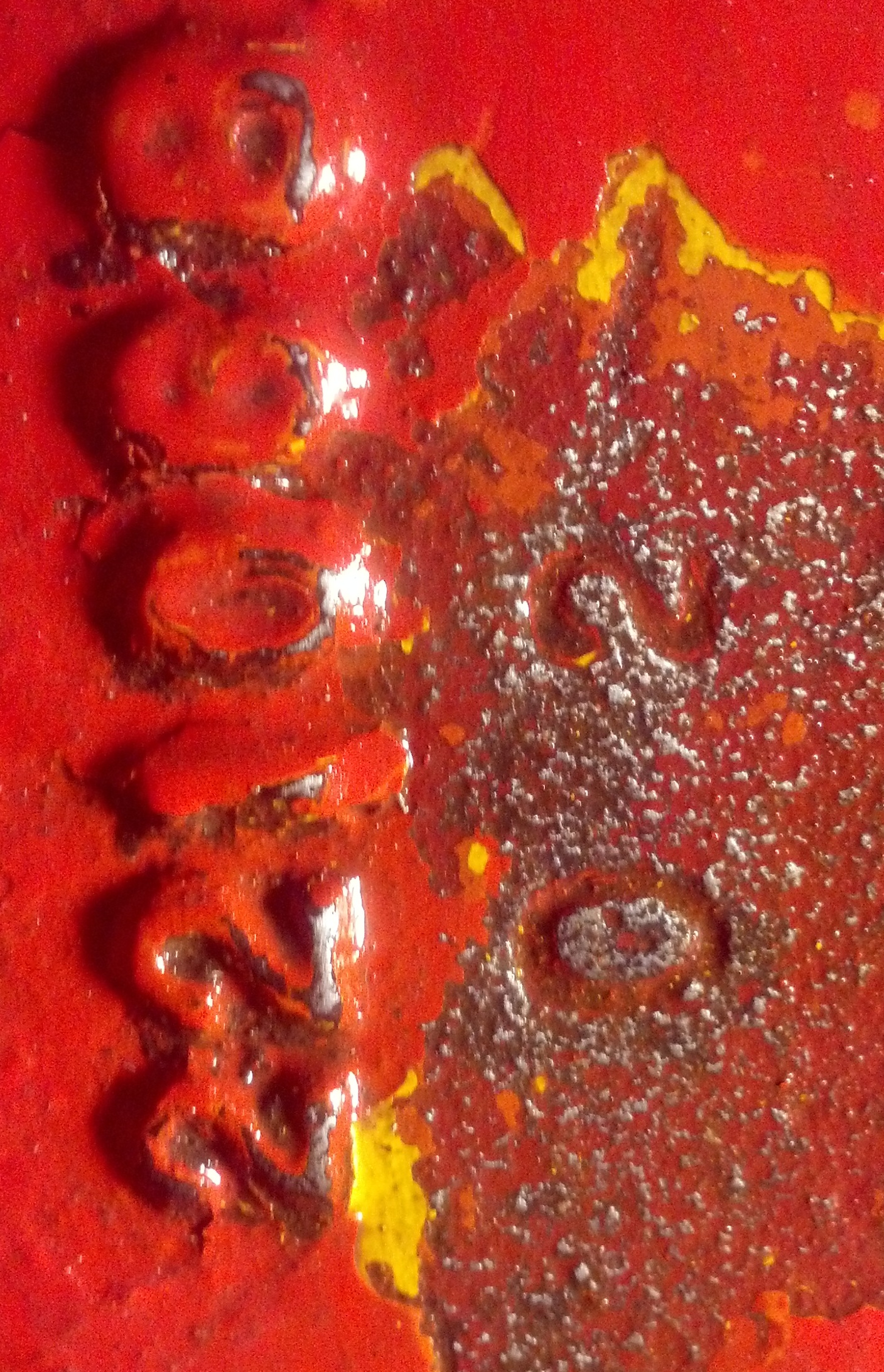

This is what I believe to be the serial number. It's on the right side of the transmission, near the shift lever, on a cover plate. From what I've read, this number should be stamped, but this is cast. I didn't notice the stamping until I just went to take this picture. As you can see, it appears this tractor used to be yellow.
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|

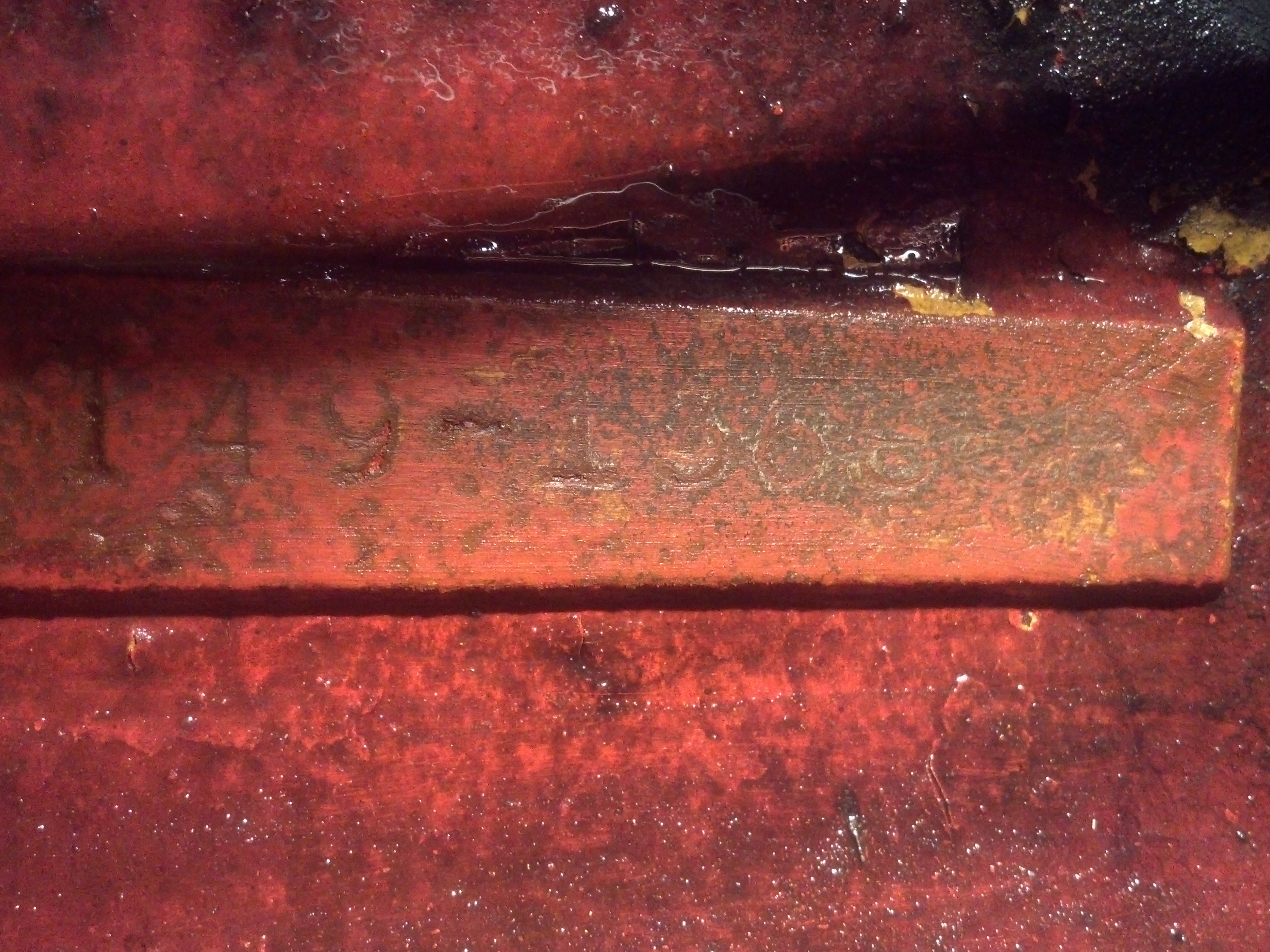

This stamping is on the left side of the engine. This is where I got the 149 number in my original post.
|
|
Eric B
Orange Level Joined: 09 Feb 2012 Location: British Columbi Points: 888 |
Post Options
Thanks(0)
|
On the tractor itself take a look where the torque tube meets the back of the engine block on the left side, about a one inch wide strip coming down on an angle, take sand paper if necessary to see the numbers well, that should at least give you the serial # of the tractor......maybe they have included I 600?
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
That number plate you told me to look for is right where you said it would be. However, it's totally horizontal, does not come down in an angle. This is the stamping that has the 149 number on it.
|
|
Breeze
Orange Level Joined: 11 Sep 2009 Location: Ga Points: 8931 |
Post Options
Thanks(0)
|
that looks to be the Henry brand hoe and loader. My d15 had same radiator/grill brush guard and yep, mine was yellow. does yours have pto or lift? mine didnt so I was told mine was industrial unit.
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
No. It does not have PTO. Someone else told me it was an Industrial also. I believe it came with a 6 volt system, but currently has a 12v system.
|
|
Ages Cat
Orange Level Joined: 12 Sep 2009 Location: Hutchinson, MN Points: 681 |
Post Options
Thanks(0)
|
Does it have adjustable rear wheels? Many of the early industrial tractors did. Non adjustable front with power adjust rear wheels, I know sounds stupid, but that is what most of the sales literature shows. The number stamped on the bell housing will tell the story.
|
|
Breeze
Orange Level Joined: 11 Sep 2009 Location: Ga Points: 8931 |
Post Options
Thanks(0)
|
I was looking through old posts over on the other site(yt) and there was mention of a mark II backhoe and L600 loader on a d15 and also a L99 loader and Mark backhoe on a d12 so Im sure there were lots of combinations. If you check ebay regularly you might run up on a manual like i had. It was a complete owners manual with parts list and complete diagram of backhoe and loader, even had valve pressure settings listed. I enjoyed mine til it sold, looks like yours is in great condition for its age, enjoy and good luck with it.
found this on ebay http:///www.ebay.com/itm/HENRY-L-600-LOADER-FOR-THE-ALLIS-CHALMERS-D14-TRACTOR-PARTS-INSTRUCTION-MANUAL-/150841818697 Edited by Breeze - 25 Feb 2013 at 6:11pm |
|
DiyDave
Orange Level Access Joined: 11 Sep 2009 Location: Gambrills, MD Points: 50574 |
Post Options
Thanks(0)
|
You are still not finding the serial number. Look on the carberator side of the tractor, where motor bolts up to the torque tube. Kinda looks like a hexagon, or octagon cast into the back of the engine. Where these 2 castings meet, the motor info will be on the motor flange, and the serial # will be stamped into the torque tube casting. Looks like an early I-60, to me, cause it has a round muffler, and sheet metal radiator shell.
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
It appears to have adjustable rear wheels. I'm not exactly sure what you mean by that, but there are spiral shaped bars welded to the inner rim with locking mechanism on them. Almost looks like you could position them inward or outward a few inches.
I've spent quite some time looking for a stamping on the bell housing, but not having any luck finding one. I put a picture in a previous post of a boss that is cast into the engine block with the numbers 149-13688R stamped into it. Not really sure if that's the serial number though. Also, getting a lot of D15/I600 help. Is an I600 just a D15 with a backhoe and loader?
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|

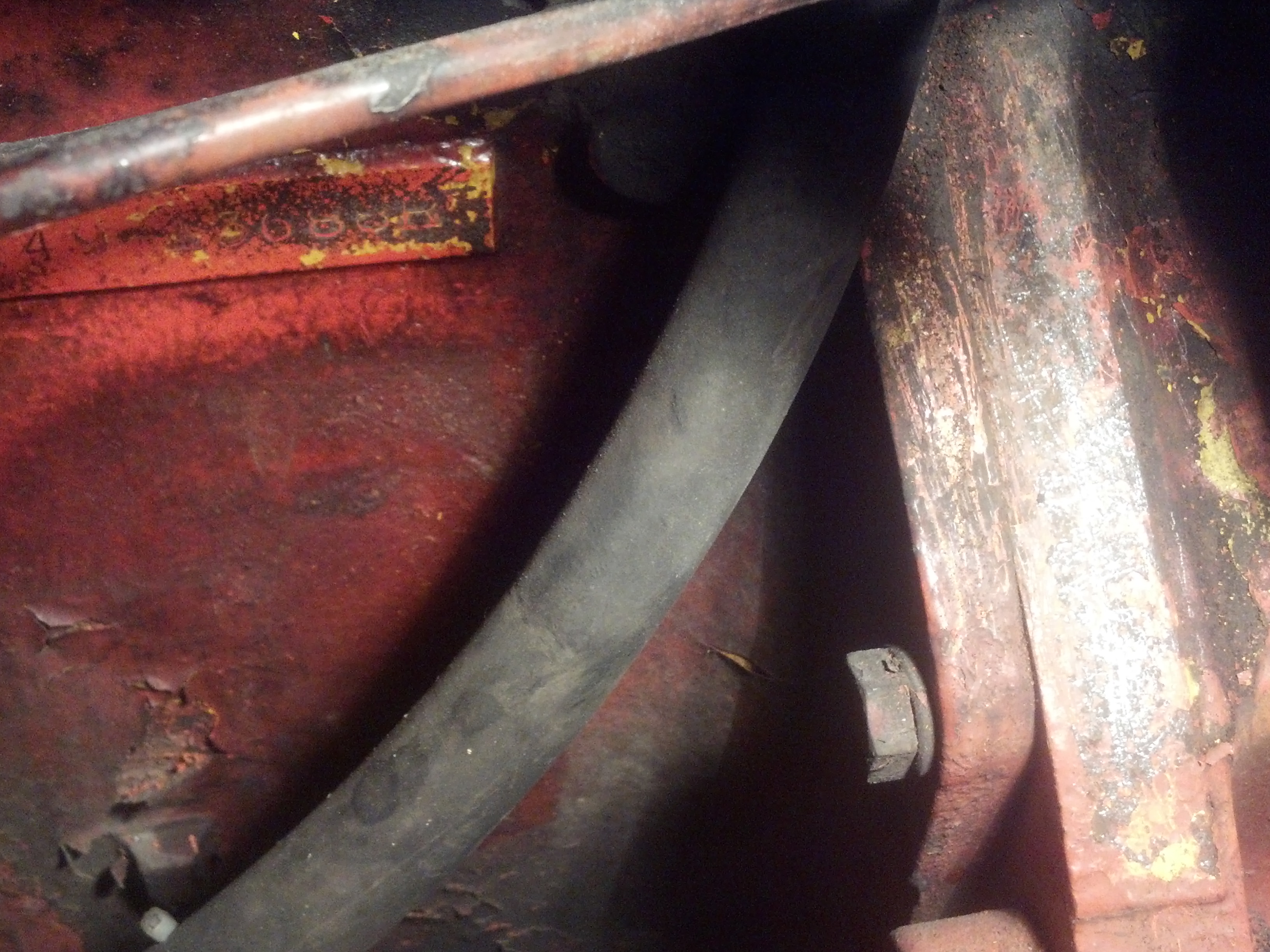

This is a picture of the left side of the engine. The mating flanges are the rear of the engine and the torque tube. Look at the torque tube flange, you'll see a boss cast into the flange, but there are no numbers on it. There is a boss in the upper left corner of the photo with the 149-13688R number stamped in it. DiyDave, do you think this number is information on the engine?
Edited by kwalz - 25 Feb 2013 at 6:22pm |
|
Breeze
Orange Level Joined: 11 Sep 2009 Location: Ga Points: 8931 |
Post Options
Thanks(0)
|
mine had numbers in that blank boss you describe on torque tube, mine was D15-4694 Engine # was 149-12491R
|
|
DiyDave
Orange Level Access Joined: 11 Sep 2009 Location: Gambrills, MD Points: 50574 |
Post Options
Thanks(0)
|
A picture is perhaps worth a thousand words. The numbers on the boss, on the engine is likely the motor serial #. Unfortunately, a motor serial # is not likely to give you a tractor serial #. There might be someone out there, that knows how to read them for a date, but it could also be a replacement motor block. Don't know why the serial number boss, for the tractor is blank, but others have said, on other AC tractors, that if the torque tube was replaced, by a dealer, then the new part, would not have a number stamped into the boss. The mechanic was supposed to then stamp in the original number, from the old part. From my own experience, dealers of that time likely didn't have a set of stamps to do it with! Whatever you do, if you choose it make it serial number 1, make sure you get the stamp lined up and oriented, in the right direction. Otherwise you will end up looking rather foolish, with your # 1 tractor, with the upside down serial #!!
|
|
kwalz
Bronze Level Joined: 24 Feb 2013 Location: Sebewaing, MI Points: 16 |
Post Options
Thanks(0)
|
I wish I could buy each and every one of you a cold beer!!! I found the serial number. It's right where you said it would be, just under a whole lot of paint. Eric told me to scrape the paint, and then sandpaper, which I did, but didn't take it down to bare metal. I just did that, and there it was, plain as....., well not really plain, but I was able to make it out. It looks like a D14 #13102. Does this sound plausible?
I'm sure I'll have a thousand more questions. Thanks guys, I've only been on this forum for 24 hours, and I feel like I've met a whole bunch of new friends.
|
|
Breeze
Orange Level Joined: 11 Sep 2009 Location: Ga Points: 8931 |
Post Options
Thanks(0)
|
absolutely, you found what you were looking for. Someone will chime it with a birth year soon. Yep, you found a great group of people to answer questions and offer loads of Allis Chalmers knowledge. Welcome. If you look around the behind shroud of controls for hoe you might find the Henry hoe tag, itll be held on with rivets. Or might be, mine was and tag for loader was on inside frame near levers.
Edited by Breeze - 25 Feb 2013 at 7:22pm |
|
Ages Cat
Orange Level Joined: 12 Sep 2009 Location: Hutchinson, MN Points: 681 |
Post Options
Thanks(0)
|
1958. 1959 started with 14900.
|
|
Mikez
Orange Level Access Joined: 16 Jan 2013 Location: Usa Points: 8151 |
Post Options
Thanks(0)
|
I'll look tomorrow at the price sheets and the other stuff in that envelop from 59 and show ya all.
|
|
