need help b wiring system
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
charlesinnc View Drop Down
Bronze Level
Bronze Level


Joined: 31 Dec 2009
Location: eastern N.C.
Points: 2 		Post Options Post Options   Thanks (0) Thanks(0)   Quote charlesinnc Quote  Post ReplyReply Direct Link To This Post Topic: need help b wiring system
    Posted: 29 Nov 2011 at 3:15pm
i am trying to replace the generator, cut out, and control switch on a B 6 volt positive ground system.  all above items I have but there are no old wires to go by. can anyone help with a diagram ?  thank you for any help.
Back to Top
Sponsored Links


Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11950 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 29 Nov 2011 at 7:38pm
E-mail me at: customcircuits@gmail.com  I'll shoot you a wiring diagram....
Steve@B&B
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86265 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Nov 2011 at 6:03pm
<a href="http://s436.photobucket.com/albums/qq86/steve-ill/?action=view&amp;current=Allis-6Vwireing.jpg" target="_blank"><img src="http://i436.photobucket.com/albums/qq86/steve-ill/Allis-6Vwireing.jpg" border="0" alt="6 volt Allis wiring system"></a>
Like them all, but love the "B"s.
Back to Top
Rick of HopeIN View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Hope, Indiana
Points: 1324 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Rick of HopeIN Quote  Post ReplyReply Direct Link To This Post Posted: 30 Nov 2011 at 6:53pm

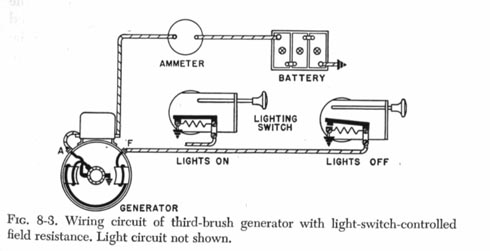

I found this diagram helpful and then did a search for third brush or three wire generators and found lots of information in the antique cars sites too.

My wiring was correct but it turned out the alternator had a bad winding and was cheap to repair at a good shop.



Edited by Rick of HopeIN - 30 Nov 2011 at 6:54pm
1951 B, 1937 WC, 1957 D14, -- Thanks and God Bless
