More parts questions

 Post Reply Post Reply
Author
Message
Mikez View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 5736
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Topic: More parts questions
    Posted: 12 Jan 2020 at 10:08pm
Hi everyone, have some more questions on a few things

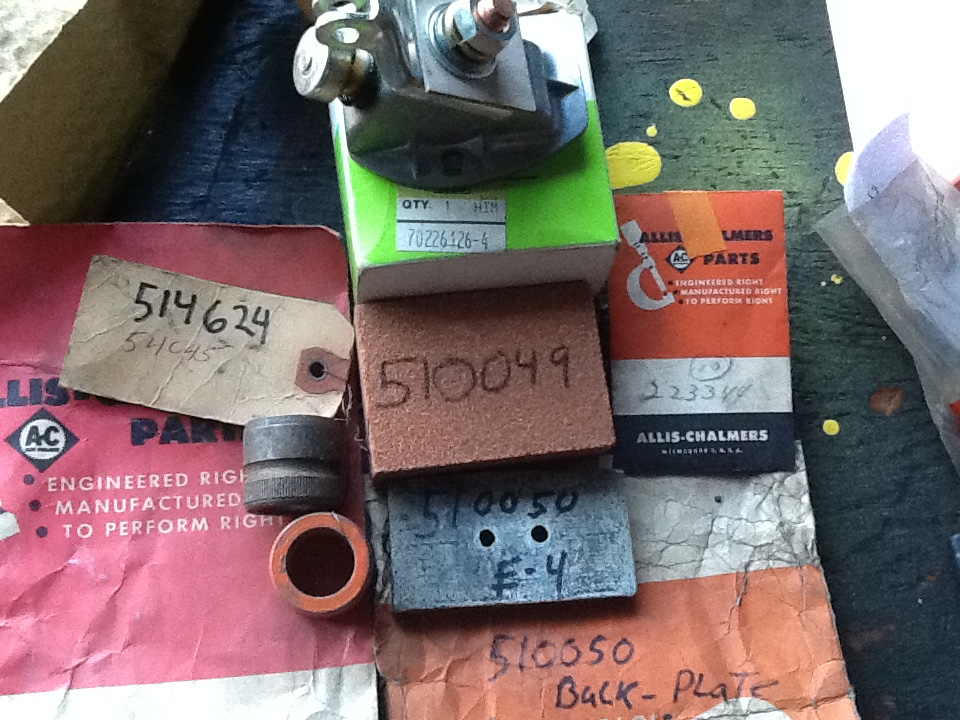

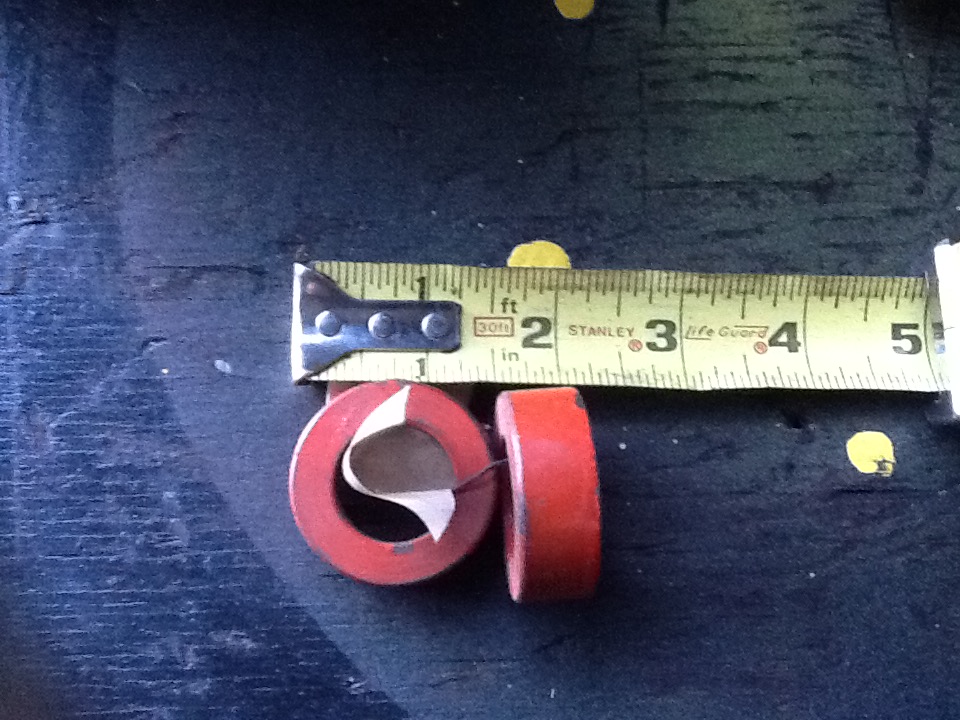

First does anybody have parts book on rotary mower handy. Have a few spacers or bushings
If you could look in book and see if they might be 538125.

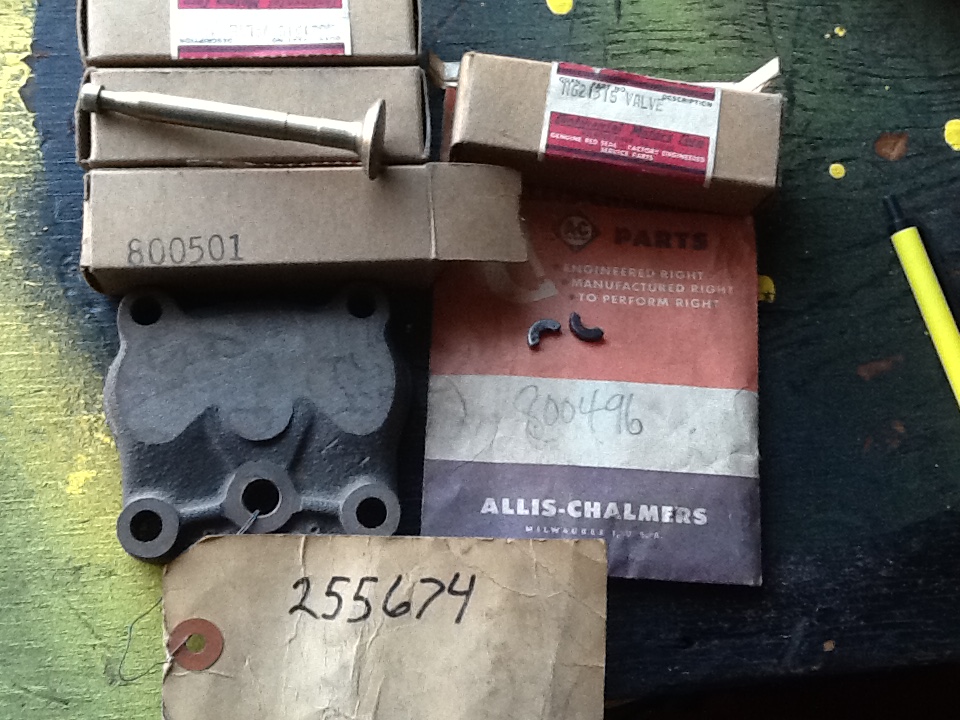

Second is this cover and the tag has 255674 on it, and that number isn't in numerical book.
.
Thanks for the help
Back to Top
Sponsored Links


Back to Top
Mikez View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 5736
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jan 2020 at 10:24pm
We also have this start switch and on it 226126. That number isn't in book. But 226128 is saying switch. Is that the same

Thank you

Edited by Mikez - 12 Jan 2020 at 10:26pm
Back to Top
TOM (NE) View Drop Down
Silver Level
Silver Level


Joined: 11 Sep 2014
Location: Greenwod, NE
Points: 68
Post Options Post Options   Thanks (0) Thanks(0)   Quote TOM (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2020 at 3:32pm

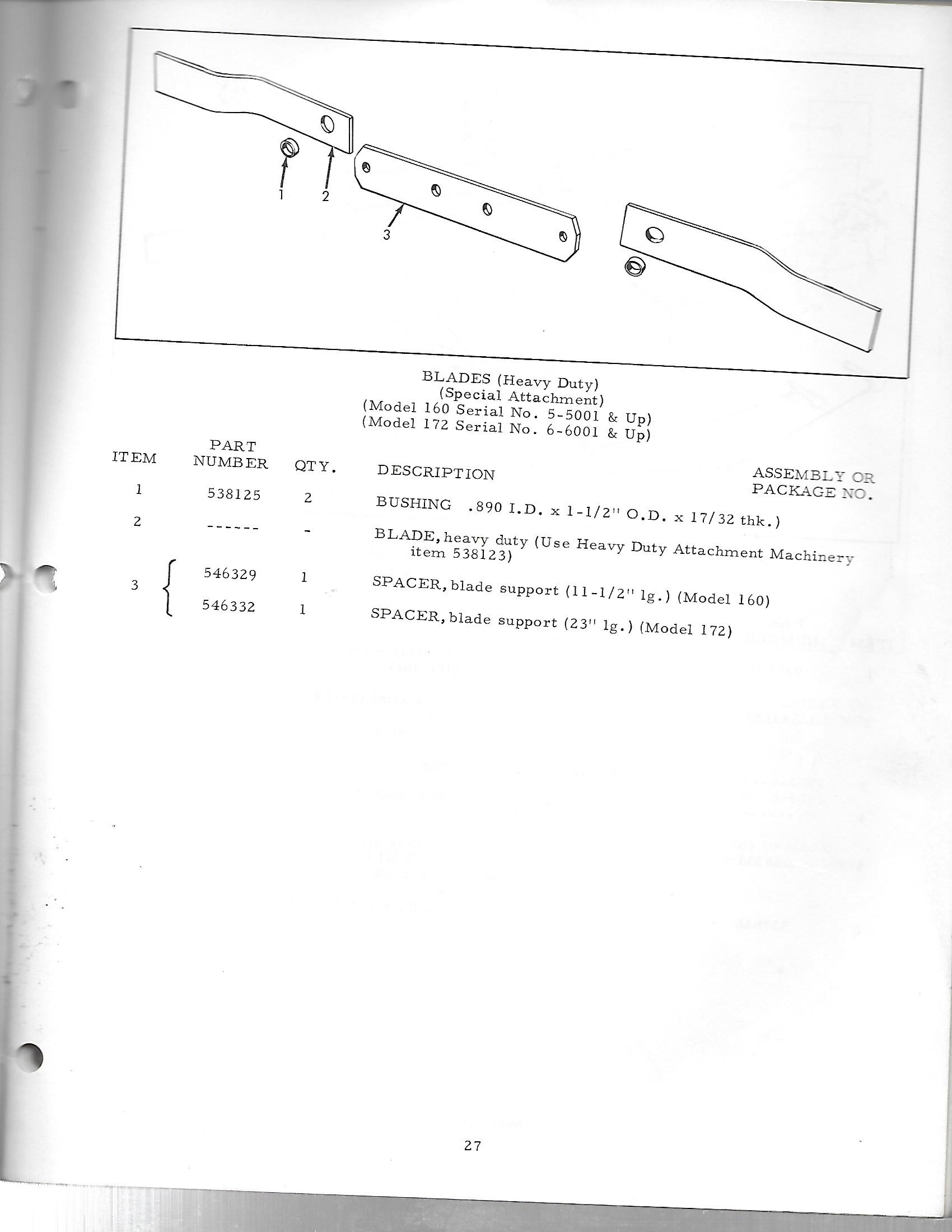

Bushing fit mower 160 &170, heavy duty blades. Tom

Back to Top
Mikez View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 5736
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jan 2020 at 10:17pm
Thanks tom, could you see where this 537846 is in the rotary mower
Back to Top
TOM (NE) View Drop Down
Silver Level
Silver Level


Joined: 11 Sep 2014
Location: Greenwod, NE
Points: 68
Post Options Post Options   Thanks (0) Thanks(0)   Quote TOM (NE) Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jan 2020 at 10:33am
537846 bushing (.890 I.D x 1-1/2 O.D. x 13/32 thk)  is for use with the standard shredding blades (537845)   Tom
Back to Top
stu(ON) View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Points: 377
Post Options Post Options   Thanks (0) Thanks(0)   Quote stu(ON) Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jan 2020 at 1:27pm

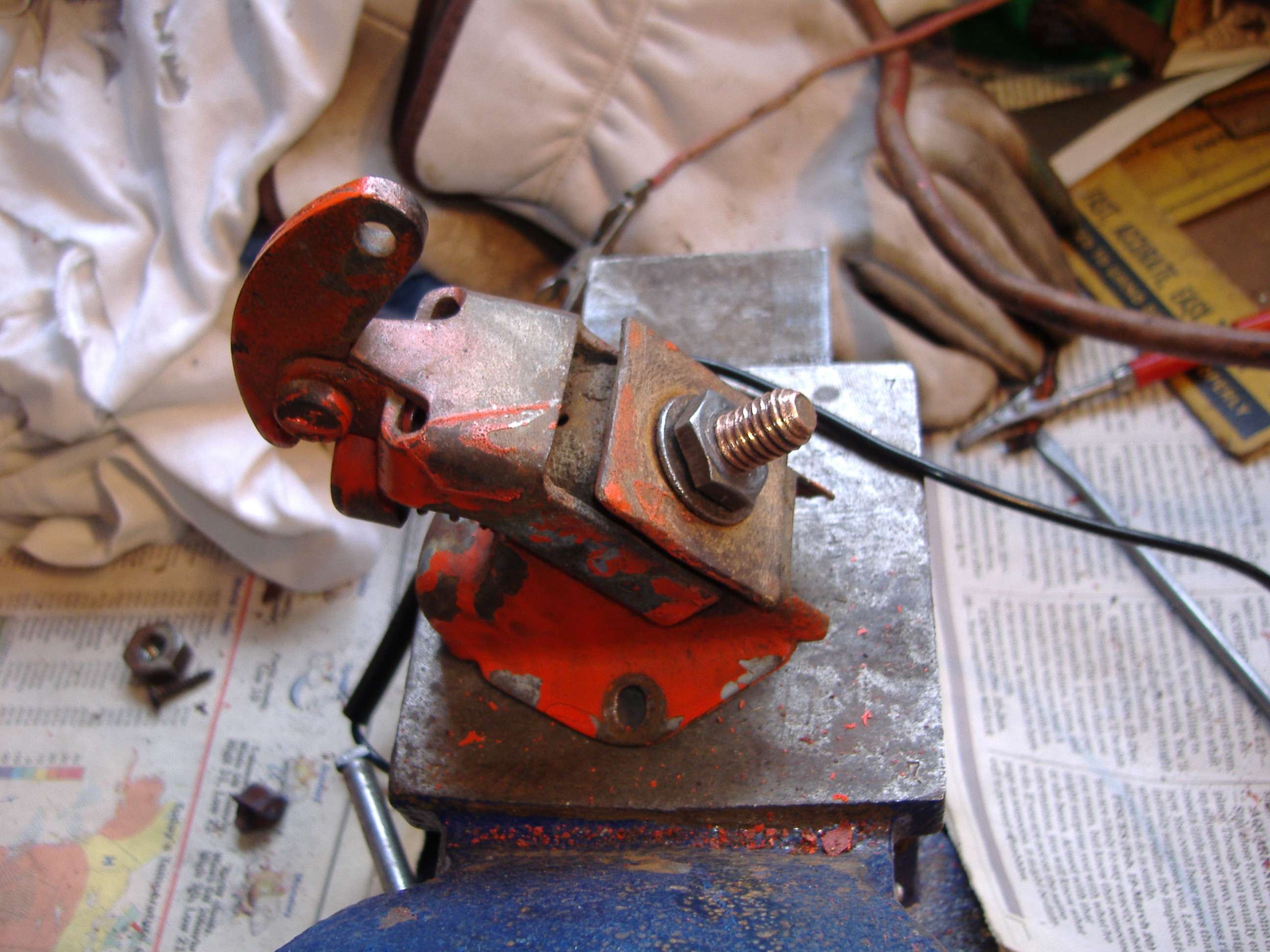

1951 WD original starter switch.  You be the judge.

Back to Top
Alvin M View Drop Down
Orange Level
Orange Level


Joined: 24 Jun 2018
Location: PA
Points: 377
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alvin M Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jan 2020 at 1:37pm
That Switch Is Part # 70222880 For The Autolite Starter
Back to Top
Mikez View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 5736
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 14 Jan 2020 at 9:54pm
Thanks again. The bushings are available if anybody is interested
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1280
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Jan 2020 at 12:44pm
Mike-
that starter switch in your picture is for a delco-remy starter, and since it is cast aluminum, not stamped steel, it should be worth 2x what they get for the modern stamped steel switch boxes.
A&W TRACTOR REPAIR
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
VCaporuscio View Drop Down
Bronze Level
Bronze Level


Joined: 16 Jun 2020
Location: Warrenton, VA
Points: 1
Post Options Post Options   Thanks (0) Thanks(0)   Quote VCaporuscio Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jun 2020 at 3:45pm
Any idea where someone can get those 537845 blades?
Back to Top
