 Topic: Model d road grader
Posted: 28 Mar 2017 at 5:19pm |
|
|
 |
|
Sponsored Links
|
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54447
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Mar 2017 at 6:18pm |
|
Sounds like casting #'s, not serial #'s. Should be a s# plate, where you step up into the operators position, think its on the right side, but don't remember, for sure. As for the fan belt, can't help you there, best bet is to take it off, and measure it with a belt stick, at the parts store...
|
|
TumblingIQ
Bronze Level
Joined: 28 Mar 2017
Location: Nevada
Points: 18
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Mar 2017 at 6:59pm |
|

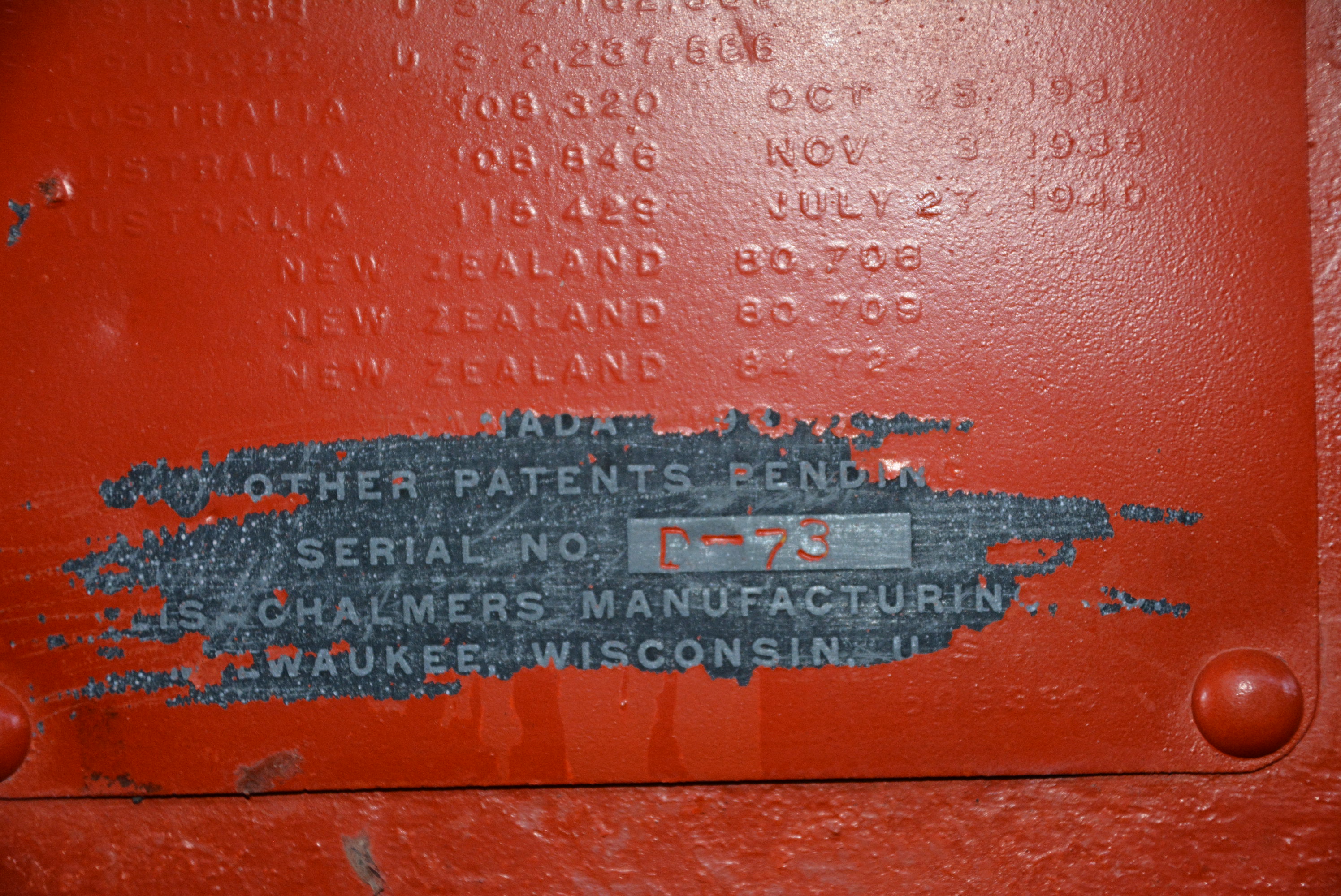

Thanks, I posted some pics of plates that I could find. The one got a bit large.
|
|
DonBC
Orange Level Access
Joined: 12 Sep 2009
Location: Courtenay, BC,
Points: 947
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Mar 2017 at 7:06pm |
|
If that is the serial number, and it looks like it is, it would the first year that they were made which I believe was 1949. If it hasn't been re-powered with a newer engine such as the G226 it could have the predecessor which I believe was a 203 cu. in which had a flat plate bolted on the camshaft side of the block. That engine was used in the WD tractors. I have seen one that old and the starter was mounted on the bell housing behind the engine.
|
|
Jack of all trades, master of none
|
|
DonBC
Orange Level Access
Joined: 12 Sep 2009
Location: Courtenay, BC,
Points: 947
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Mar 2017 at 7:07pm |
|
Sorry, 201 cu. in. engine.
|
|
Jack of all trades, master of none
|
|
TumblingIQ
Bronze Level
Joined: 28 Mar 2017
Location: Nevada
Points: 18
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Mar 2017 at 7:18pm |
|
i was told it is the original engine and it had some paperwork that it was rebuilt in 1992. Runs good, no smoke. So...wd engine parts if I need them should work? It needs a starter button, right now using a screwdriver across the solenoid. Thanks for all who responded. Any tips or additional info that I might need is appreciated.
Edited by TumblingIQ - 28 Mar 2017 at 8:25pm
|
|

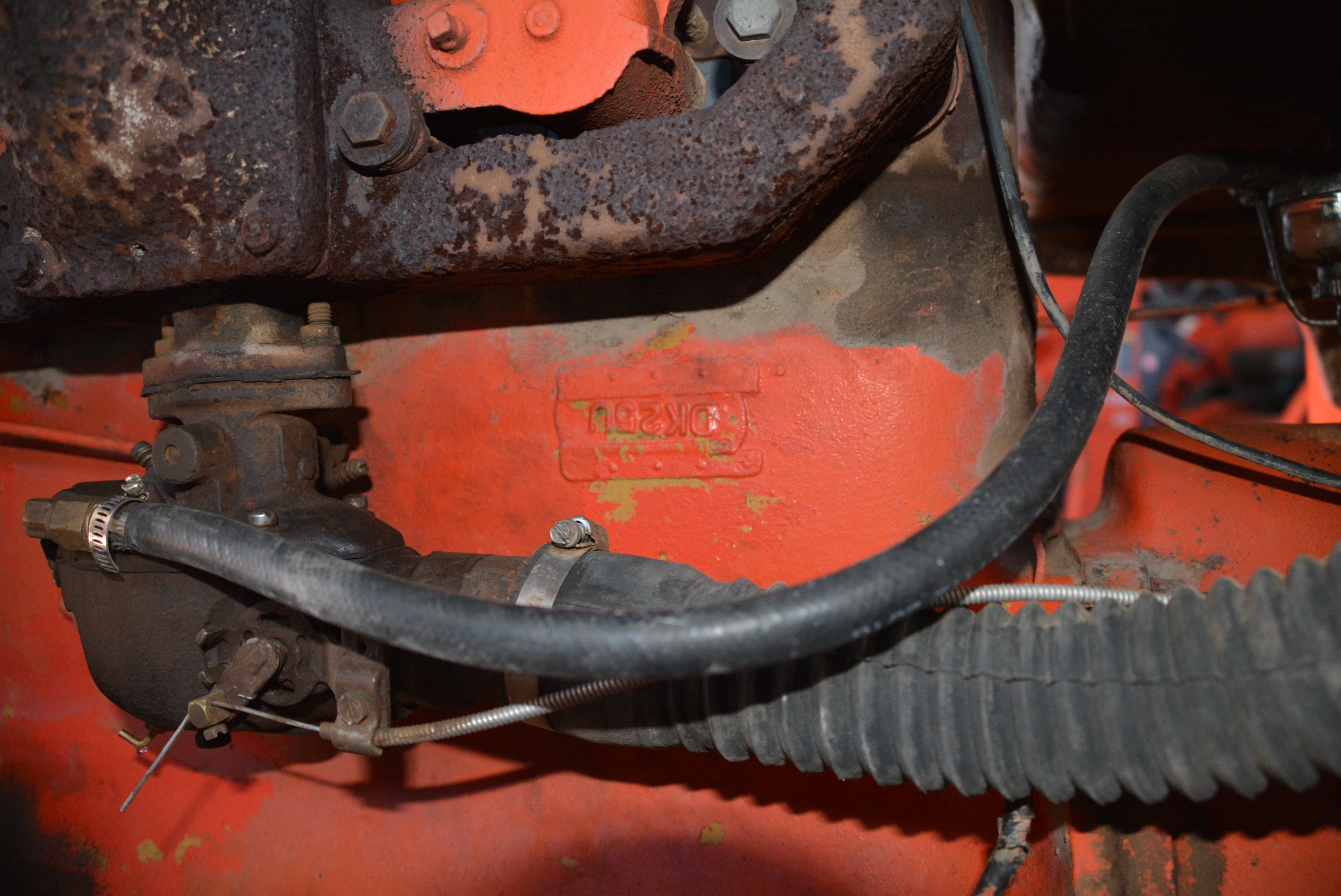

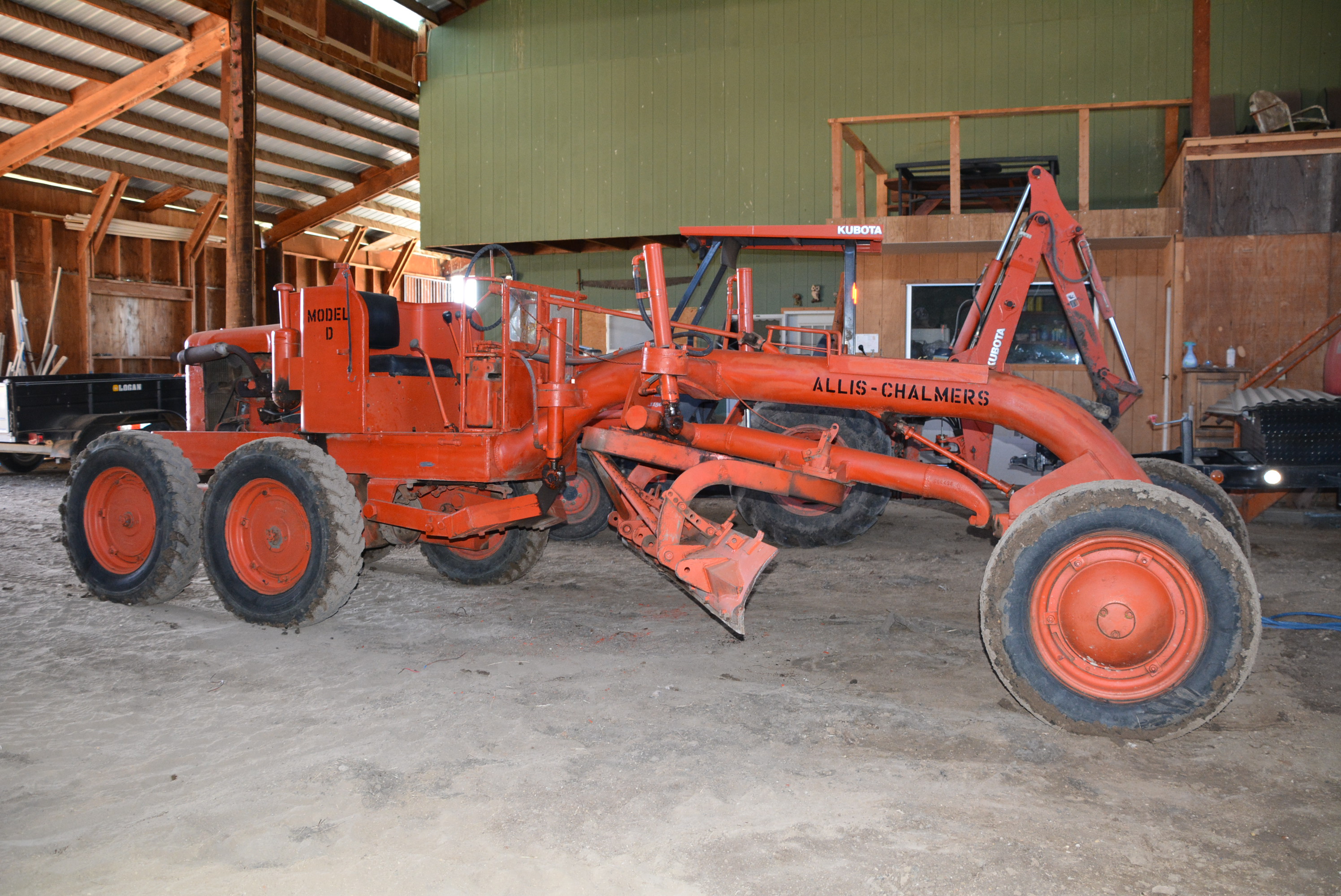

I just got a Model d gas road grader. The serial number is D-73 and the number on the engine is DK25U. Can anyone tell me the year this was manufactured? What engine is in it? and does it take the same fan belt as the wd45? Any and all help is appreciated!!!
