 Topic: Model C Starter Linkage
Posted: 26 Jun 2012 at 7:51pm |

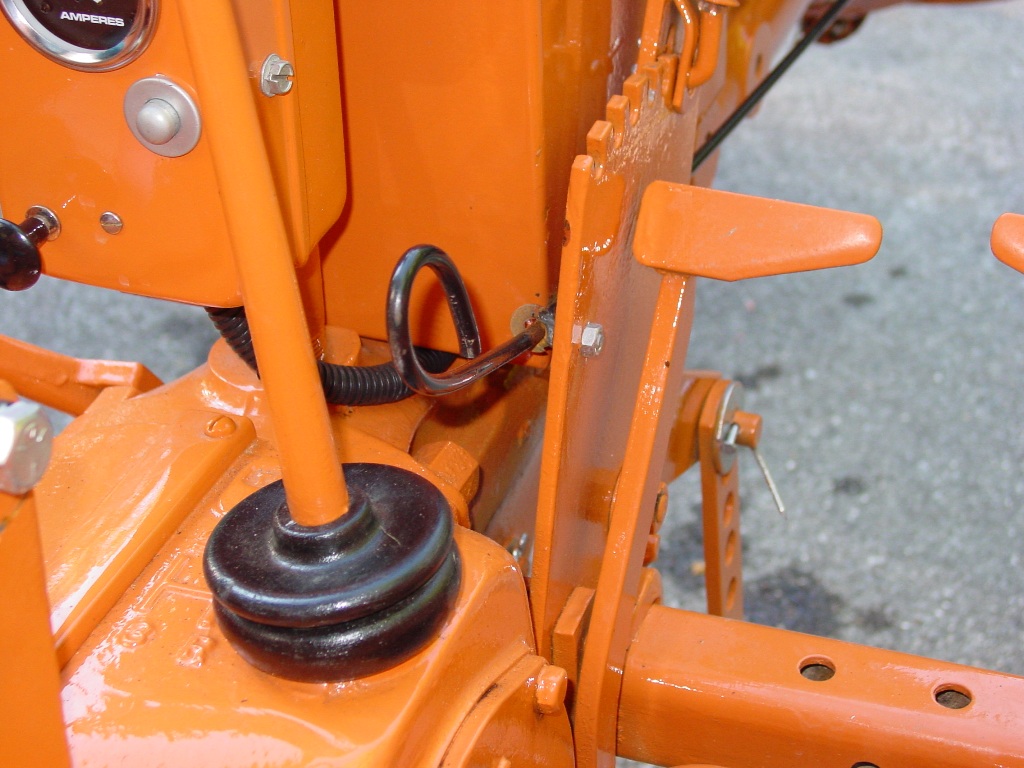

The two photos show the fixtures for the starter linkage on my 1942 Model C. The rod goes thru a washer welded to a bolt. I'm curious about what the original fixture was.
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 89114
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2012 at 7:58pm |
|
mine had a littel U strap under the battery box bottom.
|
|
Like them all, but love the "B"s.
|
|
Dakota Dave
Orange Level
Joined: 12 Sep 2009
Location: ND
Points: 3973
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2012 at 8:05pm |
|
You also need the correct rod. that is a pull rod and should go to a loop up under the throttle quadrant. the push rod just goes through a L bracket with a hole in it. In the morning I can get pictures of both types. It's to dark in my shed to get any tonight.
|
|
Hubert (Ga)engine7
Orange Level
Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6545
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2012 at 8:07pm |
|
Most likely a piece of metal angle with one side bolted to the battery box mount and the starter rod running through the other side with a return spring, cotter pin and washer installed on the rod if it is the push style. The pull style usually had a u clamp mounted on the steering support post.
|
|
Just an old country boy saved by the grace of God.
|
|
Hubert (Ga)engine7
Orange Level
Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6545
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2012 at 8:09pm |
|
Dave must type faster than I do.
|
|
Just an old country boy saved by the grace of God.
|
|
MikeinLcoMo
Orange Level
Joined: 12 Sep 2009
Location: west plains mo
Points: 620
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2012 at 8:09pm |
|
The loop should be 90 degrees to the rod and a spring between the washer and rod clip. I think there is 2 different setups depending on year. You will find numerous variation fabed up over the years.
|
|
TMiller/NC
Orange Level Access
Joined: 11 Sep 2009
Location: Lenoir, NC
Points: 1776
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2012 at 8:52pm |
What size is the "farmerized" cotter pin? Looks to be about an 8D. I've used a few of the same kind in various sizes. Tim
|
|
DrDirt
Bronze Level
Joined: 23 Jun 2012
Location: Newport, VA
Points: 7
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2012 at 8:14am |
Posted: Yesterday at 9:05pm By Dakota Dave
You also need the correct rod. that is a pull rod and should go to a
loop up under the throttle quadrant. the push rod just goes through a L
bracket with a hole in it. In the morning I can get pictures of both
types. It's to dark in my shed to get any tonight.
Thanks, That would be appreciated.
|
|
DrDirt
Bronze Level
Joined: 23 Jun 2012
Location: Newport, VA
Points: 7
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2012 at 8:24am |
Posted: Yesterday at 9:07pm By Hubert (Ga)engine7
Most likely a piece of metal angle with one side bolted to the
battery box mount and the starter rod running through the other side
with a return spring, cotter pin and washer installed on the rod if it
is the push style. The pull style usually had a u clamp mounted on the
steering support post.
This is indeed a pull rod.
|
|
