 Topic: Model B - what thread standard?
Posted: 13 Jun 2020 at 4:16pm |
Hi all,
Very simple newbie question here. I've got a 1943 Model B, can someone tell me what thread type is used for the fasteners? I'm not used to old US machinery and am more familiar with British Standard thread. Particularly I'm interested in the thread for the wheel rim cam bolts.
Thanks!
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85776
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2020 at 4:47pm |
|
The USA uses a US Standard Coarse Thread for most parts on the tractor.. We measure in INCHES also, but had a different thread pitch for some sizes.... The bolts thru the cam brackets should be 5/8 inch NC ( national course)..
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85776
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Jun 2020 at 4:51pm |

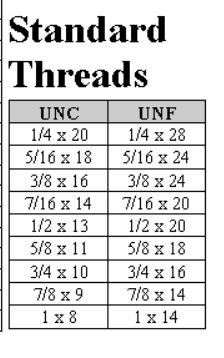

Most external bolts would be NC - national course.... internal to the engine and trans might be nf - national fine........ below is a table.... 1/4 - 20 would be 1/4 inch diameter bolt, 20 threads per inch.
|
|
