model 170 loader frame

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   what is the model 170 loader for? What does it fit?
 This sub-frame sure sits awful low on the 170 tractor, yet the rear axel brackets polt up to the fender bolts perfectly and the 2 holes for side rails on tractor match up too.
 Top pin hole for loader arms sits below the hood line, my other One-Seventy's loader sits above the hood line   Thought this loader frame would be for the 170 tractor, sure was fooled in that thought.
 Thanks for any info. on the loader.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
JC-WI Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: wisconsin Points: 34306	Post Options Post Reply Quote JC-WI Report Post Thanks(0) Quote Reply Topic: model 170 loader frame Posted: 02 May 2023 at 2:06pm
	what is the model 170 loader for? What does it fit? This sub-frame sure sits awful low on the 170 tractor, yet the rear axel brackets polt up to the fender bolts perfectly and the 2 holes for side rails on tractor match up too. Top pin hole for loader arms sits below the hood line, my other One-Seventy's loader sits above the hood line Thought this loader frame would be for the 170 tractor, sure was fooled in that thought. Thanks for any info. on the loader.
	He who says there is no evil has already deceived himself The truth is the truth, sugar coated or not. Trawler II says, "Remember that."

Sponsored Links

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 21833	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 02 May 2023 at 2:52pm
	Wasn't a 170 loader a trip bucket/low priced loader ??

Gary Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 13 Sep 2009 Location: Peterborough,On Points: 5899	Post Options Post Reply Quote Gary Report Post Thanks(0) Quote Reply Posted: 02 May 2023 at 3:13pm
	The D-14 Model 14 Tube Loader became the Model 140 with a Box Boom. The D-15 Model 15 Tube Loader became the Model 150 with a Box Boom. The D-17 Model 17 Tube Loader became the "Model 170" with a Box Boom. G

JC-WI Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: wisconsin Points: 34306	Post Options Post Reply Quote JC-WI Report Post Thanks(0) Quote Reply Posted: 02 May 2023 at 9:57pm

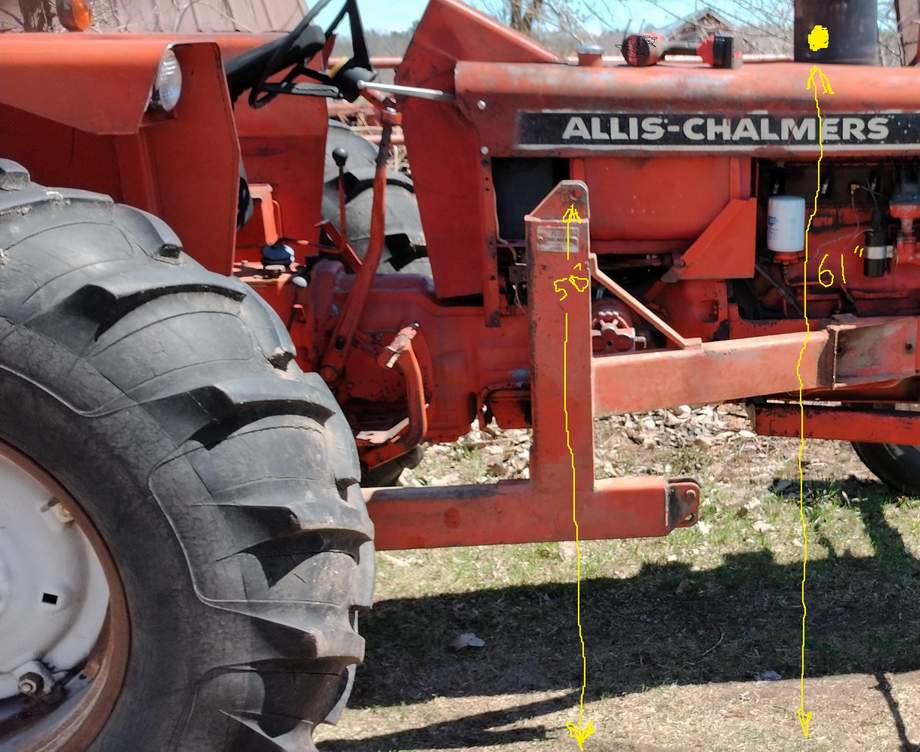

	Cylinders that came with the subframe are single acting cylinders. Took a pic earlier today of loader mount. Did a measurement from pin hole for boom to ground that was 50" and did the same with other One-Seventy and old Globeman loader and it was 61" to boom pin, and much farther forward. Yellow dot in the muffler area in pic is where the pin hole is on that one. Would a 500 loader be a taller loader?
	He who says there is no evil has already deceived himself The truth is the truth, sugar coated or not. Trawler II says, "Remember that."

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 21833	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: 02 May 2023 at 10:11pm
	400 and 500 loaders BOTH have a brace that connects the towers together. 500 taller than a 400. This is a trip bucket loader ??

JC-WI Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: wisconsin Points: 34306	Post Options Post Reply Quote JC-WI Report Post Thanks(0) Quote Reply Posted: 02 May 2023 at 10:43pm
	I didn't get the boom with it. The subframes, rear brackets, cross bar and main single acting cylinders was all I got. If any indications from the single acting lifting rams, then I would suspect the loader to be a trip bucket affair. Don't recall ever seeing a loader with tilt cylinders that the lift cylinders were single acting. My thoughts when I bought the subframes was I have a square boom from a loader that had the tube sub-frame and possibly the two would match up... but I didn't realize how low the upper pin hole was compared to the current loader I use, and that one is maxxed when setting a round bale on top of the other bales. Doubt this 170 loader would clear with the pivot so low and so far back, unless there was a longer boom put on it. I was talking to another fellow at the auction and he was talking about his series IV nit being enough tractor for the loader on it, it was a DUAL 340 loader, practically the same loader I was asking about a while ago to put on the 170... but changed my mind and someday put that on a 190.
	He who says there is no evil has already deceived himself The truth is the truth, sugar coated or not. Trawler II says, "Remember that."

orangereborn Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Sep 2009 Location: NW WI Points: 1478	Post Options Post Reply Quote orangereborn Report Post Thanks(0) Quote Reply Posted: 02 May 2023 at 11:36pm
	that looks like the frame on our trip bucket loader on the 160 tractor. The hyd bucket on the other 160 looks like the 400 ser....Dale
