manual lift for Woods mower on a CA (?)

 Post Reply Post Reply
Author
Message
cdon_FL View Drop Down
Silver Level
Silver Level
Avatar

Joined: 15 Aug 2016
Location: NE Florida
Points: 116
Post Options Post Options   Thanks (0) Thanks(0)   Quote cdon_FL Quote  Post ReplyReply Direct Link To This Post Topic: manual lift for Woods mower on a CA (?)
    Posted: 21 Sep 2016 at 2:20pm
Just picked up a used Woods L306 for my CA. I believe it has what's needed for hydraulic lift and hydraulic control of cutting height.

But I'm curious how hard it would be to make the lift and height control done by hand. I like my little CA, but having to engage the PTO to get hydraulic pressure to raise the mower does not sound appealing.

Any ideas on a simple hand lift for my belly mower(?) Something I could build myself (?)
Chris in NE Florida
Back to Top
Sponsored Links


Back to Top
Tcmtech View Drop Down
Orange Level
Orange Level


Joined: 15 Apr 2015
Location: Minot ND
Points: 310
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tcmtech Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 3:05pm
Originally posted by cdon_FL cdon_FL wrote:

 I like my little CA, but having to engage the PTO to get hydraulic pressure to raise the mower does not sound appealing.


Millions of people have been doing it that way with the three point mounted mowers on the old Ford, Massey ferguson and other brands of tractors for 70+ years.

I've been doing since I was a kid.  It's way easier than trying wrangle a big mower up by hand which if the tractor has hydraulic lift to begin with  is really a step backwards for no good reason.

One thing I would do, if you don't already have one, is get a PTO overrunning clutch for the mower.  Those mowers are just a big high speed flywheel back there and without being able to stop them  from feeding that energy back into the drive train they can keep a tractor moving for some distance when you put the clutch in.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22824
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 3:48pm

 If you have the cultivator depth control bracket it's simple. If you have a drawbar depth control off a B or C it's simple. ALL the woods mowers with hand lift also had a spring to assist in lifting. You can lift it with 2 fingers on the handle if it's set up right.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22824
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 3:51pm
I took the depth control lever off an old junk New Idea steel wheeled rake and mounted it on my bush hog that I pull behind the 4 wheeler. It isn't the best for leverage but it beats the turn buckle all to heck if you want to be able to quickly adjust the height.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Hubert (Ga)engine7 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Jackson Cnty,GA
Points: 6426
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hubert (Ga)engine7 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 4:16pm
"One thing I would do, if you don't already have one, is get a PTO overrunning clutch for the mower.  Those mowers are just a big high speed flywheel back there and without being able to stop them  from feeding that energy back into the drive train they can keep a tractor moving for some distance when you put the clutch in." [/QUOTE]

The L306 is powered off the belt pulley shaft so an overrun clutch would not work.
Just an old country boy saved by the grace of God.
Back to Top
Hubnut View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Jul 2014
Location: Gainesville, FL
Points: 1817
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hubnut Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 4:18pm
I made my own hand lift for my B.  See the post here: http://www.allischalmers.com/forum/forum_posts.asp?TID=119217&title=fabricated-hand-lift
Charlie is correct about the cultivator lift.  I have one here.  I'm sure others do too.
Steve
1940 B "Lucy"
1941 B w/ Woods L59 "Flavia"
1942 B w/ finish mower "Dick"
1941 C w/ 3-point "Maggie"
1947 C SFW w/ L306 "Trixie"
1972 314H
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3968
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 4:36pm
I have the Woods manual lift on my C if you install the correct helper spring on it My Wife can lift the mower one handed. On my CA I put a fixed length of pipe in place of the hydraulic ram. there is no reason to lift the deck any way. if you want a different mowing height you need to lift the back of the mower to get the correct lead when you change height. the front of the blade needs to cut a 1/2" lower than the back. lifting the front of the deck with the lift and still trying to cut doubles the horse power required. Also putting an overrunning clutch on your PTO will do nothing your deck drives off the belt pulley. You'll need to take the wide belt pulley off and get the correct V belt pulley. ill try to post a picture of the lift when I get home I cant from work.
Back to Top
Tcmtech View Drop Down
Orange Level
Orange Level


Joined: 15 Apr 2015
Location: Minot ND
Points: 310
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tcmtech Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 4:41pm
Originally posted by Hubert (Ga)engine7 Hubert (Ga)engine7 wrote:



The L306 is powered off the belt pulley shaft so an overrun clutch would not work.

Well that just sound like an accident waiting to happen. Shocked

My neighbors got a similar one under his Farmall H and although not as bad as full three point PTO driven brush mower his has ran him into a few things his wife was not to happy about. Cry

Better have good brakes to make up for the lack of overrunning clutch!
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3968
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 4:49pm
When you pull back on the hand clutch you can stop the tractor regardless of weather the PTO is spinning or not. If your using a C instead of a CA just slide it into neutral. the sliding gear transmition can be easily put in neutral even under load.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86411
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 5:16pm
Also the L306 is a three blade finish mower... not a BUSH HOG... makes a difference. You will get some continued drive, but not much.
Like them all, but love the "B"s.
Back to Top
mdm1 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2671
Post Options Post Options   Thanks (0) Thanks(0)   Quote mdm1 Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 5:20pm
My wife mows with a L59 on her C. No problem. (except some times she thinks it is an automatic and forgets the clutch)
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
Back to Top
Hubnut View Drop Down
Orange Level
Orange Level
Avatar

Joined: 30 Jul 2014
Location: Gainesville, FL
Points: 1817
Post Options Post Options   Thanks (0) Thanks(0)   Quote Hubnut Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 5:48pm
Originally posted by Tcmtech Tcmtech wrote:

Originally posted by Hubert (Ga)engine7 Hubert (Ga)engine7 wrote:



The L306 is powered off the belt pulley shaft so an overrun clutch would not work.

Well that just sound like an accident waiting to happen. Shocked

My neighbors got a similar one under his Farmall H and although not as bad as full three point PTO driven brush mower his has ran him into a few things his wife was not to happy about. Cry

Better have good brakes to make up for the lack of overrunning clutch!


Not an accident waiting.  Most of the belly mowers for Allis Chalmers came this way from the factor (the mower factory that is--Woods, Arts Way).  The push from the mower is minimal.
1940 B "Lucy"
1941 B w/ Woods L59 "Flavia"
1942 B w/ finish mower "Dick"
1941 C w/ 3-point "Maggie"
1947 C SFW w/ L306 "Trixie"
1972 314H
Back to Top
Tcmtech View Drop Down
Orange Level
Orange Level


Joined: 15 Apr 2015
Location: Minot ND
Points: 310
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tcmtech Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 8:12pm
I see. Its light multi blade type.  Not the big heavy duty multi blade or single ax blade type.

Never mind.
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22824
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 21 Sep 2016 at 10:50pm
I have had my old L59 on the CA(no hand clutch) for 10 years and the B for 4 and never had a problem stopping the tractor with the brakes while mowing full throttle. AND, the B has piss poor brakes on it!
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Bill Long View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
Post Options Post Options   Thanks (0) Thanks(0)   Quote Bill Long Quote  Post ReplyReply Direct Link To This Post Posted: 22 Sep 2016 at 10:48am
the B has piss poor brakes on it!
Charlie,  You got that right.  My favorite has "piss poor brakes"
CDON_FLA, Don't forget the CA has a hand clutch on the right hand side - if it works - which means you can (1) rev up the mower before moving forward, and (2) stop the tractor with the pto still running for even better control.
Good Luck!
Bill Long



Edited by Bill Long - 22 Sep 2016 at 10:49am
Back to Top
Dakota Dave View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: ND
Points: 3968
Post Options Post Options   Thanks (0) Thanks(0)   Quote Dakota Dave Quote  Post ReplyReply Direct Link To This Post Posted: 22 Sep 2016 at 7:30pm

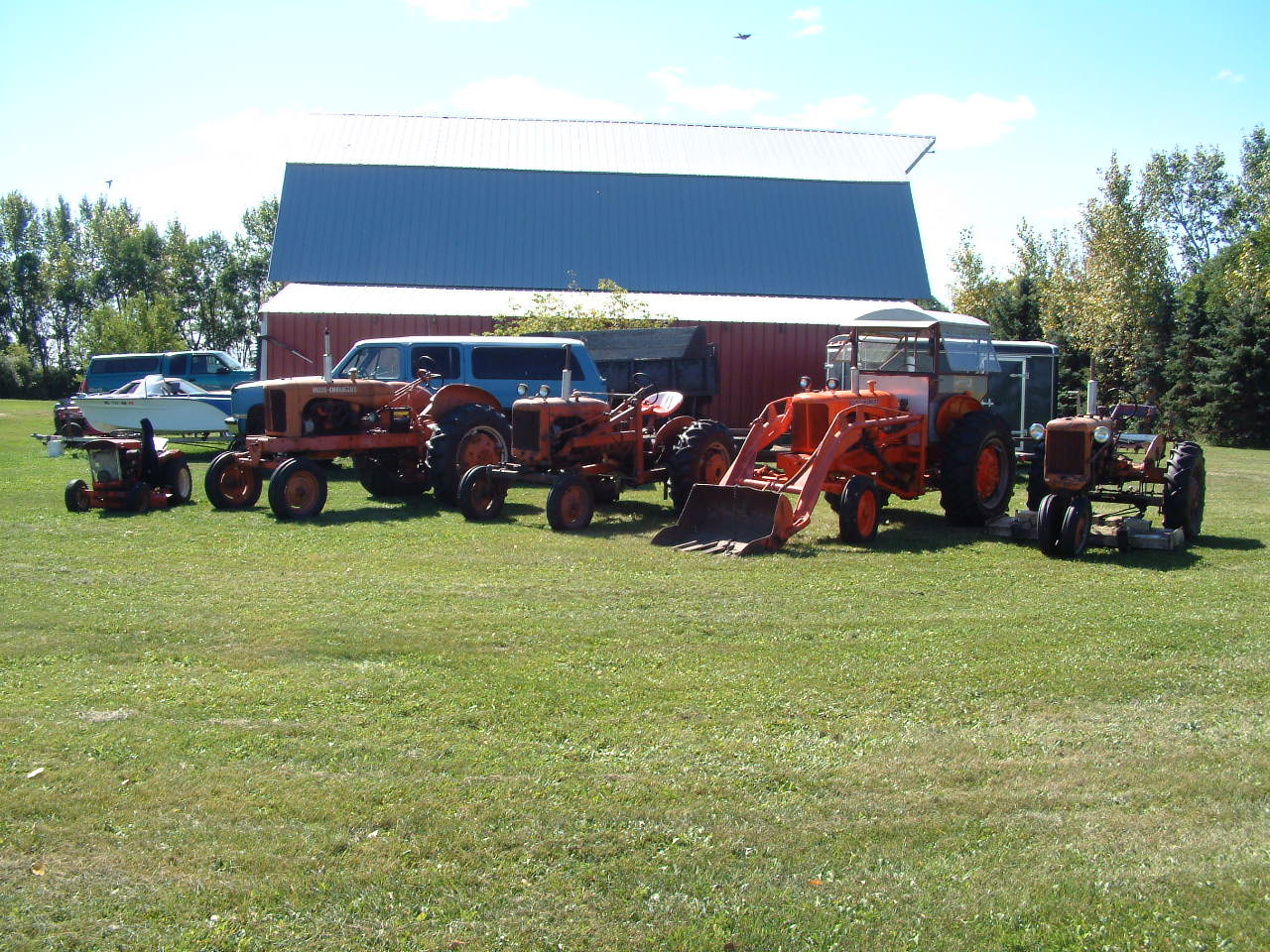

found the picture of a Woods manual lift .its being used for the grader blade in this picture Mower deck in second picture.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 86411
Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 22 Sep 2016 at 8:04pm
YEP........... mine looks like that also..

Like them all, but love the "B"s.
Back to Top
