 Topic: Magneto vs. Distributor WD and WD45s
Posted: 07 Feb 2017 at 2:00pm |
|
Just curious if anyone knows for certain if WD's ever came with a factory installed distributor or if they all came with magnetos? The reason I ask is that although I am finding info online about AC distributors, there are no parts diagrams for them in any of the original owner's manuals, even the newer ones. I am currently digitally remastering 3 separate manuals for resale and even the new ones with pyramid Allis logo have no parts diagrams for a distributor. I do have a copy of a Deutz Allis parts book which does have the diagram, but it is missing entirely from the owner's manuals. according to the copy of the the parts book I have, it shows the distributor for WD's the last two years of their production and for all WD45s built in 1953 to 1957.
Edited by john0030 - 07 Feb 2017 at 2:08pm
|
|

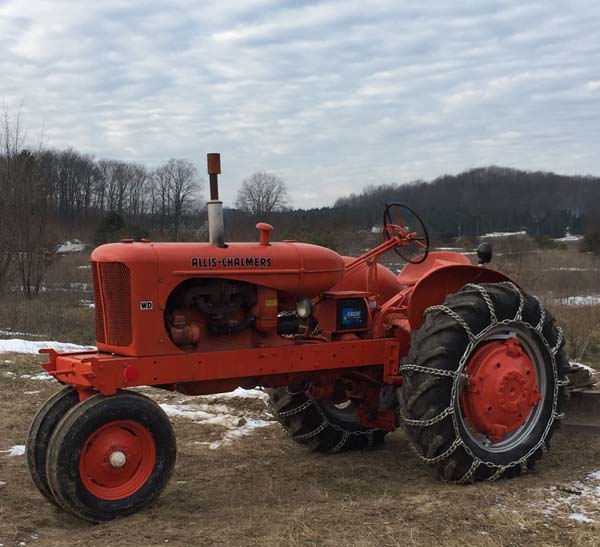

51'WD
|
 |
|
Sponsored Links
|
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8449
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 3:23pm |
 john0030 wrote:
, it shows the distributor for WD's the last two years of their production and for all WD45s built in 1953 to 1957.
|
That's the way I always understood it. Speaking of dizzys, a neighbor of mine was thinking about buying a U a while back, and the seller claimed it had a factory dizzy. Never heard of a U with a dizzy, let alone any tractor that early.
|
|
Brian F(IL)
Orange Level Access
Joined: 14 Sep 2009
Location: Paxton, IL
Points: 2706
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 3:45pm |
|
I know my Dad's 1952 WD had a magneto. I also know the family's 1953 WD-45 had a distributor. Other than that, I'm sure many changes have been made to WD's over the years.
|
|
stu(ON)
Orange Level
Joined: 12 Sep 2009
Points: 377
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 4:15pm |
|
|
|
john0030
Bronze Level
Joined: 01 Jan 2017
Location: Michigan
Points: 47
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 6:47pm |
Thanks everyone! I Purchaced an original copy today of a wd and wd45 parts manual that should have the exploded diagrams for the distribuitor in it. I may add the exploded diagrams to the most current copy of the WD owners manual I'll be remastering.. Any thoughts on this? Edit:
On second thought I will definitely be adding the diagrams
for both the snap coupler and the distributor. Even though the copy of manual
form TM-9E has to have been printed in 1965 or after, there are no parts
diagrams for the snap coupler or the distributor for the WD.
Edited by john0030 - 07 Feb 2017 at 7:29pm
|
|
51'WD
|
|
Bill_MN
Orange Level
Joined: 12 Sep 2009
Location: Sioux Falls, SD
Points: 1466
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 7:25pm |
|
According to Terry Dean's data book, WDs were equipped with Delco-Remy 1111745 distributor at Serial #136318 and up, about the last 1300 WDs made. All WD45s had the same distributor.
|
|
1951 WD #78283, 1918 Case 28x50 Thresher #76738, Case Centennial B 2x16 Plow
|
|
john0030
Bronze Level
Joined: 01 Jan 2017
Location: Michigan
Points: 47
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 7:31pm |
|
Thanks. Best guess is that these parts were added into a WD45 owner and parts manual?
|
|
51'WD
|
|
Dakota Dave
Orange Level
Joined: 12 Sep 2009
Location: ND
Points: 3965
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 8:00pm |
|
The DEUTZ Allis parts catalog dated August 1979 coveres WD WD 45 WD 45D and W226 power units. Has both the mag and distrubitor. Send me a PM with your EMail adress and I'll EMail a PDF.
Edited by Dakota Dave - 07 Feb 2017 at 8:04pm
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2256
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 8:50pm |
Bill_MN wrote:
According to Terry Dean's data book, WDs were equipped with Delco-Remy 1111745 distributor at Serial #136318 and up, about the last 1300 WDs made. All WD45s had the same distributor.
|
That's exactly what the WD/WD-45 Parts Manual indicates.
|
|
old farmer
Silver Level Access
Joined: 12 Oct 2011
Location: Sturgis, Mich
Points: 341
|
Post Options
Thanks(0)
Quote Reply
Posted: 07 Feb 2017 at 9:10pm |
|
My uncle had WD with distributor and it also the wd45 transmission. Right after he bought the WD the dealer came out and to trade up to a WD45 for 75 dollars. My uncle didn't trade and later he said that was one of biggest mistakes he ever made.
|
|
