 Topic: Looking for 3 point for WD
Posted: 15 Jul 2019 at 2:58pm |
I am looking for a point attachment for my WD to run a bushhog. I don't have $400-$600 for a new one. Any help would be appreciated! :)

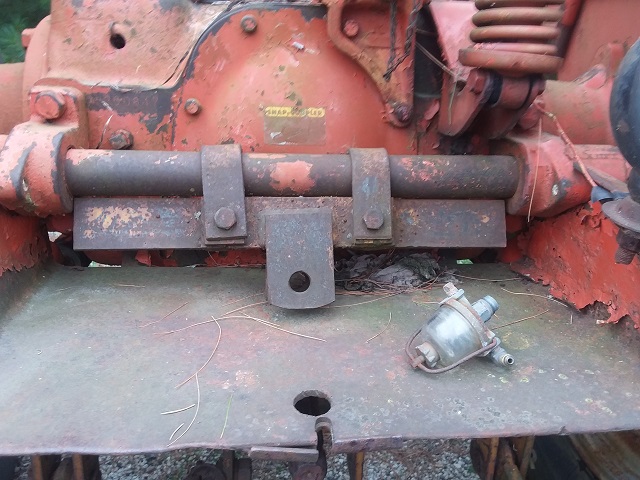

ALSO - The WD I have is my great (x2) grandfathers. He has a hydraulic line to the rear as well as a cuppling or something on the rear arm. (see picture) Any idea on what attachments he would have ran back in the day? This was a working on our family farm, so curious as to what all he did. :)
|
 |
|
Sponsored Links
|
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2447
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 3:42pm |
|
A trailer type mower might be the easiest
The hydraulic connection is for a 'one-way' cylinder, ie will only lift an implement
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22822
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 3:51pm |
|
That addition to the rock shaft, is where you can hook up a top link for 3 point hitch. Maybe center it first.
|
|
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 4:24pm |
|
CTucker - Thanks, but... :) What do you mean top link for a 3 point hitch? What kind of implement would need that?
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 4:25pm |
|
Thanks Michael. Isn't the arms for lifting and lowering an implement? For instance, a plow or bush hog, etc...?
|
|
rtwfarm
Orange Level
Joined: 26 Feb 2012
Location: nebraska
Points: 1311
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 5:42pm |
|
I have top cast piece for 3 point. Ryan 402-469-1738
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2447
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 6:13pm |
|
The lift arms are for proprietary AC equipment,although there were after market implements made for AC
Aftermarket 3 point adapters are available, some work better than others, and some have made their own...
I always thought the Saginaw 3 point were about the best, but they are no longer made, you might find one used, otherwise, it's whatever is out there...contact Jim D, at OK tractor,or Tony's they both have a ad on the parts and supplies page
I do have one,but I do not know what brand it is...I would sell it, but shipping would be expensive...its heavy!
Edited by Michael V (NM) - 15 Jul 2019 at 6:13pm
|
|
Hockeyman
Bronze Level
Joined: 31 May 2018
Location: Canada
Points: 41
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jul 2019 at 8:27pm |
I too have been devising a way to make a 3 point for my WD... I like the Cross Mfg idea that bolts up to the draw bar. Takes advantage of traction booster. I'm going to make the draw bar piece.
The lift arms I'm thinking of sourcing from A&I... Part#'s A-D0NN555C and A-D0NN555D.
Just need to come up with the top link and lift arm links to the WD arms...
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22822
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2019 at 7:46am |
 bhaynes wrote:
CTucker - Thanks, but... :) What do you mean top link for a 3 point hitch? What kind of implement would need that? |
ANY 3 point equipment needs a top link, called an upper link in this drawing between B1 and B2. https://www.researchgate.net/profile/James_Schmiedeler/publication/228398759/figure/fig5/AS:668492751704067@1536392500314/Components-of-the-three-point-hitch-Adapted-from-ASAE-Standards-2001.ppm
Edited by CTuckerNWIL - 16 Jul 2019 at 7:51am
|
|
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2330
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2019 at 11:11am |
|
One of my 45's came with a really simple made after market 3-pt. on it. Probably wouldnt be hard to duplicate. ---- Can get pix. if it would help anybody. thanks; ac fleet
|
|
http://machinebuildersnetwork.com/
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2019 at 12:09pm |
Thanks Ryan,
Can you send me a picture?
|
|
mdm1
Orange Level
Joined: 12 Sep 2009
Location: Onalaska, WI
Points: 2671
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2019 at 6:14pm |
|
ac fleet could you post pics on here or send some to me?
|
|
Everything is impossible until someone does it! WD45-trip loader 1947 c w/woods belly mower, 1939 B, #3 sickle mower 1944 B, 2 1948 G's. Misc other equipment that my wife calls JUNK!
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2019 at 6:22pm |
AC Fleet - that would be great!

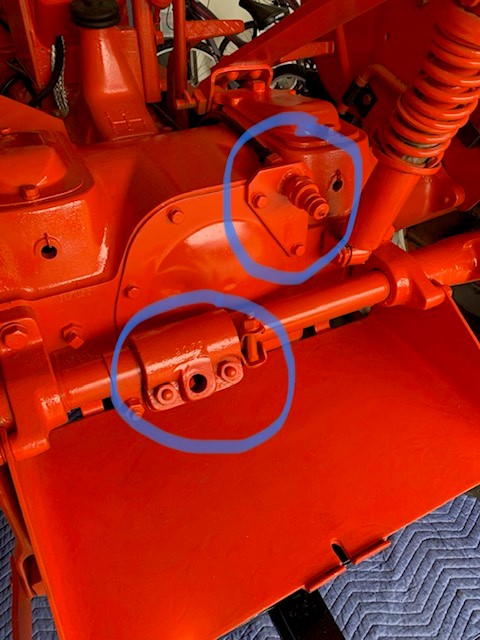

The cupeling on the arm I don't think is for a top link. The top links I have found don't go into a hole. I loosened the bolts to center and also noticed it is welded together! AND the hole is angled to the left and not centered. (if looking straight on). Not sure what he would have used that for? It has a serial number on it too. the other two brackets are also on there perm. I would have to bend them unusable to get them off. Not sure what they are for either. LOL
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jul 2019 at 9:30pm |
|
What about a post hole digger? Anybody?? :)
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2330
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jul 2019 at 9:36am |
Will get pix. later today and post them for you guys. This is a simple strong made hitch and not hard to make.
Heat index here right now 109* ---kinda has me down! You guys getting heat yet?
|
|
http://machinebuildersnetwork.com/
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2330
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jul 2019 at 8:56pm |

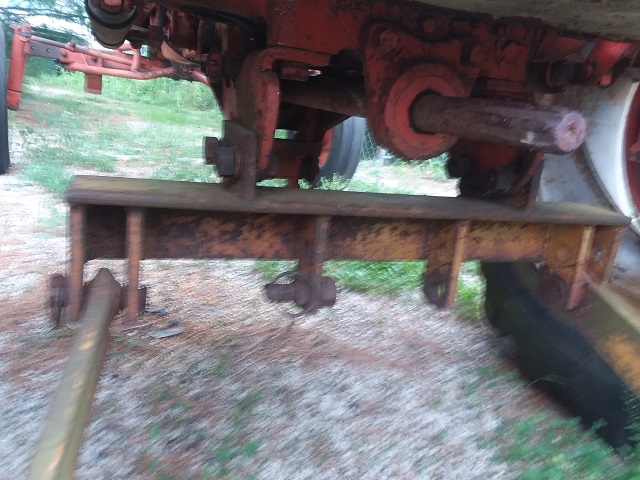

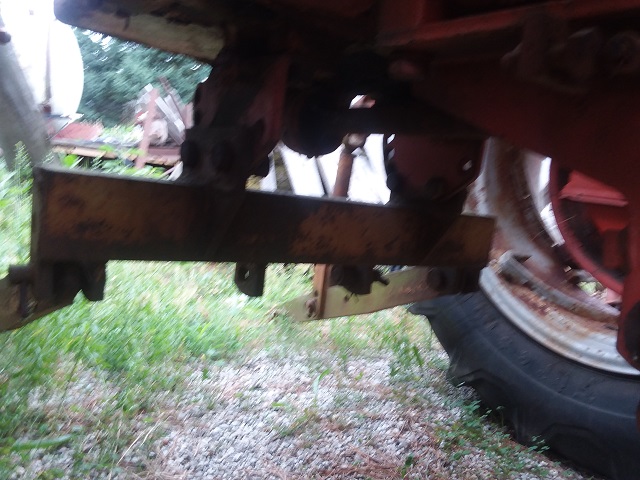

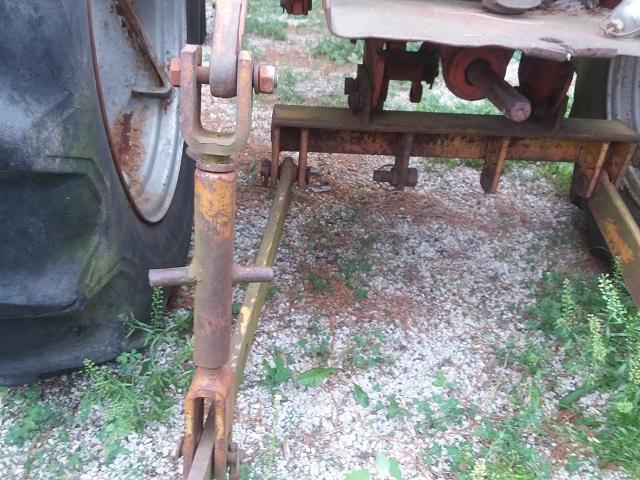

Here are a few pix. of the hitch on one of my 45's. Simple made and strong. I am going to make one for another 45 using this idea, so you should be able to copy it too. thanks; ac fleet
|
|
http://machinebuildersnetwork.com/
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22822
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jul 2019 at 8:11am |
bhaynes wrote:
The cupeling on the arm I don't think is for a top link. The top links I have found don't go into a hole.
the other two brackets are also on there perm. I would have to bend them unusable to get them off. Not sure what they are for either. LOL |
The coupling is not FOR a top link, but could be used for it, with a bit of imagination. The two brackets on the sides look like a simple strap clamp and if they aren't welded to the rock shaft, could be loosened and moved without damage, or just cut off and pitched in the scrap pile. JMO
|
|
|
|
Michael V (NM)
Orange Level Access
Joined: 12 Sep 2009
Location: NM
Points: 2447
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jul 2019 at 10:02am |
ac fleet wrote:
Here are a few pix. of the hitch on one of my 45's. Simple made and strong. I am going to make one for another 45 using this idea, so you should be able to copy it too. thanks; ac fleet
|
That is the exact same 3 pt adapter that I have, I have what I believe is the original top link..what I didn't like,was the drawbar has to be completely removed...
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jul 2019 at 4:00pm |
Thanks AC Fleet! This is the back of mine. Looks like it already has some of it? Just need a top link and maybe longer bars at the bottom with the links? (if that makes sense)
- Sorry for the pictures being sideways. Not sure why the website does that? Anyways....
|
|
Dakota Dave
Orange Level
Joined: 12 Sep 2009
Location: ND
Points: 3966
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Jul 2019 at 10:40pm |
|
I have one like AC fleets except it turned 90 deg and you can leave the drawbar on. I copied it for my brother it uses Ford lower links there avaliable almost any where and homemade lift links that attach to the snap coupler lift latches. By the time you buy the lower links and lift links you might as well spring for a whole setup. The WD 45 I use for 3 pt equipment has a wishbone one from Tony's tractors. I think it works better. My other WD 45 has the shop made one the links and lower arms are hanging in the shed. The good thing about it is when I need it it takes about a minute to pin it on. The cross bar stays on the tractor all the time.
|
|
bhaynes
Silver Level
Joined: 23 Feb 2019
Location: Chattanooga, TN
Points: 105
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2019 at 8:48am |
|
CTucker - I wonder what that main coupler was used for? Whatever it is, it can slide but is welded shut/together. The hole is angled to the left slightly. Unfortunately, my grandfather isn't in a mindset anymore to remember and everybody else has since passed that had anything to do with the tractor.
My grandfather did say he knew there were still old attachments for the tractor and an old hay trailer in the family barn. I plan taking a road trip (about 2.5hrs drive from my house) and go scavenger hunting. . . :)
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2330
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Jul 2019 at 9:32am |
I think you could re-engineer this design so you could leave the regular drawbar on if you wanted/needed it to stay on. I just use a cross bar in the lift arms for what little I use the regular drawbar on mine. Also on one of my wd's the 3-pt adapter on it hooks into the snap-coupler. It then goes out in a sort of vee then back to the lift links. I was told it was factory made, BUT I think more like shop made as I never seen one like it before. It also is simple made. Arms from old ford tractors do work on these without any problem if you can find some of them. For the most part with some time and a few parts it's not that hard to put something together that will work. thanks; ac fleet
|
|
