 Topic: Information on 1948 WD with mounted plow
Posted: 15 Dec 2015 at 4:47pm |
|
Our neighbour had an early row crop WD that was equipped with a 3 bottom hyd plow.
There was a frame that was mounted under the tractor with a pin connecting frame to the tractor were the snap couple attachment was connected when the s/c came out in the mid 50's.
The plow was attached to this frame. Does anyone recall seeing a plow like this. believe there was a chain on each side from the frame that was attached to each lift arm. Dick would plow all day long running the engine at 1/4 throttle and the governor would keep kicking in.
|
|
Fred Dunlop, G,B,CA, WC,WF, 3 WD45`s,gas, diesel and LP,U,D10 series III, D12,D14,D15 SERIES II,D17 Series IV in Gas and Diesel ,D19 GAS and D21,170 185,210 ,220 an I-600 8070 fwd, 716H and 1920H
|
 |
|
Sponsored Links
|
|
|
jiminnd
Orange Level
Joined: 16 Sep 2009
Location: Rutland ND
Points: 2307
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Dec 2015 at 9:31pm |
|
I think you are talking about a "pin Hitch". that is what I get from your description, if I am right I have 2 of them.
|
|
1945 C, 1949 WF and WD, 1981 185, 1982 8030, unknown D14(nonrunner)
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Dec 2015 at 9:58am |

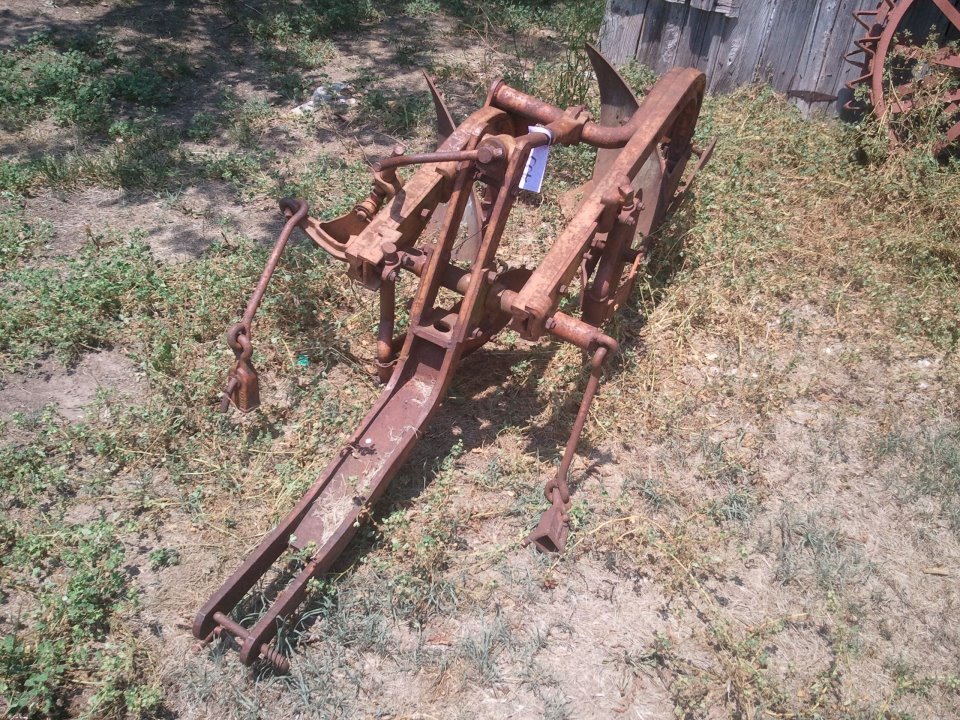

Here ia a pin hitch plow although this is for a CA, thre was a similar one for the WD.  There was also a pick-up plow for the WD that bolted to the pin hitch drawbar after the drawbar bail was removed.
|
|
|
|
WD45
Orange Level
Joined: 20 Sep 2009
Location: STAYNER,ONTARIO
Points: 957
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Dec 2015 at 7:52pm |
|
The plow that Dick had was before this set up. Chains were used on each side from the plow to the lift arms and there was a large coil spring ahead of were the pin went in (were snap coupler would connect).
|
|
Fred Dunlop, G,B,CA, WC,WF, 3 WD45`s,gas, diesel and LP,U,D10 series III, D12,D14,D15 SERIES II,D17 Series IV in Gas and Diesel ,D19 GAS and D21,170 185,210 ,220 an I-600 8070 fwd, 716H and 1920H
|
|
Ted J
Orange Level
Joined: 05 Jul 2010
Location: La Crosse, WI
Points: 18943
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Dec 2015 at 7:17am |
Are you talking about something like this? Look at GrayRay's WD pic just a short ways down. OOPS.....forgot the URL http://www.allischalmers.com/forum/forum_posts.asp?TID=113705&title=whats-your-pride-and-joy-tractor
Edited by Ted J - 18 Dec 2015 at 7:18am
|
|
"Allis-Express"
19?? WC / 1941 C / 1952 CA / 1956 WD45 / 1957 WD45 / 1958 D-17
|
|
WD45
Orange Level
Joined: 20 Sep 2009
Location: STAYNER,ONTARIO
Points: 957
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Dec 2015 at 7:32am |
|
Yes , that is the spring.
|
|
Fred Dunlop, G,B,CA, WC,WF, 3 WD45`s,gas, diesel and LP,U,D10 series III, D12,D14,D15 SERIES II,D17 Series IV in Gas and Diesel ,D19 GAS and D21,170 185,210 ,220 an I-600 8070 fwd, 716H and 1920H
|
|
CTuckerNWIL
Orange Level
Joined: 11 Sep 2009
Location: NW Illinois
Points: 22825
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Dec 2015 at 10:08am |
|
That spring was common on WD's with plows up till the SC set-up anyway.
|
|
|
|
Dennis J OPKs
Orange Level
Joined: 12 Sep 2009
Location: Overland Park,
Points: 552
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Apr 2019 at 7:05am |
|
My memory is a little vague but grew up with both and I'd say the answer is yes. We started with 2-16's with the drawbar pull and later with 3-14's pin hitch pull. With the first the drawbar has to float up and down and remember more than likely the pto shaft has to come out with both.
|
|
DougS
Orange Level
Joined: 03 Nov 2011
Location: Iowa
Points: 2490
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Apr 2019 at 7:20am |
|
We ran a '49 WD with hitch pull. The PTO shaft didn't need to come out. The hitch pull was a little more complicated to hitch up, but it was a rock solid connection.
|
|
Brian G. NY
Orange Level
Joined: 12 Sep 2009
Location: 12194
Points: 2269
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Apr 2019 at 11:17am |

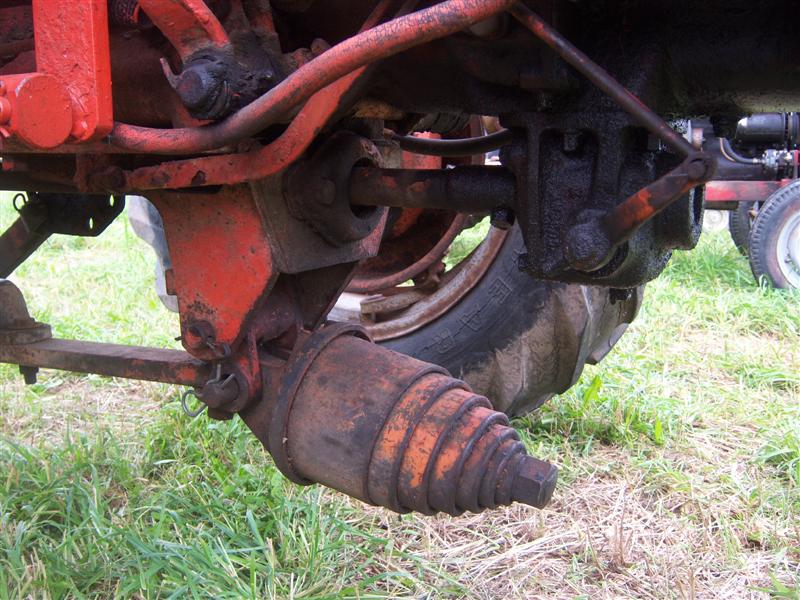

Some people call this the "beehive" spring. It was an option when ordering the plows. I would guess it was used for the drawbar mounted plow on this particular tractor since it has neither the pin hitch nor the snap-coupler bell.
|
|
ac fleet
Orange Level
Joined: 12 Jan 2014
Location: Arrowsmith, ILL
Points: 2337
|
Post Options
Thanks(0)
Quote Reply
Posted: 10 Apr 2019 at 12:10pm |
|
I have a 2 bottom and a 3 bottom pin type. also a 3 bottom snap coupler type and a 4- bottom semi mount for a WD-45.
|
|
