Ignition switch for 190XT Gasser
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Nhewitt22 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 15 Feb 2025
Location: Indiana
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nhewitt22 Quote  Post ReplyReply Direct Link To This Post Topic: Ignition switch for 190XT Gasser
    Posted: 15 Feb 2025 at 8:17am
Hello all, I’ve lost the key to my AC 190XT gasser, can’t seem to find one online as the only options they give me are for the diesel (the switch has a momentary/heat setting). I just need a simple 2 action (on/off) switch. Can anybody give me a lead on where to find one? TIA
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85653 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 8:48am

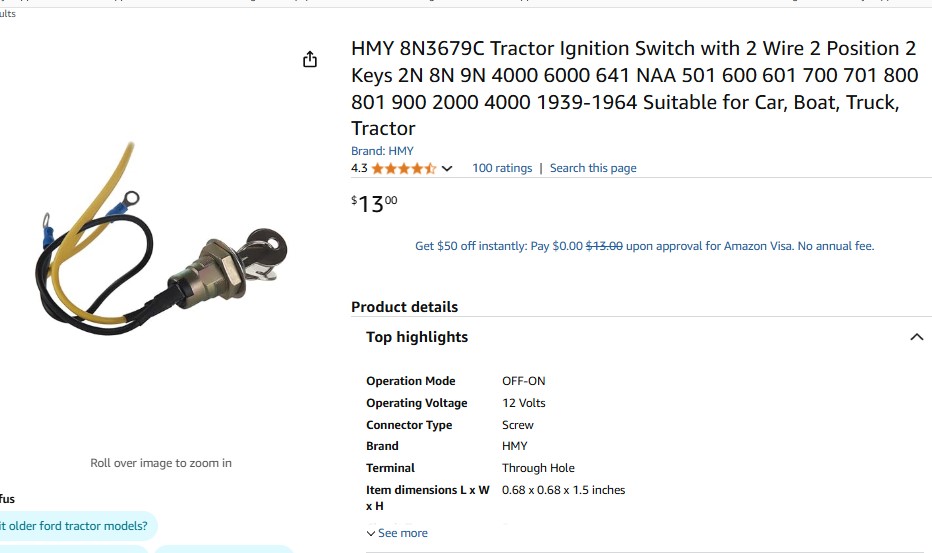

Noah, just GOOGLE  "2 position key switch"... there should be several to choose from.. Could be for a car, boat, truck, tractor, etc... If you have a 3 position with the "START" position, you just dont use that feature... I assume your switch is ON- OFF and then you use a push buttom for the START ...

you can get a switch with two screw terminals, two spade terminals , or two wires that you can splice in as needed... your choice.. this is AMAZON, but everyone should have similar.. NAPA or AUTOZONE ?







Edited by steve(ill) - 15 Feb 2025 at 8:49am
Like them all, but love the "B"s.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois

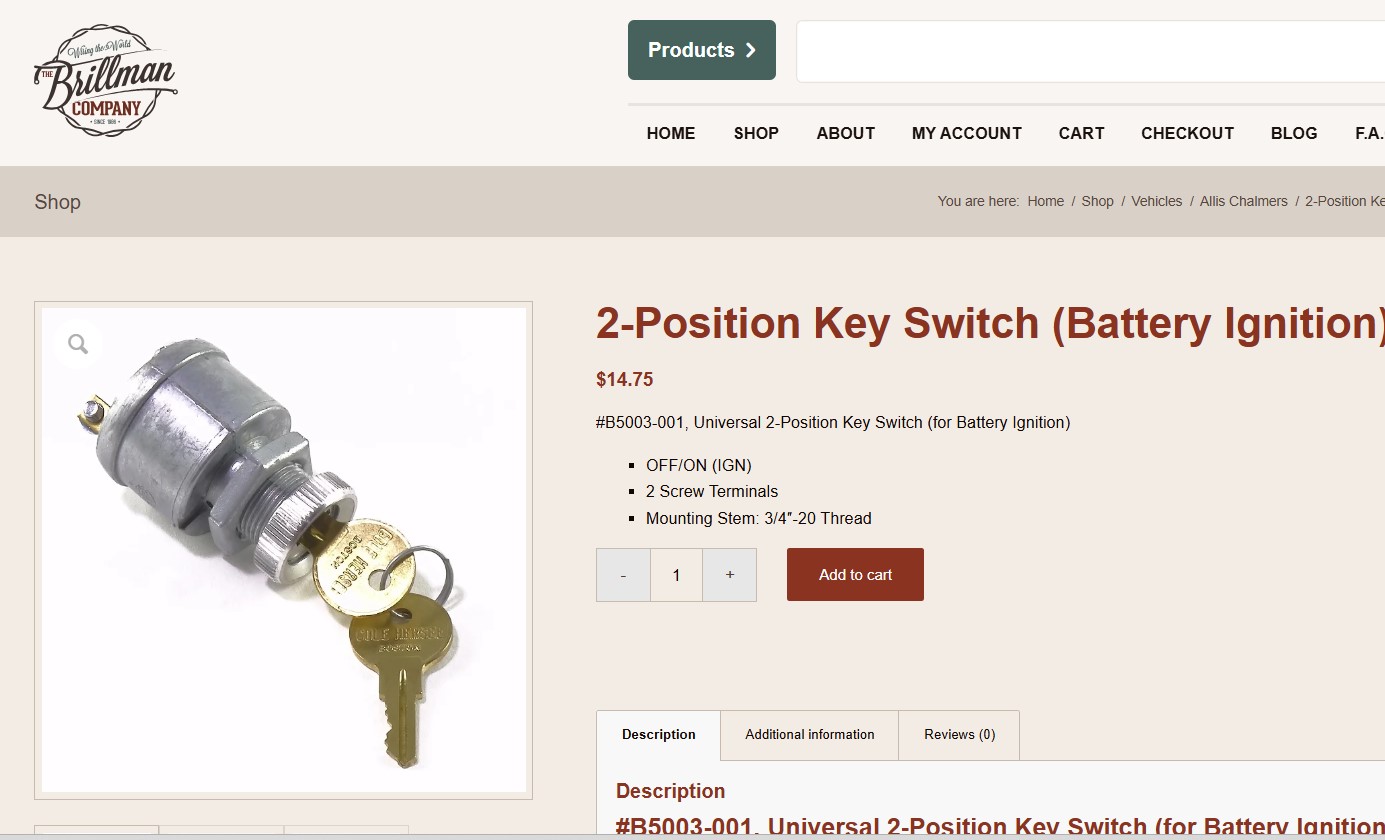

Points: 85653 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 8:52am
Like them all, but love the "B"s.
Back to Top
DanWi View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 18 Sep 2009
Location: wttn
Points: 1900 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DanWi Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 8:57am
Keys are all the same. If you don't. Have an agco dealer close a small engine shop or local farm store would have them. A flat little t shaped key. Same as as mtd lawn more and many others.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21393 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 9:07am
The "key" is an INDAK brand key. It is the same as a John Deere 317 garden tractor. Get two. GAS and DIESEL use the same key !!

Edited by DrAllis - 15 Feb 2025 at 10:08am
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7437 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 9:25am
I think they are the same as the diesel.  No wire gets connected to the "start" position though.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5881 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 12:07pm

Hi Noah

Welcome to the 'Unofficial Allis' Forum. This Forum has been around for well over 30 years.

When it first started there were many members that were Allis Dealers or Trained Allis Chalmers Mechanics.

But as time marches on, many of these valuable souls have passed on.

As has been mentioned, that key you have misplaced is about as common as a Toothbrush.

There are many Farm Tractors as well as Lawn and Garden Tractors that use that same key.

A same INDAK key only, or a switch and key are both available on ebay.

Here is a link to both

Good luck

Gary

Switch and Key for a 190
https://www.google.com/search?q=picture+of+a+key+for+an+allis+190xt+tractor&sca_esv=bd24083d1d1ff32e&sxsrf=AHTn8zpv2Syfml3Dn-mBIvtt7h61yMErHg%3A1739641037915&source=hp&ei=zdCwZ5-QNsOjur8PrOqSgAg&iflsig=ACkRmUkAAAAAZ7De3ZOf43uiWl-8W2N6I2axmEIudhFp&oq=Picture+of+a+key+for+an+Allis+190XT&gs_lp=Egdnd3Mtd2l6IiNQaWN0dXJlIG9mIGEga2V5IGZvciBhbiBBbGxpcyAxOTBYVCoCCAAyBRAhGKABMgUQIRigATIFECEYoAEyBRAhGKABMgUQIRigAUieiQNQAFjTjQJwAHgAkAEAmAGgAqABrSWqAQcxMC4xOS42uAEByAEA-AEBmAIgoALAIsICBBAjGCfCAgsQABiABBiRAhiKBcICERAuGIAEGLEDGNEDGIMBGMcBwgILEC4YgAQYsQMYgwHCAgsQABiABBixAxiDAcICDhAuGIAEGLEDGNEDGMcBwgIKEAAYgAQYQxiKBcICChAuGIAEGEMYigXCAhYQLhiABBixAxjRAxhDGIMBGMcBGIoFwgIQEAAYgAQYsQMYQxiDARiKBcICCBAAGIAEGLEDwgINEAAYgAQYsQMYQxiKBcICBRAAGIAEwgIOEC4YgAQYsQMYgwEYigXCAgQQABgDwgILEC4YgAQYsQMY1ALCAgsQABiABBixAxiKBcICBxAAGIAEGArCAgYQABgWGB7CAggQABgWGAoYHsICCxAAGIAEGIYDGIoFwgIFECEYqwKYAwCSBwY5LjE3LjagB-DwAQ&sclient=gws-wiz#vhid=L1KwbjasdvjeaM&vssid=_BNGwZ9S5JumckPIP3JjxWA_361




Keys

https://www.google.com/search?q=picture+of+a+key+for+an+allis+190xt+tractor&sca_esv=bd24083d1d1ff32e&sxsrf=AHTn8zpv2Syfml3Dn-mBIvtt7h61yMErHg%3A1739641037915&source=hp&ei=zdCwZ5-QNsOjur8PrOqSgAg&iflsig=ACkRmUkAAAAAZ7De3ZOf43uiWl-8W2N6I2axmEIudhFp&oq=Picture+of+a+key+for+an+Allis+190XT&gs_lp=Egdnd3Mtd2l6IiNQaWN0dXJlIG9mIGEga2V5IGZvciBhbiBBbGxpcyAxOTBYVCoCCAAyBRAhGKABMgUQIRigATIFECEYoAEyBRAhGKABMgUQIRigAUieiQNQAFjTjQJwAHgAkAEAmAGgAqABrSWqAQcxMC4xOS42uAEByAEA-AEBmAIgoALAIsICBBAjGCfCAgsQABiABBiRAhiKBcICERAuGIAEGLEDGNEDGIMBGMcBwgILEC4YgAQYsQMYgwHCAgsQABiABBixAxiDAcICDhAuGIAEGLEDGNEDGMcBwgIKEAAYgAQYQxiKBcICChAuGIAEGEMYigXCAhYQLhiABBixAxjRAxhDGIMBGMcBGIoFwgIQEAAYgAQYsQMYQxiDARiKBcICCBAAGIAEGLEDwgINEAAYgAQYsQMYQxiKBcICBRAAGIAEwgIOEC4YgAQYsQMYgwEYigXCAgQQABgDwgILEC4YgAQYsQMY1ALCAgsQABiABBixAxiKBcICBxAAGIAEGArCAgYQABgWGB7CAggQABgWGAoYHsICCxAAGIAEGIYDGIoFwgIFECEYqwKYAwCSBwY5LjE3LjagB-DwAQ&sclient=gws-wiz#oshopproduct=pid:3961853237582875694,oid:3961853237582875694,iid:16344400890531351365,pvt:hg,pvo:3&oshop=apv&pvs=0
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8612 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 3:28pm
If you just need a key. We have them
Back to Top
Nhewitt22 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 15 Feb 2025
Location: Indiana
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nhewitt22 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 5:33pm
Yep just need a key, found an Indak for my cub mower but it won’t fit??
Back to Top
Nhewitt22 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 15 Feb 2025
Location: Indiana
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nhewitt22 Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 5:33pm
Found an indak that my cub mower uses, it won’t fit in the switch though
Back to Top
Mikez View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 16 Jan 2013
Location: Usa
Points: 8612 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Mikez Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 5:55pm
Maybe someone has replaced the switch at some point.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85653 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 15 Feb 2025 at 5:55pm
are you sure you SWITCH is original ?  Could have been replaced in the last 50 years... Even if 50 years old, might be a good idea to replace switch and key ?
Like them all, but love the "B"s.
Back to Top
Steve in NJ View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Andover, NJ
Points: 11926 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Steve in NJ Quote  Post ReplyReply Direct Link To This Post Posted: 16 Feb 2025 at 5:05pm
If you're looking for a key switch, I have over 200 different switches in stock. The OEM 170-190XT switch was a 5 blade terminal switch if memory serves me correctly. It's made by Indak which was kinda of a junky switch. Put a real switch in it like my 7 blade hi amp key crank switch. Our p/n 1501-11. Comes with a new plug and terminals that plug on the back of it. Fits the "D" series Tractors as well as the 100 series.  Comes with two keys. Hang one key on the hook for a spare......  Thumbs Up
Steve@B&B
bb-customcircuits.com
39'RC, 43'WC, 48'B, 49'G, 50'WF, 65 Big 10, 67'B-110, 75'716H, 2-620's, & a Motorhead wife
