 Topic: Hydraulic jack,for my new engine puller,,,
Posted: 20 Feb 2023 at 3:03pm |

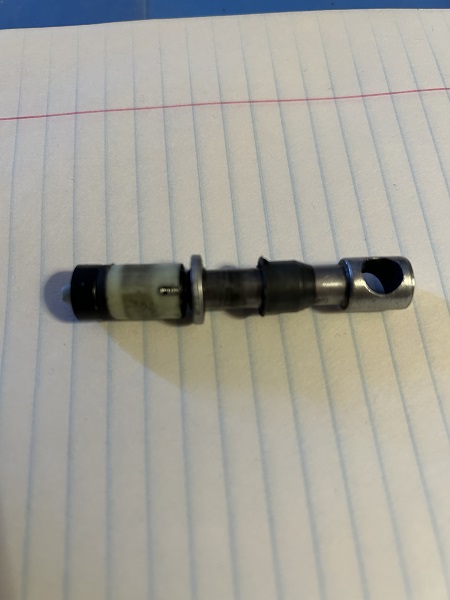

Well, finally got around to getting the Extra Hvy Duty engine puller operational and even tho I knew the hydraulic bottle jack was questionable,,,IT don't jack up or down,,,,,  It has like a two piece piston  of several small pieces instead of the usual and customary straight piston with the seal at end of piston. I got some pics so maybe someone can ID that jack or know where to call to buy a kit. There is NO name on jack. There is some numbers on base right by the pump mechanism ,,,2-73. Also 511-7 on big nut on cylinder. On bottom of base is 1121-1001
|
 |
|
Sponsored Links
|
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13681
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Feb 2023 at 3:05pm |
|
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13681
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Feb 2023 at 3:06pm |
|
|
|
Jim.ME
Orange Level
Joined: 19 Nov 2016
Location: Maine
Points: 958
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Feb 2023 at 5:44pm |
Looks like a Hein Werner.
I have 12-ton HW bottle jack that has that jointed piston. I have looked for one and have about given up as the one I found so far, they wanted more for than I could buy a couple new off brand 12-ton jacks for. Total for rebuild parts cost was looking like better than 3X the price of a new jack. I would like to fix it, but it is one of those where you have to ask, is it worth it. For now, I have 2 new 12-ton jacks to use. You might want to look at modifying a new jack to take its place.
|
|
200Tom1
Orange Level
Joined: 03 Jun 2019
Location: Iowa
Points: 1232
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Feb 2023 at 6:56pm |
|
Looks like a trip to Harbor Freight is in the offing, a little sparkie with the welder and you will be ready to pull a D8 cat motor.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13681
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Feb 2023 at 9:28pm |
Yeah Tom and Jim,,thats kinda what I figured,,,I musta looked at several Million images of bottle jacks and not find one that might come close to having the similar dual piston insides ,,,and after asking myself "If" it was such good idea,,,,why didn't it get copied??? My guess is this antique will find it's way to the junk pile and Joe will find his way to Harbor Freight.,,, Many THANKS for ya'lls efforts
|
|
Jim.ME
Orange Level
Joined: 19 Nov 2016
Location: Maine
Points: 958
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Feb 2023 at 6:37am |
Here is the jointed piston I found. Plus, another $60.00 for the rest of the kit and shipping. The Hein-Werner is a god jack and I like it but there is a limit. So, the Harbor Freight jacks win, a product of our throw-away society.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24337
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Feb 2023 at 7:02am |
don't knock ALL 'Made in China' stuff. neighbour bought one of those 8T engine pulling hoist jacks from as he NEEDED it PDQ....We pulled a SBC350,let it up over night,still up next day. For giggles we left it there...days past...3 weeks+ STILL up high ! Only came down cause he sold the engine. So SOME things from China are well made ! Guy gives me a 20T bottle jack ( N.D.GOOD.. scrap..). It was new, he used it all summer moving a barn,so outside in the hot sun... After 2-3 weeks of moving it here,there, everywhere, finally look at it. ADD some oil.been GREAT ever since. I'm thinking the hot sun on a black jack turn the oil into fumes and it vented away...
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
Jim.ME
Orange Level
Joined: 19 Nov 2016
Location: Maine
Points: 958
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Feb 2023 at 7:28am |
I'm not knocking all the "Made in China" (or other offshore place) stuff. I also have such things that work well. Just saying if the parts were comparatively reasonable, I would rebuild the old jack. And I recognize the cost is also related to low volume demand. But when one can buy 3 or 4 new ones and use them immediately, for the cost of the parts to repair the old one, it is the way to go.
I remember years ago there were a couple guys that had repair businesses fixing jacks and air tools. They came around every couple weeks to pick up things for repair and returned them to you on the next visit, cleaned, painted if needed and ready to go, for less than the cost of a replacement. Same with the route salesmen for the auto parts stores. They picked things up, took them back to the store's shop, and returned them to you. Many stores had their own shops and did engine work, relined clutches and brakes, speedometers, tachs, and proofmeters. Those people/things are few and far between now, at least around here.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13681
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Feb 2023 at 10:25pm |
Yeah Jim,,that sure looks like the piece I was looking for but like you say,,,$99.68 is too steep plus the rest of kit plus S&P, is definitely too much when you could buy 2 or maybe 3 new Jacks at HF for same money,,,,ole Shameless may call me Cheep all the time but I like to refer myself as Frugal,,, THanks for that link!
OH and just remembered a friend thaT has a tire shop just down the road was telling me that he used to have one of them traveling repair guys pick up his floor jacks, repair em and bring them back all ready to work until He could go the HF and buy brand new floor jacks for much less money than the repair guy was charging him,,,,,
Edited by desertjoe - 21 Feb 2023 at 10:29pm
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 85499
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Feb 2023 at 10:53pm |
|
would it be possible to make a straight piston ( on the lathe) and put a couple o-rings on it for seals.... then modify to top pin attachment to be more of a WOBBLE STICK, like most other jacks ??
|
|
Like them all, but love the "B"s.
|
|
Thad in AR.
Orange Level Access
Joined: 12 Sep 2009
Location: Arkansas
Points: 9595
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2023 at 4:48am |
Joe it would take a little fab work but I much prefer the long stroke cherry picker jacks. Not near as much beverage against them. The Heavy Duty one from Harbor Freight is $59.00 Mine has lasted 23 years so far with lots of abuse and folks I’ve loaned it to leaving it out in the rain.  I’m gonna have to buy another cherry picker as the last guy just will not return it.
|
|
Jim.ME
Orange Level
Joined: 19 Nov 2016
Location: Maine
Points: 958
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2023 at 6:12am |
 steve(ill) wrote:
would it be possible to make a straight piston ( on the lathe) and put a couple o-rings on it for seals.... then modify to top pin attachment to be more of a WOBBLE STICK, like most other jacks ?? |
I certainly won't say it couldn't be done. I will say HW made a different 12-ton model that looks the similar that uses a straight solid pump piston. However, I can't find any info they can be interchanged, and I am too "fugal" as Joe says to buy one just to find out they won't interchange. I figure my risk of failure is less with the new HF jack.
|
|
desertjoe
Orange Level Access
Joined: 23 Sep 2013
Location: New mexico
Points: 13681
|
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2023 at 10:21am |
Hey Jim and Steve,,seeing as how very much I like to play with my lathe,,I may just try to machine a one piece piston for the HW when I get bored with my other projects (I've always thought "Variety is the Spice of life",,,,
As a fact of the matter, Thad, I DO have another engine puller and like your's had been at my friend's field for so long I had plumb forgot ,,sheeesh,,talk about "Friends",,,!! So, went over there and there it was,,,on it's side with the long travel cylinder removed and laying on the frame,,, SO,,careful to not say too much to my "EX Friend" for fear of landing in the county jail, I loaded it up and got it home,,,,,As I expected, the cylinder was froze up as he had pulled the packing out the top and then left it exposed to weathwer for a few years,,,,,!!!A-Hole,,,!! That puller is a light duty model made by either Autozone or Napa can't remember for sure and the extended forks are only 5 feet long where this big bruiser's extended forks are 6'10" long and the upper frame is 1/2" metal, where the btm frame is 3/8" Ya'll know that "The younger we get ,,the more we remember," and just happened I had bought a nice 20 ton Duralast bottle jack at a yard sale a few years back,,SO I dug it out and still works like a charm, so I'm gonna use it as it ain't doing nobody no good under the cabinet in garage,,,!!
|
|
