How to remove the Throttle Quadrant on a WD

 Post Reply Post Reply
Author
Message
 Rating: Topic Rating: 1 Votes, Average 5.00  Topic Search Topic Search  Topic Options Topic Options
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1029
Post Options Post Options   Thanks (1) Thanks(1)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Topic: How to remove the Throttle Quadrant on a WD
    Posted: 12 Jun 2014 at 7:34pm

How to remove the Throttle Quadrant on a WD



This how-to article explains how to remove the aluminum throttle/hyd quadrant on a WD without removing the levers.

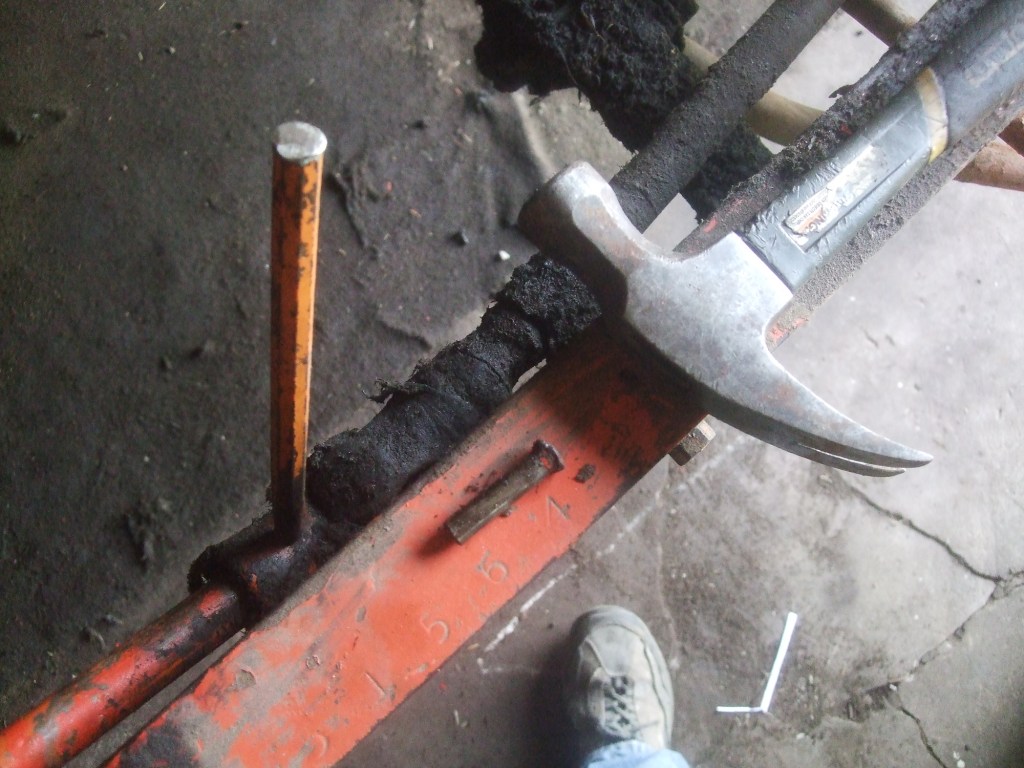

Start by removing the pin in the steering U-joint. This pin is pressed in and some of them can be stubborn to remove. 60% of the pins I have tried to remove, needed partial drilling to get punched out. 40% I punched out without any drilling. If there is a bolt instead of a pin, its your lucky day.


Normally there is an engine in the tractor and the pin will be difficult to punch/drill out, but it can be done. It will be easier when the magneto or distributor is removed. It will be even easier yet if the magneto drive/governor section is removed.



Then slide the steering wheel and shaft out of the support post and quadrant.

Remove the bolts that hold the quadrant to the steering support.


Next loosen the quadrant from the steering support.


Then remove the friction blocks from the levers. Some may need a bit of persuasion to slide off.


Turn the levers so they are both pointing down.

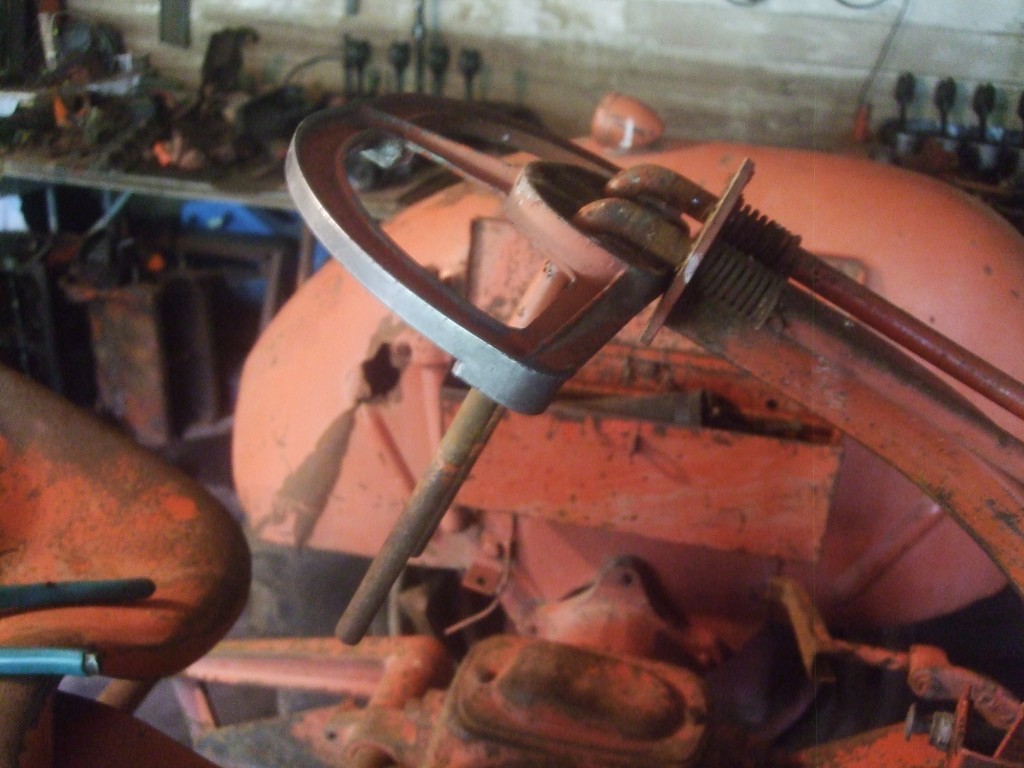

Next, pivot the quadrant so the top moves back and and slide it down off the levers.



When installing a different quadrant, follow the procedure in reverse.

A&W TRACTOR REPAIR
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
Sponsored Links


Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22198
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2014 at 8:12pm
Never would have thought it would come off that way.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
fixer1958 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Feb 2010
Location: kansas
Points: 1818
Post Options Post Options   Thanks (0) Thanks(0)   Quote fixer1958 Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2014 at 8:24pm
Nice thought process.
Your hand got dirty though.
Back to Top
den/southern illinoi View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Sparta, Illinoi
Points: 1599
Post Options Post Options   Thanks (0) Thanks(0)   Quote den/southern illinoi Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2014 at 9:04pm
Definitely works, been doing it that way for several years.  Den
Owner of D & R AC Parts.
Own 6 720s with associated equipment, also 920, 2-5015, 5020, D 14, D 17 series 1, and associated equipment plus 540 loader and 2 electric forklifts and 1 propane forklift.
Back to Top
GT in Indiana View Drop Down
Orange Level
Orange Level
Avatar

Joined: 14 Sep 2009
Location: Indiana
Points: 211
Post Options Post Options   Thanks (0) Thanks(0)   Quote GT in Indiana Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2014 at 9:06pm
Pretty slick! I was almost there but didn't think of turning the control arms down

Great post...
1955 WD45 we like to call Ruby
Back to Top
macvette View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Jun 2011
Location: nekoosa, wi
Points: 1629
Post Options Post Options   Thanks (0) Thanks(0)   Quote macvette Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2014 at 10:46pm
Appreciate your posts, Alex.  Thanks.

Installed the quadrant quite a while ago that I bought from you, and yes, removing the pin from the steering u joint was miserable.  Used a bolt with ground down head and nut when reinstalling,tho!  (my WD does no work for its living, tho.)
Back to Top
SteveM C/IL View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 4968
Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jun 2014 at 11:10pm
That quadrant still has the lines/grooves!
Back to Top
Jacob (WI,ND) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Kenmare, ND
Points: 997
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jacob (WI,ND) Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jun 2014 at 9:15pm
Good to know!  and EXCELLENT article!!  This is exactly what we need more of, thank you for putting it together!
Jacob Swanson
1925,1926 20-35 longfenders; 1927,1929 20-35 shortfenders; 2 C's; IB; 4 B's; 2 WC's; WD; WD45
Back to Top
Alex09(WI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 15 Mar 2012
Location: CECIL WI
Points: 1029
Post Options Post Options   Thanks (0) Thanks(0)   Quote Alex09(WI) Quote  Post ReplyReply Direct Link To This Post Posted: 10 Mar 2016 at 11:06pm
Moderator: Would this post be accepted in the "Knowledge Base" Section?
A&W TRACTOR REPAIR
KEEPING ALLIS-CHALMERS IN THE FIELDS THROUGH THE 21ST CENTURY
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22198
Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2016 at 7:42am
Originally posted by Alex09(WI) Alex09(WI) wrote:

Moderator: Would this post be accepted in the "Knowledge Base" Section?
It is there now. Big smile
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Brian Jasper co. Ia View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Prairie City Ia
Points: 10200
Post Options Post Options   Thanks (0) Thanks(0)   Quote Brian Jasper co. Ia Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2016 at 1:02pm
Thanks for posting this. I have a WD that needs one badly.
"Any man who thinks he can be happy and prosperous by letting the government take care of him better take a closer look at the American Indian." Henry Ford
Back to Top
Ted in NE-OH View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Nov 2009
Location: Austinburg OH
Points: 1579
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ted in NE-OH Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2016 at 3:34pm
Thanks, I need to do that.
CA, WD, C, 3 Bs, 2 Gs, WC, I-400, 914
Back to Top
BradH View Drop Down
Orange Level
Orange Level


Joined: 28 Feb 2016
Location: Corydon Ia.
Points: 260
Post Options Post Options   Thanks (0) Thanks(0)   Quote BradH Quote  Post ReplyReply Direct Link To This Post Posted: 11 Mar 2016 at 4:31pm
Happened to be looking through and notice this topic. Need to do this on mine pretty bad but wasn't looking forward to the job. Was thinking about asking on here soon. Perfec timing, Thanks.
Warning! Blind man with a tractor! Head for the hills!
Back to Top
LaJaMe View Drop Down
Silver Level
Silver Level


Joined: 14 Sep 2014
Location: wisconsin
Points: 123
Post Options Post Options   Thanks (0) Thanks(0)   Quote LaJaMe Quote  Post ReplyReply Direct Link To This Post Posted: 09 Jul 2017 at 12:58pm
Thanks for the post.  I have a wd that needs one.
Moderator: Could use a post on adjusting the hand clutch on a wd and wd45.  Thanks
