In the past 2 years, the local electric power company(AEP) has been replacing the 4 legged-spider looking towers with a single pole tower. These things are at a minimum 80 feet tall on a tapered post. How do they get such an animal "plumb" straight up Smile ??
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 87180 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2021 at 6:06pm
the steel base is a flange on LARGER poles.. sets on 20 -40 studs with nuts on top and bottom ( buried in the concrete hole).. Adjust the nuts up and down to get flange level. The concrete base in the ground is probably  15- 20 ft deep for  BIG  pole... depending on the type of dirt. ............. smaller steel poles can be put in the ground just like wood.

Edited by steve(ill) - 02 Jan 2021 at 6:17pm
Like them all, but love the "B"s.
Back to Top
FREEDGUY View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 15 Apr 2017
Location: South West Mich
Points: 5396 		Post Options Post Options   Thanks (0) Thanks(0)   Quote FREEDGUY Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2021 at 6:32pm
Thanks Steve, I understand the multiple "anchor bolts" protruding out of the MASSIVE concrete foundation, but just leveling the mounting plate ensures a "plumb" tower ??
Back to Top
TMiller/NC View Drop Down
Orange Level Access
Orange Level Access


Joined: 11 Sep 2009
Location: Lenoir, NC
Points: 1776 		Post Options Post Options   Thanks (0) Thanks(0)   Quote TMiller/NC Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2021 at 6:44pm
FreedGuy, don't know about power poles, but when the light house was moved they hung a plumb bob from top center hanging down to a circle on floor, plumb bob was maintained within the circle by adjusting jacks as light house moved.  Possible to use one on inside of metal pole.  Around here with wooden poles have seen the linemen use a string with a nut tied on one end, hold it out a arms length and sight pole.
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8568 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2021 at 11:09pm
The rebar cage they put in the concrete is MASSIVE in both amount of steel as well as dia of bars.
Back to Top
shameless dude View Drop Down
Orange Level
Orange Level
Avatar

Joined: 10 Apr 2017
Location: east NE
Points: 13607 		Post Options Post Options   Thanks (0) Thanks(0)   Quote shameless dude Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jan 2021 at 11:35pm
the transmission lines around here are 3 different types, the single steel pole set in concrete, the spider web 4 legged type set/bolted to leaning pillars of concrete and bolted down, and the 2 creosoted wood pole types set in the ground with crushed rock surrounding them in the holes.
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2021 at 5:06am
When I worked in the garage at UE we saw every version tower post and column. Saw lattice work towers on two legs with guide wires to anchors to four massive concrete piles with bolting cages set to extreme depth. Most wooden poles were set as noted by eye two or three crew with plumb sets at vantage points to ‘align’ the poles. Most steel column poles had a leveling head in base of column essentially a plate base with a welded beam pipe or bar set square the installers would set then the rest of the column survived from that. Corner sets were intentionally Leaned a few degrees away from the Pull of cable weight.
Back to Top
truckerfarmer View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 26 Jan 2013
Location: Watertown, SD
Points: 3274 		Post Options Post Options   Thanks (0) Thanks(0)   Quote truckerfarmer Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2021 at 8:00am
Starting to see the laminated wood posts around here for secondary transmission lines.
Looking at the past to see the future.
'53 WD, '53 WD45, WD snap coupler field cultivator, #53 plow,'53 HD5B dozer

Duct tape.... Can't fix stupidity. But will muffle the sound of it!
Back to Top
DMiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 14 Sep 2009
Location: Hermann, Mo
Points: 33682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DMiller Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2021 at 9:15am
Tried those around here several years ago, do not see all that many as rot would start at the Glue Joints where water intrusion could gain access.  Great for drier climates.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 87180 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2021 at 9:58am
Like them all, but love the "B"s.
Back to Top
FREEDGUY View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 15 Apr 2017
Location: South West Mich
Points: 5396 		Post Options Post Options   Thanks (0) Thanks(0)   Quote FREEDGUY Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan 2021 at 6:49pm

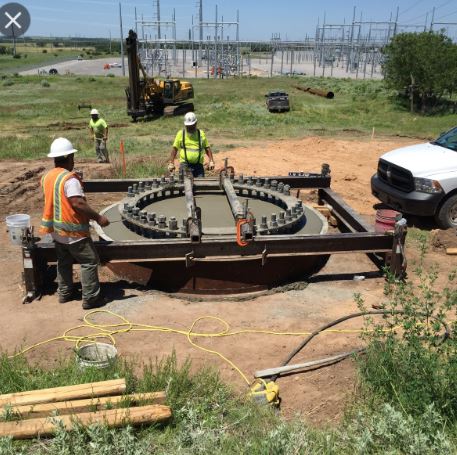

Originally posted by steve(ill) steve(ill) wrote:

YEP, that's what has been going in the ground "here" Wink !! Thanks for that picture Steve ClapClap !!
Back to Top
