 Topic: Help ples!!!
Posted: 27 Jan 2017 at 12:30pm |
Hello, i have a allis chalmers B 110, i have it for almost 4 year. I pull it a part clean up( was really rusty) I put all together but I'm having problems with the electrical, who have it before converted to 12v, took the magneto out an put a coil, soo I try to fallow the diagramsame but is too confusing
|
 |
|
Sponsored Links
|
|
|
farmtoybuilder
Orange Level
Joined: 11 Sep 2009
Location: Dresden,Ohio
Points: 1457
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jan 2017 at 1:51pm |
|

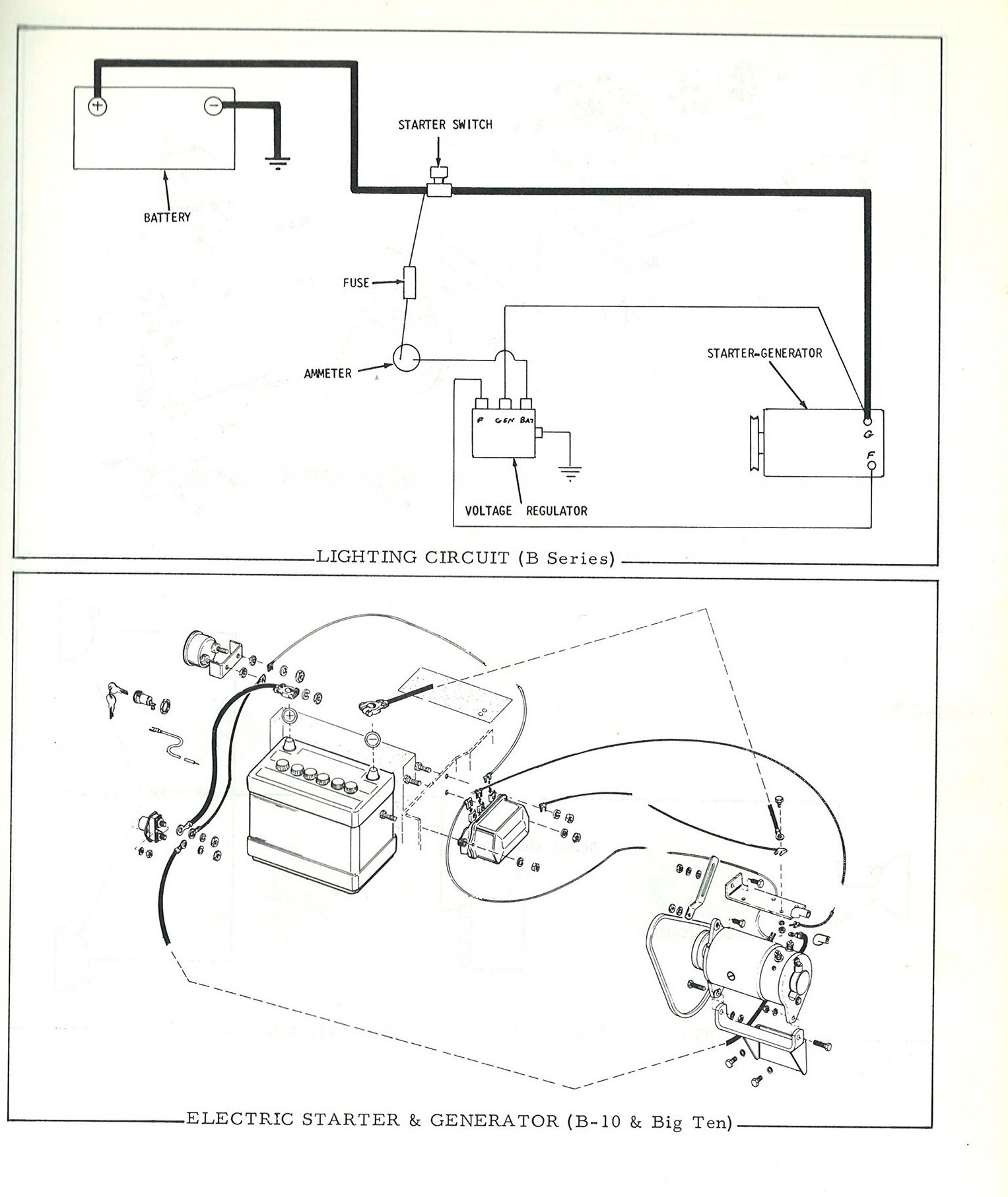

They were all 12 volt. I have a regular wiring diagram from operator book. But nothing showing how to wire coil up.
|
|
5 different TT-10's,5 TT-18's Terra Tigers,B-10,2 B-207's,B-110,2 B-112's,HB-112,B-210,B-212,HB212,2 Scamp's & Homilite T-10. Still hunting NICE HB-112 & anything Terra Tiger & Trailers for them.
|
|
dheker
Bronze Level
Joined: 01 Jun 2013
Location: Indiana
Points: 25
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jan 2017 at 2:02pm |
|
Oh... idk is a mess, the magneto is missing, needs a solenoid?.... I will to send pictures.
|
|
farmtoybuilder
Orange Level
Joined: 11 Sep 2009
Location: Dresden,Ohio
Points: 1457
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jan 2017 at 7:13pm |
1st b-110's had starter button and later used key ignition, I find it soon, Though I had a saved.
Edited by farmtoybuilder - 27 Jan 2017 at 7:15pm
|
|
5 different TT-10's,5 TT-18's Terra Tigers,B-10,2 B-207's,B-110,2 B-112's,HB-112,B-210,B-212,HB212,2 Scamp's & Homilite T-10. Still hunting NICE HB-112 & anything Terra Tiger & Trailers for them.
|
|
ACmowerguy
Orange Level
Joined: 20 Apr 2010
Location: Winfield, MO
Points: 1210
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jan 2017 at 7:25pm |
|
If you have push-button start you don't need a solenoid.
|
|
10 various B-series garden tractors, AC Homesteader8, 416 hydro,710 gt, 914, 916H, 917H, 920D, and many misc attachments
|
|
dheker
Bronze Level
Joined: 01 Jun 2013
Location: Indiana
Points: 25
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2017 at 4:39pm |
|
Hello, some one knows what magneto coil fits on AC B110
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3776
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2017 at 10:12pm |
|
whats the model type and code on the engine it will be on the sheet metal give me that and i will look up all the part numbers but i think the briggs part number i 298968 but i need model and type to know for sure
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3776
|
Post Options
Thanks(0)
Quote Reply
Posted: 11 Apr 2017 at 10:15pm |
|
some one must have tryed to make it into a battery ingntion like a kohler ?
|
|
dheker
Bronze Level
Joined: 01 Jun 2013
Location: Indiana
Points: 25
|
Post Options
Thanks(0)
Quote Reply
Posted: 12 Apr 2017 at 12:57pm |
|
Is a Briggs & Stratton 243431. The old owner converted the ignition switch from magneto to a coil and is not giving me a good spark, so I thought to put a magneto back in how it has to be.
|
|
HudCo
Orange Level
Joined: 29 Jan 2013
Location: Plymouth Utah
Points: 3776
|
Post Options
Thanks(0)
Quote Reply
Posted: 13 Apr 2017 at 9:46am |
|
points 298185 , condensor 298060 , armatuture ,mag 298986 briggs and stratton parts same engine as my 101 mine is used daily . this engine cannot be changed over to a mag only and elimanate the pionts without sending the flywheel to briggs to change the polarity of the magnet. but i probley have adjust the points every three or four years
|
|
talntedmrgreen
Silver Level
Joined: 25 Jun 2013
Location: Caledonia, MI
Points: 477
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Apr 2017 at 8:45am |
Any pictures? Hard telling where it could be wired wrong, but converting to a battery ignition with a typical coil is extremely simple. But, getting the wiring right is only part of the equation. Need to have a good coil, good condenser, clean/gapped points, good plug, etc. I'd start with wiring.
First, the key switch needs to be swapped as well. Your hot lead will go to it now, and then on to your coil, whereas the OEM key switch was simply a ground to the points. Your starter button remains, and is wired in no different than with the magneto armature setup.
The coil will need a condenser wired to the (-) terminal, and the same to the points. This is for an internal ballast coil. If you don't have an internally resisted coil, then you need to add a ballast to the (+) wire to the coil.
|
|
Patterson B1*B1/B1Forklift*B10*BigTen/B1Loader*B110*B208*B206*616*Homelite T16H/T8/T7/RM7E*Landlord/Loader/Trencher*Broadmoor717*Serf525*2110*7790*Legacy XL*Twin 20*Squire9*Squire6*JCPenny 494
|
|
Jim Hancock
Orange Level
Joined: 11 Sep 2009
Location: EL Reno, Ok.
Points: 1112
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 Apr 2017 at 11:10am |
These pics sure make the explanation a lot clearer. This would be a very good article to add to the knowledge base.
