HD5 Fuel Lines / Fittings?

 Post Reply Post Reply
Author
Message
AndyG View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Mar 2022
Location: Kansas City
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote AndyG Quote  Post ReplyReply Direct Link To This Post Topic: HD5 Fuel Lines / Fittings?
    Posted: 02 May 2023 at 9:45am

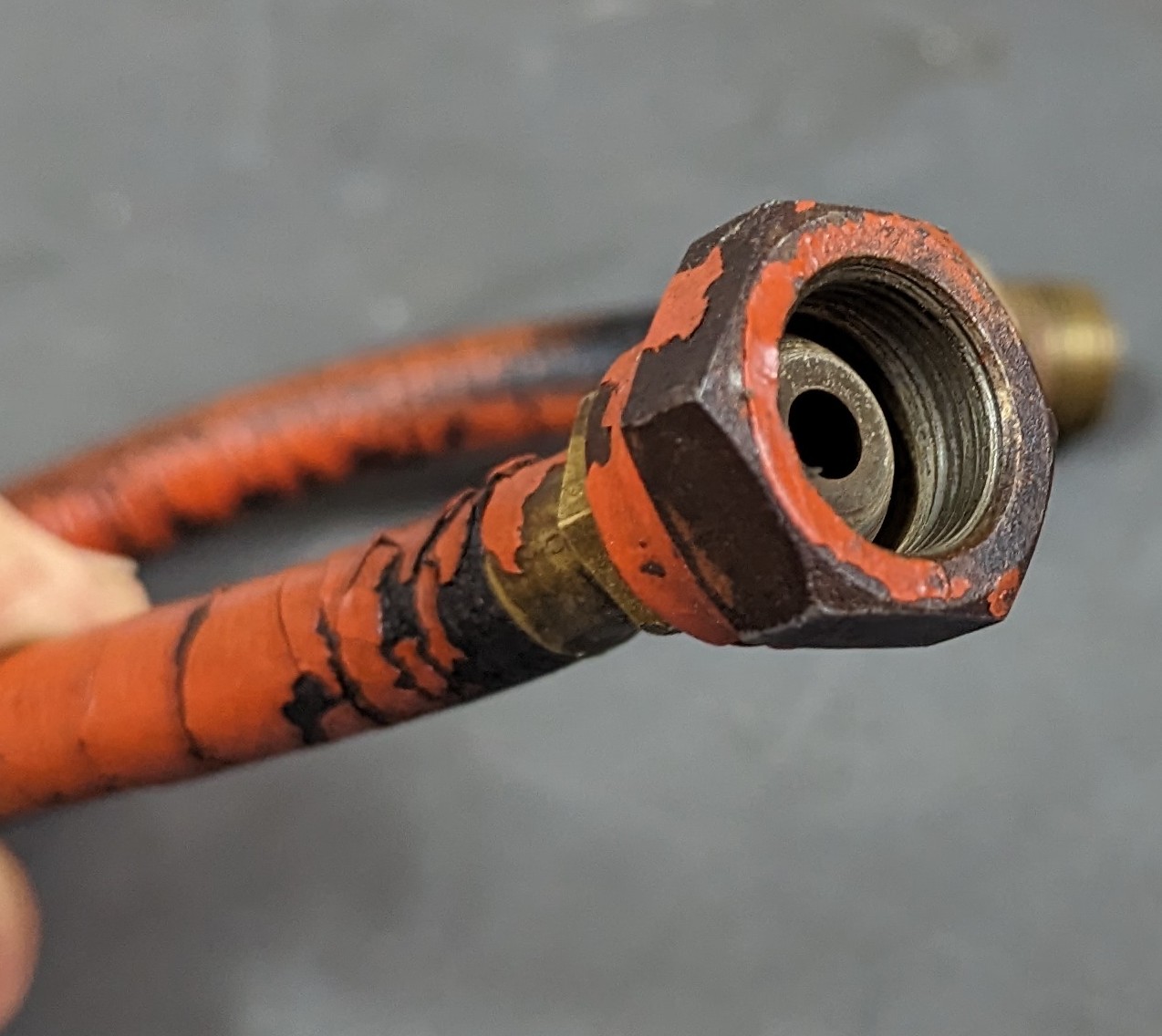

Good Morning, does anyone know where to get fuel lines built that will work on the HD5 line in these pictures?  I have 3 I need to replace , the one pictured is about 11 inches long, the other 2 are about 29 inches long overall.  Both Male and female ends.  The all appear to have the same threads.  The manual I have lists some threads as 5/8-24EF.  Since the OD measures 5/8" (.625") I assume these ends are male and female 5/8-24.
Any leads on where to get them or build these would be MUCH appreciated?

Back to Top
Sponsored Links


Back to Top
JC-WI View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 33589
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC-WI Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2023 at 10:57am
I hate to tell you this, but I believe those fitting are made out of no-obtainium.

I had to replace some lines and I split and removed the sleeve over the hose and pulled the fitting out of the rubber, then pushed new hose onto the barb and put on a hose clamp. And did not waste the fitting. I couldn't find them in the stores either.

 As for the lines that came from or went to the tank with copper lines, I cut back a ways from fitting and put a sleeve over that and the new line and soldered them and that held.
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
JC-WI View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: wisconsin
Points: 33589
Post Options Post Options   Thanks (0) Thanks(0)   Quote JC-WI Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2023 at 11:04am
I hate to tell you this, but I believe those fitting are made out of no-obtainium.

I had to replace some lines and I cut and removed the sleeve over the hose and pulled the fitting out of the rubber, then pushed new hose onto the barb and put on a hose clamp. And did not waste the fittings. I couldn't find them in the stores either.

 As for the lines that came from or went to the tank with copper lines, I cut back a ways from those fitting and put a sleeve over the pipe and the new line and soldered them and that held.
He who says there is no evil has already deceived himself
The truth is the truth, sugar coated or not. Trawler II says, "Remember that."
Back to Top
AndyG View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 11 Mar 2022
Location: Kansas City
Points: 7
Post Options Post Options   Thanks (0) Thanks(0)   Quote AndyG Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2023 at 11:08am
Thank You, JC-WI.  I figured that is where I was heading.  Or re-flaring the tube and using current standard fittings.  Appreciate the response and sharing this work around!
Back to Top
Ray54 View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Nov 2009
Location: Paso Robles, Ca
Points: 4317
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ray54 Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2023 at 11:20am
I have done as JC did with new hose. I believe the thread is a standard fine bolt thread. So it would be possible to build something if really backed into the corner.

It would be interesting to know if that hose was more Detroit Diesel or just a AC thing.
Back to Top
Coke-in-MN View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: Afton MN
Points: 41160
Post Options Post Options   Thanks (0) Thanks(0)   Quote Coke-in-MN Quote  Post ReplyReply Direct Link To This Post Posted: 02 May 2023 at 7:28pm
Some of the fittings i ended up using part of old part and brazing a new standard fitting to old . . On others I just took it back to end where it was pipe thread and made up new lines to replace all the old .

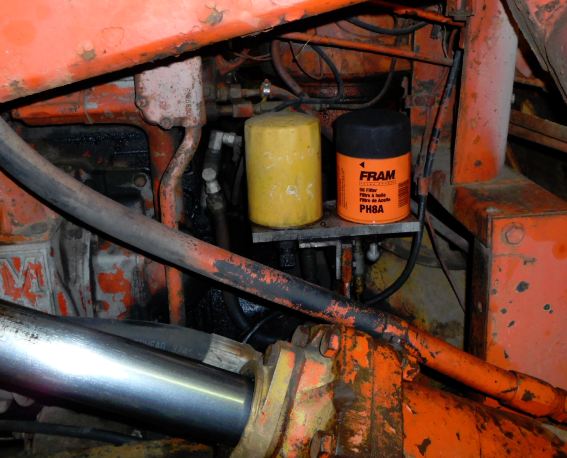

 Same with oil filter , I made a mount up and now use standard screw on canister fittings with 3/4 " thread .
