 Topic: Gleaner k with factory bin ext. Bushel cap.?
Posted: 05 Sep 2020 at 7:00am |
|
I have a 1976 gleaner k with factory bin extension.
Its 66 bushel without.
How many bushel does it hold with extension s.
Thanks cory
|
 |
|
Sponsored Links
|
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21602
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 7:19am |
|
According to the literature I have, the 1976 K and 1977 K-2 were never offered with a grain bin extension. In 1978 the K-2 was called 68 bushels std. and 96 bushels with extension, which was basically flush with the cab roof plus a front/rear flip up flap of 6 inches.
|
|
bleeds orange
Orange Level
Joined: 11 Sep 2012
Location: mt. vision, ny
Points: 692
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 7:42am |
|
|
|
bleeds orange
Orange Level
Joined: 11 Sep 2012
Location: mt. vision, ny
Points: 692
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 7:43am |
|

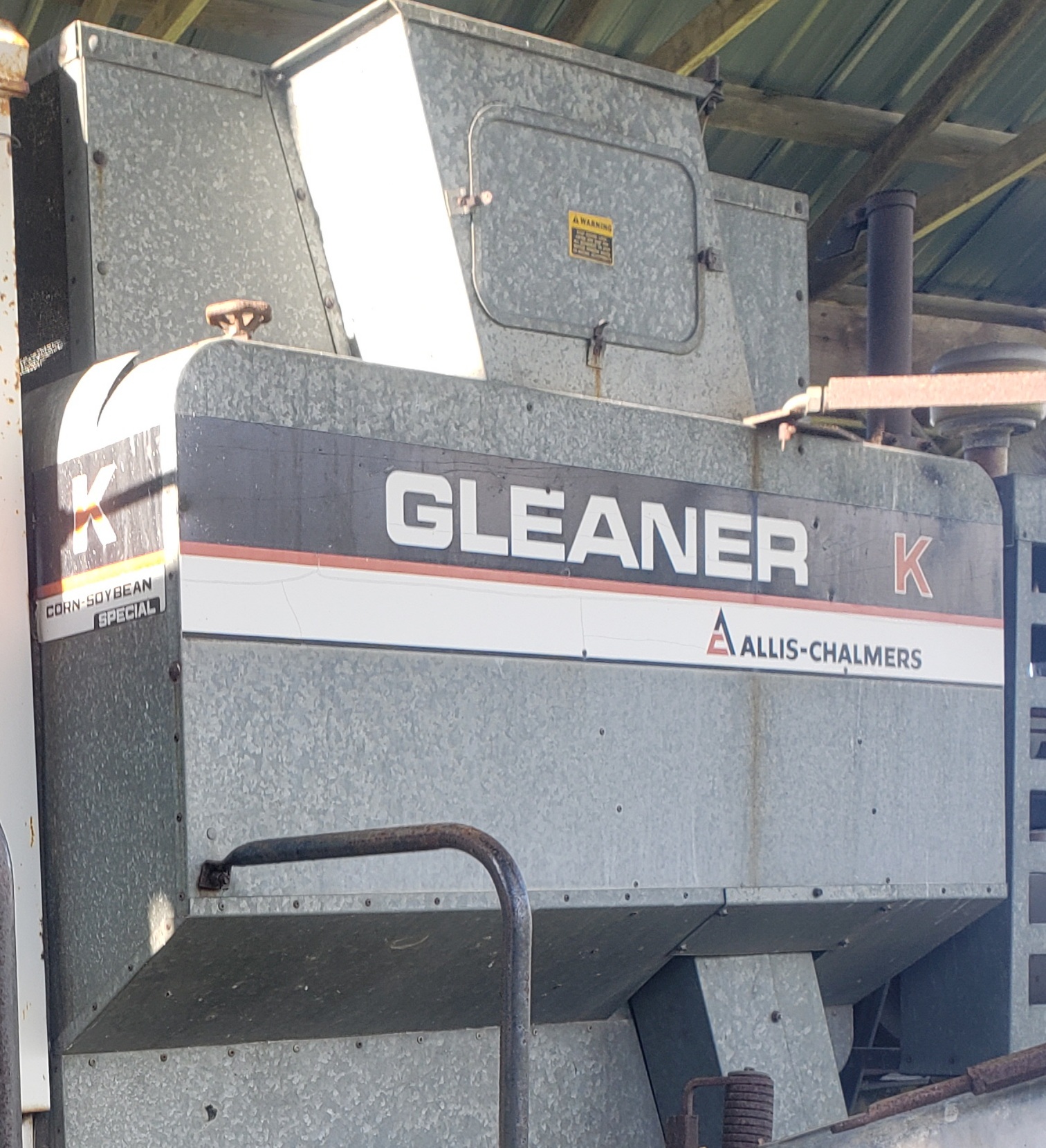

Is this a normal bin? Or considered a bin extension?
Obviously looking at upper most part of bin.
Thanks cory
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21602
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 7:46am |
|
Factory, yes. My literature doesn't reflect the "Corn/Soybean Special", so that's why I can't find any info. The 78 K2 numbers should be very close.
|
|
bleeds orange
Orange Level
Joined: 11 Sep 2012
Location: mt. vision, ny
Points: 692
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 7:47am |
|
Thank you.
So its around 96 bushel?
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21602
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 7:54am |
|
I would say yes to that.
Your Operators manual has this information in it.
Edited by DrAllis - 05 Sep 2020 at 7:55am
|
|
bleeds orange
Orange Level
Joined: 11 Sep 2012
Location: mt. vision, ny
Points: 692
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 8:07am |
|
K thanks.
I have the operators manual to the older model k. This is why I ask.
|
|
AC7060IL
Orange Level
Joined: 19 Aug 2012
Location: central IL
Points: 3504
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 8:08am |
|
1976 K - 77’K2 used smaller final drives (8 bolt drive wheels). Later 78 K2 offered a bigger 10 bolt drive wheel final drive & bin extensions.
Earlier K’s may have offered an “over the bin” loading auger from clean grain elevator? But bin extensions were not offered on K. I’d guess someone swapped extensions from later k2 to your K? Look how the bin corner by cab door is fatigued/cracked. That may hint that extension swap may not have been properly attached or operator forgot about taller extensions while backing combine into low clearance shed door /lean2 roof??
Or... unfolded unloading auger vibrations cracked bin near its mount?
Edited by AC7060IL - 05 Sep 2020 at 8:11am
|
|
FREEDGUY
Orange Level Access
Joined: 15 Apr 2017
Location: South West Mich
Points: 5396
|
Post Options
Thanks(0)
Quote Reply
Posted: 05 Sep 2020 at 5:41pm |
|
A "factory extension" perhaps, but did the "K" series offer the little "wings" front and back like the "older brother" F2 series ??
|
|
