 Topic: G plus Plow equals Problem
Posted: 20 Jun 2021 at 6:38pm |

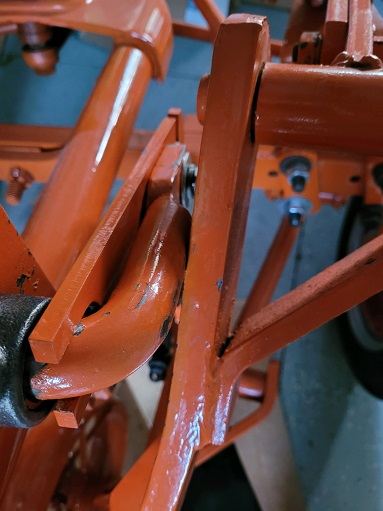

When raising the plow, it swings in toward the center line until
the top of the frame comes to rest against the rocker arm and, of course,
scrapes the paint off both the rocker arm and the upper arm of the frame. The
rocker arm is pushed in as far as it will go and I haven’t read anything in the
implements manual that gives me any clue about why this is happening. Anyone have a suggestion on how to correct
this?
|
 |
|
Sponsored Links
|
|
|
im4racin
Orange Level
Joined: 12 Jun 2017
Location: Garrison ND
Points: 1042
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Jun 2021 at 8:44pm |
|
The strap that holds the mount to the front axle should have a wedge shape on the bottom to swing it away from the lift assy. Ours is missing the wedge too. Would like to find one to copy.
|
|
JoeM(GA)
Orange Level
Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4795
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Jun 2021 at 9:11pm |
 yep, #13 in picture
|
|
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
|
|
BobDinNC
Silver Level
Joined: 13 Sep 2009
Location: Newport, NC
Points: 251
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Jun 2021 at 9:48pm |
|
Thanks for this information. That illustration is not in my manual. Maybe someone can post a picture with dimensions so we can fabricate it.
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 9:17am |
I should be able to make one. Or at least make a drawing with dimensions.
Dusty
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
JoeM(GA)
Orange Level
Joined: 12 Sep 2009
Location: Cumming,GA
Points: 4795
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 10:44am |

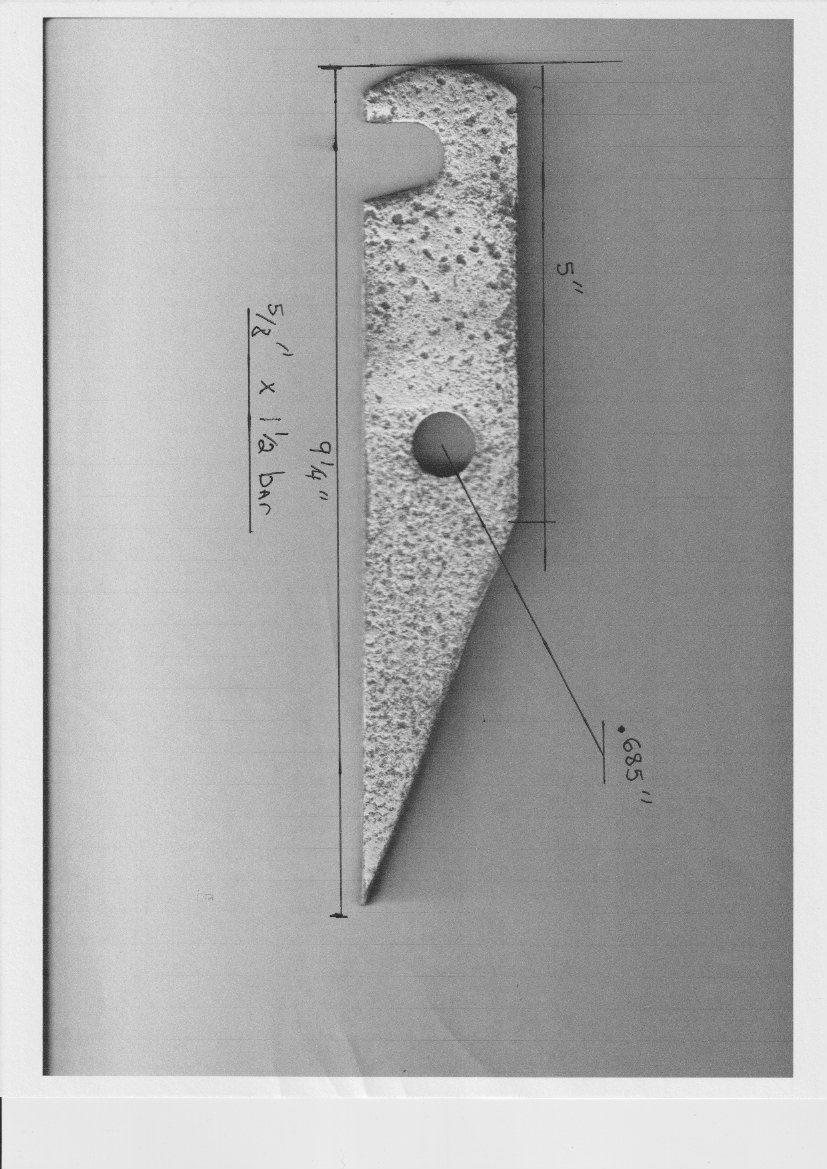

see if this helps anyone in the future
|
|
Allis Express North Georgia
41 WC,48 UC Cane,7-G's,
Ford 345C TLB
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 10:58am |
Nice job Joe. I just looked at mine, it's holding the plow on my G right now. I have pair of right and left plows on my G right now, and only one of those wedge plates, and it is slightly different than yours. But it's not easy to measure because it's in use.
Dusty
Edited by Dusty MI - 21 Jun 2021 at 10:58am
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
BobDinNC
Silver Level
Joined: 13 Sep 2009
Location: Newport, NC
Points: 251
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 11:19am |
Thanks Dusty. Joe is lending me his piece so I can make a copy. Do you have a picture of your tractor with the plows mounted? I would like to see it. Bob
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 11:34am |
I'll take a couple of pictures and e-mail them to you. I have trouble posting pictures on here. That part is called for on each plow but mine is only on the left plow.
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 11:41am |
I always remember the G was overall the best plowing tractor I sold. With the offset coulter it could really dispose of the trash. We could take it almost anywhere and do a good job. We were always amazed at how well it handled a 14" plow. Good Luck! Bill Long
JoeMGA, always good to see your name. Good Memories.
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 4:14pm |
 BobDinNC wrote:
Thanks Dusty. Joe is lending me his piece so I can make a copy. Do you have a picture of your tractor with the plows mounted? I would like to see it. Bob
|
Bob I sent you 4 pictures. I hope you can open them. I use an Apple computer, which I like very well until I try to send pictures.
Dusty
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 4:16pm |
Bill the plows for the G are 12" plows. And yes the G does a very nice job of plowing.
Dusty
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 4:45pm |
JoeM(GA) wrote:
see if this helps anyone in the future
Mine is mounted on my G right now so it's a little hard to measure, but it's a little different. It's 5/8" x 1-3/4" x 8-1/2" One bolt hole is in the center of iron, both ways. The other hole center is 7/16" from the side/edge. The taper starts at the center of one side to the end of the other side.
It looks to me that either one will work. If Allis only made one size I would guess that mine was farmer made.
Dusty |
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7482
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 8:41pm |
|
Make sure Item #8 was attached to your axle the correct way. It can only go one way.
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Jun 2021 at 8:58pm |
Dusty, In Maryland when we sold them we always mounted a 14" plow. Handled it with no problem. I had a GREAT DAY about 2 - 3 years ago when Bob Bollinger let me plow with his G at one of our plow days. Really appreciated that. It brought back some outstanding memories. Good Luck! Bill Long
|
|
Dusty MI
Orange Level
Joined: 13 Sep 2009
Location: Charlotte, Mi
Points: 5058
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Jun 2021 at 12:14pm |
Bill, My parts book only shows 12" mould board plows. How did you get 14" on the G ?
Dusty
|
|
917 H, '48 G, '65 D-10 series III "Allis Express"
|
|
BobDinNC
Silver Level
Joined: 13 Sep 2009
Location: Newport, NC
Points: 251
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Jun 2021 at 12:50pm |
|
A local shop will make a replica of 1/2" (not 5/8" as original) for $25. If anyone is interested in one, let me know by June 30 and I'll have one made for you. Bob
|
|
Bill Long
Orange Level
Joined: 12 Sep 2009
Location: Bel Air, MD
Points: 4556
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2021 at 3:59pm |
Dusty, That may be in the parts book but on the dealer purchase order you could order 14" bottoms separately. That's what we did. Since the plow beam - so to speak - was Allis Chalmers standard we had no problem with them fitting. We learned when we went to the first G dealer introduction in 1948 they had a 14" mounted on the G demonstrator since they did not have a 12" at the branch. When Pop saw it pull - or in this case pushed - so well that was all he ordered We sold them on every G plow we sold and we sold a lot. Worked GREAT! Good Luck! Bill Long |
|
