Front tire size |
Post Reply |
Author | |
JCSinPITTS,PA
Silver Level Joined: 14 Sep 2009 Points: 223 |
Post Options
Thanks(0)
Posted: 28 Jul 2023 at 6:35am |
another question, Please! it appears some front wheels are 15 inch and some are 16 inch on the tractors i have, whats up with that?
|
|
Sponsored Links | |
steve(ill)
Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 77945 |
Post Options
Thanks(0)
|
It depends on the size of the tractor... B, C were 15 inch... Larger D series are 16 inch.
That being said... many rims have been changed over the last 60 years. What do you have ?
Edited by steve(ill) - 28 Jul 2023 at 8:05am |
|
Like them all, but love the "B"s.
|
|
rrhead(SD)
Silver Level Joined: 11 Sep 2009 Location: Canton, SD Points: 427 |
Post Options
Thanks(0)
|

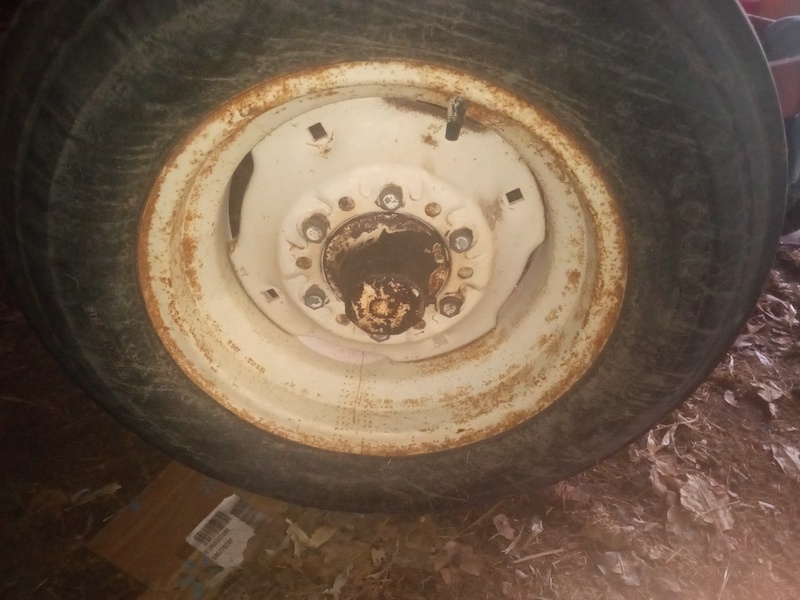

My D-19 has 15 inch tires on it. The rim measures 16 inches across. All the references I have seen, says it should be 16 inch tires. |
|
2 WDs,WD45,D-14,D-17,D-19D,180,7020,6080FWA,6080 2wd, 6080 2wd(cab),8050FWA,8550,4W-305,Massey 8250. Gleaner L3, R62 &R65 Agco-Allis 1616H & 1920H, AC 720, Terra-Tiger
|
|
Jim.ME
Orange Level Joined: 19 Nov 2016 Location: Maine Points: 937 |
Post Options
Thanks(0)
|

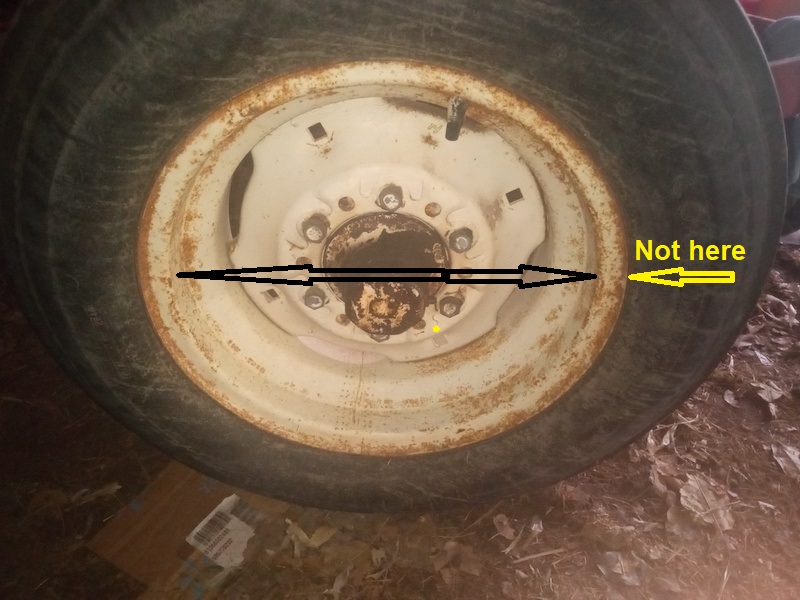

A 15inch tire isn't going to like seating up on a 16 inch rim. Where are you measuring the rim? The rim diameter is actually measured across the inside of the rim at the black arrow where the bead seats, not across the outer lip of the rim.
|
|
rrhead(SD)
Silver Level Joined: 11 Sep 2009 Location: Canton, SD Points: 427 |
Post Options
Thanks(0)
|
That does measure 15 inches. Wasn't sure where to measure. That must mean they have been changed at sometime. Thank you very much for the info. rrhead(SD).
|
|
2 WDs,WD45,D-14,D-17,D-19D,180,7020,6080FWA,6080 2wd, 6080 2wd(cab),8050FWA,8550,4W-305,Massey 8250. Gleaner L3, R62 &R65 Agco-Allis 1616H & 1920H, AC 720, Terra-Tiger
|
|
WF owner
Orange Level Joined: 12 May 2013 Location: Bombay NY Points: 4415 |
Post Options
Thanks(0)
|

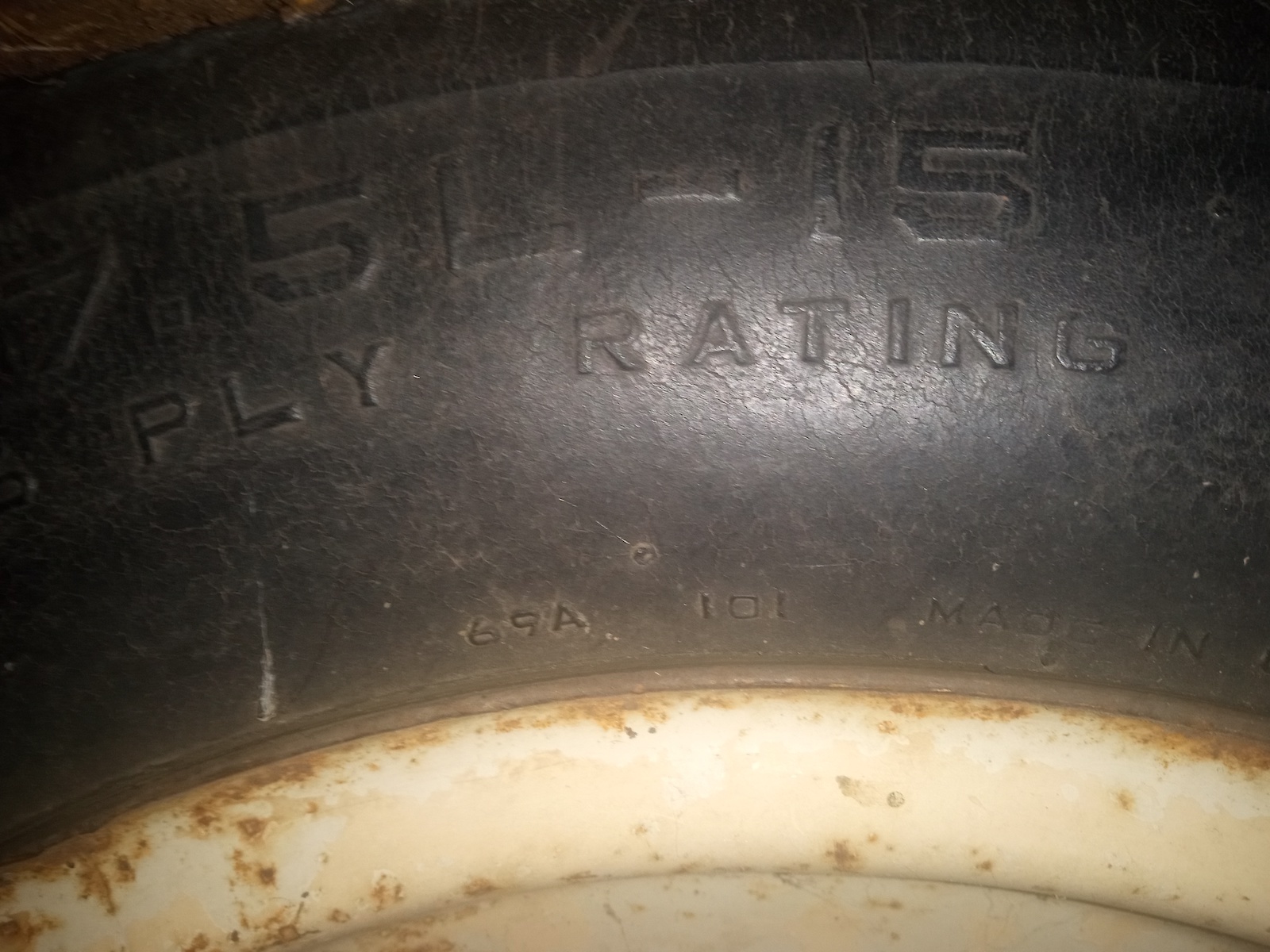

The rim size is usually stamped into the rim.
|
|
DrAllis
Orange Level Access Joined: 12 Sep 2009 Points: 19576 |
Post Options
Thanks(0)
|
Many 200's and later 185's had a 6-bolt 9.5L x 15 front wheel. That might be what you have with a 7.5 tire.
|
|
IBWD MIke
Orange Level Joined: 08 Apr 2012 Location: Newton Ia. Points: 3470 |
Post Options
Thanks(0)
|
I have 7.5L 15's on my Wide Front 45. Electric wheel rims off some sort of jd.
|
|
rrhead(SD)
Silver Level Joined: 11 Sep 2009 Location: Canton, SD Points: 427 |
Post Options
Thanks(0)
|
Dr. that is good to know. I need to replace the tires on the front and I think 9.5 would look good on the front of a D-19D with 18.4 x 34 on the rear. rrhead(SD)
|
|
2 WDs,WD45,D-14,D-17,D-19D,180,7020,6080FWA,6080 2wd, 6080 2wd(cab),8050FWA,8550,4W-305,Massey 8250. Gleaner L3, R62 &R65 Agco-Allis 1616H & 1920H, AC 720, Terra-Tiger
|
|
HudCo
Orange Level Joined: 29 Jan 2013 Location: Plymouth Utah Points: 3299 |
Post Options
Thanks(0)
|
i am going to put 9.5 x 15 four ribs on my d17d they will be about the same hight as as the 6.50x16s i think 1 inch higher but i have 16.9 s on the rear so it will still sit level
|
|
