D-19 Largest Mounted Attachment?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
wjohn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Jan 2010
Location: KS
Points: 2158 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wjohn Quote  Post ReplyReply Direct Link To This Post Topic: D-19 Largest Mounted Attachment?
    Posted: 06 Jan 2025 at 8:03pm
I know this is a loaded question, but what's the biggest thing you've hung off the back of a D-19 (Snap Coupler or 3-point)?

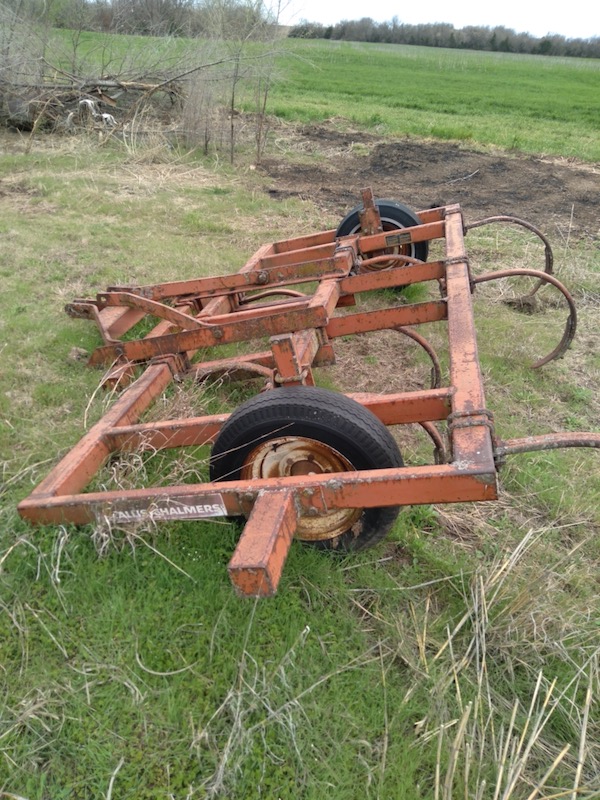

Only reason I ask is that I have been offered a 3 point mounted 610 chisel (the one made by Jeoffroy for AC). The biggest thing I have is a D-19 and I don't anticipate ever needing anything larger. The chisel looks too big for it but I figured I would ask for the wisdom and experience of the forum.
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
Back to Top
Sponsored Links


Back to Top
im4racin View Drop Down
Orange Level
Orange Level


Joined: 12 Jun 2017
Location: Garrison ND
Points: 1003 		Post Options Post Options   Thanks (0) Thanks(0)   Quote im4racin Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan 2025 at 9:23pm
Oh… To be in a part of the world that doesn’t need spring trip on chisel plow shanks!
Back to Top
wjohn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Jan 2010
Location: KS
Points: 2158 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wjohn Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan 2025 at 9:59pm
Originally posted by im4racin im4racin wrote:

Oh… To be in a part of the world that doesn’t need spring trip on chisel plow shanks!

Actually, we probably do. I got my CII from this guy and plenty of rocks busted the bottom of the grain header pan over the years. Go 10 miles west of us and no more big chunks of limestone.

I was at least able to lift all the rocks I found in my fields by myself this year, so that was nice.
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21395 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan 2025 at 10:16pm
Is it category 3  ??? if so, it ain't for a D-19.
Back to Top
AC7060IL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Aug 2012
Location: central IL
Points: 3475 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AC7060IL Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan 2025 at 10:46pm
wJohn, what tractor did the previous owner of this AC chisel pull it with?
Back to Top
KJCHRIS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 21 Dec 2015
Location: WC Iowa
Points: 948 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KJCHRIS Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan 2025 at 11:26pm
I see there's 8 shanks on it, but some have been removed & it's 3 pt. Do you have 3 pt on the D19.? Can it lift the chisel and drive with it, or does frontend come off grd? Do you have duals?
 The gauge wheels will help keep it from dropping to china & lifting frontend into air.  I'd try it with 6 shanks spaced evenly & gauge wheels set about 8" off ground setting on level hard surface then see if it will pull it that way. IF it has no problem handling it, set wheels higher or put the other 2 shanks on.
AC 200, CAH, AC185D bareback, AC 180D bareback, D17 III, WF. D17 Blackbar grill, NF. D15 SFW. Case 1175 CAH, Bobcat 543B,
Back to Top
Allis dave View Drop Down
Orange Level
Orange Level


Joined: 10 May 2012
Location: Northern IN
Points: 2978 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Allis dave Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 5:53am
I've pulled a 7 shank with my 185. No trouble on power, but I have just barely enough traction with loaded tires.
Back to Top
Lars(wi) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 14 Sep 2009
Location: Permian Basin
Points: 7742 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Lars(wi) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 6:46am
D-19 gas, or diesel?
I tried to follow the science, but it was not there. I then followed the money, and that’s where I found the science.
Back to Top
Tbone95 View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 31 Aug 2012
Location: Michigan
Points: 11969 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tbone95 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 7:29am
Originally posted by Allis dave Allis dave wrote:

I've pulled a 7 shank with my 185. No trouble on power, but I have just barely enough traction with loaded tires.

So probably if you had plenty of traction, you’d be low on power!
Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 3010 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 7:50am
We ran a D19 for years loved it but no way it would have pulled that chisel plow in our red clay,Take off half the shanks to start with.I had a 5 tooth chisel I pulled with the 190XT I owned and the 190 had all it wanted.
Back to Top
mruhlig77 View Drop Down
Orange Level
Orange Level


Joined: 19 Aug 2014
Location: central Indiana
Points: 584 		Post Options Post Options   Thanks (0) Thanks(0)   Quote mruhlig77 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 10:34am
Pull it with a well weighted tractor until something pops....going for  10 or 1000 acres???
Back to Top
Michagman View Drop Down
Bronze Level
Bronze Level


Joined: 18 Jan 2023
Location: Michigan
Points: 16 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Michagman Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 6:16pm
I can't answer your question, but I have one of my own.  I assume it's a 3-point.  Has it been partially unbolted and folded down for some reason, or does the top link pin do double duty?
Back to Top
wjohn View Drop Down
Orange Level
Orange Level
Avatar

Joined: 19 Jan 2010
Location: KS
Points: 2158 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wjohn Quote  Post ReplyReply Direct Link To This Post Posted: 07 Jan 2025 at 7:24pm
The biggest tractor the guy had when he was farming was a 4020 diesel. I am now wondering if it was too much for the 4020 and that is why some shanks are missing.

Thanks to everyone for humoring me. I may buy it to cut it down into something smaller if the price is right.
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
Back to Top
