 Topic: D17IV seat decal
Posted: 26 Jun 2023 at 8:07pm |
Hello does anyone have original seat with the Allis Chalmers decal on back. We bought new seat and would like to try to place decal in proper place. Thank you
|
 |
|
Sponsored Links
|
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21400
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2023 at 8:34pm |
|
Which seat? cream color pan or black ??
|
|
KJCHRIS
Orange Level
Joined: 21 Dec 2015
Location: WC Iowa
Points: 948
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2023 at 8:35pm |
|
Sorry don't have, but remember seeing the decal on seat in a D15 or 17 sales brochure or something. Hopefully someone on here has a picture from brochure or book and will share it.
|
|
AC 200, CAH, AC185D bareback, AC 180D bareback, D17 III, WF. D17 Blackbar grill, NF. D15 SFW. Case 1175 CAH, Bobcat 543B,
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8616
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2023 at 8:50pm |
|
Yes sorry the cream
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 419
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2023 at 9:42pm |

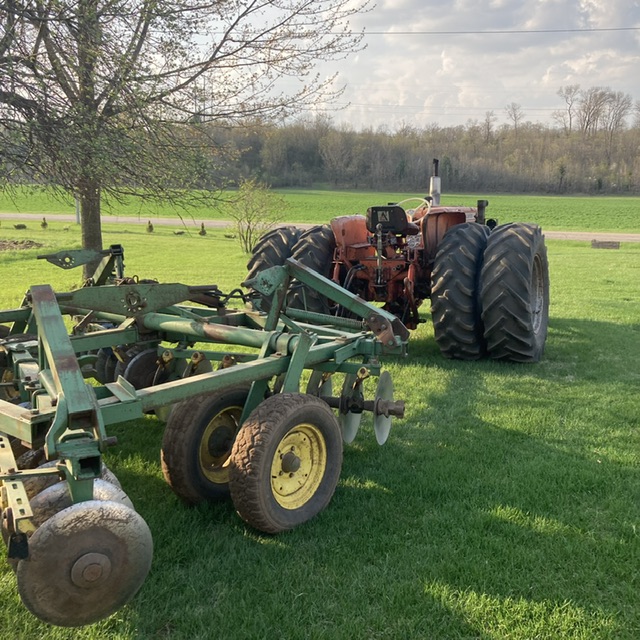

Picture of my d17 IV from the back, black pan seat but you can zoom in and see the location of the decal.
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21400
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Jun 2023 at 9:54pm |
|
Different decal for cream seat. The "Allis-Chalmers" decal is positioned half-way between the top edge of the seat pan and the cross ways slot below.
|
|
WF owner
Orange Level
Joined: 12 May 2013
Location: Bombay NY
Points: 4889
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 5:48am |
|
If you find someone that is good with a Cricut, they should be able to reproduce it for you.
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8616
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 8:26am |
|
Well I guess I didn’t realize there was a difference. We just picked up a new seat at a show few weeks ago. New seat is cream frame. I got the decal per the part number from parts book and it’s like the one above in picture on black frame.
|
|
Sherman Farms
Orange Level
Joined: 17 Sep 2009
Location: Centerburg, OH
Points: 1661
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 8:44am |
|
Maple Hunter has the decal for the cream seat.
|
|
B, C, RC, 3 wc,2 wd,3 wd45, d15, d17, d19, d21, 190, 440, 7040, 918 backhoe, 12 roto balers, 7 60 combines, 40, 66,2 72,90 super, sp100, Gleaner E, F3, 3 L2, R62, and much more
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 419
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 8:46am |

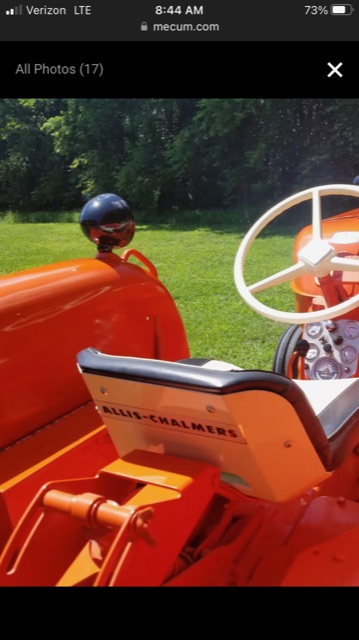

 Is this the right one?
Edited by Travis2766 - 27 Jun 2023 at 8:47am
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21400
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 8:49am |
|
That's (I think) the only one I've ever seen on the cream seat pan. This would be prior to the logo change, which happened with the black seat pan in 1965/66 ??
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8616
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 9:01am |
Ok thanks. Our 17 is 78307 1965. What about D15ll. Sr 20668 1965
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 419
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 9:07am |
|
The “New” logo was introduced in ‘65
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7441
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Jun 2023 at 3:38pm |
 Travis2766 wrote:
The “New” logo was introduced in ‘65 |
Very late in 1965 actually. A change promoted for the 1966 model year. My neighbor had a late 1965 D17 IV with the sunburst emblems on it (not repainted).
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
Leadoff
Silver Level
Joined: 14 Oct 2016
Location: Calgary
Points: 283
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 9:15am |
Hi Mikez
Here is a D17IV (1966) for sale on Tractorhouse with a cream back seat. Seat frame back might be original, but the padded cover looks like a very well done custom job. Tractor looks to be in very good shape
Hope this helps
|
|
1963 D17D Series III. 1965 D15 Series II. 1965 D17 Series IV. 1975 185. 1978 716H. 1979 716H. 1965 780 Harvester/1R&DC. 1957 Model 73 SC 4 Furrow Plow
|
|
Mikez
Orange Level Access
Joined: 16 Jan 2013
Location: Usa
Points: 8616
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 9:33am |
|
Wow that one has snap coupler
|
|
Allis dave
Orange Level
Joined: 10 May 2012
Location: Northern IN
Points: 2978
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 10:19am |
|
That's only about an hour from me. If I hadn'tbought a really nice SIII 2 years ago I'd be interested. Low price so far except for the missing drawbard and lift work.
|
|
Travis2766
Silver Level
Joined: 26 Aug 2015
Location: Amherst, Wi
Points: 419
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 11:21am |
Mikez wrote:
Wow that one has snap coupler |
Is a snap coupler on the series IV something that’s rare? Just curious because my series IV has a snap coupler (wish it wasn’t).
|
|
190XT Series III, D17 Series IV, D15 Series II, All Crop 66 and a whole mess of equipment.
|
|
DrAllis
Orange Level Access
Joined: 12 Sep 2009
Points: 21400
|
Post Options
Thanks(0)
Quote Reply
Posted: 28 Jun 2023 at 11:31am |
|
I'm going to guess 50/50 snap-coupler versus 3-point on series 4 tractors.
|
|
Alex09(WI)
Orange Level
Joined: 15 Mar 2012
Location: CECIL WI
Points: 1725
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Jun 2023 at 10:56pm |
One of my customers and myself have done extensive research on seats and
decals. Our conclusions are:
When the deluxe/padded seat came out in 1961 it had the 338338 decal on
the back. All had creme pans. This decal was used up to sept 1964.
https://awtractor.com/product/allis-chalmers-lettering-seat-back-foil-decal-338338/
October 1964 or before the decal was changed to the diamond sawtooth
design part #923383, per 190 parts book dated 10/64. 923383 was used
till at least Sept 1965. We are working on getting these decals made.
The first documented use we have of the corporate reflective decal
924273 is D15 #21197, (December 1965) on a creme pan. D15 #21636 (Feb 1966) also had 924273 on creme pan as well as D17 #83330 (June 1966). 924244 is NOT the correct decal, it
has a white background, not grey reflective like the original one:
https://awtractor.com/product/allis-chalmers-corporate-logo-seat-back-decal-924273/ The 924273 corporate A decal was used on creme seat pans for a while until the pans changed to black at unknown date in 1966.
|
|
