D17 series 4 hydraulic pump
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Zahn7115 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 30 Oct 2018
Location: Solomon, Kansas
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Zahn7115 Quote  Post ReplyReply Direct Link To This Post Topic: D17 series 4 hydraulic pump
    Posted: 03 Nov 2018 at 5:39pm
I have a 1965 D17 Series 4 and I want to free up the single rear remote from my loader. I have the side gear type pump and I'd like to tap into the pump. I'm not real sure if this is a good idea or not and I'm not real sure what the three hookups are on the pump. There is a big one inch line on the rear of the pump going directly down to the sump. On the front there are 3/8" and 5/8" lines that run to the rear valve assembly. I'm assuming the smaller line is the high pressure line? My manual doesn't show much as far as Series 4 hydraulic systems.
And if I could tap into the system by the pump I could run the two new hoses I need directly up to the loader valve. Any information or opinions given are very much appreciated. Thank you.

Nathan

Edited by Zahn7115 - 03 Nov 2018 at 8:30pm
Back to Top
Sponsored Links


Back to Top
Stan R View Drop Down
Orange Level Access
Orange Level Access


Joined: 03 Dec 2009
Location: MA
Points: 971 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan R Quote  Post ReplyReply Direct Link To This Post Posted: 03 Nov 2018 at 5:44pm
We tapped into the pump output line, plumbed to the loader hydraulics, then back to the tractor spool valves. Works great. D17 IV,Factory hydraulics unaffected.
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21408 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 03 Nov 2018 at 7:14pm
You cannot just plumb into any old two-spool valve. It must be a "power-beyond" type valve made for an open center hydraulic system.
Back to Top
Stan R View Drop Down
Orange Level Access
Orange Level Access


Joined: 03 Dec 2009
Location: MA
Points: 971 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan R Quote  Post ReplyReply Direct Link To This Post Posted: 03 Nov 2018 at 7:29pm
Originally posted by DrAllis DrAllis wrote:


You cannot just plumb into any old two-spool valve. It must be a "power-beyond" type valve made for an open center hydraulic system.


I am certain you are right! We just told the dealer what we wanted to do and he sold us a used valve assembly that gave us down/ up pressure and bucket tilt back and forth 15 or 20 years ago.
Back to Top
modirt View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 18 Jul 2018
Location: Missouri
Points: 8242 		Post Options Post Options   Thanks (0) Thanks(0)   Quote modirt Quote  Post ReplyReply Direct Link To This Post Posted: 04 Nov 2018 at 7:01am

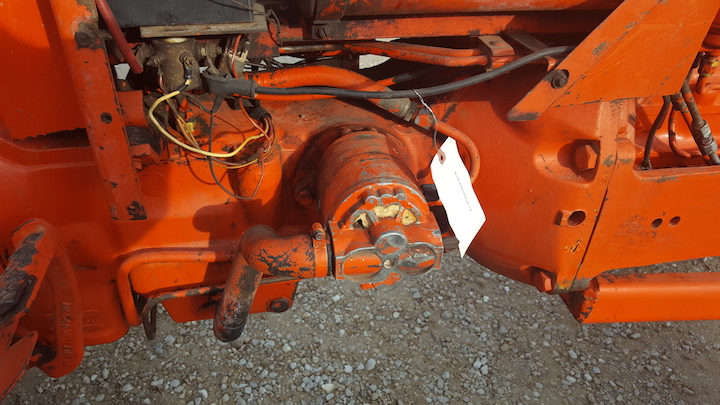

Does your pump look like this one? I spotted it on a 170 the other day. Mounted up where the belt pulley would have been. I know nothing about it. If AC equipment or other? I saw it as an interesting add on pump option. Not sure how functional it was or is, or if the same pump could be used on a lot of tractors.


Back to Top
MACK View Drop Down
Orange Level
Orange Level


Joined: 17 Nov 2009
Points: 7664 		Post Options Post Options   Thanks (0) Thanks(0)   Quote MACK Quote  Post ReplyReply Direct Link To This Post Posted: 04 Nov 2018 at 8:15am
Early 170s had pump on side like IV4 D17. Later pump was moved to be driven off front of crankshaft.      MACK
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7445 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 04 Nov 2018 at 8:45am
Originally posted by modirt modirt wrote:

Does your pump look like this one? I spotted it on a 170 the other day. Mounted up where the belt pulley would have been. I know nothing about it. If AC equipment or other? I saw it as an interesting add on pump option. Not sure how functional it was or is, or if the same pump could be used on a lot of tractors.



That is the stock pump and location for Series IV D17s and early 170 tractors.  You cannot put it on any other tractor and expect it to work though.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
Gatz in NE View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Lincoln, NE
Points: 1043 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gatz in NE Quote  Post ReplyReply Direct Link To This Post Posted: 04 Nov 2018 at 9:52am
Those pumps were "live" and turn whenever the engine does.
There's a quill shaft that connects to the pressure plate via splines and has a right-angle (bevel) gear that engages the pump input shaft.
The largest line is the Intake from the sump.
The medium sized one is line pressure to the hydraulic valve stack.
The smallest line is to the Traction Booster valve; it is a separate stage of the pump and at higher pressure.

Edited by Gatz in NE - 04 Nov 2018 at 9:53am
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21408 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 04 Nov 2018 at 10:07am
D-17 S4 is a dual-section pump. Main section is for the lift and the small section is for the Traction Booster system. A 170/175 have a triple pump. One for the lift, a small one for the Traction Booster and the last one for the hydrostatic power steering.
Back to Top
Adam0096 View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 22 Jan 2020
Location: NW Wisconsin
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Adam0096 Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2020 at 11:28am
Do you know if the AC 170 pumps interchangeable with the d17 series 4?
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21408 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2020 at 11:34am
No.  Triple pump on 170/175 and dual pump on D17 S4. Look at the suction hose and suction tube. They are not the same pump.
