D-17 or 170 with Left Hand Power Director Lever

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic


   I am installing a Left Hand Shuttle Clutch Lever on my 170 and I am looking for a photo of the bracket that holds the lever quadrant when lever is mounted on the left side.  I have had no luck finding the bracket for sale anywhere so I will build one, but it would be helpful to see how Allis did it.Thanks in advance.  Bret (OH)


Edited by Bret (OH) - 27 Apr 2020 at 5:47am

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Bret (OH) Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 15 Sep 2009 Location: Blanchester, OH Points: 353	Post Options Post Reply Quote Bret (OH) Report Post Thanks(0) Quote Reply Topic: D-17 or 170 with Left Hand Power Director Lever Posted: 24 Apr 2020 at 11:58am
	I am installing a Left Hand Shuttle Clutch Lever on my 170 and I am looking for a photo of the bracket that holds the lever quadrant when lever is mounted on the left side. I have had no luck finding the bracket for sale anywhere so I will build one, but it would be helpful to see how Allis did it. Thanks in advance. Bret (OH) Edited by Bret (OH) - 27 Apr 2020 at 5:47am

Sponsored Links

Gatz in NE Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Lincoln, NE Points: 1044	Post Options Post Reply Quote Gatz in NE Report Post Thanks(0) Quote Reply Posted: 24 Apr 2020 at 12:55pm

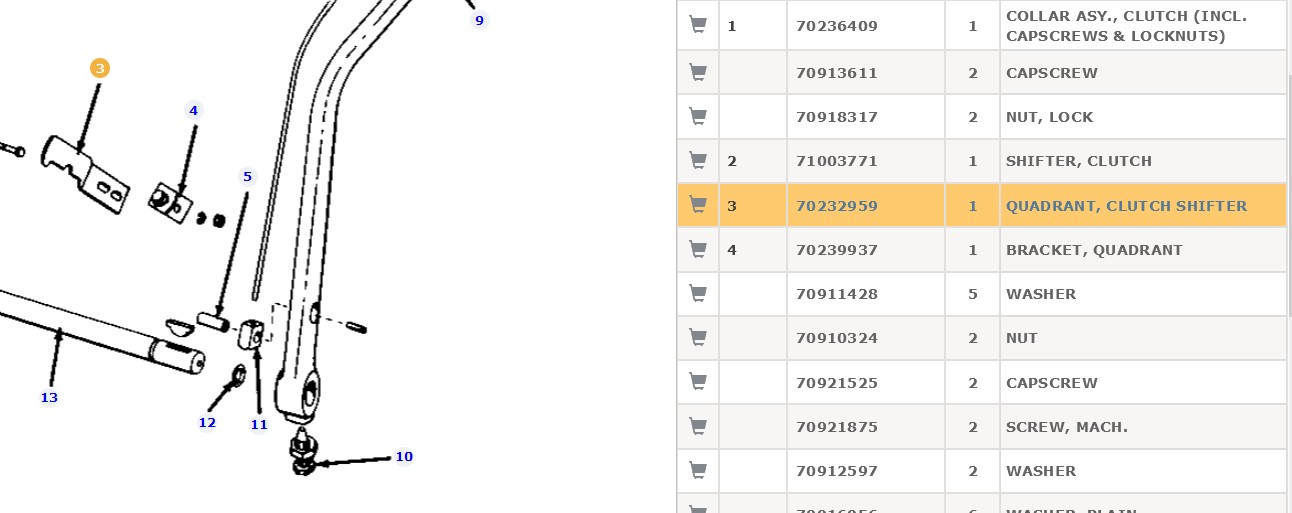

	Don't know if this will help, but here's a diagram from the AGCO Parts Books. (enter as Guest, at prompt enter D17, click on D17 Tractor (Prior to Series IV, page 246) Shows the Right-Hand version and Left-Hand version of the PD. Note that the view for the RH version is looking FORWARD from operator's position; the LH version is looking AFT BTW, Item 3 for the LH version is not the same part as Item 3 (70237176) for the RH version Edited by Gatz in NE - 24 Apr 2020 at 6:45pm

Bret (OH) Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 15 Sep 2009 Location: Blanchester, OH Points: 353	Post Options Post Reply Quote Bret (OH) Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 5:45am

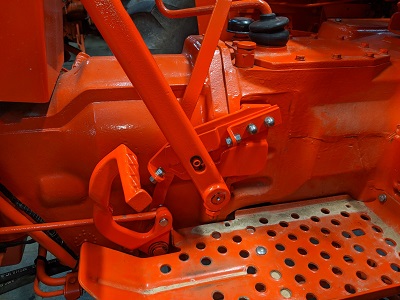

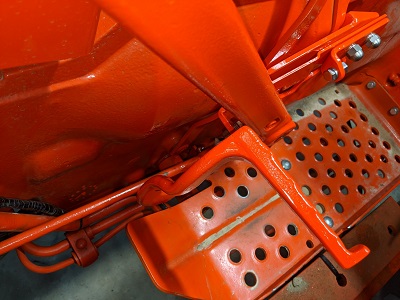

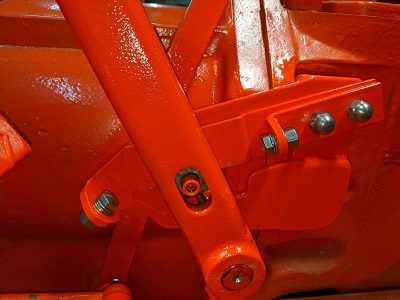

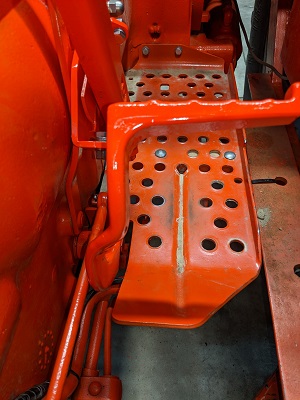

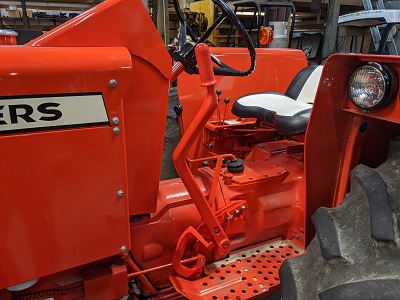

	Here is my solution to the Left Hand Lever. I built a bracket of my own design using the quadrant and rear stop from the right side lever setup. I modified the lever shaft by adding new keyways for the clutch fork and moving the oring groves and snap ring locations sideways by .395 thousandths. This set the lever to the left enough to get the fabricated bracket behind it. I also had to modify the clutch pedal with the offset so there would be no interferance with the lever. Allis made a special clutch pedal for this application but that also has been impossible to locate.

m16ty Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 28 Jan 2011 Location: TN Points: 1474	Post Options Post Reply Quote m16ty Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 5:58am
	This is the first I’ve heard of the left-hand option. What was the reasoning behind it? Somebody with a disability on their right side?

Pat the Plumber CIL Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Springfield,Il Points: 4900	Post Options Post Reply Quote Pat the Plumber CIL Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 7:20am
	Shuttle clutch option . loose 4 forward gears but now 4 forward and 4 reverse controlled by shuttle clutch . Usually mounted on left side.
	You only need to know 3 things to be a plumber;Crap rolls down hill,Hot is on the left and Don't bite your fingernails 1964 D-17 SIV 3 Pt.WF,1964 D-15 Ser II 3pt.WF ,1960 D-17 SI NF,1956 WD 45 WF.

TramwayGuy Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 19 Jan 2010 Location: Northern NY Points: 11712	Post Options Post Reply Quote TramwayGuy Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 7:24am
	Note: shuttle clutch option changes the PTO speed to a non-standard RPM.

Gatz in NE Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Lincoln, NE Points: 1044	Post Options Post Reply Quote Gatz in NE Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 7:33am
	The reasoning was that your right hand would be very busy with the loader controls, the throttle, and although not very often, the transmission gear shift. While your left hand/arm is doing zilch. Imagine having the PD lever still on the right side.

mruhlig77 Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 19 Aug 2014 Location: central Indiana Points: 588	Post Options Post Reply Quote mruhlig77 Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 8:21am
	Might be handy....what about H-3 dozer parts...same same??

Bret (OH) Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 15 Sep 2009 Location: Blanchester, OH Points: 353	Post Options Post Reply Quote Bret (OH) Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 10:20am
	H3 is based on a D-15, same principal but most parts are different. The One-Seventy I converted is still a Power Director, but as Gatz stated, I changed it so I could use the hand clutch with Left hand and hyd. with the Right. Eventually, if I can find all the parts I will build a torque housing with all the shuttle gears and switch it into the One-Seventy. The 170's from the factory had a 2 speed PTO, which made it useable at normal speeds but for me it doesn't matter as I don't use the PTO on this tractor for anything.

Mapleshade Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 08 Jan 2020 Location: Castleton ON Points: 4	Post Options Post Reply Quote Mapleshade Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 12:55pm
	Nice looking 170. How about more photos?

Gatz in NE Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Lincoln, NE Points: 1044	Post Options Post Reply Quote Gatz in NE Report Post Thanks(0) Quote Reply Posted: 27 Apr 2020 at 6:59pm

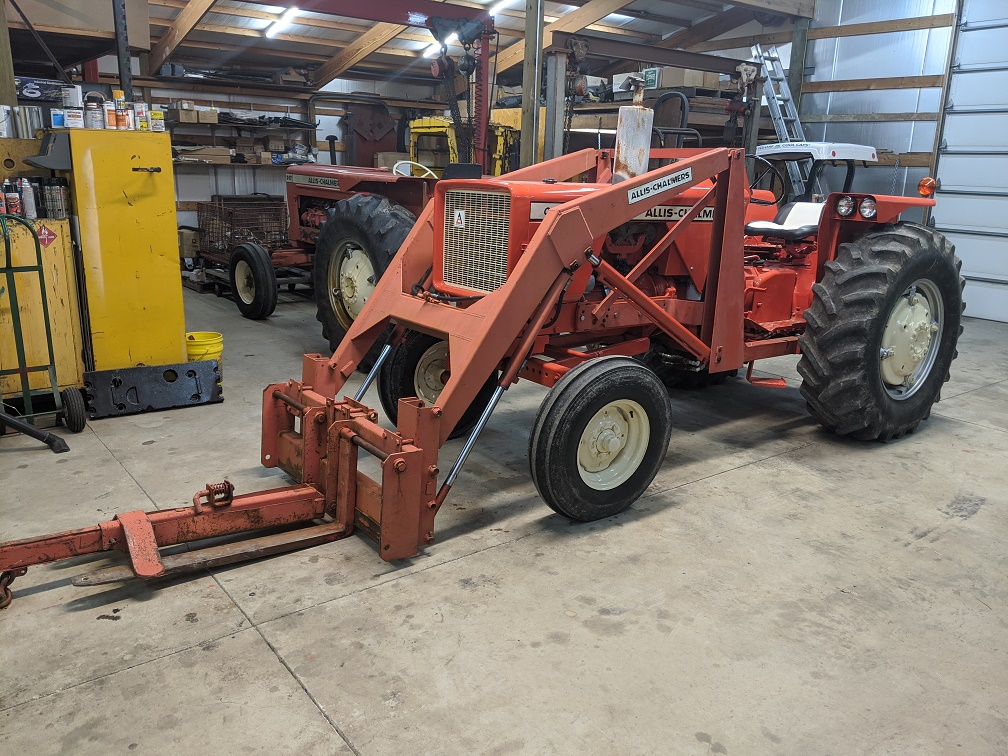

	@Bret(OH), Is that lever an actual left side reversing lever meant for shuttle ? Good job on making the offset clutch pedal...looks factory Nice One-Seventy btw

dpower Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Madison Ne Points: 1576	Post Options Post Reply Quote dpower Report Post Thanks(0) Quote Reply Posted: 30 Apr 2020 at 7:17am
	The factory cluth pedal for a 170 shuttle is wider, i think we may have an extra one not sure if dad wants to sell it or not. We have a factory 175 and 170 shuttle clutch. Very fun to operate and would make an awesome loader tractor.

Sugarmaker Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Jul 2013 Location: Albion PA Points: 8448	Post Options Post Reply Quote Sugarmaker Report Post Thanks(0) Quote Reply Posted: 30 Apr 2020 at 10:41am
	I agree! We need many more pictures If Bert is getting down to .395 thousandths he is doing some detailed work! And by the teaser pictures it sure looks good! Regards, Chris
	D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.

Bret (OH) Members Profile Send Private Message Find Members Posts Add to Buddy List Silver Level Joined: 15 Sep 2009 Location: Blanchester, OH Points: 353	Post Options Post Reply Quote Bret (OH) Report Post Thanks(0) Quote Reply Posted: 01 May 2020 at 6:49am

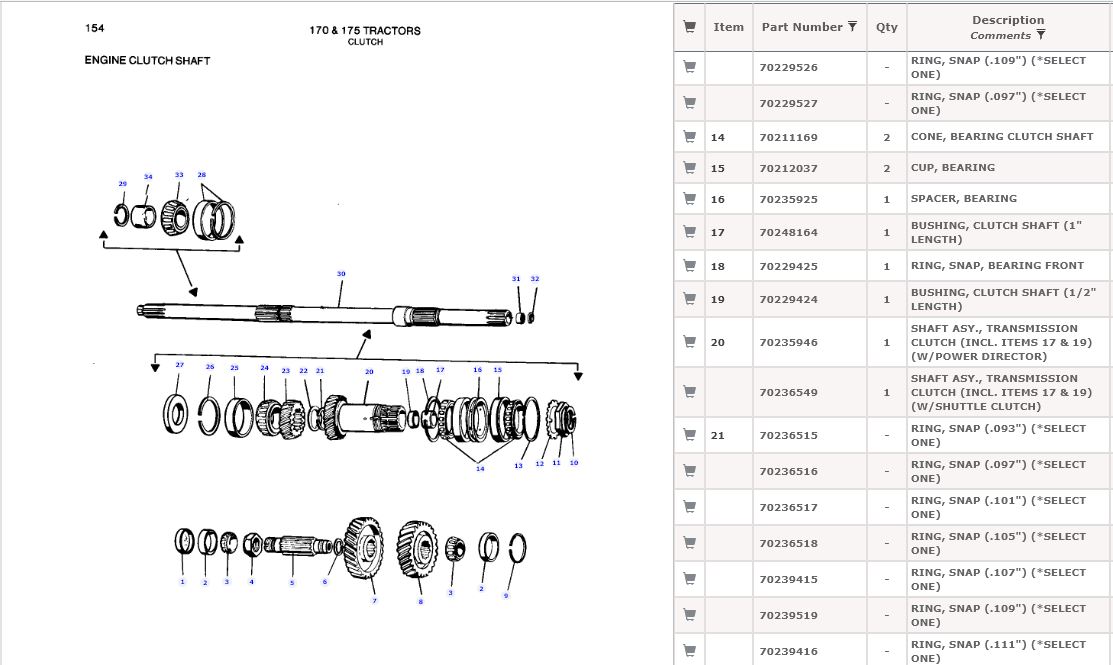

	I am (1) gear away from having all the parts necessary to build a Shuttle Shift torque housing for the One-Seventy, but it seems that I may never achive my goal, as that one gear seems as elusive to me as a Unicorn's Wisdom Tooth. The gear I need is the Hollow Shaft Gear coming forward from the Transmission Clutch, Part # 70236549. I believe it is almost exactly the same as a Power Director gear except that the Helix of the Teeth for the Shuttle is a mirror image of the Power Director. Many salvage parts outlets show this part # in inventory but all so far have been mis-numbered in their inventory and are in fact Power Director gears. This gear, as far as I know, is used only in the D-17, D-19, 170 and 175. Seems that most of the Shuttle tractors are ones based on the D-15 driveline, and this gear is different in them. If anyone knows where I could look for or find this gear I would appriciate the information. I would be interested in that clutch pedal if it were for sale. My modification works, but I would like to have an OEM pedal.

Sugarmaker Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 12 Jul 2013 Location: Albion PA Points: 8448	Post Options Post Reply Quote Sugarmaker Report Post Thanks(0) Quote Reply Posted: 01 May 2020 at 7:32am
	Bret, Great looking Allis and Loader! I wish you the best to get the gear you need. Someone on this forum may have the part you need. Regards, Chris
	D17 1958 (NFE), WD45 1954 (NFE), WD 1952 (NFE), WD 1950 (WFE), Allis F-40 forklift, Allis CA, Allis D14, Ford Jubilee, Many IH Cub Cadets, 32 Ford Dump, 65 Comet.
