D17 lift capacity?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Topic: D17 lift capacity?
    Posted: 19 Jun 2020 at 6:00pm
How much can a rear hay Spike on a d-17 lift weight Wise?
Back to Top
Sponsored Links


Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21815 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2020 at 6:25pm
Depends how close it is to the tractor, how much pressure your hydraulic pump is making and how many front end weights you have.  A series 4 has more lifting power than a series 3.  A series 3 has more lifting power than an older D-17 model. A bale spear 6 inches farther away than it should/could be makes a BIG difference on what can be picked up. I will guarantee a homemade snap-coupler bale spear that almost rubs the hay bale against the PTO shaft will pick up far more than any manufactured bale spear connected to an add-on 3-point hitch !!!

Edited by DrAllis - 19 Jun 2020 at 6:27pm
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2020 at 8:52pm
Ok, thanks
So now I'm on the lookout for a solid snap coupler bale spear!
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21815 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2020 at 9:18pm
What size of bale do you desire to pick up??
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5084 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2020 at 9:19pm

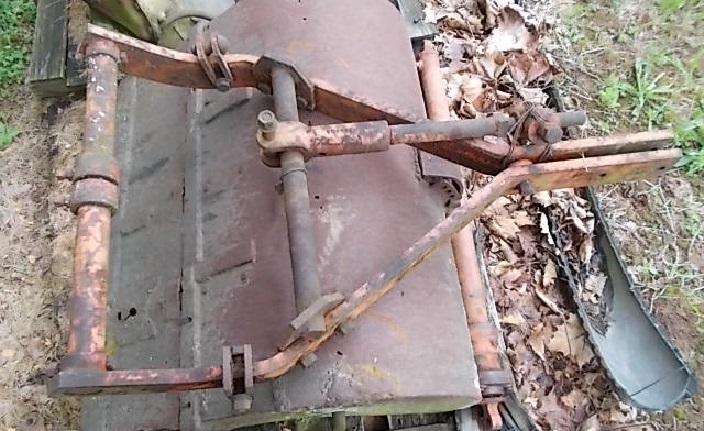

I have one of those HD semi plow hitches that would be a good starting point for a homemade bale snap coupler bale spear.  Where in Ohio are you located? I'll be heading north of Columbus sometime soon.





Edited by PaulB - 20 Jun 2020 at 11:41am
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2020 at 9:34pm
Probably between 600-1000 lbs
Northeast Ohio
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21815 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jun 2020 at 9:44pm
I had a customer (40 yrs ago) doing 1500 lb+ bales on an old D-17 diesel. I had his pump cranked up to 4,000 psi and he made a close coupled snap-coupler spear.
Back to Top
Hunt4Allis View Drop Down
Orange Level
Orange Level


Joined: 13 Mar 2018
Location: Ohio
Points: 1172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Hunt4Allis Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jun 2020 at 10:03am
Does anyone have pictures of the snap coupler hay spear connected so I can make one?
