D17 clutch rod falls out of bell housing

Happy New Year all,

I have newly acquired D17 gas. It's a franken tractor built from various parts. The operating rod from the clutch pedal falls out of the bell housing. What is supposed to retain it into the clutch fork? More importantly, can I fix it without splitting?

Thanks!

Aaron

Machinery rescue for all things rusty or broken. Current residents include 2-1/2 WD45s, Oliver Row 77 gas, Farmall super C, two Cat D2's, Clark C500-80 forklift, and a sick Kubota.

Hmmmm. I wonder if the threads are stripped off the rod. I saw a hex, but when I quickly looked at it it appeared smooth. I am going to have to take a closer look.

Hopefully the threads are good in the fork. Fingers crossed.

Machinery rescue for all things rusty or broken. Current residents include 2-1/2 WD45s, Oliver Row 77 gas, Farmall super C, two Cat D2's, Clark C500-80 forklift, and a sick Kubota.

Seems as tho this happens once in a while. The threaded clutch rod is 1/2" NF thread. The nut inside the bellhousing surely has damaged/missing threads. To avoid having to split the tractor you need to make a smart repair. Whack off the end of the clutch rod approx 1 1/2" inches. Whack off the threaded end of a 1/2" NF bolt and weld it onto the whacked off clutch rod. Smear a bunch of red or green loctite on the threads and install into the bellhousing, making at least TEN good turns into the nut. Twenty turns is one inch. Let the Loctite cure overnite and you should be fixed until it's time for a clutch job. How far you screw the rod into the clutch yoke nut, only positions where the clutch pedal will wind up. It has NOTHING to do with actual clutch adjustment. So, with that in mind try and pre-figure where you'd like things to turn out when done. Cutting off the end of a bolt would give you 1 1/2" max threads. So, maybe you want to cut that much off the clutch rod itself ?? it's up to you. New threads on your clutch rod should help make up for rough threads inside. And loctite should lock them together for as long as they need to be.

the FURTHER it screws into the nut, the better... Chances are there are 3-4 damaged threads on the nut, and an inch inside the threads are OK...

Like them all, but love the "B"s.

There's been a problem going on there for a long time. First off, that looks like 1/2" NC threads not NF threads. Second, someone has put a stop nut on the rod to keep the rod from pushing thru the internal nut, which is worn out. Good luck with whatever you try.

You got 10 threads on the roughly 1/2 inch sticking past the nut. That is fine thread on the rod.

	This site is not affiliated with AGCO Inc., Duluth GA., Allis-Chalmers Co., Milwaukee, WI., or any surviving or related corporate entity. All trademarks remain the property of their respective owners. All information presented herein should be considered the result of an un-moderated public forum with no responsibility for its accuracy or usability assumed by the users and sponsors of this site or any corporate entity.
	The Forum	Parts and Services	Unofficial Allis Store	Tractor Shows	Serial Numbers	History

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
WD45 Aaron Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Dec 2009 Location: Alto, MI Points: 134	Post Options Post Reply Quote WD45 Aaron Report Post Thanks(0) Quote Reply Topic: D17 clutch rod falls out of bell housing Posted: Yesterday at 7:26am
	Happy New Year all, I have newly acquired D17 gas. It's a franken tractor built from various parts. The operating rod from the clutch pedal falls out of the bell housing. What is supposed to retain it into the clutch fork? More importantly, can I fix it without splitting? Thanks! Aaron
	Machinery rescue for all things rusty or broken. Current residents include 2-1/2 WD45s, Oliver Row 77 gas, Farmall super C, two Cat D2's, Clark C500-80 forklift, and a sick Kubota.

Sponsored Links

only AC orange Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 06 Dec 2014 Location: Eastern Indiana Points: 582	Post Options Post Reply Quote only AC orange Report Post Thanks(0) Quote Reply Posted: Yesterday at 7:57am
	The rod threads into end of clutch fork, if you're lucky, try lining it up and threading it in. No idea how many turns into fork - that is what controls clutch pedal travel. Good Luck!

WD45 Aaron Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Dec 2009 Location: Alto, MI Points: 134	Post Options Post Reply Quote WD45 Aaron Report Post Thanks(0) Quote Reply Posted: Yesterday at 7:59am
	Hmmmm. I wonder if the threads are stripped off the rod. I saw a hex, but when I quickly looked at it it appeared smooth. I am going to have to take a closer look. Hopefully the threads are good in the fork. Fingers crossed.
	Machinery rescue for all things rusty or broken. Current residents include 2-1/2 WD45s, Oliver Row 77 gas, Farmall super C, two Cat D2's, Clark C500-80 forklift, and a sick Kubota.

Nathan (SD) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Day County SD Points: 1294	Post Options Post Reply Quote Nathan (SD) Report Post Thanks(0) Quote Reply Posted: Yesterday at 8:55am
	Or. The rod broke and the threads are in the fork yet.

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 22401	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: Yesterday at 12:47pm
	Seems as tho this happens once in a while. The threaded clutch rod is 1/2" NF thread. The nut inside the bellhousing surely has damaged/missing threads. To avoid having to split the tractor you need to make a smart repair. Whack off the end of the clutch rod approx 1 1/2" inches. Whack off the threaded end of a 1/2" NF bolt and weld it onto the whacked off clutch rod. Smear a bunch of red or green loctite on the threads and install into the bellhousing, making at least TEN good turns into the nut. Twenty turns is one inch. Let the Loctite cure overnite and you should be fixed until it's time for a clutch job. How far you screw the rod into the clutch yoke nut, only positions where the clutch pedal will wind up. It has NOTHING to do with actual clutch adjustment. So, with that in mind try and pre-figure where you'd like things to turn out when done. Cutting off the end of a bolt would give you 1 1/2" max threads. So, maybe you want to cut that much off the clutch rod itself ?? it's up to you. New threads on your clutch rod should help make up for rough threads inside. And loctite should lock them together for as long as they need to be.

WD45 Aaron Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Dec 2009 Location: Alto, MI Points: 134	Post Options Post Reply Quote WD45 Aaron Report Post Thanks(0) Quote Reply Posted: Yesterday at 1:50pm
	This is great info! Thank you! My next question was going to be what thread it is. I have a full machine shop at my disposal. With your description this should be an easy one. Fingers crossed.
	Machinery rescue for all things rusty or broken. Current residents include 2-1/2 WD45s, Oliver Row 77 gas, Farmall super C, two Cat D2's, Clark C500-80 forklift, and a sick Kubota.

steve(ill) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 89452	Post Options Post Reply Quote steve(ill) Report Post Thanks(0) Quote Reply Posted: Yesterday at 1:51pm
	the FURTHER it screws into the nut, the better... Chances are there are 3-4 damaged threads on the nut, and an inch inside the threads are OK...
	Like them all, but love the "B"s.

WD45 Aaron Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Dec 2009 Location: Alto, MI Points: 134	Post Options Post Reply Quote WD45 Aaron Report Post Thanks(0) Quote Reply Posted: Yesterday at 7:44pm

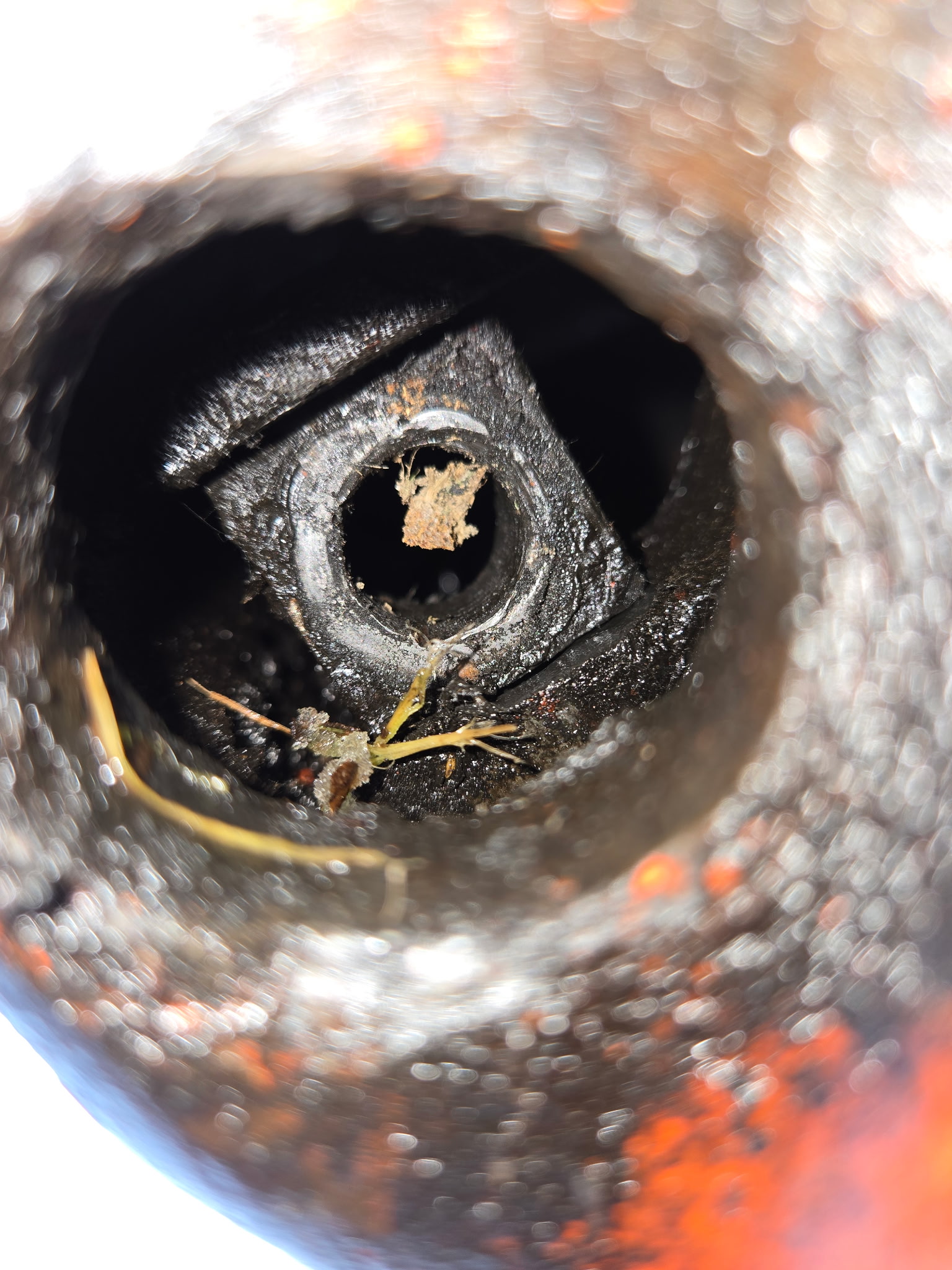

	Ok, we're getting somewhere. It appears that the threads on the rod are fine, just full of gunk and need to be cleaned. The nut on the fork appears stripped out. I might look at work and see if we have a helicoil kit for 1/2-20. Otherwise, I can make a threaded insert on a lathe and fit it into the nut.
	Machinery rescue for all things rusty or broken. Current residents include 2-1/2 WD45s, Oliver Row 77 gas, Farmall super C, two Cat D2's, Clark C500-80 forklift, and a sick Kubota.

DrAllis Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 12 Sep 2009 Points: 22401	Post Options Post Reply Quote DrAllis Report Post Thanks(0) Quote Reply Posted: Yesterday at 8:38pm

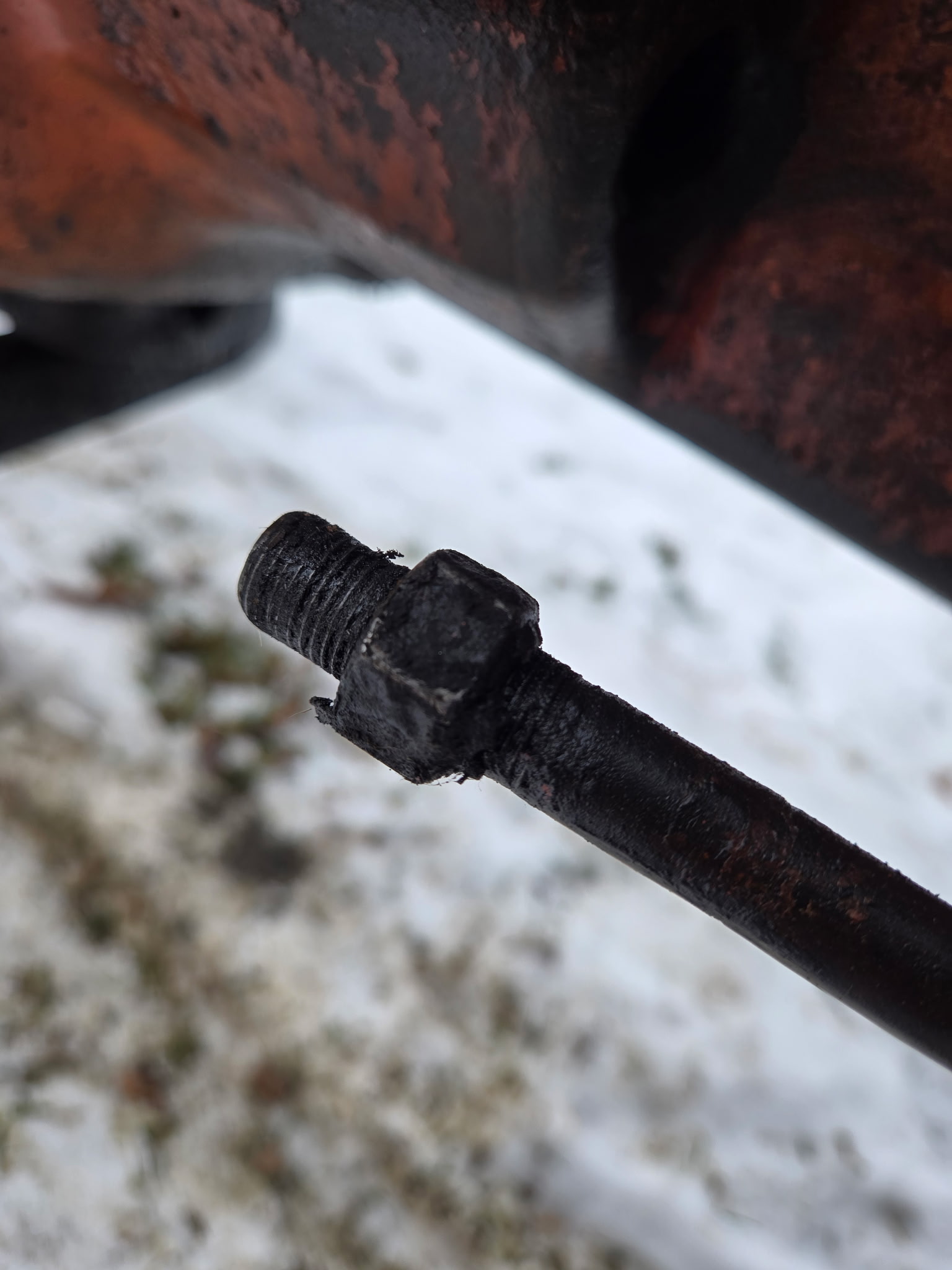

	There's been a problem going on there for a long time. First off, that looks like 1/2" NC threads not NF threads. Second, someone has put a stop nut on the rod to keep the rod from pushing thru the internal nut, which is worn out. Good luck with whatever you try.

DiyDave Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: Gambrills, MD Points: 54802	Post Options Post Reply Quote DiyDave Report Post Thanks(0) Quote Reply Posted: Yesterday at 8:55pm
	Likely rethreaded the original fine threaded hole to coarse thread. starts you out at a disadvantage, as you get a sloppy mess, when you do it that way...
	Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!

Nathan (SD) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Day County SD Points: 1294	Post Options Post Reply Quote Nathan (SD) Report Post Thanks(0) Quote Reply Posted: 15 hours 25 minutes ago at 8:24am
	You got 10 threads on the roughly 1/2 inch sticking past the nut. That is fine thread on the rod.

WD45 Aaron Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 03 Dec 2009 Location: Alto, MI Points: 134	Post Options Post Reply Quote WD45 Aaron Report Post Thanks(0) Quote Reply Posted: 12 hours 9 minutes ago at 11:40am

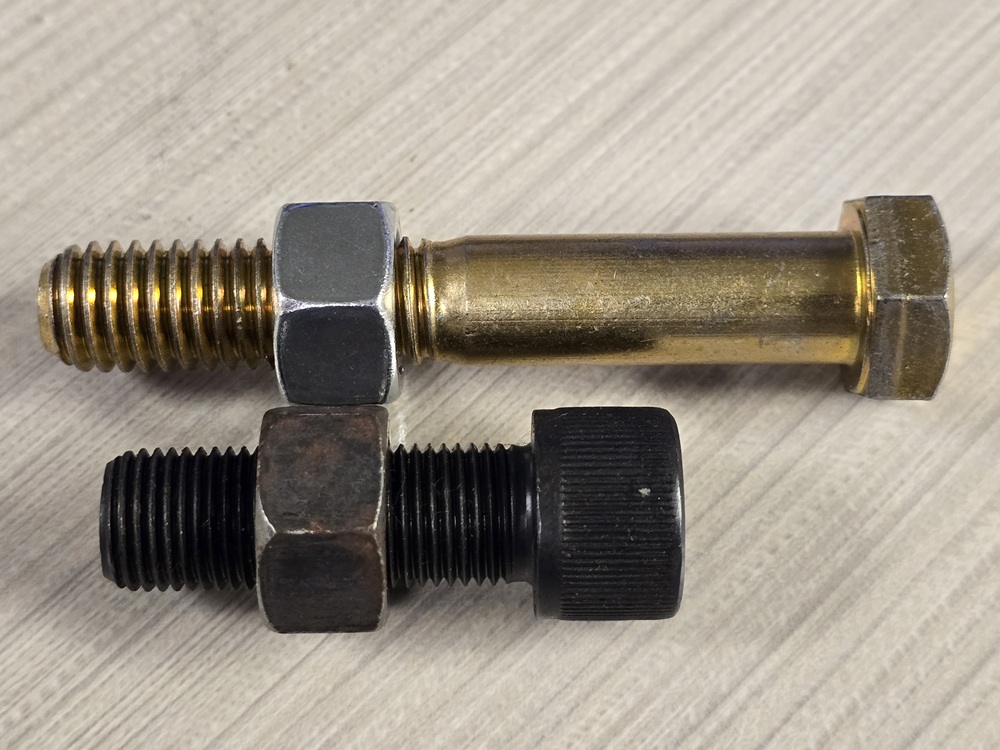

	I grabbed a coarse as well as fine thread bolt with nut from the shop. In my picture of the clutch rod I count 10 threads past the nut (not counting the chamfer lead). I threaded each nut out the same number of threads. I agree, it appears to be fine thread. Edited by WD45 Aaron - 11 hours 7 minutes ago at 12:42pm
