ster1 Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 27 Oct 2021 Location: denver, co Points: 36	Post Options Post Reply Quote ster1 Report Post Thanks(0) Quote Reply Topic: D-15 Industrial Loader Arms and pins Posted: 13 May 2022 at 9:36am

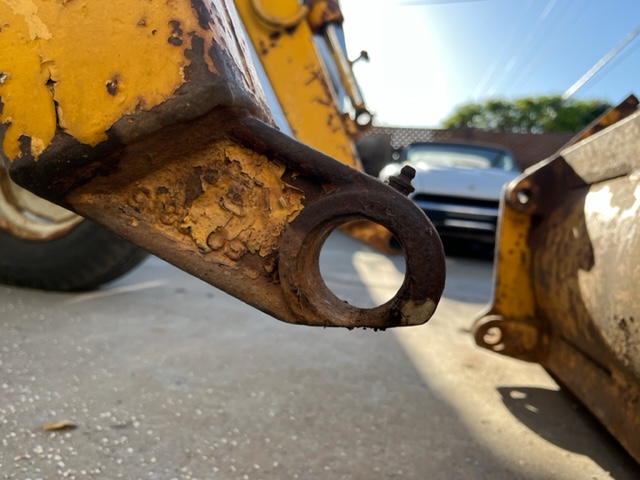

	Hi folks, Another question about my D15. I attached (I hope) a pic of the end of the loader arm. It's worn down to almost nothing at the bottom. I'd like to reinforce it. Can I just weld a 1/2" scab across the bottom, or is that fitting forged? Also, I'd like to replace the pins. The tops are easy at 1", but the bottoms are something odd, like 1.60". At least that's the bore of that fitting and the bucket too. Obviously it's worn a bit because nobody ever greased it, but does anyone know what size those bottom pins are supposed to be? Thanks!

Sponsored Links

steve(ill) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 86642	Post Options Post Reply Quote steve(ill) Report Post Thanks(0) Quote Reply Posted: 13 May 2022 at 9:42am
	1.625 ... would be 1- 5/8 inch what you can do is buy a 6 inch long piece of exhaust pipe, 1.625 OD , and use it as a TEST to see the size. ... If the sockets are EGG SHAPED, you can take a burr grinder and enlarge in one direction if it is a little TIGHT... that way you know how your new PINS are going to fit. ........... I think a 1 -1/4 inch PVC pipe is 1.660 OD ... if the exhaust pipe is too small. many people have welded up the end sockets.. so YES, you could weld up, or weld a plate over the end of the socket.. Edited by steve(ill) - 13 May 2022 at 10:11am
	Like them all, but love the "B"s.

ster1 Members Profile Send Private Message Find Members Posts Add to Buddy List Bronze Level Joined: 27 Oct 2021 Location: denver, co Points: 36	Post Options Post Reply Quote ster1 Report Post Thanks(0) Quote Reply Posted: 13 May 2022 at 4:43pm
	Thanks Steve! All good ideas. The smallest boss on the loader is 1.55, so I’m assuming the pins are supposed to be 1.5, so some bores are wallered out. That’s a starting point anyway. I might reinforce the arm, and hard face the reinforcement. That oughtta toughen er up a little.

steve(ill) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: illinois Points: 86642	Post Options Post Reply Quote steve(ill) Report Post Thanks(0) Quote Reply Posted: 13 May 2022 at 4:47pm
	40 mm pins are 1.575 inch 1-9/16 inch pin is 1.5625 inch I have welded up a couple bores and "hand ground" out 1/8 inch or more to get to a specific size... With a good air grinder and hard 1/2 inch bit its not hard to do. i have something similar to this ( 1/4 inch shank) with 1/2 or 9/16 cutter to grind out the sockets to size.. Edited by steve(ill) - 13 May 2022 at 4:56pm
	Like them all, but love the "B"s.

Gary Burnett Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Access Joined: 11 Sep 2009 Location: Virginia Points: 3047	Post Options Post Reply Quote Gary Burnett Report Post Thanks(0) Quote Reply Posted: 13 May 2022 at 6:32pm
	A steel bushing welded in the hole would give it a lot of strength of course you'd have to do the bucket holes too.Machine shop work but it would really beef it up.

Joe(TX) Members Profile Send Private Message Find Members Posts Add to Buddy List Orange Level Joined: 11 Sep 2009 Location: Weatherford. TX Points: 1682	Post Options Post Reply Quote Joe(TX) Report Post Thanks(0) Quote Reply Posted: 14 May 2022 at 9:15pm
	If it's forged, it's steel. Welds like any other steel. I cast, it could be either steel or cast iron. The pattern of the sparks when ground will tell you.
