d14 loader mount and tach question
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Topic: d14 loader mount and tach question
    Posted: 17 Apr 2017 at 6:48am

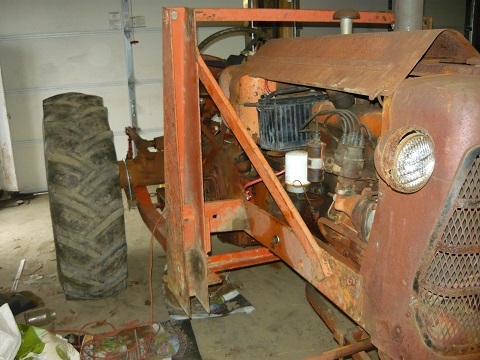

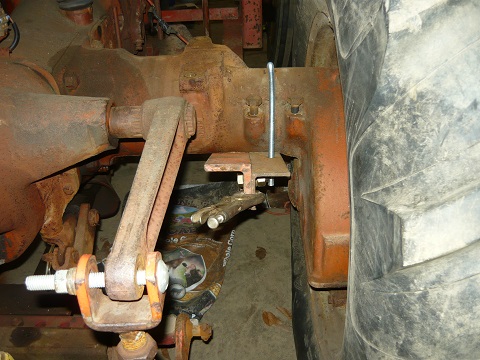

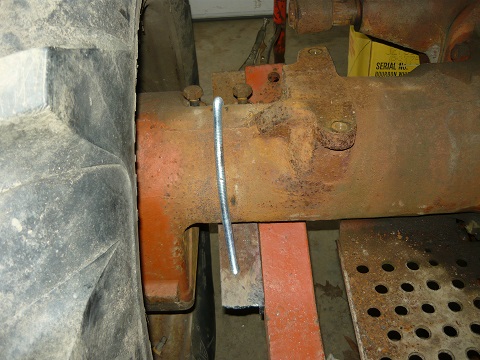

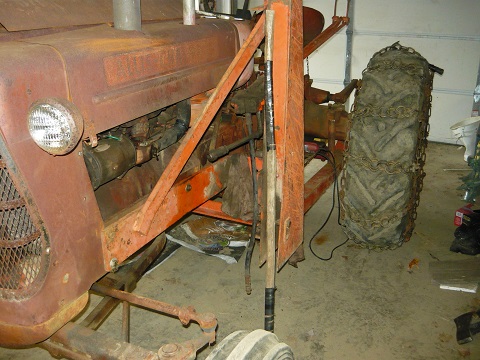

here is some photos of how I mounted the loader frame on my d14.  The 3/4 inch all thread sure looks tiny in the pictures.LOL  I also have a picture of what my gauges look like and as you can imagine the ones on the right side of the tractor and the tach don't work at all.  while researching prices for a tach some sights wanted to know if its clock wise or ccw and since mine don't work at all I haven't a clue.  Any help would be much appreciated, thanks dt

next step will be mounting a hydro pump on the front.  If your wondering the vice grips are because I ain't sure if I'm gonna weld the angle to the loader mount or just leave it bolted.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Sponsored Links


Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 17 Apr 2017 at 10:37am
The factory used a 3/4 rod threaded at each end.
I noticed a couple of things while looking at the pictures.
There does not appear to be a spacer between the loader frame and the tractor frame. The D14 used a 1" spacer on each side.
The rear brackets appear to be off a D17 or WD. The D14/D15 brackets they angle up in front of the axle. I would guess they are WD since the front of the loader frames are cut square and from the hole pattern.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
john(MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: SE MI
Points: 9262 		Post Options Post Options   Thanks (0) Thanks(0)   Quote john(MI) Quote  Post ReplyReply Direct Link To This Post Posted: 17 Apr 2017 at 11:35am
on my loader the front brackets are square and are not altered from how they were originally.  the rear mount are bolted to the two bolt holes on the back side of the axle that are cast in place.  The bracket hangs down and has a loop on the end that the pipe fits thru with a lock bolt to secure it.

I think there are several different loaders that were available, One with tube type frame and one with box frame, that I know of.
D14, D17, 5020, 612H, CASE 446
Back to Top
PaulB View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5101 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulB Quote  Post ReplyReply Direct Link To This Post Posted: 17 Apr 2017 at 1:40pm
When looking at the face of a tachometer, one for a gas tractor will go CCW to increase the RPM scale and a diesel tractor will go CW to increase the RPM scale.
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Apr 2017 at 5:27pm
ok, ccw. thanks.  the freeman loader frame that was on the tractor when I got it had brackets bolted to the back of the rear axle that hung down and the loader frame slid into.

If I move the loader frames up to the front flush with the grill the rear brackets come up in front of the rear axle.  This loader came with the tractor but the fella had no idea how it attached, so after looking at a few pics on line, a friend and my 5020's loader started setting things up to see how it fit, all the other loaders I've installed went under the rear axle so I did a bad thing and "assumed" this one did as well.  so now I'm wondering if I should slide it up to the front and redo the bracket to the rear axle.

there was a small gap on each side of the frames of the loader and the tractor frame maybe about 1/4 inch on either side. but when I tightened the bolts it drew in tight?  any other tips I'm glad to hear em...


Edited by dt1050 - 17 Apr 2017 at 5:51pm
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7499 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Apr 2017 at 9:12pm

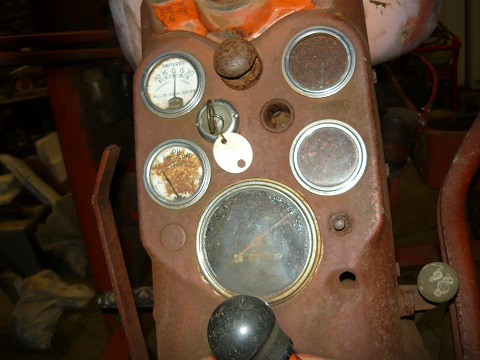

Looks like you have some other gauges that should be replaced as well.  Some of the vendors here can help you out.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Apr 2017 at 4:11am
Originally posted by DSeries4 DSeries4 wrote:

Looks like you have some other gauges that should be replaced as well.  Some of the vendors here can help you out.


since my generator isn't charging I'm not sure about the amp meter, but the only gauge that does work is the oil pressure.lol
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 18 Apr 2017 at 8:56am
It looks like the loader is positioned correctly. I based my comments on the D14 with a 400 loader I have and the pictures in the operators manual.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Apr 2017 at 10:30am
do I need to remove the front bolster and power steering stuff to get the crank shaft pulley off?
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
DSeries4 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7499 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DSeries4 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Apr 2017 at 8:53pm
Originally posted by dt1050 dt1050 wrote:

do I need to remove the front bolster and power steering stuff to get the crank shaft pulley off?


Yes, but it is easier to roll the front axle away with the bolster on it.  Just put a piece of 2x4 under each side of the pivot to keep it from flopping around.  The pulley will be clear as day.  Remember there are 2 set screws holding it in place - one on top of the other.
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '63 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
Back to Top
Chalmersbob View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Pennsylvania
Points: 2122 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Chalmersbob Quote  Post ReplyReply Direct Link To This Post Posted: 18 Apr 2017 at 11:00pm
U bolts were not used on the D14 loader mount. There are brackets that mount on the 2 bolts on the rear housing as seen in the picture. Its just a bracket with a hole that allows it to slide over the end of the frame.
There were no spacers between the side rails and the loader frame unless you were installinf a D15 loader on a D14. The D15 frame rails are wider then on the D14.
I have a D14 loader on a D15 and had to offset the arms at the top of the frame.
Bob
4 B's, 1 C's,3 CA's, 2 G's WD, D14, D15, B-1, B10, B12, 712S,
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2017 at 4:49am
Originally posted by DSeries4 DSeries4 wrote:

Originally posted by dt1050 dt1050 wrote:

do I need to remove the front bolster and power steering stuff to get the crank shaft pulley off?


Yes, but it is easier to roll the front axle away with the bolster on it.  Just put a piece of 2x4 under each side of the pivot to keep it from flopping around.  The pulley will be clear as day.  Remember there are 2 set screws holding it in place - one on top of the other.


Thanks for the tip on the set screws.  I was really hoping my depth perception was off and there was room to remove the pulley with out moving the bolster.Cry  my pulley has holes for a hub adapter, maybe I can bolt it on with out removing the pulley.  I've searched for a hub adapter for a d14 with no luck, but I think one from a ford naa will work as long as it's 6 spline, the bolt pattern is the same, but I have to use the pto from a n series that is 13" long.

Glad I hooked up the rear part of the loader the way I did, the bolts from the other loader frame broke off on the left rear of my tractor.  Thanks again for all the help. dt

edit:  the right front of my tractor only has 1 bolt going to what looks like a motor mount. the left side has 2?  the grill isn't shell isn't drilled for it, but there is a hole in the tractor frame, but it looks like the motor mount isn't drilled for it?  Not the first set of bolts in the front of the frame, but the second were my loader frame starts?  I really hope it's supposed to be that way.  again thanks dt.


Edited by dt1050 - 19 Apr 2017 at 5:07am
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Joe(TX) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Weatherford. TX
Points: 1682 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Joe(TX) Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2017 at 7:49am
Originally posted by Chalmersbob Chalmersbob wrote:

U bolts were not used on the D14 loader mount. There are brackets that mount on the 2 bolts on the rear housing as seen in the picture. Its just a bracket with a hole that allows it to slide over the end of the frame.
There were no spacers between the side rails and the loader frame unless you were installinf a D15 loader on a D14. The D15 frame rails are wider then on the D14.
I have a D14 loader on a D15 and had to offset the arms at the top of the frame.
Bob

The 400 loader on my D14 uses U bolts. The operators book and parts book also shows U bolts.
1970 190XT, 1973 200, 1962 D-19 Diesel, 1979 7010, 1957 WD45, 1950 WD, 1961 D17, Speed Patrol, D14, All crop 66 big bin, 180 diesel, 1970 170 diesel, FP80 forklift. Gleaner A
Back to Top
Dave (Mid-MI) View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Hemlock, MI
Points: 566 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dave (Mid-MI) Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2017 at 10:11am
The Agco parts books show the rear mounts for a 414 and 415 loaders. I made a pair of them last year after someone on this forum provided me with dimensions. Ended up putting the loader on the D-17 IV that I bought afterwards.  The parts book and my manual shows spacers being needed for a D-14. You might want to get dimensions between your boom mounts and the boom.

Edited by Dave (Mid-MI) - 19 Apr 2017 at 10:16am
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2017 at 1:26pm
Originally posted by Dave (Mid-MI) Dave (Mid-MI) wrote:

The Agco parts books show the rear mounts for a 414 and 415 loaders. I made a pair of them last year after someone on this forum provided me with dimensions. Ended up putting the loader on the D-17 IV that I bought afterwards.  The parts book and my manual shows spacers being needed for a D-14. You might want to get dimensions between your boom mounts and the boom.


mounts and boom are aprox. 39 1/8 on center. I did manage to find a serial number on the boom 83615?  don't know if it can be identified with that or not.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Roger Mn View Drop Down
Bronze Level
Bronze Level


Joined: 12 Sep 2009
Location: Preston Mn
Points: 107 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Roger Mn Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2017 at 4:41pm
that is a 445 loader made to go on a WD WD45
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 19 Apr 2017 at 5:08pm
Originally posted by Roger Mn Roger Mn wrote:

that is a 445 loader made to go on a WD WD45


ok, thanks.  I had a swartz loader on my wd 45 with a 3 foot deep x 7ft wide bucket???
Currently this loader only has hay forks, so gonna have to build a bucket, probly only 4/5 feet wide. but that's for another day.

First gotta get this loader on and working.


Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
