d14 front mounted hydro pump install
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Topic: d14 front mounted hydro pump install
    Posted: 27 May 2017 at 8:10am
here is a few pics of the brackets, pump and drive hub.  the drive hub is for a ford/sherman 54c2055 the pto is for a 8n 3/4x13" 194354.  the parts that attach the pump to the shaft came off a junk loader from a ford 8n.  In case your wondering, I used the ford drive hub because the one for the allis had 10 splines and the pto that matched it was only 10" long and wouldn't be long enough to make it through the  bollister.  still have to clean up some welds and grind off any sharp corners.

The bolt pattern from the ford drive hub was a perfect match for the allis. a 8n drive hub will not work, the bolt pattern is to small as are the bolt holes.  I installed the radiator and ran the tractor for several minutes to make sure every thing worked.  then had to tear the radiator off to start making brackets for alternator.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Sponsored Links


Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 4:50am
the pump is also from an 8n wagner pipe loader that i got laying here.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Pete from IL View Drop Down
Silver Level
Silver Level


Joined: 29 Dec 2009
Location: Beecher IL.
Points: 311 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Pete from IL Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 7:38am
Looks good. On the top picture I would think the drive flange connected to the drive shaft should be bolted to the holes that are open on the flex coupling. The way it is bolted there I don't think the flex coupling is doing much good. Thanks for the pictures'
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 8:03am
thanks, have to tear the stuff apart to put the tractor back together, I'll change the bolts on the flex coupler then.  probly get some orange paint for the brackets as well, not sure it'll stick with the galvanized metal....man that stuff stinks when ya weld it....but it's what I had laying around.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Fred in Pa View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Fred in Pa Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 8:29am
How thick is your braket
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
Back to Top
Stan R View Drop Down
Orange Level Access
Orange Level Access


Joined: 03 Dec 2009
Location: MA
Points: 992 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Stan R Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 8:48am
Isn't breathing galvanized welding fumes unhealthy?
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 11:25am
Originally posted by Stan R Stan R wrote:

Isn't breathing galvanized welding fumes unhealthy?


3.5mm thick, under the pump there is a piece of 1/2" steel.  sure seems like galvanized fumes are unhealthyDead
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
SteveM C/IL View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8613 		Post Options Post Options   Thanks (0) Thanks(0)   Quote SteveM C/IL Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 12:54pm
burning the galvanize make poisonous fumes.Get enough and about 3am wake up sucker than a dog with body aches worse than any flu
Back to Top
LaJaMe View Drop Down
Bronze Level
Bronze Level


Joined: 14 Sep 2014
Location: wisconsin
Points: 172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote LaJaMe Quote  Post ReplyReply Direct Link To This Post Posted: 28 May 2017 at 11:12pm
Our front mounted pump, for a 200 industrial on a 17, has a chain gear on it and a gear on the end of the shaft.  It is coupled with a double chain.  Also the shaft is held in by bolts in the 2 bolt holes there on the front of the tractor.  We had to get new pieces, i think from someone in Iowa, because ti was welded on the 14 that it was on.  So, we didn't have to build that support on the front.  Sorry no pictures.
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 3:25am
I scratched my head for hours trying to figure a way to mount the brackets to the holes in the front of the tractor, but nothing seamed strong enough with out some sort of side braces.
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 54062 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 5:02am
Bracket offa a industrial tractor might work, or give you an idea of how AC did it...
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 6:11am
Originally posted by dt1050 dt1050 wrote:

3.5mm thick, under the pump there is a piece of 1/2" steel.  sure seems like galvanized fumes are unhealthyDead
Yup.  Zinc is very poisonous. You don't want to inhale fumes from stainless steel either.  The chromium fumes are harmful.

Back to Top
Gary Burnett View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Virginia
Points: 3078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Burnett Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 7:56am
The pump on my I600 and D19 bolts to a bracket that is bolted to the two bolt holes in the front of the housing.
Back to Top
desertjoe View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 23 Sep 2013
Location: New mexico
Points: 13693 		Post Options Post Options   Thanks (0) Thanks(0)   Quote desertjoe Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 9:59am

   Hey DT,,,I'm thinkin maybe your brackets are a tad light duty,,,,cause they gotta be strong enough to resist the rotational forces of the engine,,,? I will get some pics of the bracket on my D14 Industrial that uses the two bolts on the front. I can see one of em in your pics.


Edited by desertjoe - 29 May 2017 at 11:46am
Back to Top
LaJaMe View Drop Down
Bronze Level
Bronze Level


Joined: 14 Sep 2014
Location: wisconsin
Points: 172 		Post Options Post Options   Thanks (0) Thanks(0)   Quote LaJaMe Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 11:48am
Sorry dt1050,  Won't be around the tractor till Wednesday.  Will look at it again to see how it is held in there.  Will post something at that time.
Back to Top
desertjoe View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 23 Sep 2013
Location: New mexico
Points: 13693 		Post Options Post Options   Thanks (0) Thanks(0)   Quote desertjoe Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 12:56pm

  Hey DT,,here are some pics of the factory bracket,,not very good as the dang loader in the way,,but will give you an idea. The end bracket where the pump bolts to is 3/4" thick and the two cylindrical studs are 1 1/4" round stock. The bracket hold-down bolts go thru these two studs and bolt to the front of tractor. This wouldn't be too awful hard to fabricate, if you had one to pattern to.

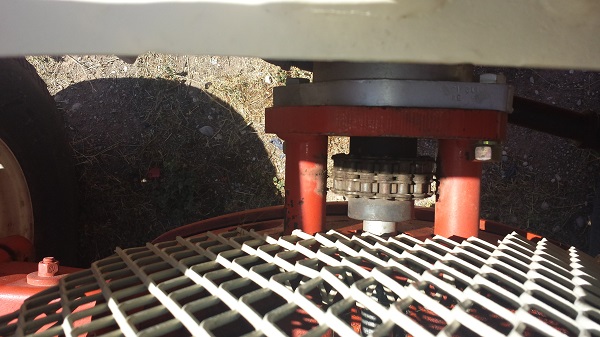

  The other pics are my version of bein thrifty when the original driveshaft splines wore out. I'd bet  the splines on this one ain't gonna wear out any time soon,,,,,,WinkWink





Edited by desertjoe - 29 May 2017 at 12:58pm
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 1:20pm
now that's how it's supposed to look........looks a heck of a lot better than the mess I made.  at least I got the drive hub and pto installed,  I can mess with the way the pump is attached after I get it back together.  had to get another radiator, mine got a hole in it and when I was trying to fix it I just made it worse, it had been patched a bunch of times already.  Made the trip to maryland and got one from paul.  btw a huge thank you to paul for helping with the radiator situation.

I wonder if a coupler like this would help save your splines?  I kept braking the little retaining screws on the 8n, put one of these on it and had no issues.
Image result for love joy joint photos
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
desertjoe View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 23 Sep 2013
Location: New mexico
Points: 13693 		Post Options Post Options   Thanks (0) Thanks(0)   Quote desertjoe Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2017 at 10:35pm

 Hey DT,,that is a Lovejoy style coupling. I don't think it will work for you as the coupling on the pump end has to help support the shaft . The Lovejoy requires some sort of support for itself. The double row chain seen on these pics is what helps support the shaft end.
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2017 at 3:32am
Originally posted by desertjoe desertjoe wrote:


 Hey DT,,that is a Lovejoy style coupling. I don't think it will work for you as the coupling on the pump end has to help support the shaft . The Lovejoy requires some sort of support for itself. The double row chain seen on these pics is what helps support the shaft end.


never thought about that, guess that ain't gonna works...lol
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2017 at 1:29pm
got the boom mounted and the cylinders on it, but now to try and figure out the hydro outlets on the spool valve, they have the spool valve mounted on the left side and upside down.  of course they didn't mark any of the hydro lines or which way the lift cylinders go?  I took a guess and put the shiny side up?  that was the way the 8n and wd45 were.  gotta get some fittings to hook up the hydro tank then I'll start yanking levers, guess then I'll find out what lever does what...lol
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
Leesok View Drop Down
Orange Level Access
Orange Level Access


Joined: 11 Sep 2009
Location: OK
Points: 517 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Leesok Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2017 at 2:02pm
I put a love joy on a 175 over 30 years ago. Has been trouble free ever since. I put a new spider in whenever I change fan belts.
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1349 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2017 at 6:05pm
yes that is what I used on my WD45 was a love joy but it isn't carrying that much weight and it's a tight fit to put a pump in between front pulley and the steering  bolster but I wouldn't be afraid to use one. If I remember I'll take a picture of the bracket that goes on the front pump on my D-15 I would think it would be the same as a D-14 Kenny L.
Back to Top
Kenny L. View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 12 Sep 2009
Location: NEIOWA
Points: 1349 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Kenny L. Quote  Post ReplyReply Direct Link To This Post Posted: 30 May 2017 at 7:57pm
Here're a couple of pictures of the mounting bracket for my D-15.HTH Kenny L.
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 31 May 2017 at 3:52am
it's definitely a tight squeeze.  thanks for the pictures, I'm thinking once I get the hydro lines figured out I'm probly gonna need to get some thicker steel for the pump mount.  when it first fired it up after putting the pump on everything ran true, but there was a small vibration, after switching the bolts on the flex coupler it runs smooth and straight, thanks for the tip. dt
Just cause it's orange don't make it a tractor, there's only one..Allis Chalmers
Back to Top
dt1050 View Drop Down
Orange Level
Orange Level


Joined: 05 Jul 2011
Location: central pa
Points: 1078 		Post Options Post Options   Thanks (0) Thanks(0)   Quote dt1050 Quote  Post ReplyReply Direct Link To This Post Posted: 31 May 2017 at 11:41am
between the old ford loader and the loader I got with the d14 I had enough hoses/couplers to hook up the hydro's.  All my other loader valves you pulled back to raise the bucket, this one you pull it back to drop it.  I switched the hoses to work the way I'm used to only to have to change them back for the float position to work!!!Angry  Now I just need to make the bucket larger and get the rear tires loaded.  the bucket from the crap 8n loader is only 34" wide and I'd like to have at least a 5+ foot wide bucket.  gonna need a break before that happens.  this old, gimpy, fat body just can't work like it used to...LOLLOL
