D12 rebuild
 Post Reply Post Reply Page  <12345>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 5:41pm
I made an A-frame out of  3 inch channel that bolted to two holes in the bucket... and had a hitch pin out front....... pulled out of the woods to home that way.... Could work on the road a LOW SPEED... SHORT DIstance.
Like them all, but love the "B"s.
Back to Top
Sponsored Links


Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 12:02am
We would go slow on back roads.
Maybe 15 miles stopping regularly to check it
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 4895 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 5:59am
I would jack and block the loader up, then get someone with a rollback or trailer with a winch tp do the move. My experience is doing something like you're talking about usually ends up being a bad experience and ends up costing more (sometimes a lot more) in the long run.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 10:16am
Thanks to everyone who has given their experience and knowledge in this. We where planning on pulling the loader putting it on a trailer and pulling the tractor home with our Oliver 1650
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21424 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 10:24am
Make absolutely sure the transmission is FULL of oil before towing it, or you'll get to work on the transmission too.
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 11:46am
raised bucket up 18 inches and put band clamp bracket around cylinder rod to hold it there..
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 3:08pm
What is a band clamp bracket
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2022 at 8:57am
i cut a 2.5 inch pipe  10 inches long, split in half... put around the hydraulic lift cylinder rod and "CLAMPED" so it stayed in place... I welded ears on each half and bolted them back together that time... On another job, i use a U CLAMP -- or MUFFLER CLAMP to go around the  pipe as a BAND.

you lift the bucket 18 inches off the ground, then measure how much ROD is sticking out of the cylinder--- and add a pipe to hold it there.




Edited by steve(ill) - 29 Jul 2022 at 9:02am
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Oct 2022 at 11:41am
I need to find a tie rod end
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 04 Oct 2022 at 7:49am
Can I just get a universal tye rod end
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 04 Oct 2022 at 8:40am
you need to figure out the THREAD on the shaft so it fits on the tie rod..... Then the TAPER shaft should be as close as possible........ You might be able to go to NAPA or something like that and compare several in stock and get one that is CLOSE... Factory part seems to be $$$.
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2023 at 9:36am
what is the original bore of the d12. i am trying to find the right size sleeve puller or make one
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2023 at 9:38am
i have a 8 pound slide hammer, if i made a sleeve puller for it would that work
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3782 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2023 at 11:47am
Might. I cut a 3/8” disc slightly larger than the sleeve OD and drilled a hole in the center the correct size for the set up I used.
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 4895 		Post Options Post Options   Thanks (1) Thanks(1)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jan 2023 at 12:57pm
Originally posted by hunter321 hunter321 wrote:

i have a 8 pound slide hammer, if i made a sleeve puller for it would that work

I've pounded sleeves out with a piece of hardwood and I've had them come out very hard with a sleeve puller. You never know until you try them.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jan 2023 at 8:20am
What is the outer diameter of the original d12 piston sleeve
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2023 at 8:44am
I'm not having any luck finding the original bore size. I need help figuring it out so I can make the correct size sleeve puller
Back to Top
WF owner View Drop Down
Orange Level
Orange Level


Joined: 12 May 2013
Location: Bombay NY
Points: 4895 		Post Options Post Options   Thanks (0) Thanks(0)   Quote WF owner Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2023 at 11:49am
According to Tractordata.com, the bore is 3.375.

Copied and pasted from their website:

Engine Detail
Allis-Chalmers
gasoline
4-cylinder
liquid-cooled vertical L-head
Original engine, used until 149 ci engine appeared in 1961.
Displacement138.7 ci
2.3 L
Bore/Stroke3.375x3.875 inches
86 x 98 mm
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2023 at 12:53pm
hunter, normally the motor is OUT, turned upside down and you POUND the sleeve out from the bottom....... is your motor still in the tractor and your trying it pull from the TOP ?
Like them all, but love the "B"s.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2023 at 3:10pm
Yes the motor is still on the tractor
Back to Top
DrAllis View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Points: 21424 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DrAllis Quote  Post ReplyReply Direct Link To This Post Posted: 01 Feb 2023 at 3:14pm
Wrap some tape around the crankshafts connecting rod journal to keep dirt out of the oil hole and to PROTECT the journal from damage whilst you remove the cylinder sleeve(s).
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 9:41am
i am working on amking the 3.375 inch metale plate to pull the sleeve, should i make one that will fit inside the sleeve to keep it in place
Back to Top
plummerscarin View Drop Down
Orange Level Access
Orange Level Access


Joined: 22 Jun 2015
Location: ia
Points: 3782 		Post Options Post Options   Thanks (0) Thanks(0)   Quote plummerscarin Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 12:10pm
Couldn’t hurt. Would help with alignment during set up to pull
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 85906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 12:26pm
the 3.375 is 3-3/8 inch.... that is the  bore INSIDE the LINER... that is not the hole in the block or the OD of the liner. ............ the OD is probably more like 3.60 inch .... i would measure the NEW liner.
Like them all, but love the "B"s.
Back to Top
IBWD MIke View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Apr 2012
Location: Newton Ia.
Points: 3990 		Post Options Post Options   Thanks (0) Thanks(0)   Quote IBWD MIke Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 1:37pm
When I "made the puller" for 201-226 engines I didn't get fancy. Two straps of 3/4" steel with 25/32" holes, a length of 3/4" all thread, some spacers to go on the deck and a couple of 3/4-10 nuts. The sleeve sticks down far enough the bottom doesn't have to be perfect. Once the O-rings clear they come right out. I think your engine would be similar.
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2023 at 2:34pm
is the pistion sleeve flush with the bottom of the engine block or is there a lip
Back to Top
Gary View Drop Down
Orange Level Access
Orange Level Access


Joined: 13 Sep 2009
Location: Peterborough,On
Points: 5889 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gary Quote  Post ReplyReply Direct Link To This Post Posted: 14 Feb 2023 at 7:41pm

No the sleeve is not flush with the block at the lower end of the Liner.

The Liner protrudes probably more than an inch.

I would fabricate a lower pulling plate at least 4 1/2" diameter so you will be able to use it on other Engines, Eg WD with 4" pistons.

G
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2023 at 9:27am
i just bought a new pushrod fro the d12 but now i am confused because it is different than all of the other pushrods i have except one
the first picture is what i bought and one just like it was allready in the head.
the second picture is what all the other pushrods look like
Pushrod (sold individually) - Allis Chalmers D10, D12, D14, D15 - AC-2410D | eBay
1753811M1 Massey Ferguson 65 165 175 180 Gas Push Rod | eBay
Back to Top
DiyDave View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53407 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DiyDave Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2023 at 5:21pm
All that matters is the length and that it fits into the lifter on one end, and the rocker, on the other...Wink
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
Back to Top
hunter321 View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Jan 2021
Location: 52320
Points: 520 		Post Options Post Options   Thanks (0) Thanks(0)   Quote hunter321 Quote  Post ReplyReply Direct Link To This Post Posted: 01 May 2023 at 8:52am

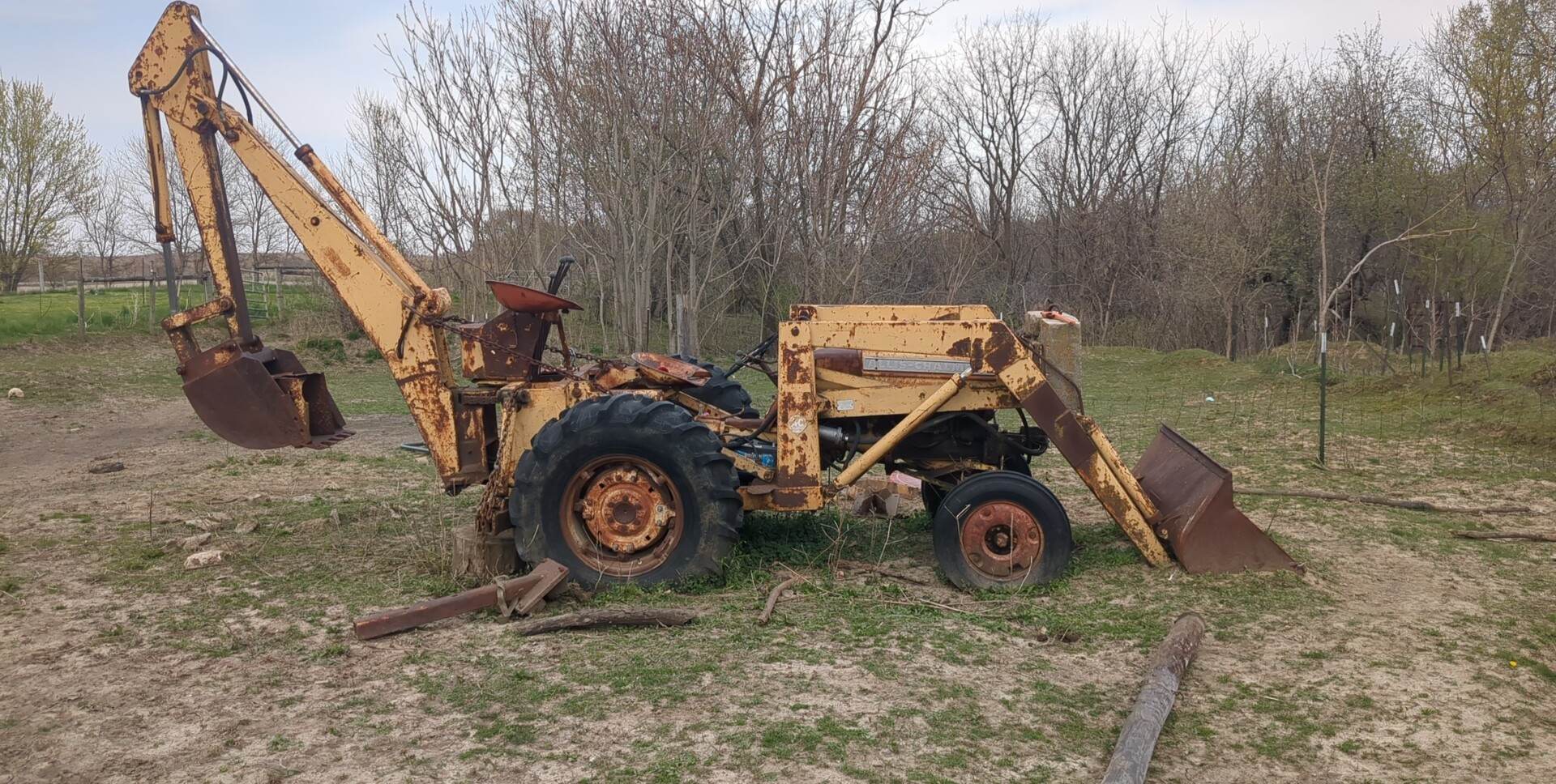

i finally got the d12 home thanks to clark towing llc
