 Topic: D-12 identification by serial #
Posted: 20 Apr 2022 at 12:10pm |

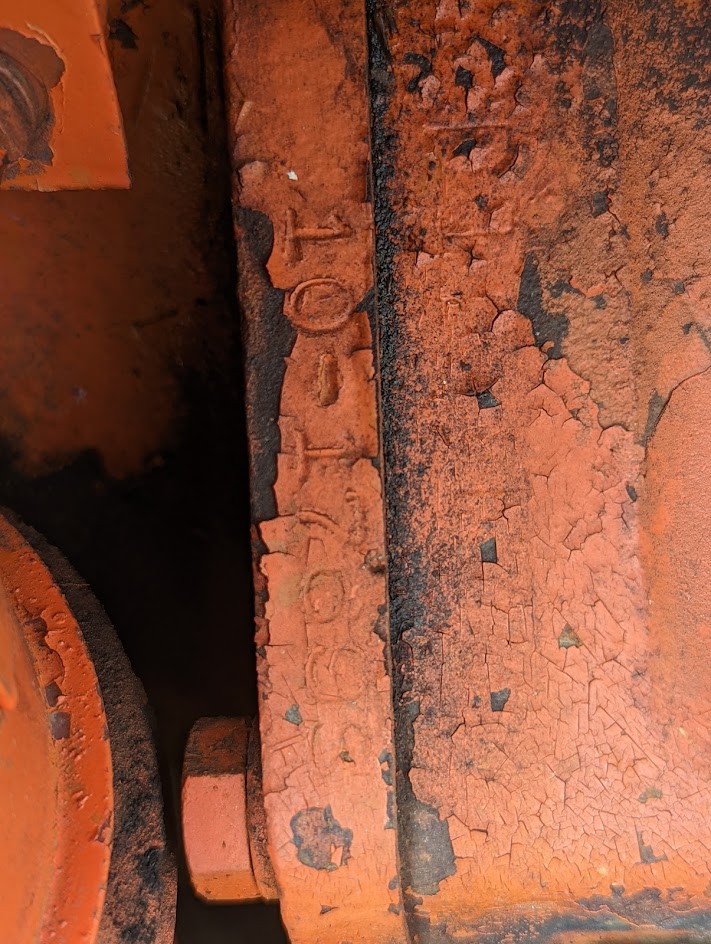

Hi all! I am attempting to identify my D-12 to match parts and what not. I am having difficulty making out the serial numbers, and wanted to see if anyone here could make them out, offer ideas of how to better read, or offer enough info to get some basic info! See images attached:
Edited by cgraffeo - 20 Apr 2022 at 12:11pm
|
 |
|
Sponsored Links
|
|
|
cgraffeo
Bronze Level
Joined: 18 Mar 2022
Location: New York
Points: 24
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 12:14pm |

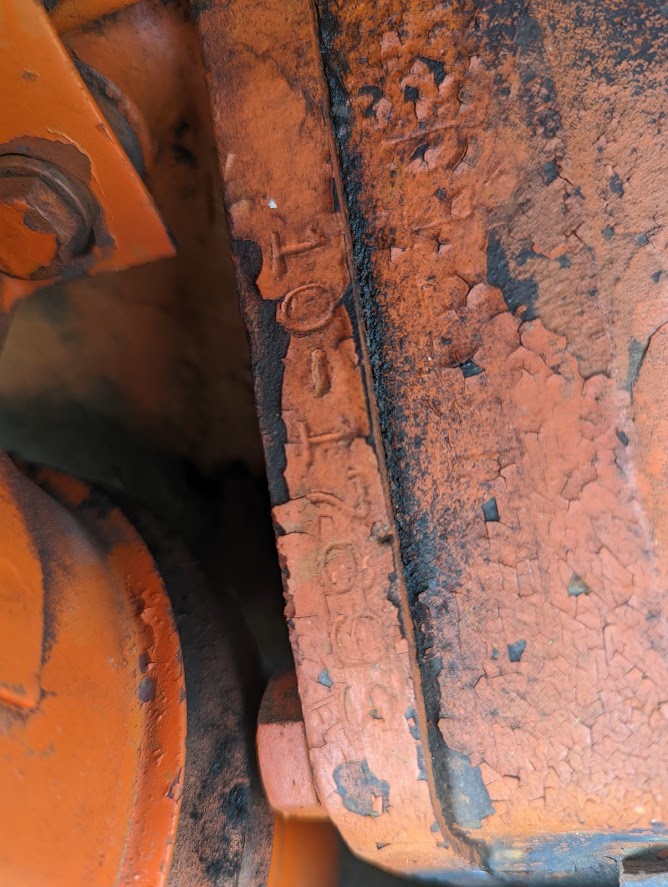

Here's another at a slightly different angle
Edited by cgraffeo - 20 Apr 2022 at 12:14pm
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88048
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 12:23pm |
D10 or D12 ? ......... serial numbers and years are not far apart...
|
|
Like them all, but love the "B"s.
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88048
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 12:24pm |
|
Im guessing since it starts in 10 - 17xx ......... that it is a 1959 series I , D10 ?
Edited by steve(ill) - 20 Apr 2022 at 4:53pm
|
|
Like them all, but love the "B"s.
|
|
TramwayGuy
Orange Level Access
Joined: 19 Jan 2010
Location: Northern NY
Points: 11756
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 2:45pm |
|
That last figure on the Serial looks like an ‘S’; not a ‘9’. A special order, maybe?
‘D10-1769S’. A 1959 D10.
|
|
Richardmo
Orange Level Access
Joined: 12 Sep 2009
Location: Rolla mo.
Points: 1746
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 3:55pm |
Clean the other part off of the torque tube it has a serial # on it is right by the engine serial #.
The last letter is a S pretty common on the engine #.
|
|
juniorp53
Bronze Level
Joined: 16 Mar 2012
Location: United States
Points: 53
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 4:00pm |
i am not a d series expert but isnt the number on the left the engine# and the number on the right the tractor#
wire brush and some brake clean will get the crud off so you can read it ...wire wheel on a grinder would be even better
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5120
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Apr 2022 at 6:20pm |
|
As you have a engine starting with 10 it is most likely and early model, unless the engine has been swapped. Clean the area on the torque tube to read the tractor serial number better. I do see 12 at the beginning of the tractor serial number, the rest hidden.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
cgraffeo
Bronze Level
Joined: 18 Mar 2022
Location: New York
Points: 24
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Apr 2022 at 7:22am |
|
Yeah, from what I've seen, the D-10 and 12 are the same except for a wider adjustment on the D-12. I'll use a wire brush in a hope to knock some of that crap off tonight and see if I can't get a better photo. Just to be clear though, the "Torque tube" is the section on the right in the photos correct?
For reference, the left of the photo is towards the tractor body, the right of the photo is towards the front of the tractor. Everything I've seen says that the numbers are "on the left" but this is found on the "passenger" side of the tractor so to speak, which to me would be on the right side of the tractor. Is "on the left" if you are on the tractor looking forward or if you are looking at the front of the tractor?
Are there any other locations for these numbers other than where the engine meets the body as shown above?
Thanks
Edited by cgraffeo - 21 Apr 2022 at 7:26am
|
|
Calvin Schmidt
Orange Level
Joined: 11 Sep 2009
Location: Ontario Can.
Points: 4543
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Apr 2022 at 7:48am |
|
The serial number you have shown is on the engine. 10- xxx means that it is a 138 cu.in engine. People get confused because this engine could be in a D-10 or D-12. The tractor serial number is on the torque tube just behind it.
|
|
Nothing is impossible if it is properly financed
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 88048
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Apr 2022 at 8:41am |
Chris, i think your looking at the photo wrong... your motor is on the left and the torque tube is on the right.. You can see the air cleaner in the photo far left... This is the "drivers" side or LEFT side of the tractor... As the guys said, clean the paint BEHIND the 10- 17xx number to find the D12 xxxx tractor number.
|
|
Like them all, but love the "B"s.
|
|
