 Topic: D Grader
Posted: 23 Apr 2019 at 7:29am |
|
Having starter problem on my model D grader with 226 engine. Recently purchased the grader. It has a 12 volt battery and an alternator. I installed a new starter switch,(sits on top of starter) but still having problems. Pulled the starter, found it to be a Delco 6 volt, which Delco no longer builds. Could the difference in voltage be the problem? The wiring is as follows; single wire from alt. to post on starter switch, wire from coil to what appears to be a 3 post piece of ceramic , one wire from ignition switch to one post of ceramic piece, second wire from ign. switch to post on starter switch. Battery was positive ground which I changed to negative. Battery positive direct to starter switch. getting 12.8 volts at starter switch. The starter is a Delco 1107951 7A7. Can anyone help this old geezer figure this out?
|
 |
|
Sponsored Links
|
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 50480
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Apr 2019 at 6:36pm |
|
A 6 volt starter will just have more torque, when applying 12V to it. Is your new starter switch contacting the starter, where it should?
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
DSeries4
Orange Level
Joined: 12 Sep 2009
Location: Ontario, Canada
Points: 7202
|
Post Options
Thanks(0)
Quote Reply
Posted: 23 Apr 2019 at 9:09pm |
No problem having 12 volts going to a 6 volt starter. My D14 has been like that for over 30 years. Can't really help with what else you provided. Does the starter crank the engine but the engine won't fire?
|
|
'49 G, '54 WD45, '55 CA, '56 WD45D, '57 WD45, '58 D14, '59 D14, '60 D14, '61 D15D, '66 D15II, '66 D21II, '67 D17IV, '67 D17IVD, '67 190XTD, '73 620, '76 185, '77 175, '84 8030, '85 6080
|
|
wn willis
Bronze Level
Joined: 11 Jan 2019
Location: SW MS
Points: 34
|
Post Options
Thanks(0)
Quote Reply
Posted: 25 Apr 2019 at 5:45pm |
|
When I removed the starter. I saw that the starter housing was broken. The half-shell part covering the rod and cam was previously broken completely off and had been brazed together. The braze broke, leaving me with 2 parts. So I ordered a new starter from a place in Cincinnati, Ohio. Will be here in 3 days. While waiting, I replaced all the wiring. It should be in good shape now, only thing left to do is install new cutting edges, which I already have in hand. Delco told me that starter is obsolete, but found a new, not rebuilt one. Again, thank you to the fellows who responded to my posts. Members of this forum are generous with their knowledge and experience, and I appreciate that.
|
|
Eric B
Orange Level
Joined: 09 Feb 2012
Location: British Columbi
Points: 887
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 3:26pm |
|
Be sure to keep everything from the old starter because you can also just buy the part of the housing that is broken. It sells for around $57.00
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
Ross D.
Silver Level
Joined: 02 Sep 2013
Location: Erin, Ont.
Points: 338
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 3:38pm |
|
Hi. Are you able to send some pictures? Model D graders are a big favorite. I have had mine for about 15 years. Yesterday I got the new master cylinder installed. Hopefully it is ready to go to work now.
Ross D.
|
|
wn willis
Bronze Level
Joined: 11 Jan 2019
Location: SW MS
Points: 34
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 5:31pm |
|
Thanks, I will do that. I previously replaced the alternator, wiring, plugs and plug wires, carburator, and now the starter and battery. Should be ready to go, Also new cutting edges. And acquired a long term job maintaining a 23 mile gravel and dirt road to a remote oil well after the Mississippi River returns to normal stage. The well and road are under 8 feet of water now. Will put an umbrella on and get to work. I`ll say it again. The members of this forum are very generous in sharing their knowledge and experience, and it is appreciated.
|
|
wn willis
Bronze Level
Joined: 11 Jan 2019
Location: SW MS
Points: 34
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 5:41pm |
|
Ross, I will post photos when I get the starter in so that I can get the grader out of my shed for better photos. The serial # is 1547. Not sure of the year, I think `52 or `53. W 226 or WD226 motor. No wheel brakes, only flywheel brake. no power circle or side shift. It does have hydraulic cylinders on front wheels to assist in steering. What year is yours and is it painted the A/C orange or yellow like mine? I also have a spare W226 motor that could be rebuilt which I`m thinking about selling.
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 50480
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 7:55pm |
Before you attempt to re-install a new starter, and attempt to start, roll the motor over a coupla turns, by hand to be sure that nothing is binding...
|
|
Source: Babylon Bee. Sponsored by BRAWNDO, its got what you need!
|
|
Eric B
Orange Level
Joined: 09 Feb 2012
Location: British Columbi
Points: 887
|
Post Options
Thanks(0)
Quote Reply
Posted: 26 Apr 2019 at 8:31pm |
|
Your model D grader serial #1547 is made in 1951 according to my serial # book.
|
|
Currently- WD,WC,3WF's,2 D14's B. Previously- I 600,TL745,200,FL9,FR12,H3,816 LBH. Earth has no sorrow that Heaven cannot heal!
|
|
wn willis
Bronze Level
Joined: 11 Jan 2019
Location: SW MS
Points: 34
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Apr 2019 at 10:04am |
|
Thanks, Dave. Will do. That is good advice.
|
|
Ross D.
Silver Level
Joined: 02 Sep 2013
Location: Erin, Ont.
Points: 338
|
Post Options
Thanks(0)
Quote Reply
Posted: 27 Apr 2019 at 11:07am |

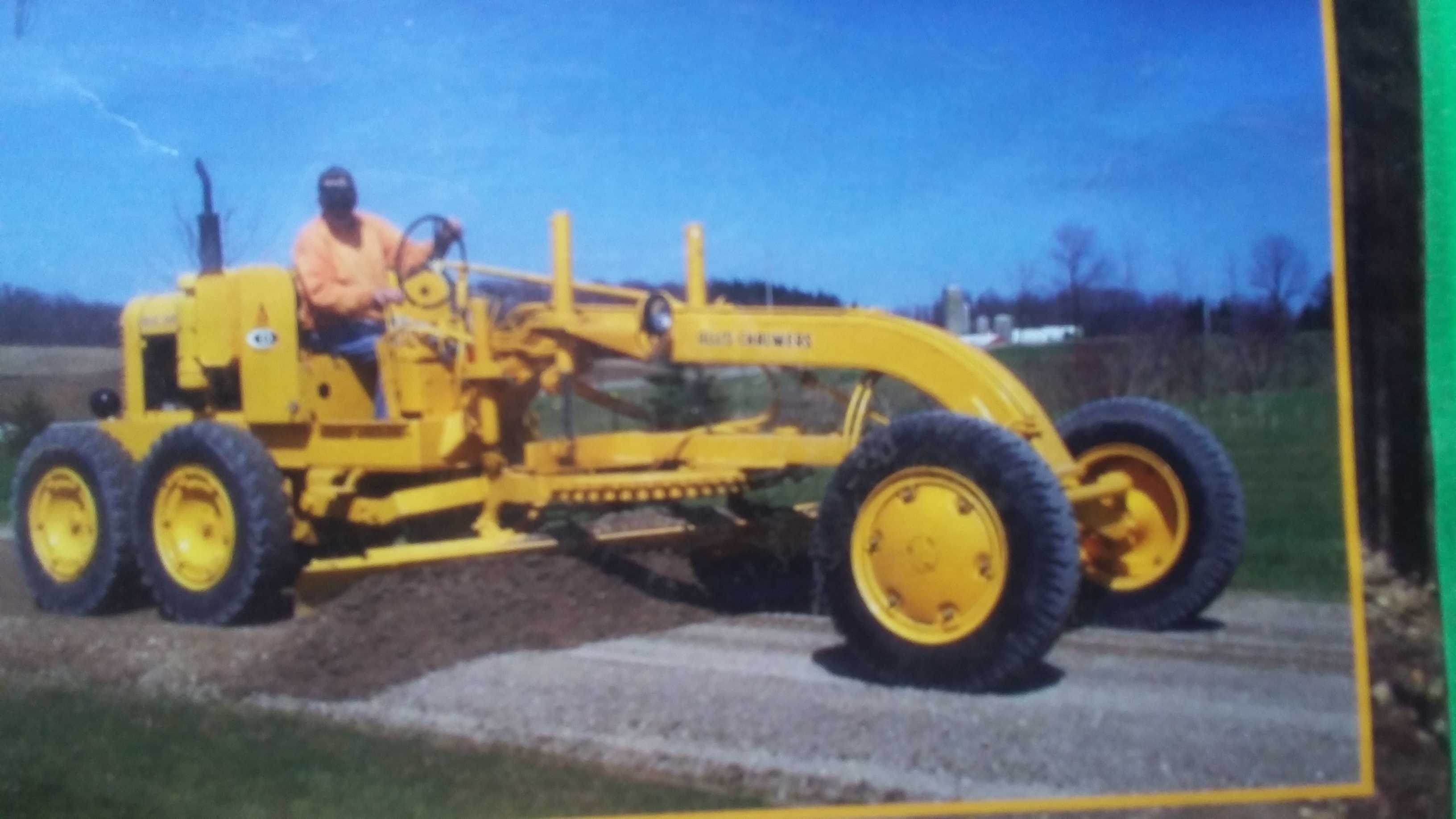

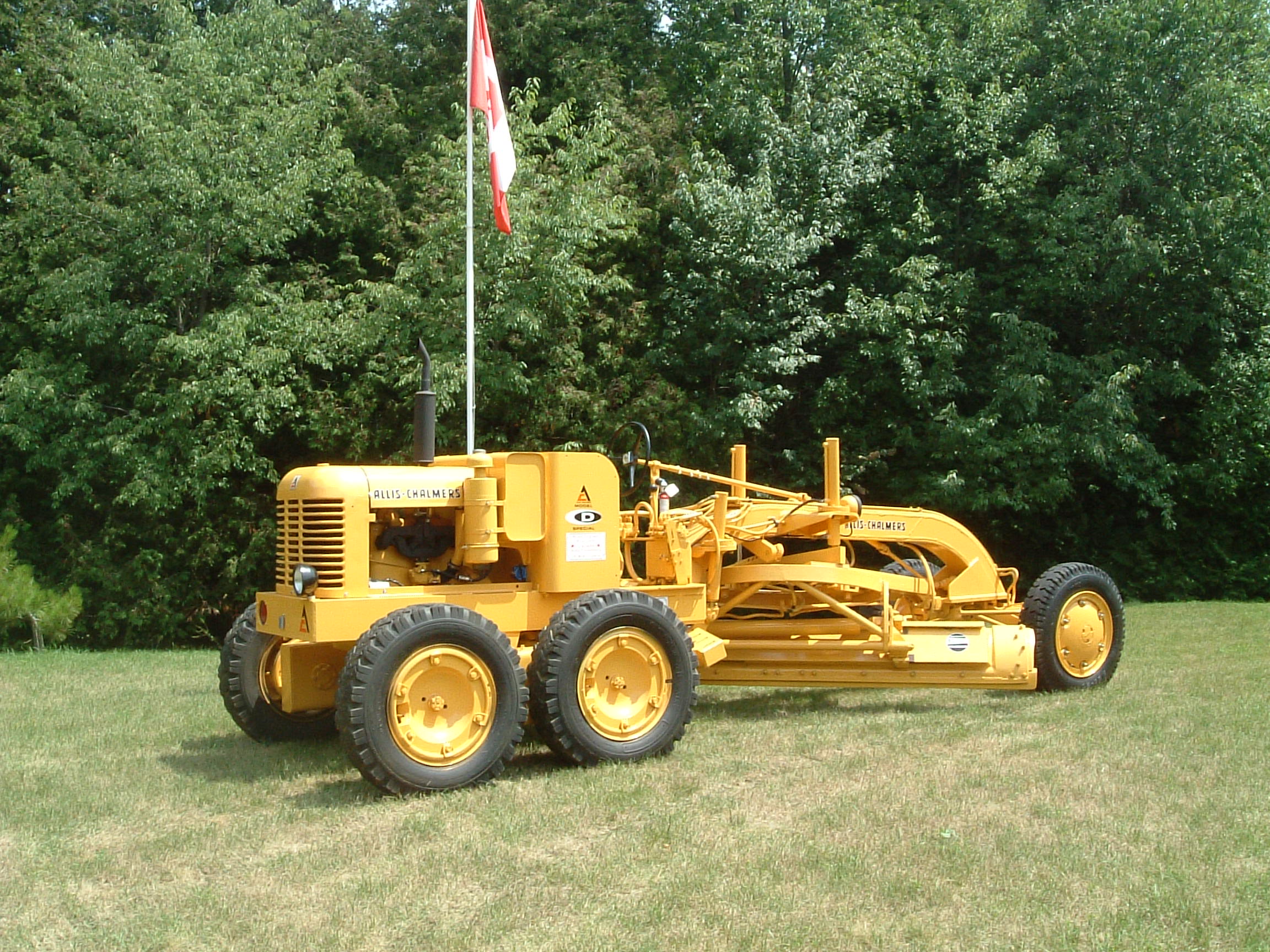

Hi Walter. I am currently away from my shop for a couple of days. I will be able to look up some information when I get back home. I believe that your grader would have originally had a 201 engine. The first years would have been orange in colour. I will get you some information. My grader is a 1967 'D Special'. It came with all the extras, except power steering. Here are pictures. The first picture is with Calvin Schmidt grading a country laneway. The second picture is a laneway grading of a friends 1/2 mi long farm driveway. Ross D.
|
|
Ross D.
Silver Level
Joined: 02 Sep 2013
Location: Erin, Ont.
Points: 338
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Apr 2019 at 3:19pm |
|
History:
Serial # 1547 - 1951 with a 201 WD 35HP.
1953 - W226 engine WD45
1954 - added diesel 6D230 WD45
1958 - G226 gas D17
1958 - 6D262 diesel D17
Mid 1961, the main frame changed from 8" round to a 8" square.
Produced from 1949 to 1971.
In 1971, it became the M65.
Does this help?
Ross D.
|
|
NomoreJohnDeere
Silver Level
Joined: 24 Jul 2017
Location: Missouri Ozarks
Points: 308
|
Post Options
Thanks(0)
Quote Reply
Posted: 29 Apr 2019 at 9:27pm |
|
|
|
HD3
|
|
wn willis
Bronze Level
Joined: 11 Jan 2019
Location: SW MS
Points: 34
|
Post Options
Thanks(0)
Quote Reply
Posted: 14 May 2019 at 1:48pm |
|
Ross, yes. that helps a lot. Thanks. Have you ever changed a rear axle outer oil seal? All four are leaking, one much more than the others. I don`t have a shop manual for the grader yet. Wondering about the level of difficulty, and if I should change the outer bearing at the same time. Any thoughts on this?
|
|
wn willis
Bronze Level
Joined: 11 Jan 2019
Location: SW MS
Points: 34
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 May 2019 at 8:29pm |
|
Ross, that`s a nice looking machine.
|
|
