 Topic: cotton farmall
Posted: 16 Feb 2019 at 8:28am |
|
Not Allis but over on the yesterdays tractors site there is a hi-crop M Farmall for sale that says it was for a cotton stripper. Has 5 reverse gears and one forward. Just thought it was kind of interesting. Anybody know if there were Farmall cotton strippers? Bet Creston does.
|
 |
|
Sponsored Links
|
|
|
TramwayGuy
Orange Level Access
Joined: 19 Jan 2010
Location: Northern NY
Points: 11698
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 8:58am |
|
The 5 reverse/1 forward gear is simple. Just put the differential assembly in upside down so the ring gear is on the other side.
|
|
Fred in Pa
Orange Level
Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 9:40am |
I took this picture at Farmall Land ,in Ia. Son and I took my Dad out there about 10 years . I grew up on Farmalls .
Edited by Fred in Pa - 16 Feb 2019 at 12:13pm
|
|
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
|
|
injpumpEd
Orange Level Access
Joined: 13 Sep 2009
Location: Walnut IL
Points: 5079
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 10:06am |
 TramwayGuy wrote:
The 5 reverse/1 forward gear is simple. Just put the differential assembly in upside down so the ring gear is on the other side. |
I seem to remember those used a drop box final drive like a D17, and that is what reverses the gears direction.
|
|
210 "too hot to farm" puller, part of the "insane pumpkin posse". Owner of Guenther Heritage Diesel, specializing in fuel injection systems on heritage era tractors. stock rebuilds to all out pullers!
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5025
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 10:32am |
The picture Fred shows there are no drop boxes. There were MV tractors that had a drop box on the final drives. Just installing the differential in backwards is all that is needs to change from 5F-1R to 1F-5R to work for a cotten stripper or picker. We did that to a M rear in a modified years ago when we changed the transmission part of the M to driving in the bottom shaft with doubled up 2nd gears behind a blown/injected 440 with an automatic
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8452
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 11:24am |
|
That’s pretty cool. Never seen one in person, but probably because it’s a cotton picker and we live in cotton stripper country.
I believe there is a video of some of those machines working on YouTube .
Edited by CrestonM - 16 Feb 2019 at 11:24am
|
|
Fred in Pa
Orange Level
Joined: 13 Sep 2009
Location: Hanover Pa.
Points: 9210
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 12:17pm |
We also stopped by Griswold ,Iowa this was in a IH collection there . Then we stopped by John Bierbaum Allis Chalmers Museum . Got a good 2 for one stop. there .
|
|
He who dies with the most toys is,
nonetheless ,still dead.
If all else fails ,Read all that is PRINTED.
|
|
irlbeck A-C'S
Orange Level
Joined: 28 Sep 2009
Location: Crestview FL.
Points: 689
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 12:32pm |

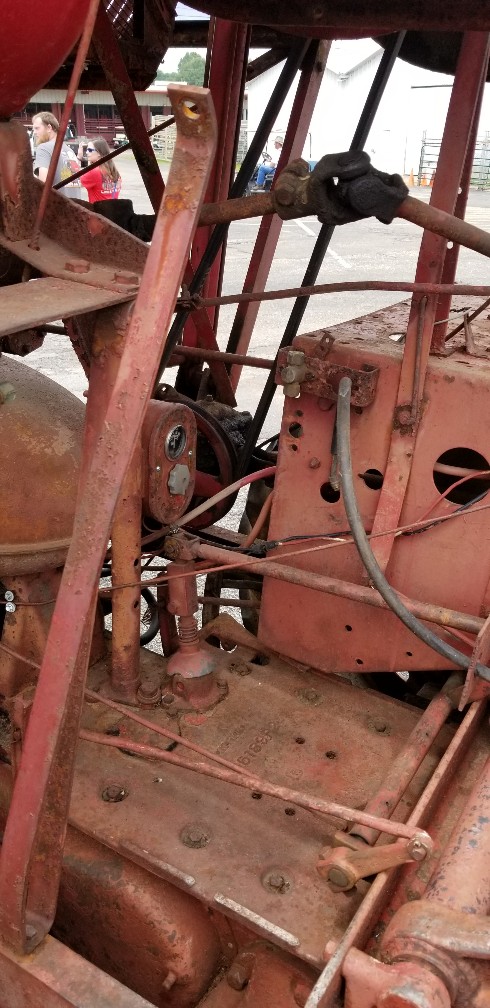

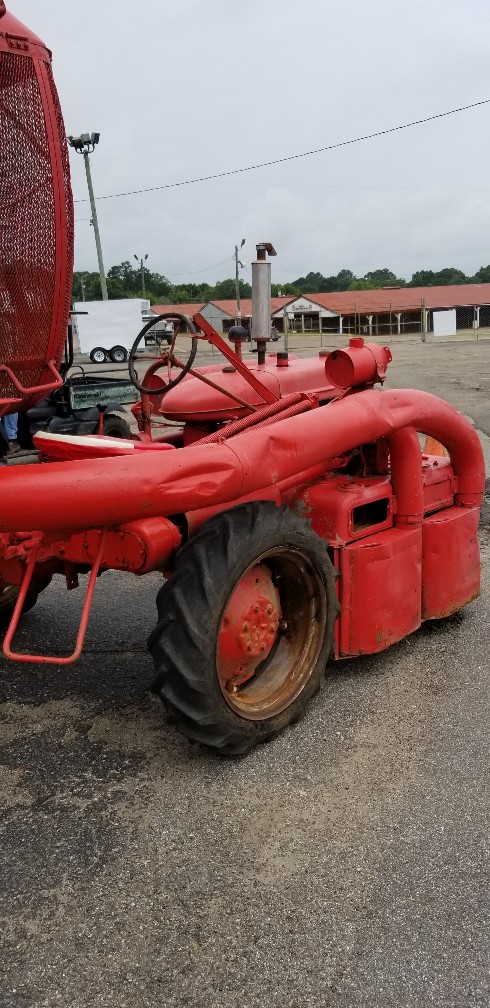

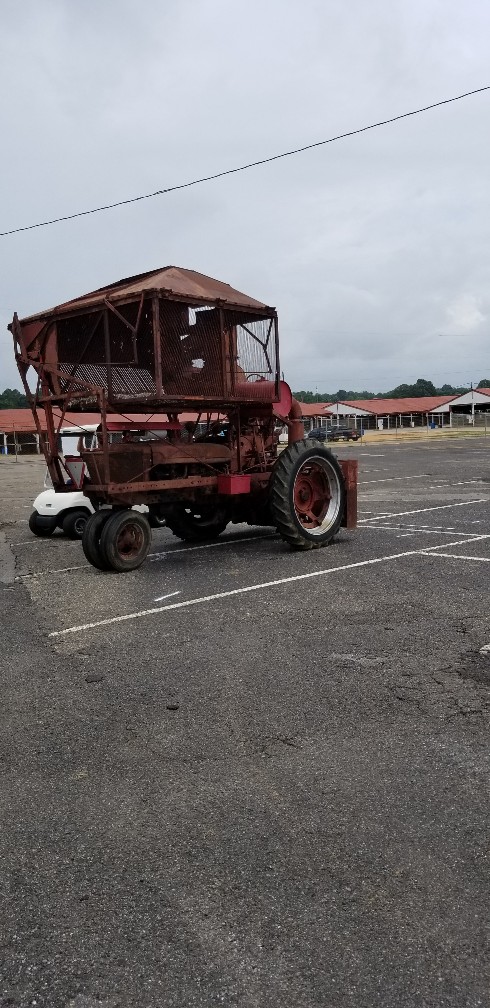

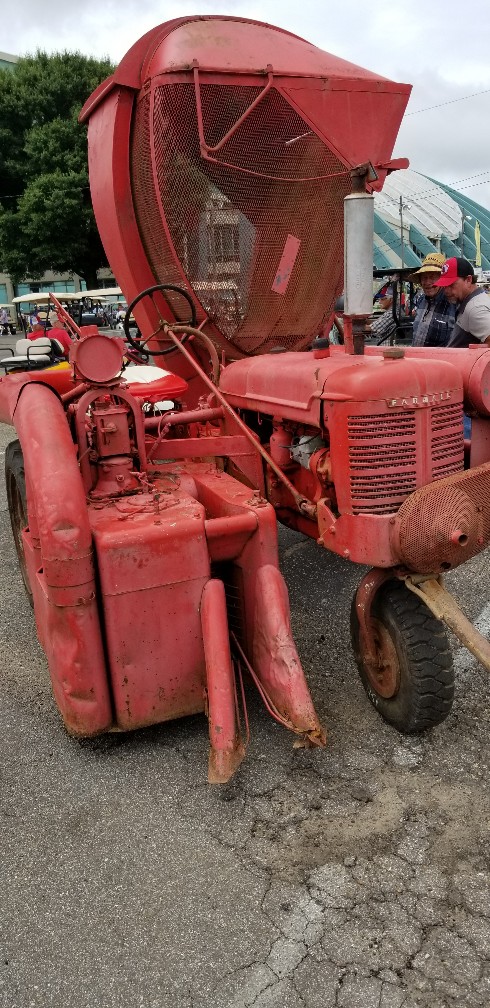

I-H made cotton pickers and strippers. Here are some pics of some pickers from a nearby IH show. They had several pickers at the show.     Prototype B. Suppose to be only 1 made but my friends from N.Alabama said they knew of one near where they lived. The other was an H. I was told by some IH collector friends that the gear shift could be placed in the covered hole to the left of the shifter for direction changes. My uncle has a Picker on a 200 farmall at his place in Iowa. It's a neat little machine.
|
|
B,C,CA,(2)WC's,(4)WD's,(2) WD45'S, 45Diesel, (2)D12'S Series 2, D12 Hiclear,(2)D12 Series 3, HD3, D17NF (3)D17 Series 4 Diesels, M-100 Grader,8550,A few Lawn tractors lots of other AC stuff
|
|
ac hunter
Orange Level
Joined: 05 Jan 2011
Location: OHIO
Points: 1045
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 2:05pm |
|
Thanks for the pictures and info. Never saw any of those.
|
|
CrestonM
Orange Level
Joined: 08 Sep 2014
Location: Oklahoma
Points: 8452
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 2:27pm |
|
I’m not very familiar with the Yesterdays tractors website, but I was unable to find the machine the original poster was referring to. Can anyone provide a link?
|
|
DiyDave
Orange Level Access
Joined: 11 Sep 2009
Location: Gambrills, MD
Points: 53634
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 4:59pm |
|
What's yesterday's tractors?
|
|
chaskaduo
Orange Level
Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Feb 2019 at 5:43pm |
|
|
|
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
|
|
Richardmo
Orange Level Access
Joined: 12 Sep 2009
Location: Rolla mo.
Points: 1746
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Feb 2019 at 8:29pm |
The made Cotton pickers with drop boxes and without. The cotton pickers had gear driven gear boxes. The high clear tractors had chain drive drop boxes,
|
|
SteveM C/IL
Orange Level Access
Joined: 12 Sep 2009
Location: Shelbyville IL
Points: 8547
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Feb 2019 at 11:23pm |
|
while those machines may look crude and awkward,you have to remember from where they came as far as harvesting goes. Beat the HECK out of a bag over your shoulder.
|
|
Gary Burnett
Orange Level Access
Joined: 11 Sep 2009
Location: Virginia
Points: 3046
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Feb 2019 at 5:15am |
I had part of a cotton picker one time that was built from a D17 they run backwards,had a reverser so it had 4 forward and 4 reverse gears.Came from Eastern NC they were pretty common at one time.
|
|
Ray54
Orange Level Access
Joined: 22 Nov 2009
Location: Paso Robles, Ca
Points: 4697
|
Post Options
Thanks(0)
Quote Reply
Posted: 18 Feb 2019 at 3:09pm |
Not that I have been around cotton pickers other than a in the "experienced  tractor parts" place I use to visit often. Out here 100% pickers but about all red or green but this was a ALL COLORS place that had ag, industrial,and construction but never any AC cotton pickers.
Also never any with the tractor driving froward like the picture here. So would agree that has to be a rare model.
