 Topic: corn planter mid mount ca
Posted: 19 Mar 2011 at 2:56pm |
|
|
 |
|
Sponsored Links
|
|
|
FloydKS
Orange Level
Joined: 12 Sep 2009
Location: S E Kansas
Points: 7978
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 3:00pm |
|
and the answer is...................
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 7:16pm |
Need some help iding planters mounted on ca
|
|
wkpoor
Orange Level
Joined: 25 Apr 2010
Location: Amanda, OH
Points: 825
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 8:35pm |
|
I have one. And its one of only 2 I have ever seen. Was lucky enough to find it here on this forum.......Thanks Larry!!!
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 8:57pm |
|

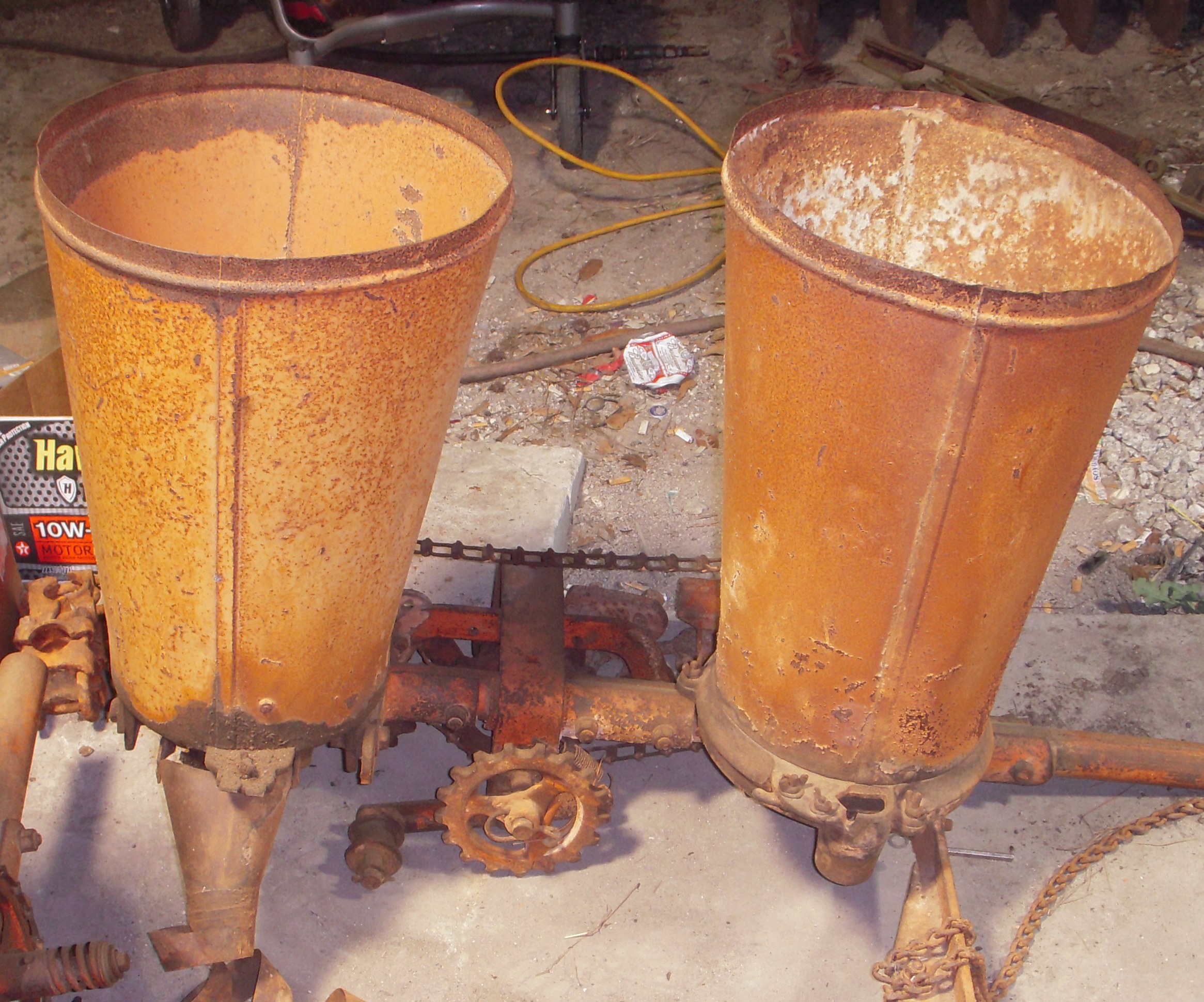

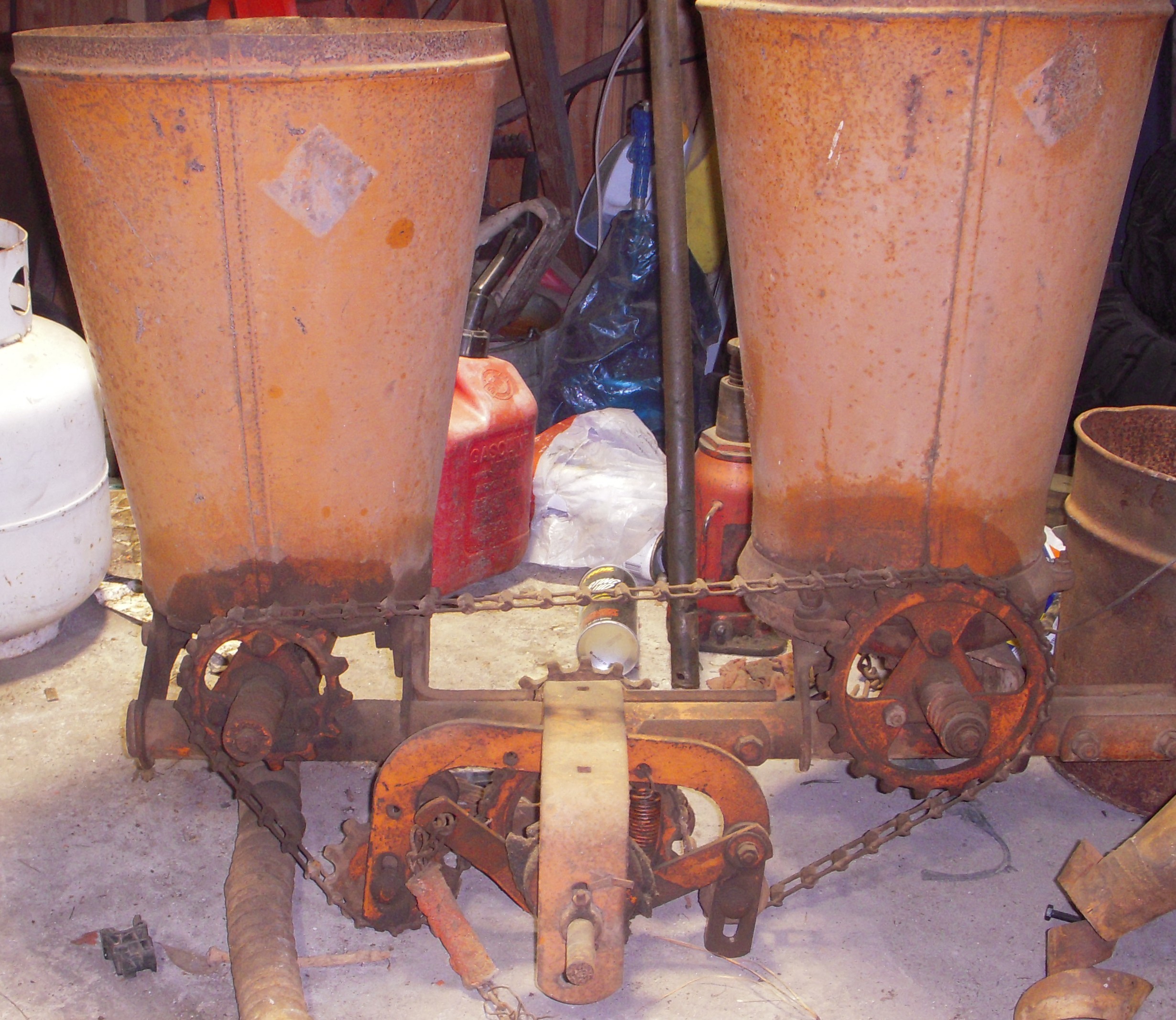

I'm looking for the model # of these planters. they mount on the torque housing and drive off of the rear tires. Fert and seed hoppers are 18" to 24" high. need help
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 9:15pm |
|
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 9:44pm |
|
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 9:55pm |
|
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 9:56pm |
|
MODEL # ????????? Can anybody help on ID
|
|
JimWenigOH
Orange Level
Joined: 12 Sep 2009
Location: NC Ohio
Points: 1153
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 10:07pm |
|
Dan, I believe what you have is a "Side Dresser Attachment" that mounts on the CA cultivator. and was used to apply fertilizer to the crop while cultivating. I have the manual showing it mounted that way. The manual is Allis-Chalmers Form TM-54.
|
|
JimWenigOH
Orange Level
Joined: 12 Sep 2009
Location: NC Ohio
Points: 1153
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 10:35pm |
|
Dan, Check out eBay item 180631934886. It is a manual for a Mid Mount Planter for the WD tractor.
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 10:37pm |
|
Its a little more than that a side dress has only on hopper as far as I know. But I have only seen one of this in pictures. The one is fert. but the other is for seed. they are both the same height. where I got said his G-dad used it to plant corn and cotton but he knew no more about it.
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 19 Mar 2011 at 10:44pm |
|
The post on ebay looks close but will it still drive off the rear axles on a wd???????????
|
|
JimWenigOH
Orange Level
Joined: 12 Sep 2009
Location: NC Ohio
Points: 1153
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Mar 2011 at 6:47am |
I learned something today! I didn't know a "Front Mounted Planter" was made for the CA. I got to looking through my manuals and found the "Dealers Parts Catalog" for it. It has the parts listing for the A-C B, CA, and WD Front Mount Planters and Side Dressers. The WD also drives off the rear wheel. To answer your origional ID question, this planter as far as I can see is simply listed as the "CA Planter". You can buy the Parts Manual, Form D-16 at eBay number 300447000803.
|
|
wkpoor
Orange Level
Joined: 25 Apr 2010
Location: Amanda, OH
Points: 825
|
Post Options
Thanks(0)
Quote Reply
Posted: 20 Mar 2011 at 8:41am |
|
I said in my post that I have one Jim. Only one 2 I have ever seen. There was a guy in Texas last yr trying to sell a tractor with one on it. I wanted it real bad but Texas in along way from Ohio and it would have cost more to get than it was worth.
Dan, Its simply called a Front Mount Planter, no model # just like the Rear Mounted Planter has no number also.
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2011 at 4:12am |
|
thanks everyone for your help!!!!!!!! I think I got the answer I was looking for.
|
|
Murph-NC
Orange Level
Joined: 11 Sep 2009
Location: Western NC
Points: 797
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2011 at 8:41am |
|
Dan, did you happen to get those in NC? I've seen a similar listing on CL, just didn't occur to me what it was.
|
|
'41 C w/Woods L503 mower, #3 mower, 2-way plows for C
|
|
Dan SC
Bronze Level
Joined: 19 Mar 2011
Location: conway,SC
Points: 13
|
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2011 at 11:04am |
|
No got them from Anderson S.C.
|
|
