choke rod to carburetor connection on B
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
armorton View Drop Down
Bronze Level
Bronze Level


Joined: 24 Apr 2018
Location: New Haven, VT
Points: 9 		Post Options Post Options   Thanks (0) Thanks(0)   Quote armorton Quote  Post ReplyReply Direct Link To This Post Topic: choke rod to carburetor connection on B
    Posted: 24 Apr 2018 at 9:35am

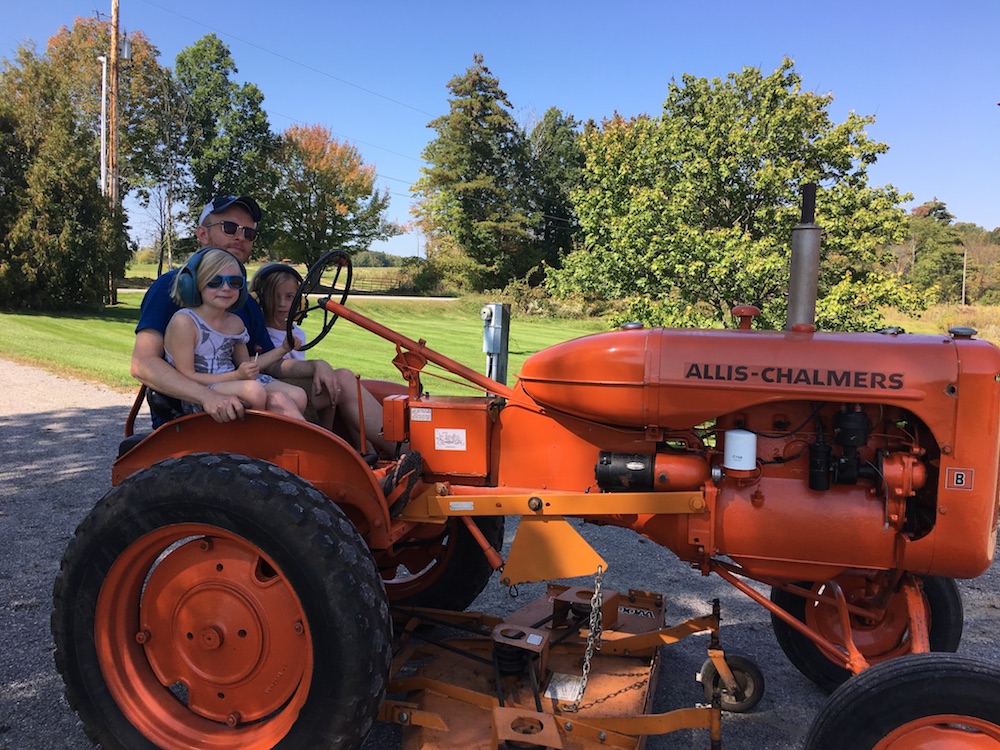

Hey folks - new to the forum and trying to work out a few bugs on my B. I inherited it from my dad who, sometime in the 1960s, combined a 1939 B with a 1949 C or CA engine and transmission.

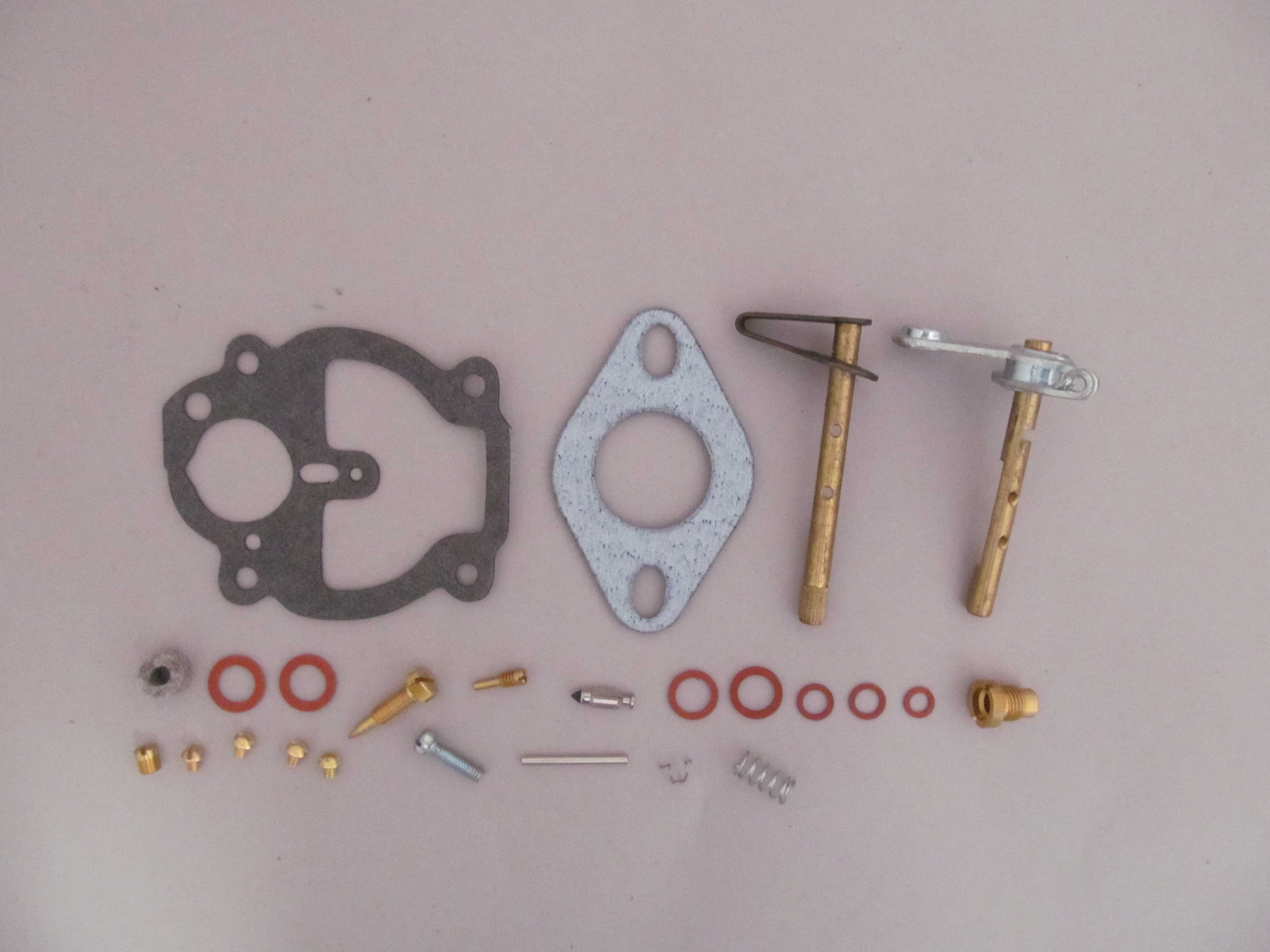

The Zenith carburetor had a broken connection to the choke rod. I rebuilt the carburetor and the replacement shaft, shown 2nd from the right is not the same as the original. Do you know what part connects this to the choke rod? Or did I order the wrong kit? Everything else from the kit worked perfectly.
Back to Top
Sponsored Links


Back to Top
wbecker View Drop Down
Orange Level
Orange Level
Avatar

Joined: 29 Oct 2009
Location: STL
Points: 837 		Post Options Post Options   Thanks (0) Thanks(0)   Quote wbecker Quote  Post ReplyReply Direct Link To This Post Posted: 24 Apr 2018 at 9:50am
A choke lever should attach to the choke shaft (Second from the right) with a pin.
So if the carb did not have a choke lever on the shaft, you need to find a choke lever to put on it.
Allis B, IB, Low B, G, D10, JD M, 8KCAB, C152
Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3804 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Apr 2018 at 10:41am
you will have to remove that part from your old choke shaft it does not come in the kit.  I just did this a few months ago
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15
Back to Top
armorton View Drop Down
Bronze Level
Bronze Level


Joined: 24 Apr 2018
Location: New Haven, VT
Points: 9 		Post Options Post Options   Thanks (0) Thanks(0)   Quote armorton Quote  Post ReplyReply Direct Link To This Post Posted: 24 Apr 2018 at 10:43am
The old part was broken, so I couldn't use it anyway. Any idea where I can get one?
Back to Top
CAL(KS) View Drop Down
Orange Level
Orange Level


Joined: 18 Sep 2009
Location: Chapman, KS
Points: 3804 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CAL(KS) Quote  Post ReplyReply Direct Link To This Post Posted: 24 Apr 2018 at 11:12am
Try Steve @ http://www.bb-customcircuits.com/
or someone on here may have a used shaft you could buy for the part
Me -C,U,UC,WC,WD45,190XT,TL-12,145T,HD6G,HD16,HD20

Dad- WD, D17D, D19D, RT100A, 7020, 7080,7580, 2-8550's, 2-S77, HD15
Back to Top
txtractorguy View Drop Down
Bronze Level
Bronze Level


Joined: 02 May 2016
Location: TX
Points: 23 		Post Options Post Options   Thanks (0) Thanks(0)   Quote txtractorguy Quote  Post ReplyReply Direct Link To This Post Posted: 24 Apr 2018 at 12:02pm
The choke shaft needs a lever on it as shown in this picture.
Back to Top
