 Topic: ca hydralic oil
Posted: 15 Jan 2024 at 1:03pm |
|
I added a loader to my CA and a 6 ft. back blade. My question is do I raise both items to the max and then top off the oil level.
|
 |
|
Sponsored Links
|
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87853
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jan 2024 at 1:10pm |
|
normally you fill with both implements setting on the ground in the rest position... Operated them both up and down to make sure the cylinders are purged of air.. then set on ground and fill.
|
|
Like them all, but love the "B"s.
|
|
jaybmiller
Orange Level Access
Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24693
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jan 2024 at 1:15pm |
hmm, my D-14 says to raise it up THEN check the level...... it's stamped on the measuring stick.... see, guys DO read somethings, sometimes !!!!
|
|
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)
Never burn your bridges, unless you can walk on water
|
|
rilenz
Bronze Level
Joined: 23 Dec 2022
Location: WI
Points: 67
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jan 2024 at 1:38pm |
|
it makes sense to me to have hydralics rested other wise where would the extra oil go
|
|
Codger
Orange Level
Joined: 23 Dec 2020
Location: Utopia
Points: 2458
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jan 2024 at 1:48pm |
|
I've seen it both ways myself. Many times on tractor implements they want the cylinders fully stroked and the reservoir level brought to the marks. Seems backwards to me unless they are sizing the reservoir just large enough for the purpose in space constraints.
|
|
That's All Folks!
|
|
PaulB
Orange Level
Joined: 12 Sep 2009
Location: Rocky Ridge Md
Points: 5105
|
Post Options
Thanks(0)
Quote Reply
Posted: 15 Jan 2024 at 1:53pm |
If you had the operators manual for the CA tractor, you would find it reads: Have the tractor rams Extended and the Loader Bucket Resting on the ground. Fill Hydraulic system to the FULL mark on the bayonet gauge and then add ONE extra quart of oil.
For any piece of equipment that you wish to operate and care for correctly, you should have an owners manual.
|
|
If it was fun to pull in LOW gear, I could have a John Deere.
Real pullers don't have speed limits.
If you can't make it GO... make it SHINY
|
|
rilenz
Bronze Level
Joined: 23 Dec 2022
Location: WI
Points: 67
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2024 at 8:16am |
|
I do have a couple CA manuel but did not see that part so I thought I would check here did'nt mean to bother you
|
|
AC WD45
Orange Level
Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2060
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2024 at 9:23am |
 rilenz wrote:
I do have a couple CA manuel but did not see that part so I thought I would check here did'nt mean to bother you |
You're not bothering anybody. Some of the old cogers claround here can be quite testy. They seem to forget we were all new to equipment at one time or another and they seem to think they need to get all fired up at new guys. And seem to forget, some of these old manuals, especially for loaders can be extremely hard to find after 60+ years. Get yourself a manual and read it thoroughly, and don't let anyone scare you away from asking a question.
|
|
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
|
|
AC WD45
Orange Level
Joined: 28 Sep 2009
Location: Mid Michigan
Points: 2060
|
Post Options
Thanks(1)
Quote Reply
Posted: 16 Jan 2024 at 9:26am |
PaulB wrote:
If you had the operators manual for the CA tractor, you would find it reads: Have the tractor rams Extended and the Loader Bucket Resting on the ground. Fill Hydraulic system to the FULL mark on the bayonet gauge and then add ONE extra quart of oil.
For any piece of equipment that you wish to operate and care for correctly, you should have an owners manual. |
Yep, that's right Paul, everyone has or knows where to get owners manuals for attachments most people scrapped 20 years ago. Good grief, I don't think the additude is necessary. Give the guy a break.
Edited by AC WD45 - 16 Jan 2024 at 9:26am
|
|
German Shepherd dad
1957 Allis Chalmers WD45
#WD234847
1951 Allis Chalmers WD
#WD88193
|
|
steve(ill)
Orange Level Access
Joined: 11 Sep 2009
Location: illinois
Points: 87853
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2024 at 9:28am |
|
|
|
Like them all, but love the "B"s.
|
|
dfwallis
Orange Level
Joined: 09 Mar 2023
Location: DFW
Points: 810
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2024 at 12:32pm |
|
I don't have any documentation for a loader, but the base manual says to check oil with the lift arms extended (top it off). It also says that on the dip stick.
|
|
1952 CA13092
|
|
rilenz
Bronze Level
Joined: 23 Dec 2022
Location: WI
Points: 67
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2024 at 6:10pm |
|
Thanks for the info everybody
|
|
wjohn
Orange Level
Joined: 19 Jan 2010
Location: KS
Points: 2214
|
Post Options
Thanks(0)
Quote Reply
Posted: 16 Jan 2024 at 9:38pm |

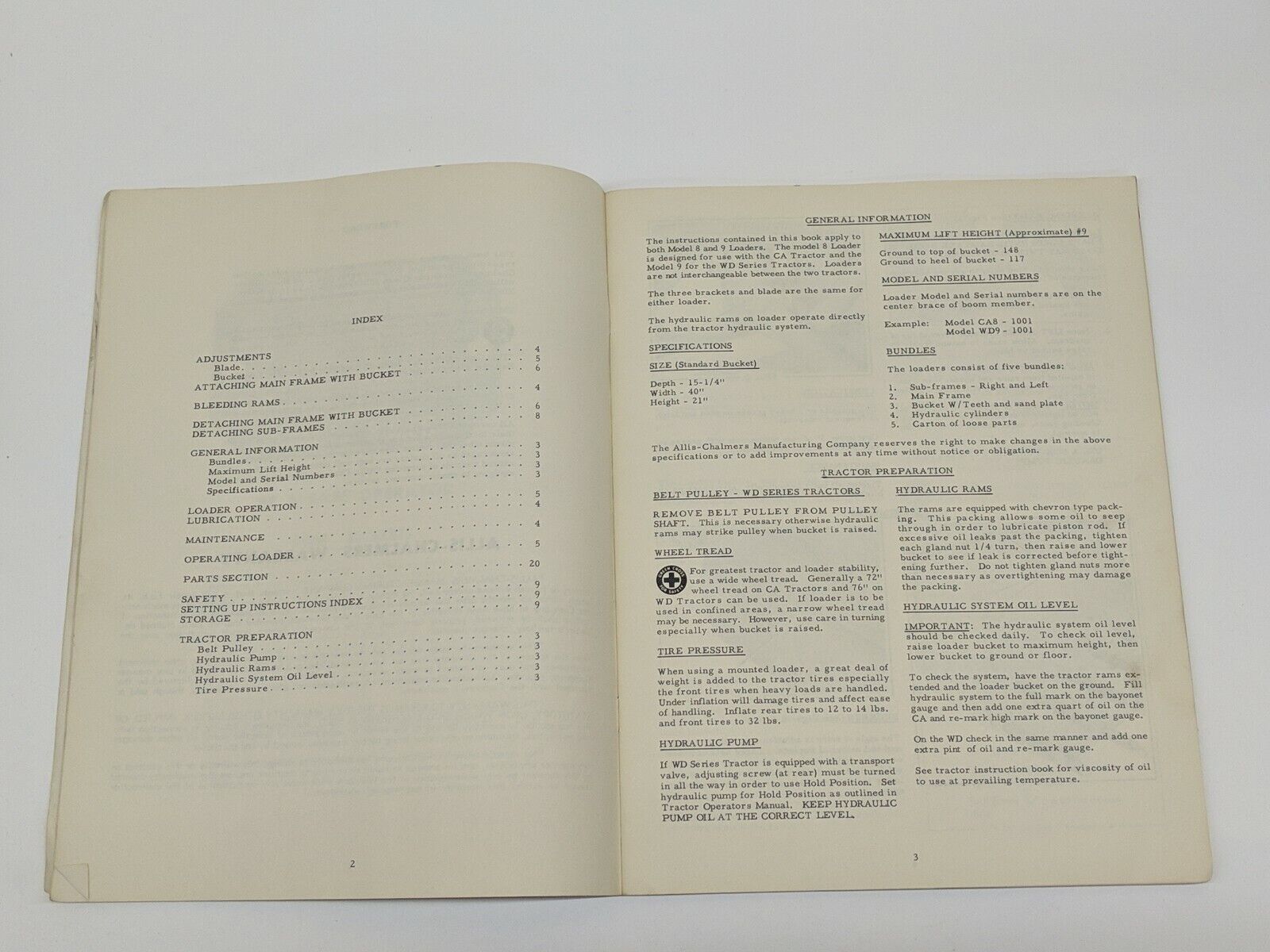

This is one revision of the manual for a CA8 loader.
|
|
1939 B, 1940 B, 1941 WC, 1951 WD, 1952 CA, 1956 WD-45
|
|
MadCow
Bronze Level
Joined: 27 Aug 2023
Location: South Dakota
Points: 124
|
Post Options
Thanks(0)
Quote Reply
Posted: 17 Jan 2024 at 8:55pm |
I have a loader on my D15. I raise all my arms up, bucket as high as it'll go. (Like 48" stroke in 1 1/2" bore) and fill to the bottom line. Then drop it all to the bottom. Usually get a little coming out the fill of I use it hard right away. And the leaks in the system usually set it right soon enough and I'm off to the races.
|
|
