C vs. CA
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22824 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Topic: C vs. CA
    Posted: 30 Aug 2019 at 7:59pm

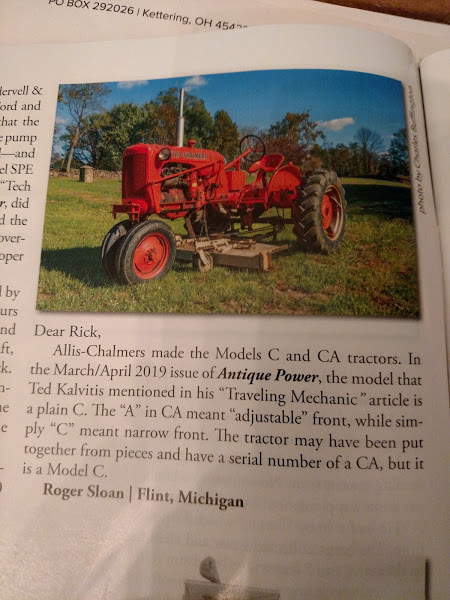

I was reading the newest Antique Power this morning and saw this ill informed opinion printed. Seems there should be a delete button for Facts that aren't facts when they are printed.
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
Sponsored Links


Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 87322 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 30 Aug 2019 at 8:07pm
why would Antique Power publish something like that without Checking first ?? ......... and you wonder where some idiots get their info.
Like them all, but love the "B"s.
Back to Top
JW in MO View Drop Down
Orange Level
Orange Level
Avatar

Joined: 16 Feb 2010
Location: South KC Area
Points: 2662 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JW in MO Quote  Post ReplyReply Direct Link To This Post Posted: 30 Aug 2019 at 8:18pm
Evidently opinion overrules facts anymore.
Maximum use of available resources!
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8454 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 30 Aug 2019 at 8:37pm
Wacko That's absurd....
I do wonder what the "A" in CA really designates.
Back to Top
JohnCO View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: Niwot Colo
Points: 8992 		Post Options Post Options   Thanks (0) Thanks(0)   Quote JohnCO Quote  Post ReplyReply Direct Link To This Post Posted: 30 Aug 2019 at 9:53pm
I saw that letter yesterday.  Was thinking someone should write a letter back.  I have a CA just like the one in the picture.  Other then the 4 speed and 2d clutch, what differences are there between a C and CA?

Creston, the A stands for AWESOME!



Edited by JohnCO - 30 Aug 2019 at 9:54pm
"If at first you don't succeed, get a bigger hammer"
Allis Express participant
Back to Top
CrestonM View Drop Down
Orange Level
Orange Level
Avatar

Joined: 08 Sep 2014
Location: Oklahoma
Points: 8454 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CrestonM Quote  Post ReplyReply Direct Link To This Post Posted: 30 Aug 2019 at 10:00pm
Haha, good one, John!
CA also has power shift rear wheels.
Back to Top
Alberta Phil View Drop Down
Orange Level
Orange Level
Avatar

Joined: 13 Sep 2009
Location: Alberta, Canada
Points: 3908 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Alberta Phil Quote  Post ReplyReply Direct Link To This Post Posted: 30 Aug 2019 at 10:05pm
Just send Rick an e-mail pointing out the correct info.
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 4:47am
Snap coupler available on CA too.
Back to Top
jaybmiller View Drop Down
Orange Level Access
Orange Level Access


Joined: 12 Sep 2009
Location: Greensville,Ont
Points: 24586 		Post Options Post Options   Thanks (0) Thanks(0)   Quote jaybmiller Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 5:30am
My CA had a TB guage on the steering column.. it was a '51 I think, had it been a '53 it'd still be here.
3 D-14s,A-C forklift, B-112
Kubota BX23S lil' TOOT( The Other Orange Tractor)

Never burn your bridges, unless you can walk on water
Back to Top
chaskaduo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200 		Post Options Post Options   Thanks (0) Thanks(0)   Quote chaskaduo Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 7:27am
So if I had an adjustable width front end on my B it would be considered a BA, and if I put duallys on the rear also then it's considered a BAD tractor. That's BS or dare I say it "Fake News". LOL
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
Back to Top
CTuckerNWIL View Drop Down
Orange Level
Orange Level
Avatar

Joined: 11 Sep 2009
Location: NW Illinois
Points: 22824 		Post Options Post Options   Thanks (0) Thanks(0)   Quote CTuckerNWIL Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 10:10am
I sent a message right away on facebook and got a reply that the editor would be notified.
 The differences that i can think of are, the tapped bosses in the front pedestal , tapped bosses on the torque tube, Platform under the drivers pan seat, 4 piston(WD) hydraulic pump with Traction boost,(not all CA's had the Snap Couple or TB gauge), magneto only the first couple years of production, power shift rear wheels with different bolt pattern than the C, higher RPM, option of a hand clutch on one rear axle, and what am I forgetting?
http://www.ae-ta.com
Lena 1935 WC12xxx, Willie 1951 CA6xx Dad bought new, 1954WD45 PS, 1960 D17 NF
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 11:08am
Four forward gears.
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 11:52am
The fellow might have see a CA with a narrow front from a C. No difference other than the above stated cultivator bosses. I put a CA narrow front on my C I pulled with to use the bosses to mount weight out front. Think about all the C's that confuse people that have B wide fronts. Not everyone reads these boards as we all do.
Back to Top
Gerald J. View Drop Down
Orange Level
Orange Level


Joined: 12 Sep 2009
Location: Hamilton Co, IA
Points: 5636 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Gerald J. Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 1:10pm
The shop manual that covers G, B, C, and CA will show some factory differences:

http://geraldj.networkiowa.com/Trees/Allis-Chalmers-G-B-C-CA-Service.pdf

Gerald J.
Back to Top
HoughMade View Drop Down
Orange Level
Orange Level
Avatar

Joined: 22 Sep 2017
Location: Valparaiso, IN
Points: 706 		Post Options Post Options   Thanks (0) Thanks(0)   Quote HoughMade Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 8:23pm
‘Course there’s the fact that the CA replaced the C and they were never manufactured at the same time....that little detail.
1951 B
Back to Top
steve(ill) View Drop Down
Orange Level Access
Orange Level Access
Avatar

Joined: 11 Sep 2009
Location: illinois
Points: 87322 		Post Options Post Options   Thanks (0) Thanks(0)   Quote steve(ill) Quote  Post ReplyReply Direct Link To This Post Posted: 31 Aug 2019 at 9:47pm
the final drives on a B and C are bolted on straight up and down with respect to the bolt pattern......... Seems like the CA they are tilted back slightly to give it a longer wheel base ?  Or did I dream that ?  Have not seen a CA for several years.
Like them all, but love the "B"s.
Back to Top
Dick L View Drop Down
Orange Level
Orange Level
Avatar

Joined: 12 Sep 2009
Location: Edon Ohio
Points: 5087 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dick L Quote  Post ReplyReply Direct Link To This Post Posted: 01 Sep 2019 at 12:17pm
Originally posted by steve(ill) steve(ill) wrote:


the final drives on a B and C are bolted on straight up and down with respect to the bolt pattern......... Seems like the CA they are tilted back slightly to give it a longer wheel base ?  Or did I dream that ?  Have not seen a CA for several years.


The bolt pattern is the same for all three. The final drive casting is what sets the rear axles back.
Back to Top
Jordan(OH) View Drop Down
Orange Level
Orange Level


Joined: 11 Sep 2009
Location: Celina, OH
Points: 1561 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jordan(OH) Quote  Post ReplyReply Direct Link To This Post Posted: 02 Sep 2019 at 12:45am
I used to have a CA single front.  Would that be a CS?



Edited by Jordan(OH) - 02 Sep 2019 at 12:50am
Back to Top
DougS View Drop Down
Orange Level
Orange Level
Avatar

Joined: 03 Nov 2011
Location: Iowa
Points: 2490 		Post Options Post Options   Thanks (0) Thanks(0)   Quote DougS Quote  Post ReplyReply Direct Link To This Post Posted: 02 Sep 2019 at 6:50am
WF, NF, single wheel. They were all called a CA. Unlike another tractor manufacturer, AC didn't nit pik names for the same tractor with slightly different options.
Back to Top
Dale (Stonelick) View Drop Down
Bronze Level
Bronze Level
Avatar

Joined: 13 Jun 2019
Location: Stonelick, Ohio
Points: 182 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Dale (Stonelick) Quote  Post ReplyReply Direct Link To This Post Posted: 07 Sep 2019 at 8:23am
I read that there were 10 improvements in model CA over model C: 1-increased HP, 2- improved hydraulics, 3-four speed transmission, 4-heavier axle, 5-draft control, 6-seat shocks, 7-improved hitch, 8-hand clutch, 9-live PTO, 10-spin out wheels.
Back to Top
chaskaduo View Drop Down
Orange Level
Orange Level
Avatar

Joined: 26 Nov 2016
Location: Twin Cities
Points: 5200 		Post Options Post Options   Thanks (0) Thanks(0)   Quote chaskaduo Quote  Post ReplyReply Direct Link To This Post Posted: 07 Sep 2019 at 8:32am
So that would mean you have a CAHPIH4SPHADCSSIHHCLPTOSOW, now put that on the tranny before the serial number. Wink
1938 B, 79 Dynamark 11/36 6spd, 95 Weed-Eater 16hp, 2010 Bolens 14hp
Back to Top
